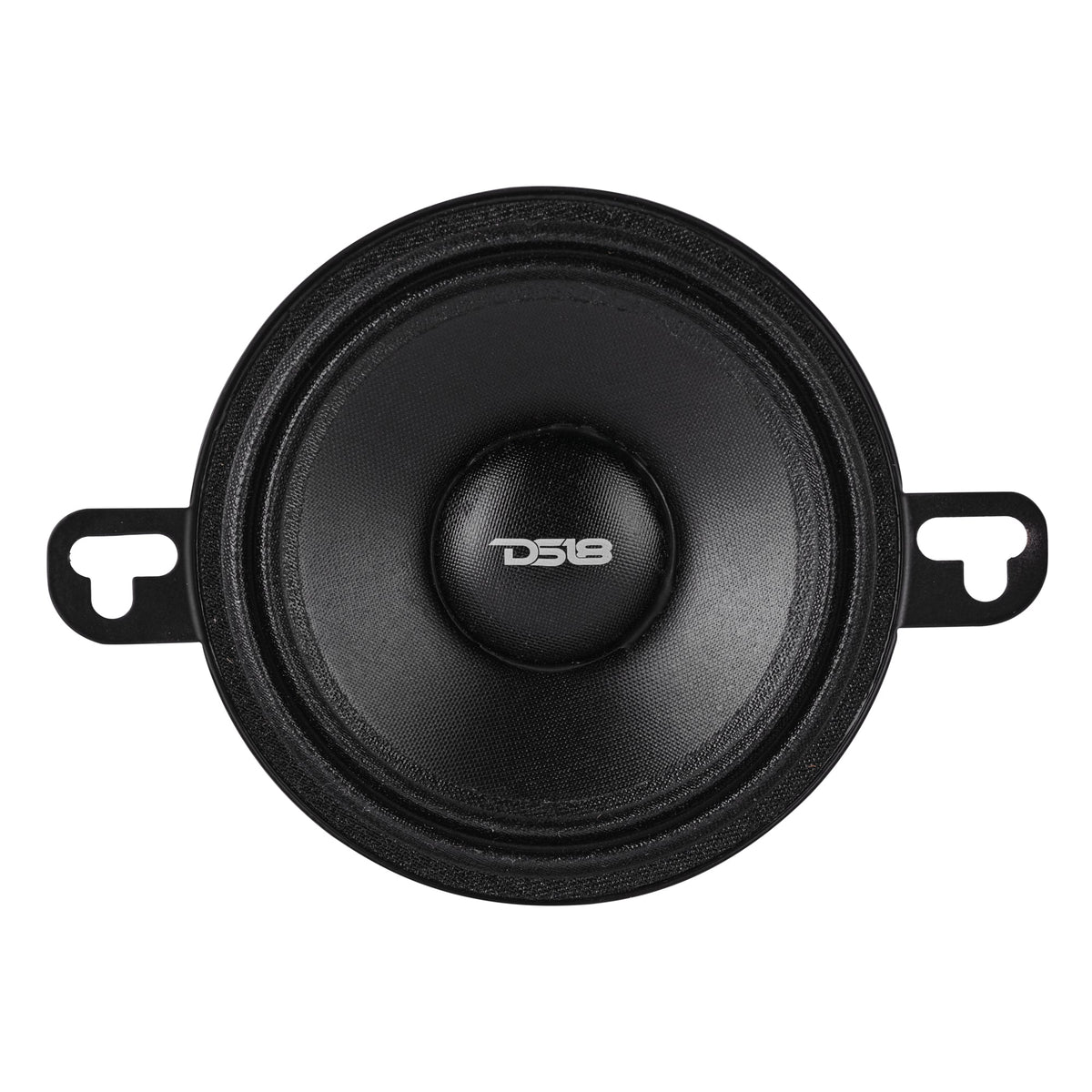

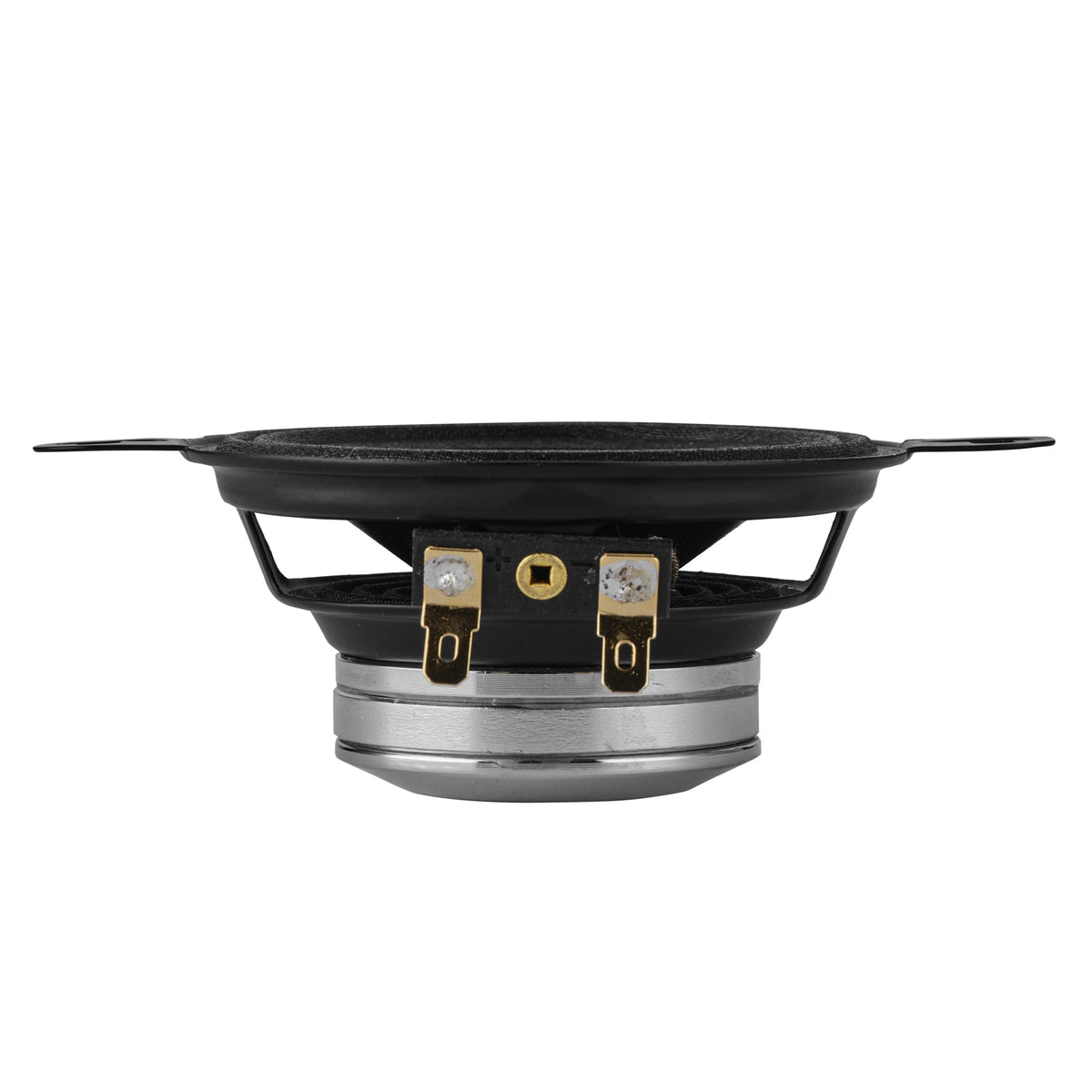

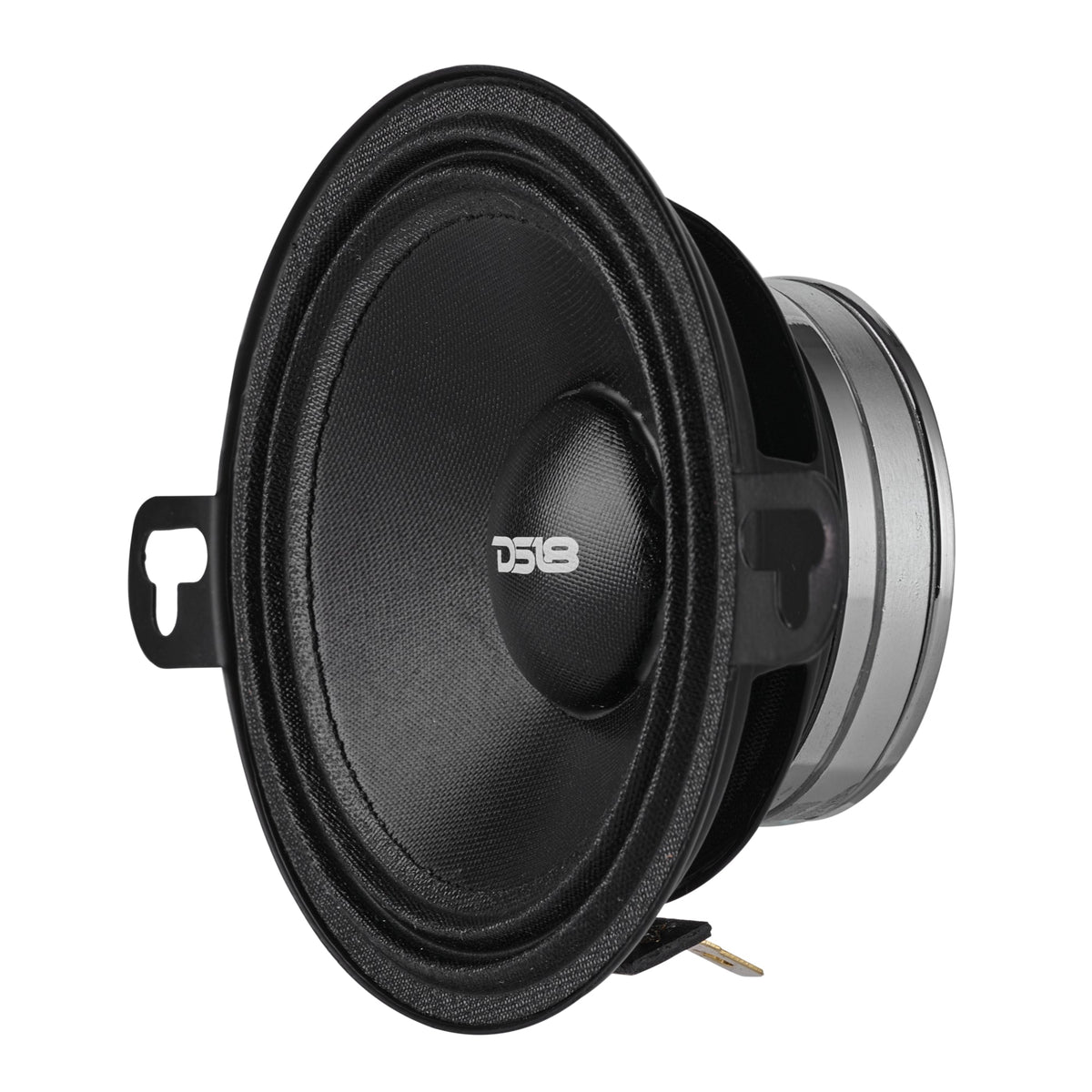

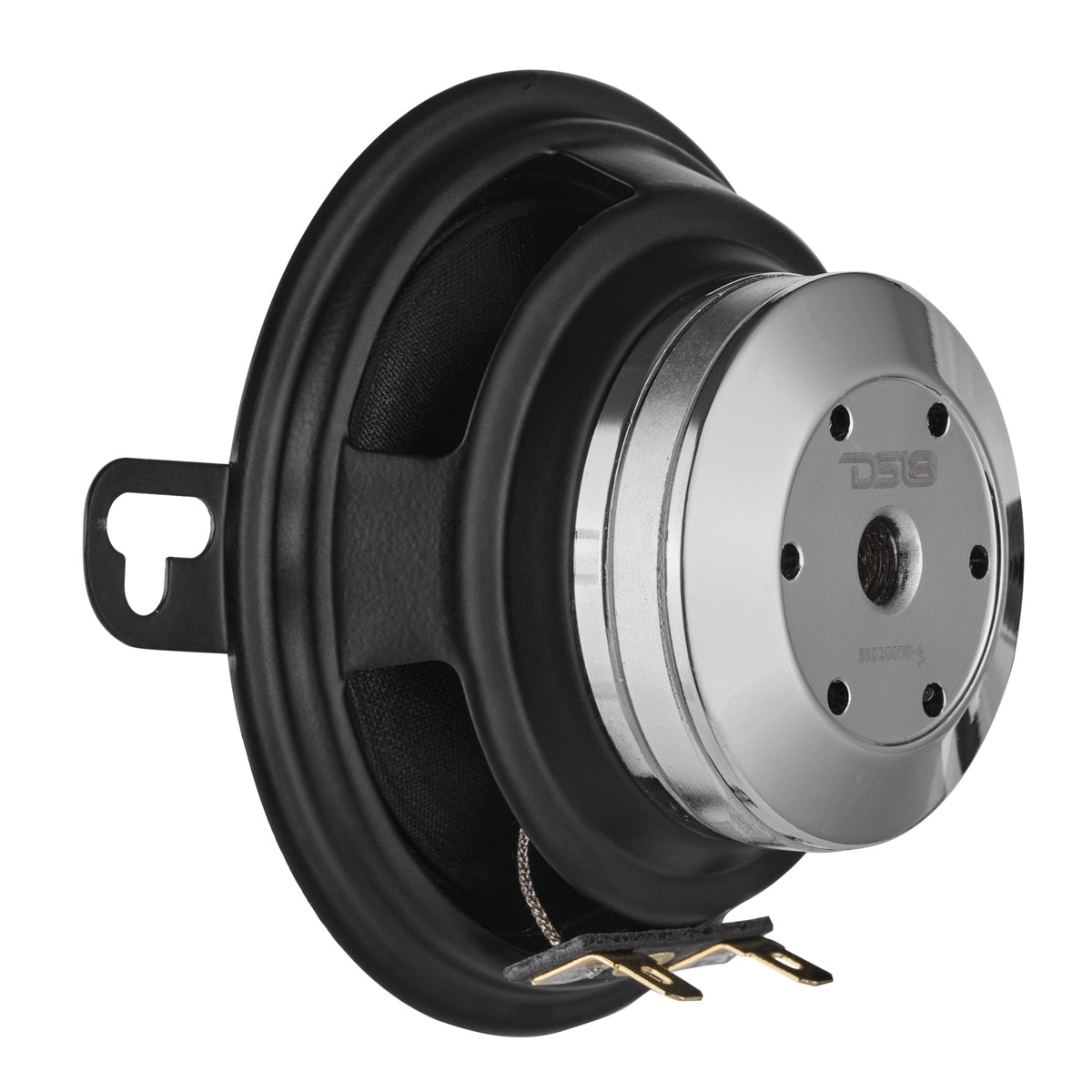

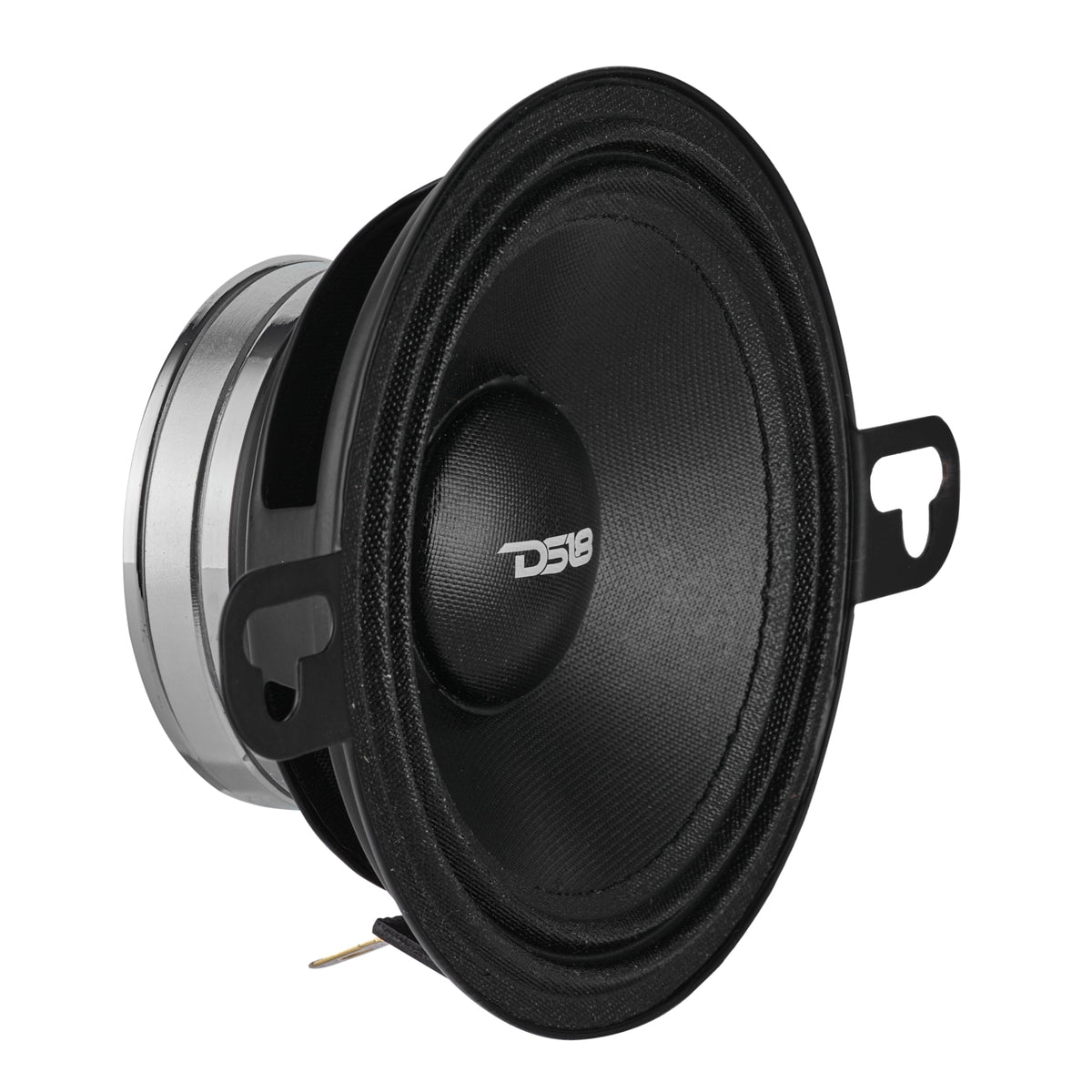

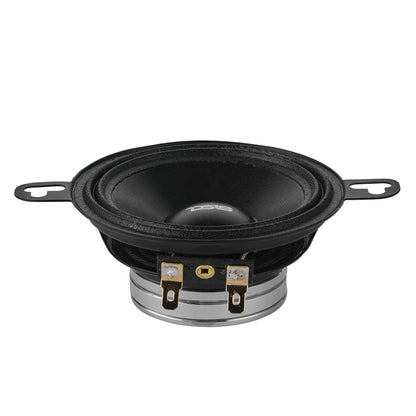

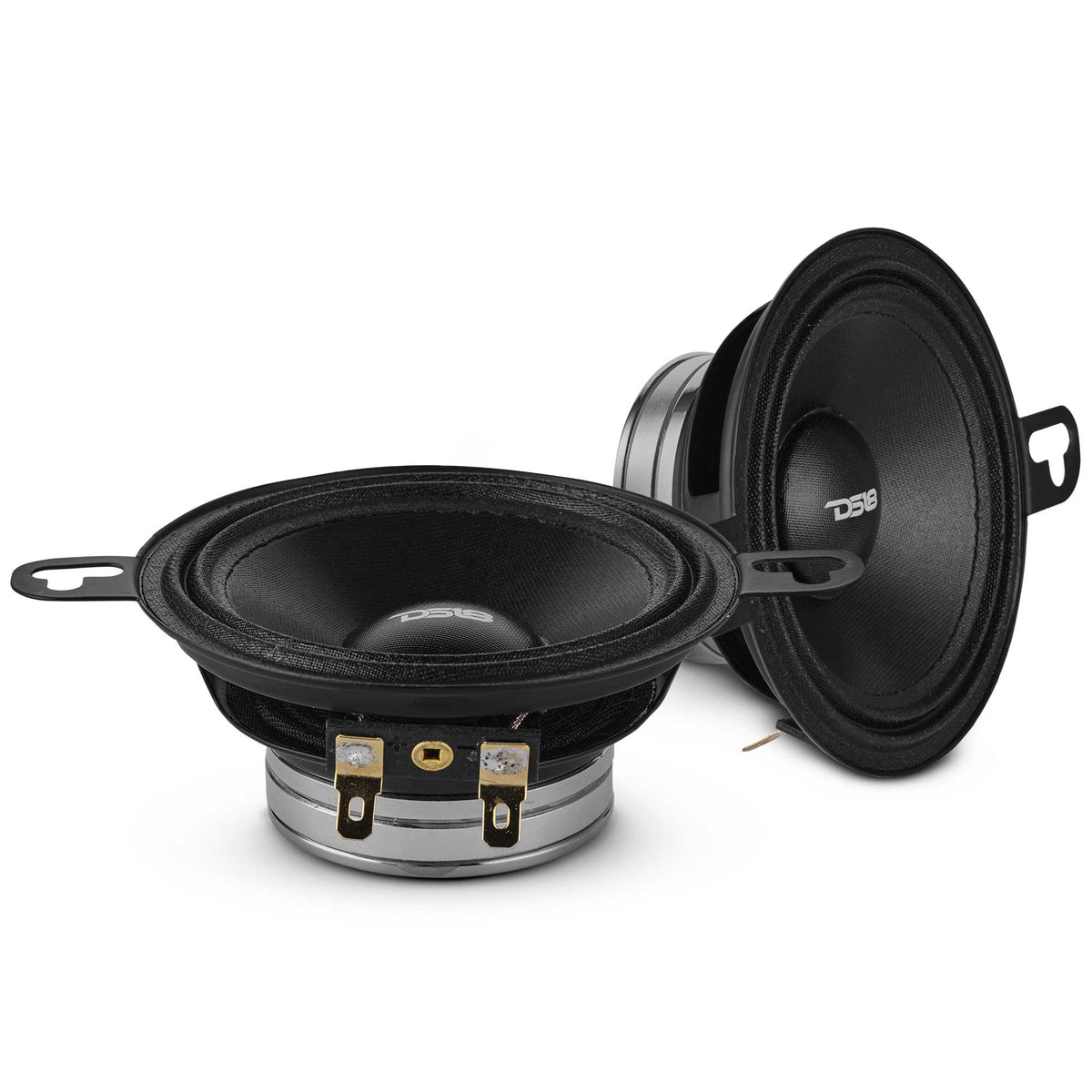

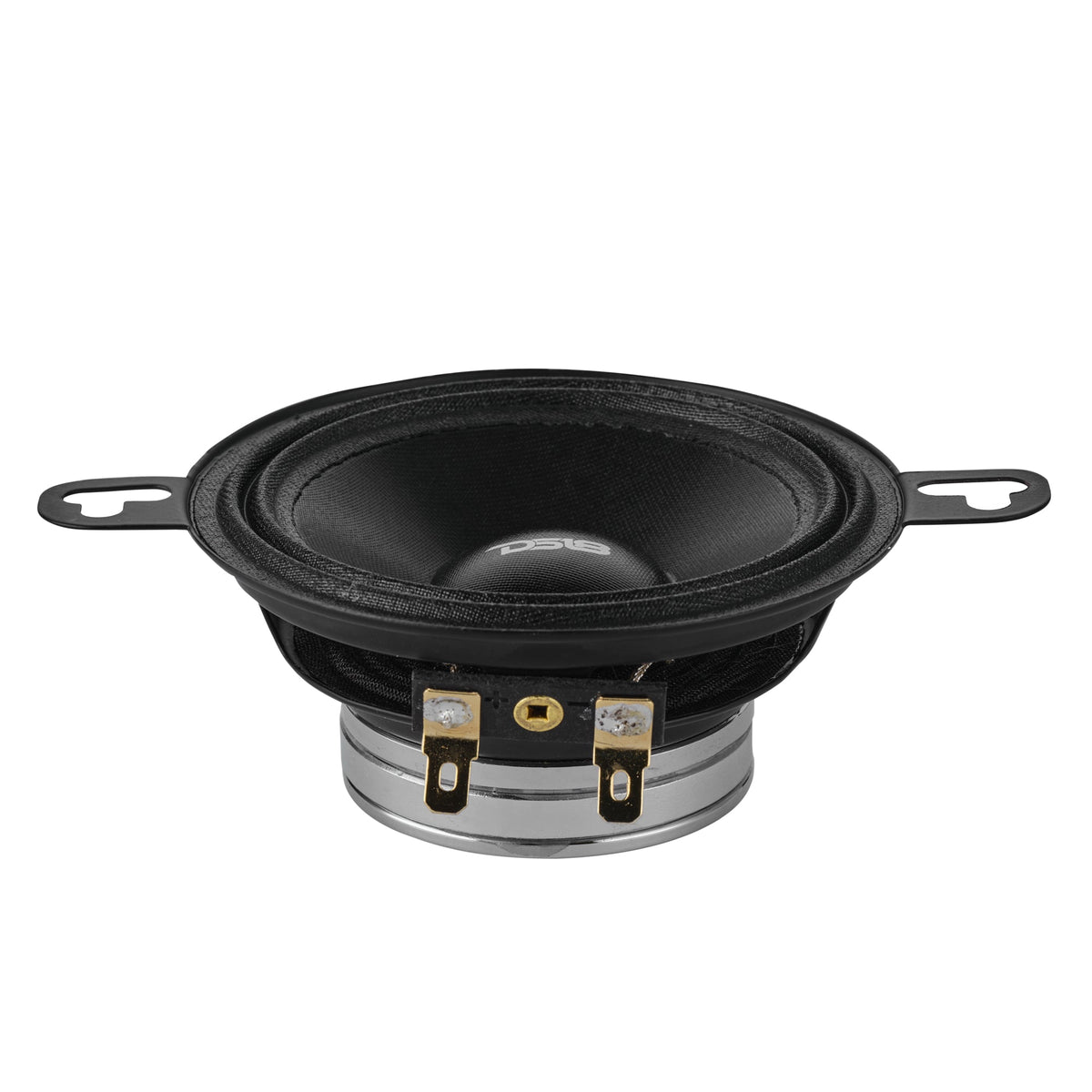

DS18 35D200NO-4 3.5" Full Range

Name: DS18 35D200NO-4 3.5" Full Range
Brand: DS18
Price: 199.95 USD
Availability: OutOfStock

$199.95

Sale Sold out

Free shippingShipping calculated at checkout.

Upgrade your ride with the DS18 35D200NO-4 3.5" Full Range — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

3.5"
100 Watts RMS
4Ohm
Neodymium
Full Range
OEM Fitment

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Pair of DS18 35D200NO-4
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Diameter	3.5"
Power	100 Watts RMS
Impedance	4Ohm
Material	Neodymium
Nominal Diameter	3.5" / 91.5mm
Nominal Impedance	4 Ohms
RMS Power Handling	100W
MAX Power Handling	200W
Sensitivity (1w/1m)	88dB
Frequency Response	120Hz-20Khz
Recommended HI Pass Crossover	160Hz
Sold in Pair or Single	Pair
Improved Heat Dissipation	Yes
Cone Shape	Conic
Speaker Terminals	Spade
Voice Coil Diameter	1" / 25mm
Voice Coil Former Material	TIL
Winding Material	Copper Ribbon
Cone Material	Glass Fiber + Foam Composite with Resin Finish
Dust Cap Material	Glass Fiber + Foam Composite with Resin Finish
Surround Material	Cloth
Leads Connection Type	Direct to Coil
Basket Material	Steel
Basket Color/Finish	Black
Magnet Material	Neodymium
Magnet Weight	1.4 Oz
Equivalent Volume	0.36L / 0.0951ft3
Excursion (one way)	2mm
Free Air Resonance	210Hz
Mechanical Factor	7.51
Electrical Factor	2.22
Total Factor	1.71
Mechanical Mass	4.066g
Mechanical Compliance	0.122mm/N
BL Factor	2.74
Voice Coil Inductance	0.046mH
Cone Area	38.48cm2
DC Resistance	3.77 Ohms
Mechanical Mass w/o air	3.797g
Overall Diameter	3.4" / 86.5mm
Overall Depth	1.65" / 42.1mm
Front Mount Baffle Cutout	3.0" / 78.4mm
Mounting Depth	1.5" / 38.6mm
Motor Diameter	1.96" / 50mm
