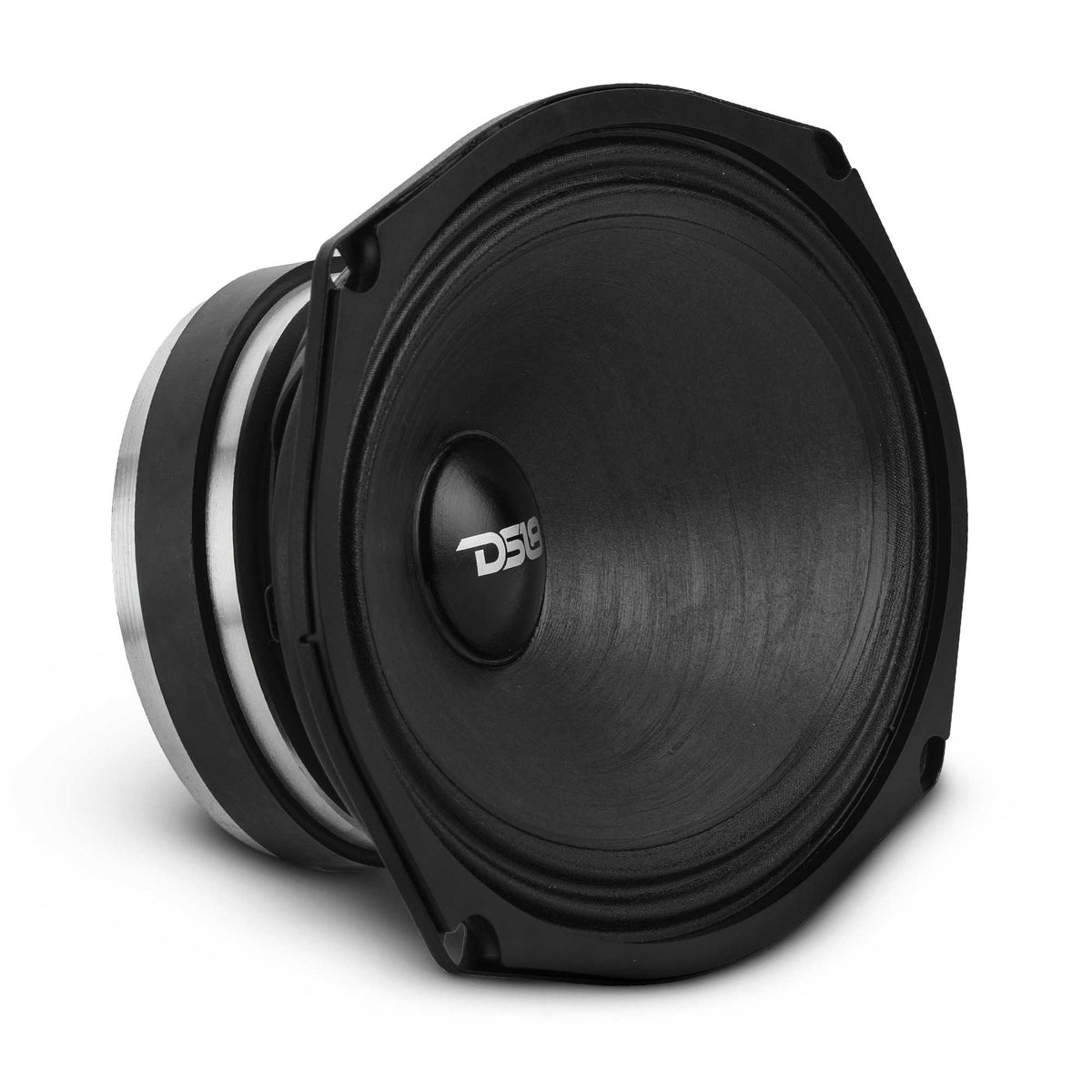

DS18 69PRO300MB-4 6x9" Mid-Bass

Name: DS18 69PRO300MB-4 6x9" Mid-Bass
Brand: DS18
Price: 79.95 USD
Availability: OutOfStock

$79.95

Sale Sold out

Shipping calculated at checkout.

Upgrade your ride with the DS18 69PRO300MB-4 6x9" Mid-Bass — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

6x9"
150 Watts RMS
4Ohm
Mid-Bass
Water- Resistant Cone New PRO MID-RANGE LOUDSPEAKERS

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Piece of DS18 69PRO300MB-4
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Size	6x9"
Power (RMS)	150 Watts
Impedance	4Ohm
Type	Mid-Bass
Cone	Water-Resistant
Nominal Diameter	6x9" / 152x228mm
Nominal Impedance	4 Ohms
RMS Power Handling	150W
MAX Power Handling	300W
Sensitivity (1w/1m)	98dB
Frequency Response	50Hz-12.5kHz
Recommended HI Pass Crossover	80Hz
Sold in Pair or Single	Single
Grill Included	No
Demodulating Rings	Copper Ring
Cone Shape	Curvilinear
Speaker Terminals	Spade
Voice Coil Diameter	1.5" / 38.6mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Paper With Water Resistant Coat
Dust Cap Material	Paper With Water Resistant Coat
Surround Material	Cloth
Basket Material	Steel
Basket Color/Finish	Satin Black
Magnet Material	Ferrite
Magnet Weight	20 Oz
Displacement Volume	0.48L / 0.016ft3
Equivalent Volume	11.61L / 0.41ft3
Excursion (one way)	1.6mm
Free Air Resonance	100Hz
Mechanical Factor	2.270
Electrical Factor	1.02
Total Factor	0.7
Mechanical Mass	11.74G
Mechanical Compliance	0.18mm/N
BL Factor	6.69
Voice Coil Inductance	0.31mH
Cone Area	213.82 cm2
DC Resistance	3.2 Ohms

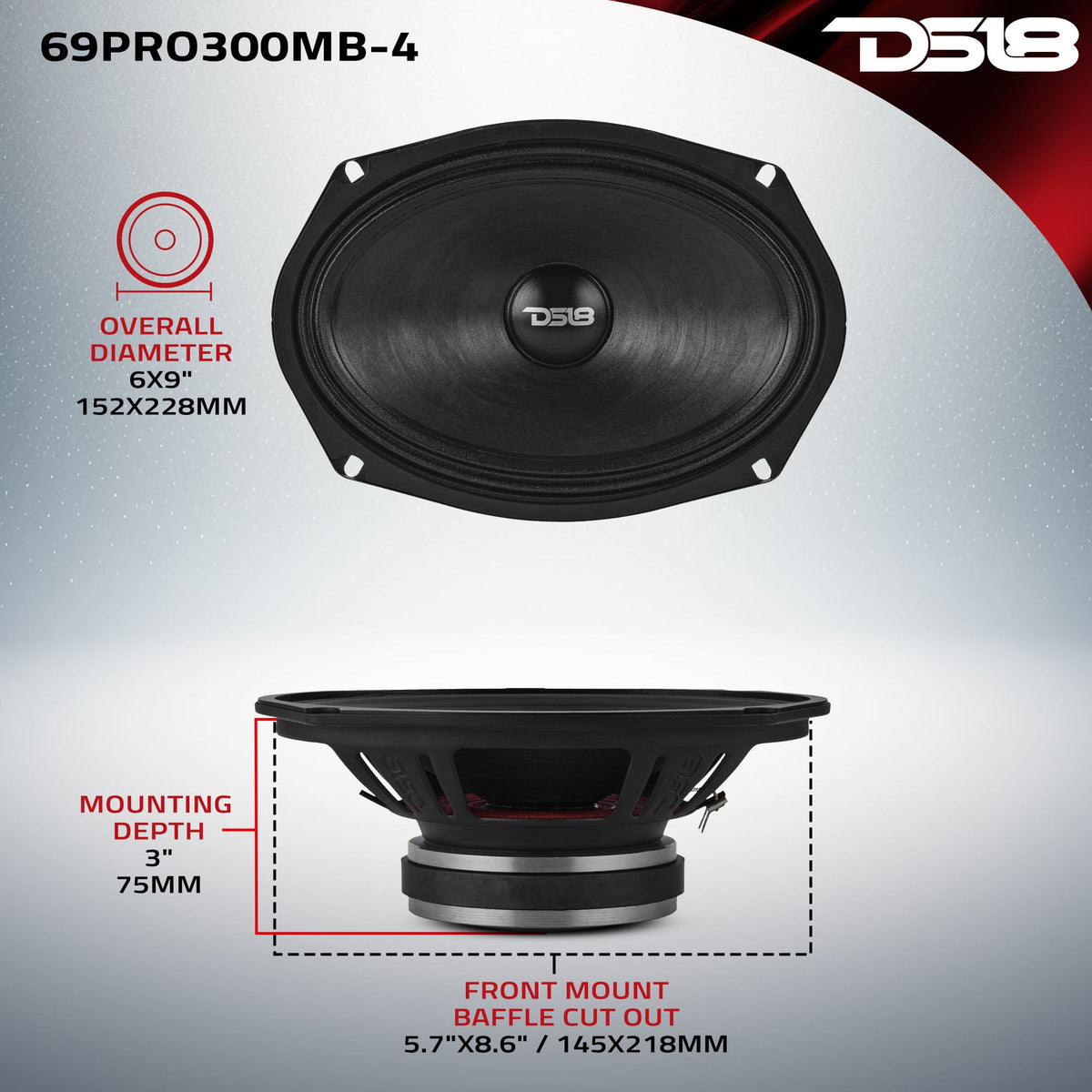

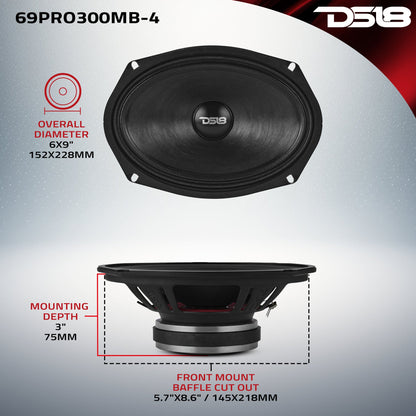

Overall Diameter	6.4"x9.2" / 164x234mm
Overall Depth	3.1" / 79mm
Front Mount Baffle Cutout	5.7"x8.6" / 145x218mm
Mounting Depth	3" / 75mm
Motor Diameter	4.5" / 115mm
