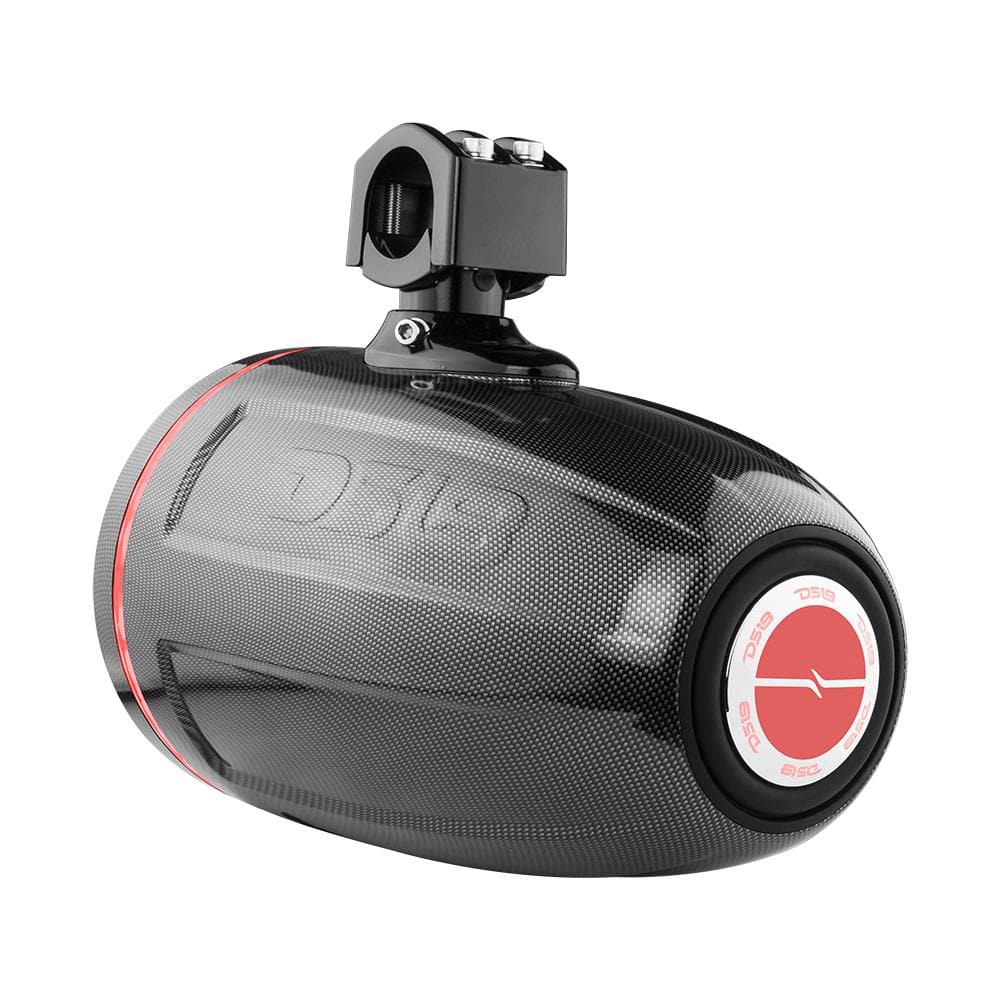

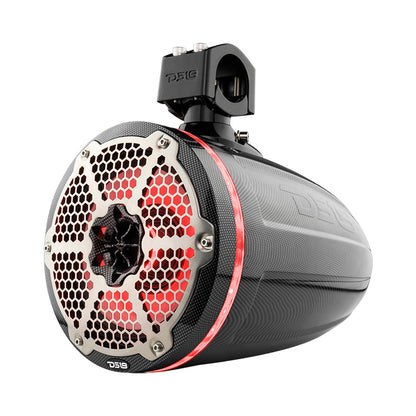

DS18 CF-X8TPNEO 8" 1" Driver

Name: DS18 CF-X8TPNEO 8" 1" Driver
Brand: DS18
Price: 1249.95 USD
Availability: OutOfStock

$1,249.95

Sale Sold out

★★★★★5.0DS18 · 1 reviews on DS18.com

Free shippingShipping calculated at checkout.

Upgrade your ride with the DS18 CF-X8TPNEO 8" 1" Driver — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

8"
1" Driver
180 Watts RMS
RGB Led Lights
Black Carbon Fiber

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

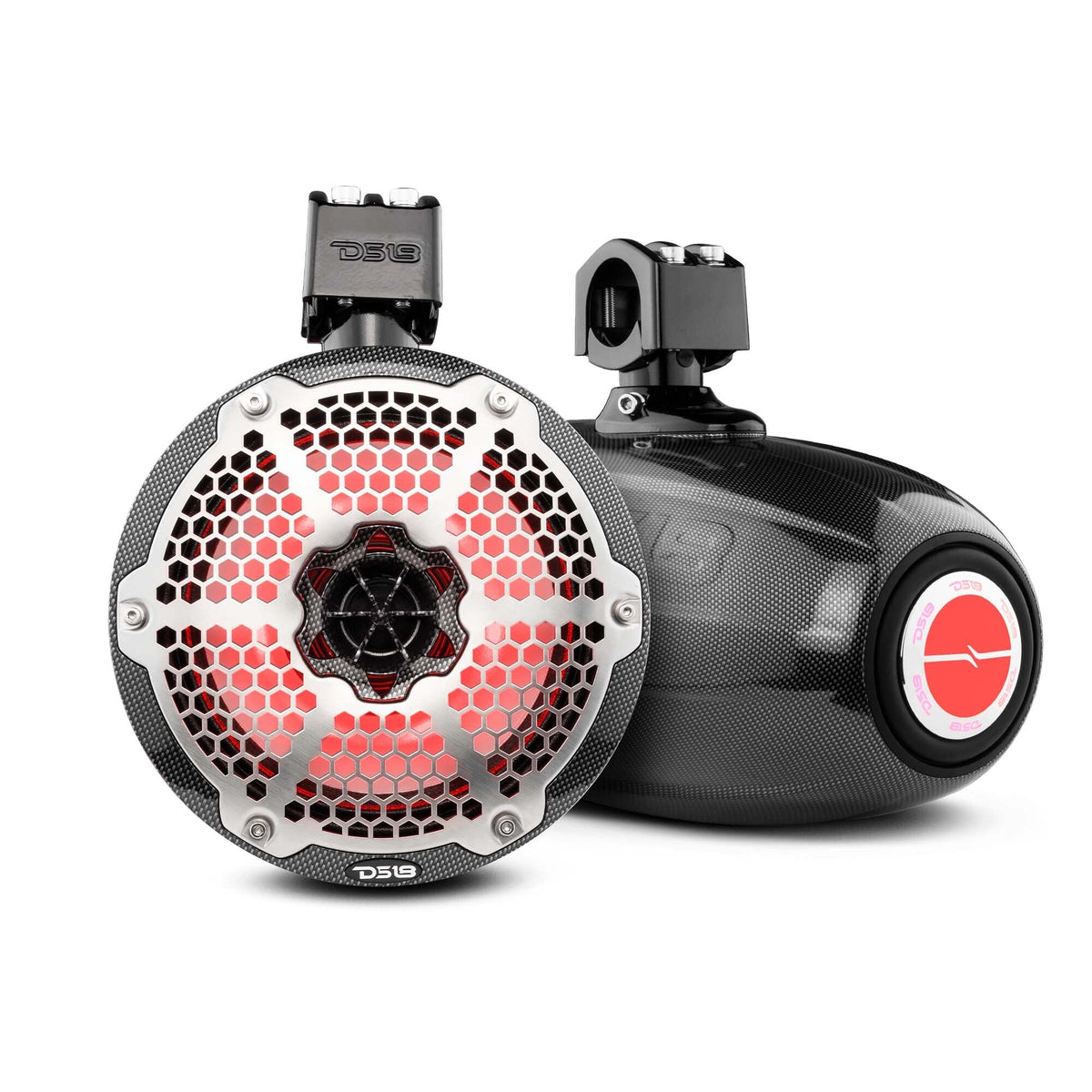

(1) Pair of DS18 CF-X8TPNEO
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Body / Features
Nominal Diameter	8''
Nominal Impedance	4 Ohms
RMS Power Handling	180W
MAX Power Handling	550W
Sensitivity (1w/1m)	95dB
Frequency Response	60Hz - 21KHz
Enclosure Material	Injection PC+ABS

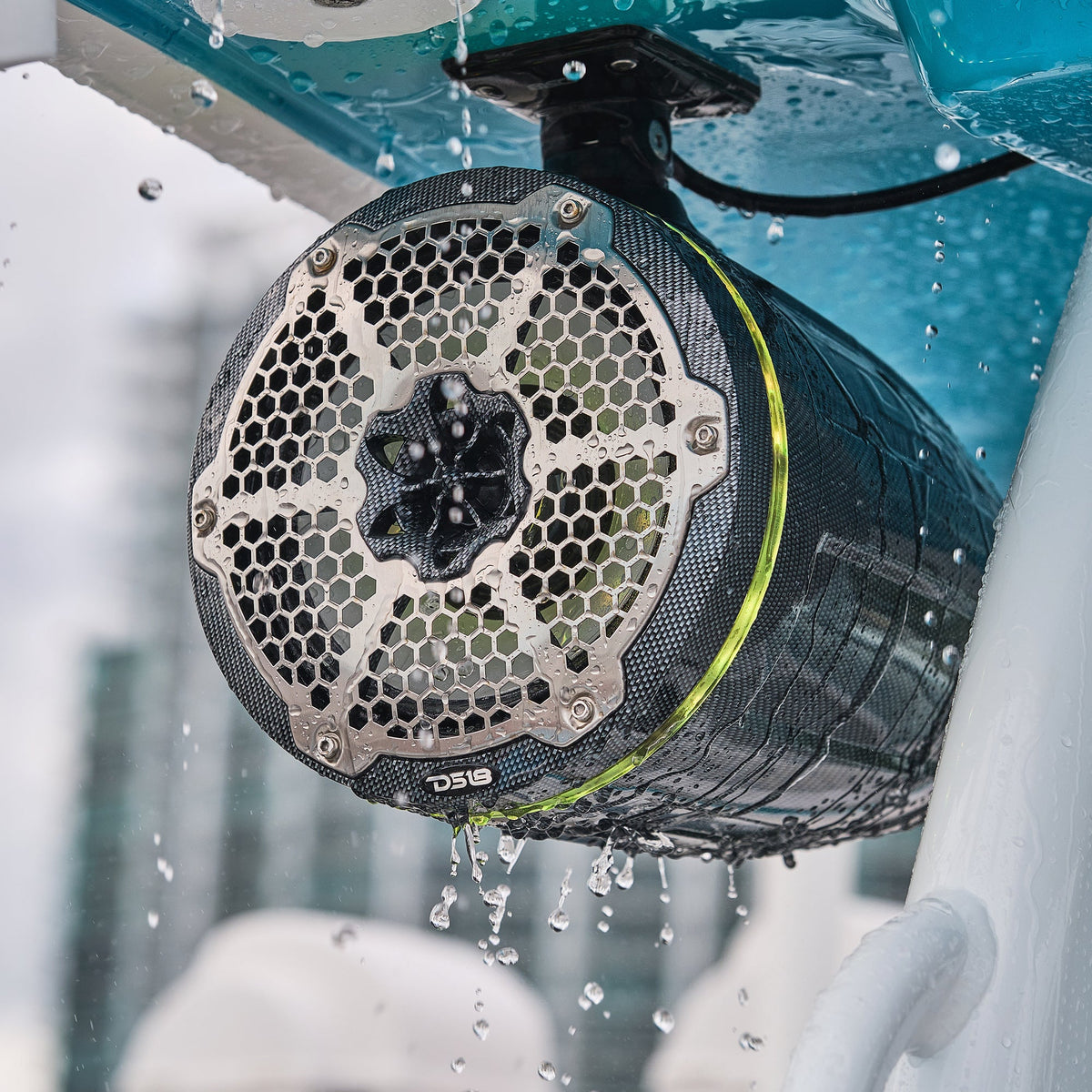

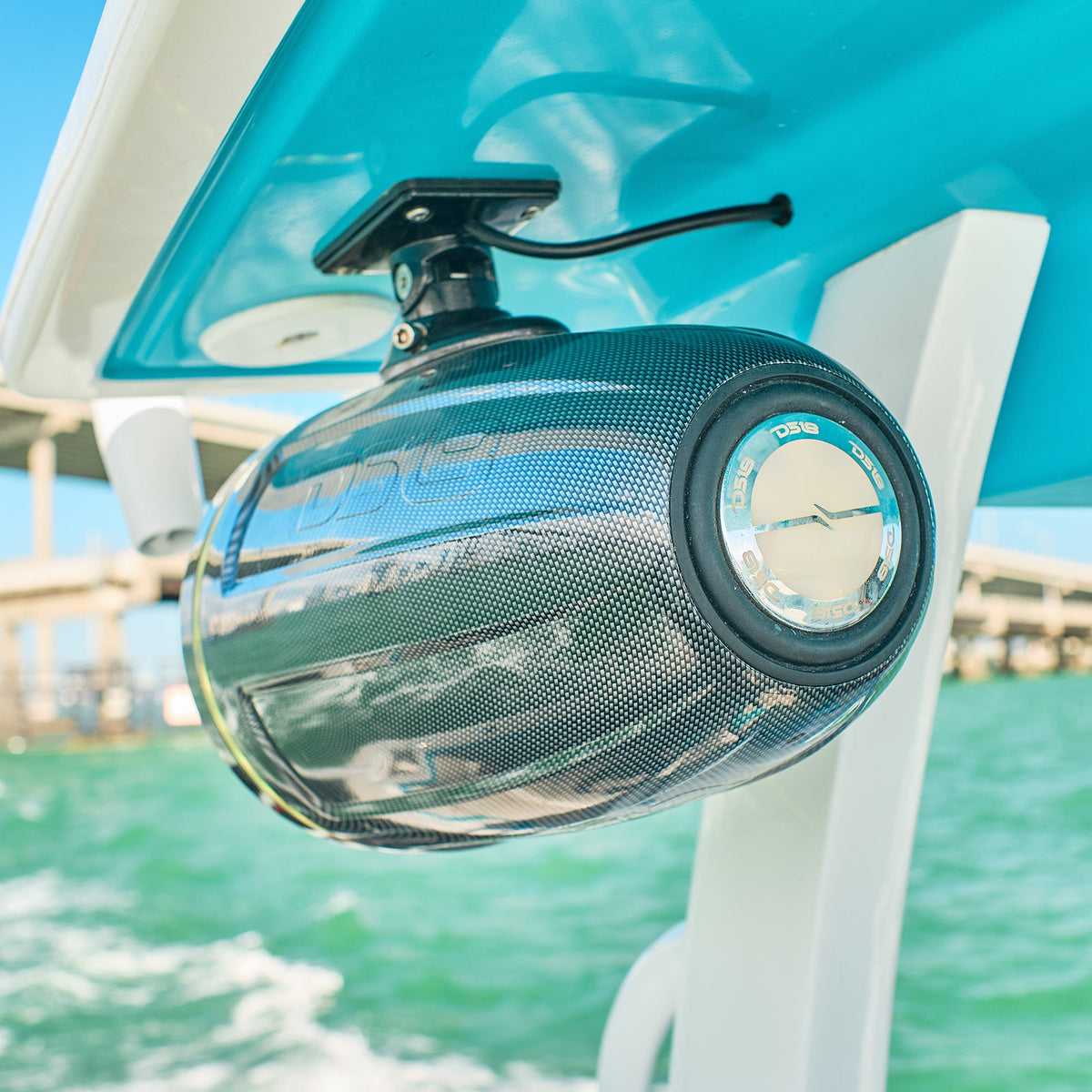

Marine Grade Type	IP65 + UV Stable

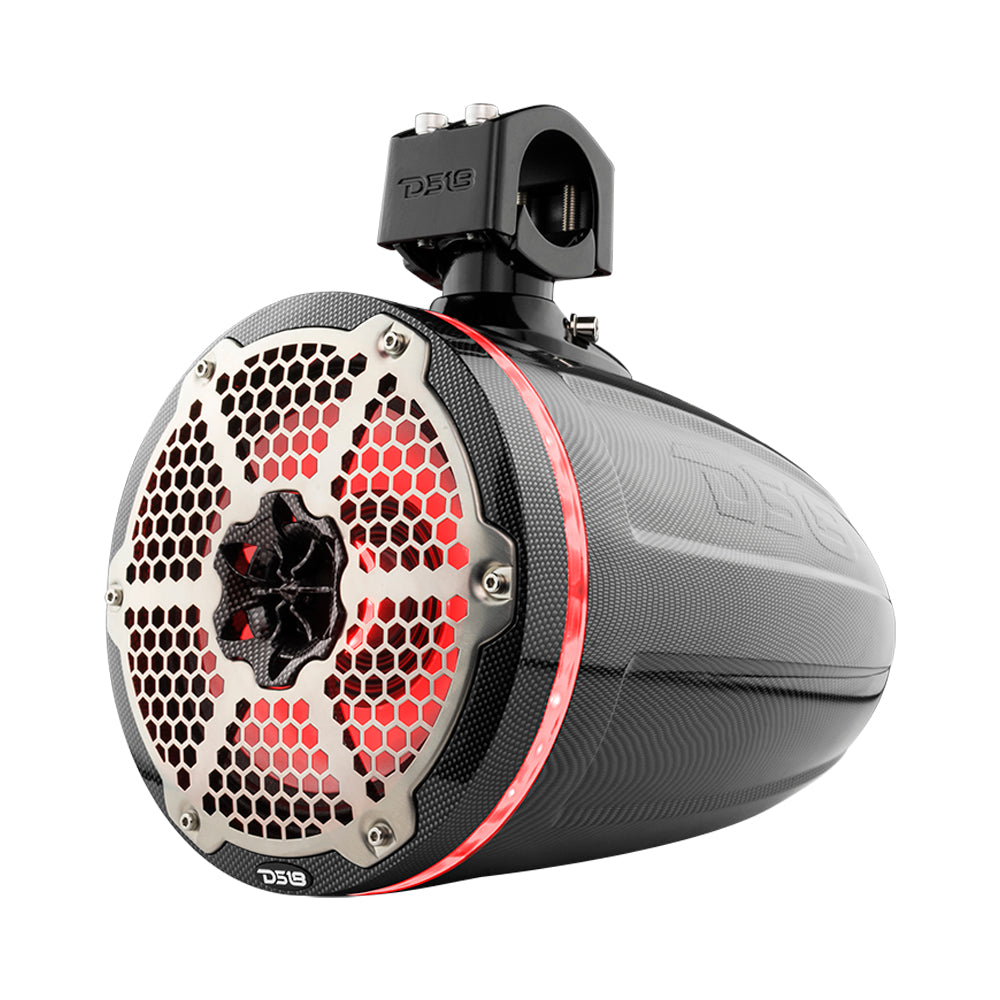

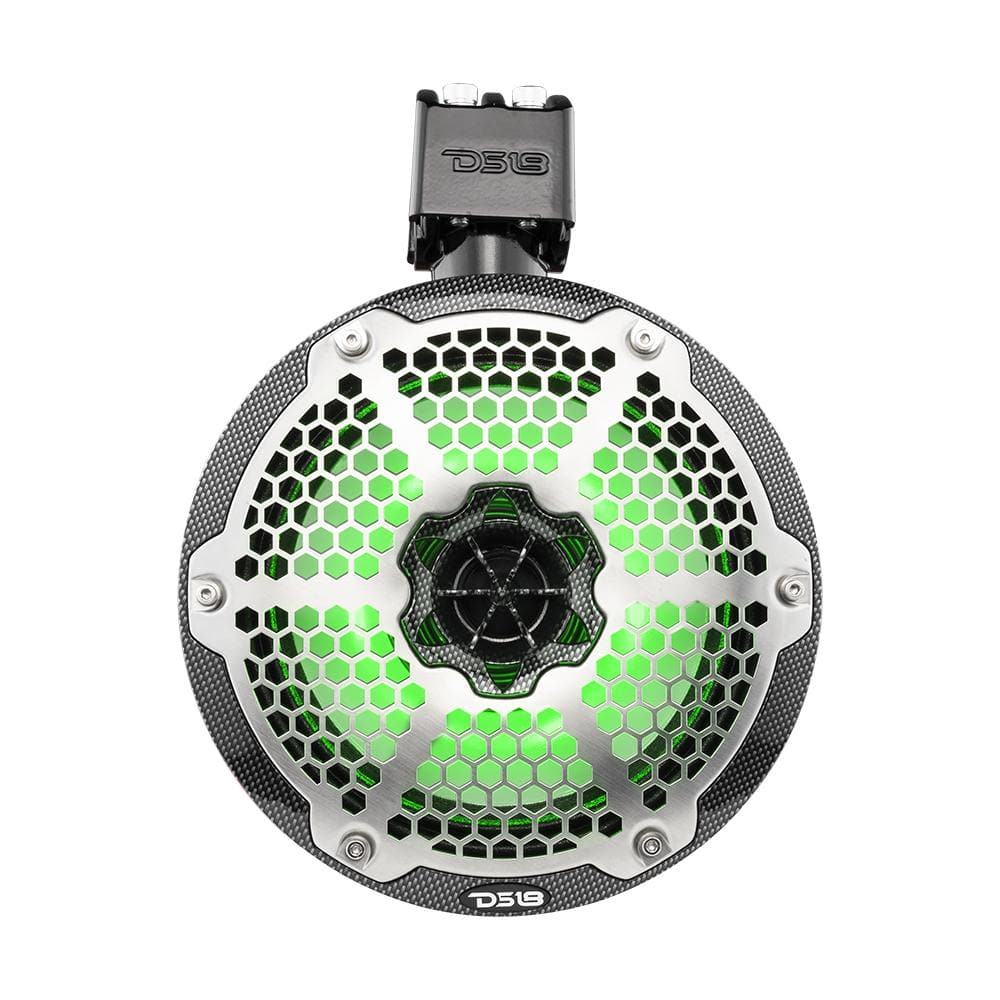

RGB LED	Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting 6 Core Wires for Lighting and Speaker
Grill Type	ABS+316 Stainless Metal Mesh
Pair	Yes

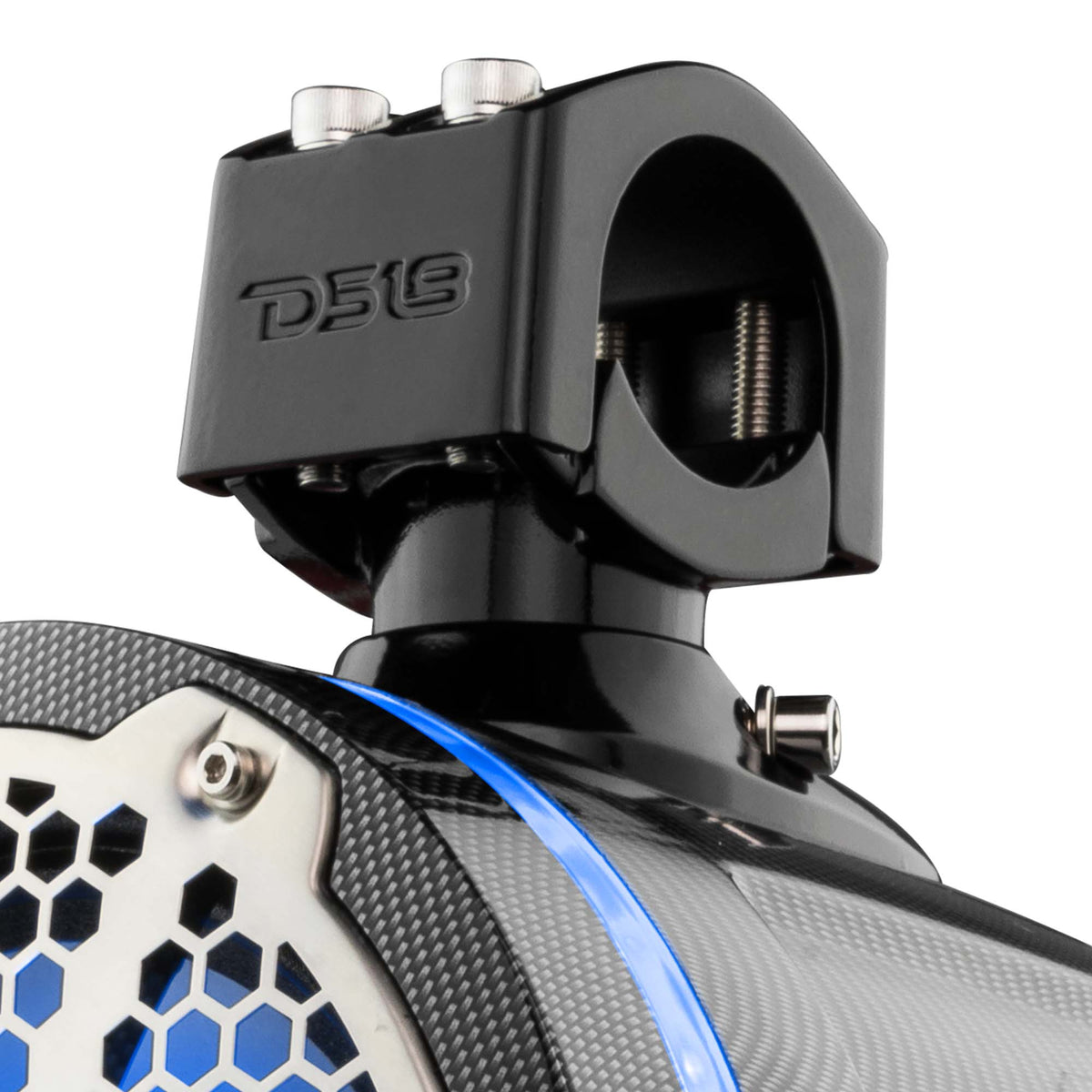

Clamps	Die-Cast adjustable (1" ~ 2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws,Stop Washers,Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo	Yes, Can be Rotated For Correct Angle Display
Woofer Specifications
Voice Coil Diameter	2"
Cone Material	Waterproof Compress Paper + Carbon Fiber
Surround Material	Soft PC Damping Glued
Basket Material	PC Injection Molded Composite
Magnet Material	Neodymium
Magnet Grade	N40H
Passive Radiator	4" With LED RGB Light

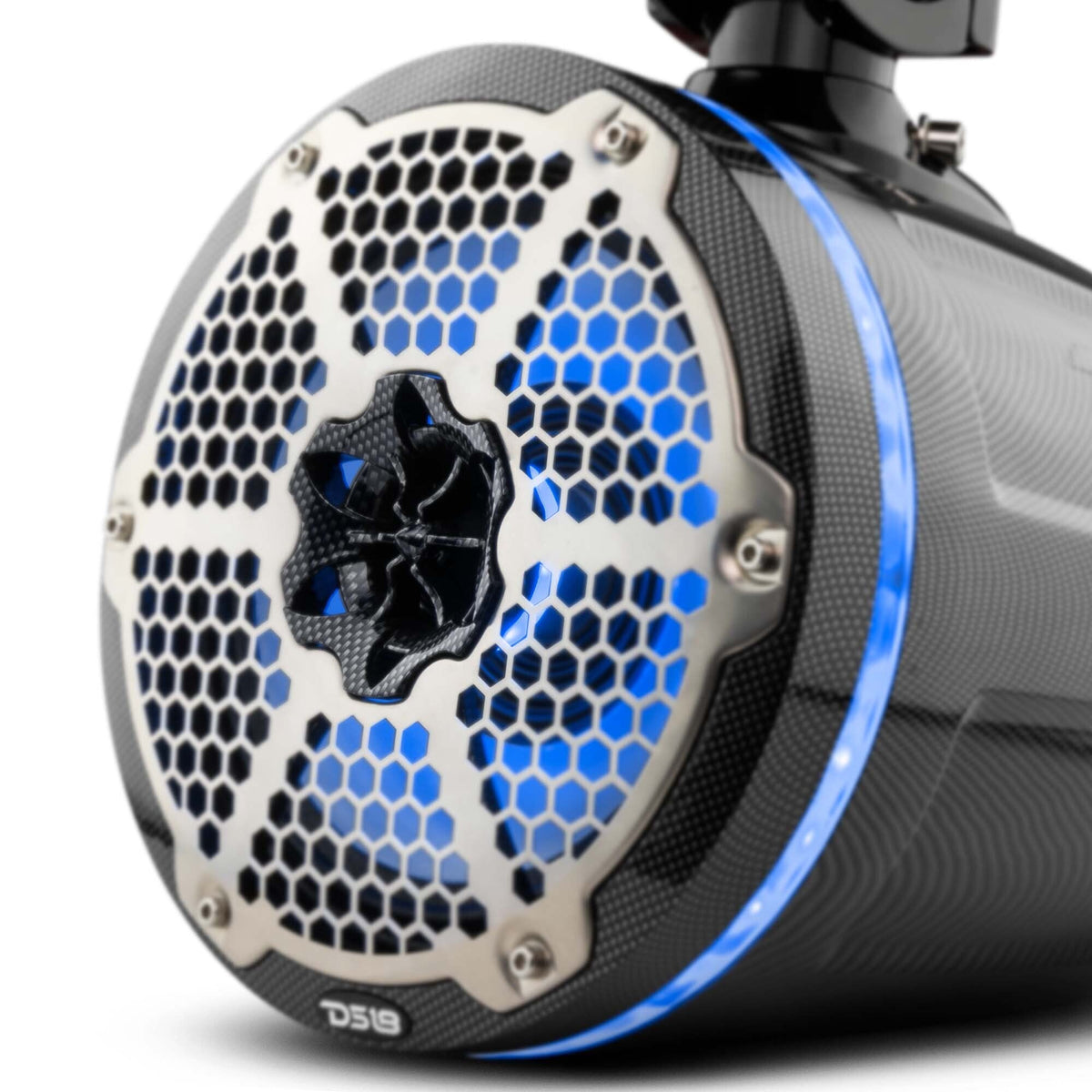

Tweeter Specifications
Voice Coil Diameter	1"
Type	Compression Driver with CNC Solid Aluminum Horn
Diaphragm Material	PEN
Magnet Material	Neodymium
Crossover	12dB with Over Power Protection
Thiele & Small Parameters
Equivalent Volume	Vas - 17.5L
Excursion (one way)	Xmax - 3mm
Free Air Resonance	Fs- 62Hz
Total Factor	Qts - 0.756
Speaker Measurements
Overall Diameter	8.59" / 218.1mm
Overall Depth	13.89" / 352.9mm
Overall Height	12.37" / 314.3mm
SKU	CF-X8TPNEO
RMS Power Handing	180 W
Maximum Power Handing	540 W
Recommended Hi Pass Crossover	80 Hz
Voice Coil Former Material	Winding Material
Vas	17.5 L
Xmax	3 mm
Fs	62 Hz
Qms	Qes
Qts	0.592
Front Mount Baffle Cutout	Mounting Depth
Product Weight	21 lbs
Product Dimensions	23.75 x 17 x 11
M/C Weight	54.5 lbs
M/C Dimensions	24.5 x 17.5 x 23.75
M/C QTY	2
Sold In	Pair

Manual

📄 Download Owner's Manual (PDF)
