DS18 DDX6.9ML 6.9" Touchscreen Bluetooth

Name: DS18 DDX6.9ML 6.9" Touchscreen Bluetooth
Brand: DS18
Price: 203.95 USD
Availability: OutOfStock

$203.95

Sale Sold out

Free shippingShipping calculated at checkout.

Upgrade your ride with the DS18 DDX6.9ML 6.9" Touchscreen Bluetooth — available at EB Electronics, your local car audio experts.

Replace your factory head unit and take full control of your audio experience. DS18 stereos bring modern connectivity and superior sound staging to any vehicle.

Key Specifications:

6.9" Touchscreen
Mechless Double-DIN

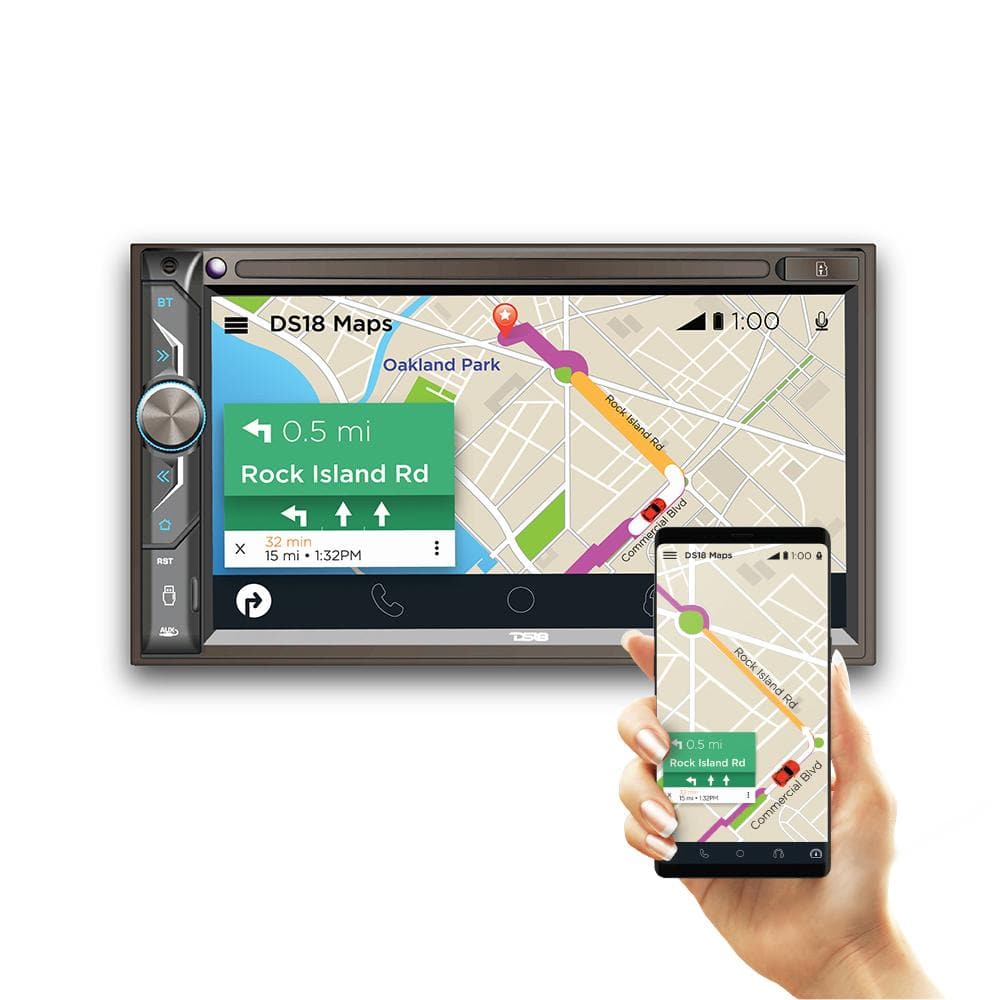

Mirror Link
Bluetooth

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

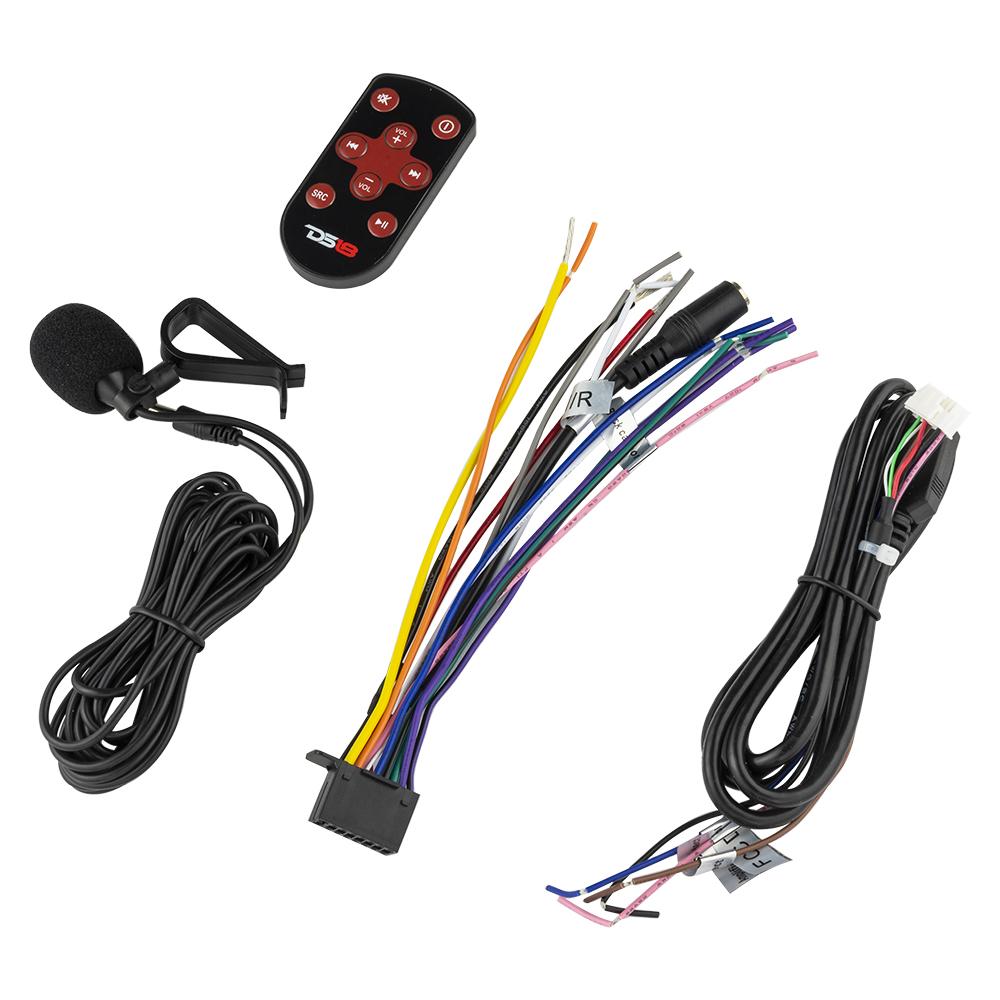

What's Included:

(1) Piece of DS18 DDX6.9ML
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

General
Rated power source:	14.4V DC (10.8V to 15V operation)
Maximum Current Consumption:	10 Amp
Dimensions (W x H x D):	Chassis: 178mm x 100mm x 135mm Bezel frame: 170mm x 96mm x 5mm Weight: 820 grams
Display
Screen Size / Aspect Ratio:	6.9 inch / Wide 16:9
Pixels	1024 x 600
Display Type:	TFT / WSVGA / Capacitive Touch Screen
Temperature Operation:	-20 °C to +60 °C (14 °F to 140 °F
Audio
Maximum Power Output:	40W x 4 Ch / 4 ohms
Continuous Power Output:	15W x 4 Ch / 4 ohms
Pre-output Level:	4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
Equalizer:	16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz) +/- 12dB
Gain:	+/- 12dB
Audio Control:	Volume / Balance / Fader / Loudness
Tuner
Frequency Range:	FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory:	30 Stations (18 FM/12 AM)
Region:	Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment:	LOC (On/Off) / ST (On/Off)
USB / SD Player
Type / Class:	V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported:	RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported:	1080P Video
Memory Size Reader:	up to 64 Gb
Max Current Supply:	1.5 Amp (USB)
Number of USB Ports:	2 (1 x Front, 1 x Rear)
Connectivity
Bluetooth Version / Services:	V4.1 / Audio Streaming / Hands Free calls
Camera Input:	RCA Analog Video up to HD 720p (Front/Rear)
Video Output:	Dual RCA (1 Volt/75 ohm)
A/V Aux Input:	Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone:	3.5mm Jack external MIC Input
Remote Control:	Frontal IR Receptor / Wired (3.5mm jack) Input
SKU	DDX6.9ML
Rated power source	14.4V DC (10.8V to 15V operation)
Maximum Current Consumption	10 Amp
Dimensions (W x H x D)	Chassis: 178mm x 100mm x 165mm Bezel frame: 170mm x 96mm x 5mm
Weight	820 grams
Screen Size / Aspect Ratio	6.9 inch / Wide 16:9
Display Type	TFT / WSVGA / Capacitive Touch Screen
Temperature Operation	-20C to +60C (14F to 140F)
Maximum Power Output	40W X 4 Ch / 4 ohm
Continuous Power Output	15W x 4 Ch / 4 ohm
Pre-output Level	4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
Gain	+/- 12dB
Audio Control	Volume / Balance / Fader /Loudness
Frequency Range	FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory	30 Stations (18 FM/12 AM)
Region	Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment	LOC (On/Off) / ST (On/Off)
Type / Class	V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported	RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported	1080P Video
Memory Size Reader	up to 64 Gb
Max Current Supply	1.5 Amp (USB)
Number of USB Ports	2 (1 x Front, 1 x Rear)
Bluetooth Version / Services	V4.1 / Audio Streaming / Hands Free calls
Camera Input	RCA Analog Video up to HD 720p (Front/Rear)
Video Output	Dual RCA (1 Volt/75 ohm)
A/V Aux Input	Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone	3.5mm Jack external MIC Input
Remote Control	Frontal IR Receptor / Wired (3.5mm jack) Input

Manual

📄 Download Owner's Manual (PDF)
