DS18 EXL-TRX Subwoofers

Name: DS18 EXL-TRX Subwoofers
Brand: DS18
Price: 479.95 USD
Availability: OutOfStock

$479.95

Sale Sold out

Size 12" 15"

Free shippingShipping calculated at checkout.

Experience deep, resonant bass that transforms your car's soundscape. Our high-excursion subwoofers deliver powerful audio performance in a versatile design to fit your vehicle perfectly.

Specs by size

Size	RMS (W)	Impedance (Ω)	Sensitivity (dB)
12"	2000	4	85
15"	3000	4	85

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

12" RMS Power	2000 W
12" Impedance	4 Ω
12" Sensitivity	85 dB
15" RMS Power	3000 W
15" Impedance	4 Ω
15" Sensitivity	85 dB
SKU	EXL-TRX12.4D
Nominal Diameter	12" / 305mm
Nominal Impedance	4+4 ohms
RMS Power Handling	2000W
MAX Power Handling	4000W
Sensitivity (1w/1m)	84dB
Frequency Response	10-500 Hz
Recommended Lo Pass Crossover	120 Hz
Demodulating Rings	No
Improved Heat Dissipation	Yes
Cone Shape	Curvilinear
Speaker Terminals	Push 6ga
Voice Coil Diameter	3" / 76.5mm
Voice Coil Former Material	Black Aluminum
Winding Material	SV
Cone Material	Non-Pressed Paper + Epoxy Coating
Dust Cap Material	PPI
Surround Material	Foam
Spider Diameter	8.5" / 215mm
Leads Connection Type	Crossed Spider
Basket Material	Aluminum
Basket Color/Finish	Black
Magnet Material	Ferrite
Magnet Weight	3 x 85 Oz (255 Oz)
Displacement Volume	3.5L / 0.123ft3
Equivalent Volume Vas	12.55L / 0.443ft3
Excursion (one way) Xmax	19mm
Free Air Resonance Fs	45 Hz
Mechanical Factor Qms	5.769
Electrical Factor Qes	1.179
Total Factor Qts	0.979
Moving Mass Mms	401.522g
Compliance Cms	31.362u m/N
Bl Factor Bl	26.653
Voice Coil Inductance Le	6.81mH
Diaphragm Area Sd	530.929 cm?
Dc Resistance Re	3.7+3.7 ohms
Efficiency Bandwidth Product EBP	71
Sealed Internal Volume	17L / 0.6ft3
Sealed Box Output Response F3	41Hz
Ported Internal Volume	42.5L / 1.5ft3
Port Size *Square (WxHxLong)	1.52"x12.28"x31.82" / 38.5x312x808.2mm
Port Tuning Frequency Fb	30Hz
Ported Box Output Response F3	25Hz

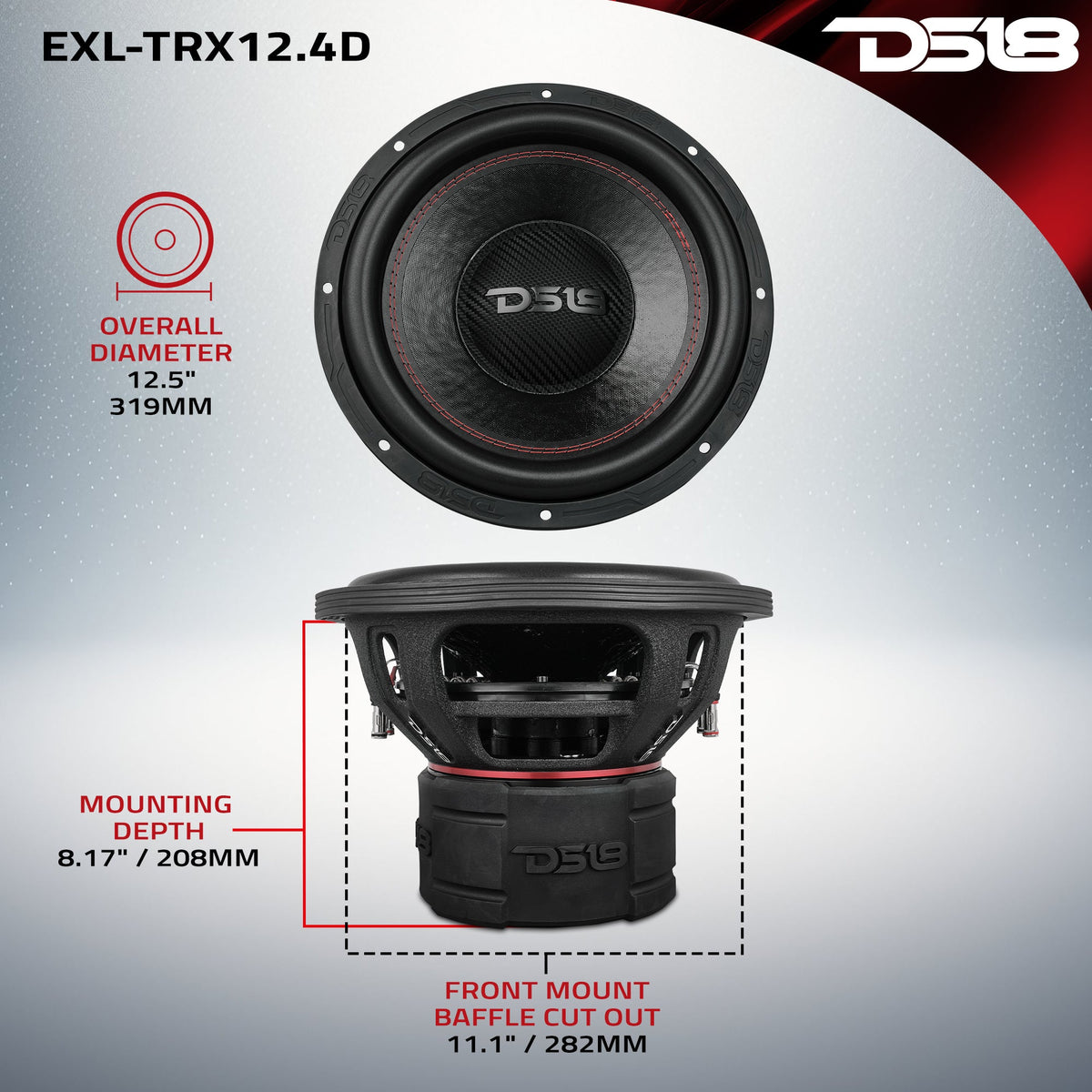

Overall Diameter	12.5" / 319mm
Overall Depth	9.68" / 246mm
Front Mount Baffle Cutout	11.1" / 282mm
Mounting Depth	8.17" / 208mm
Motor Diameter	7.5" / 191mm
