DS18

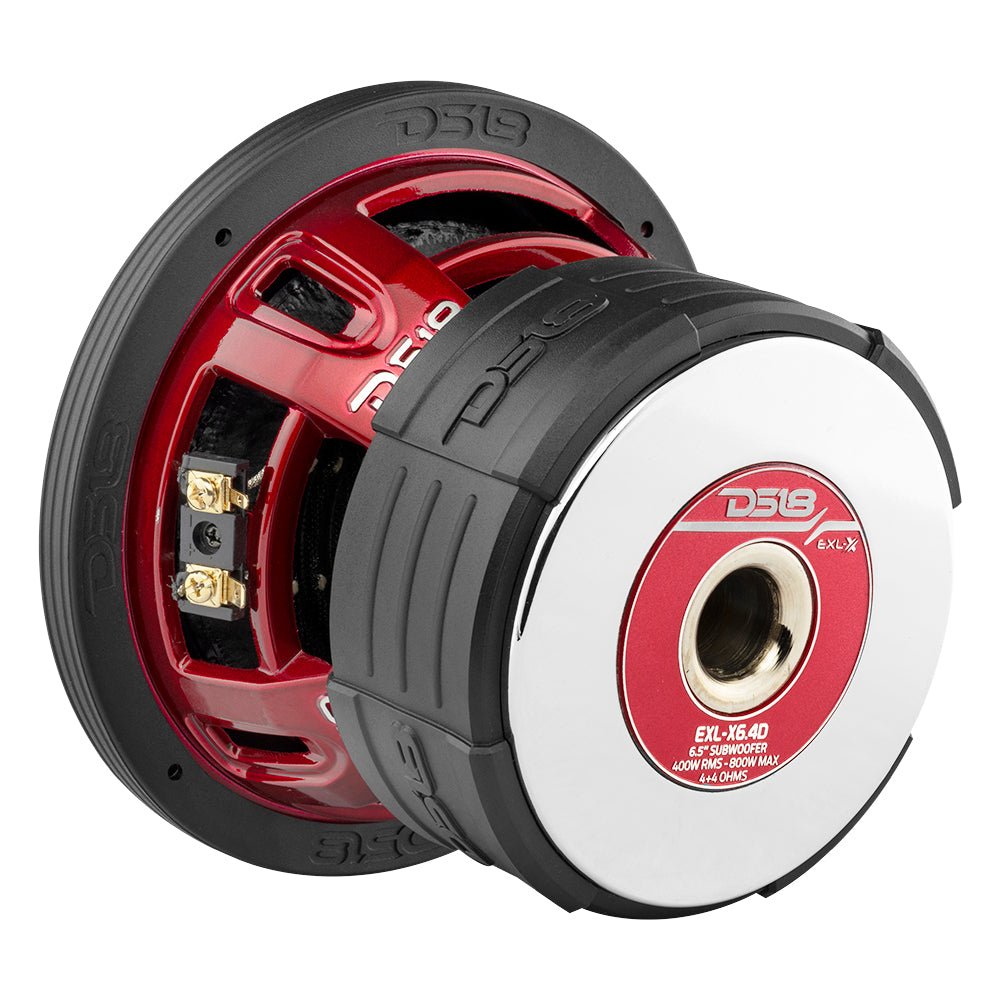

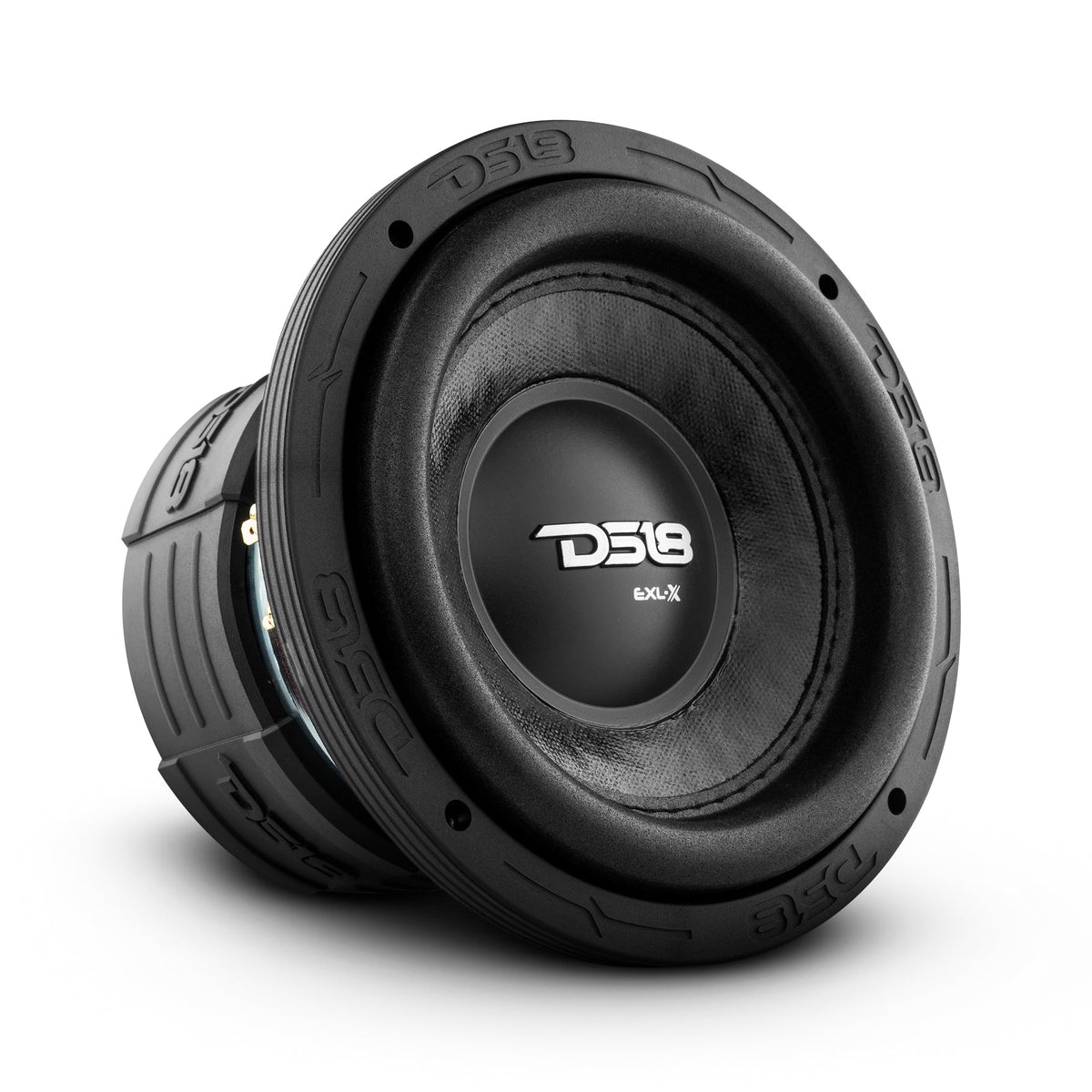

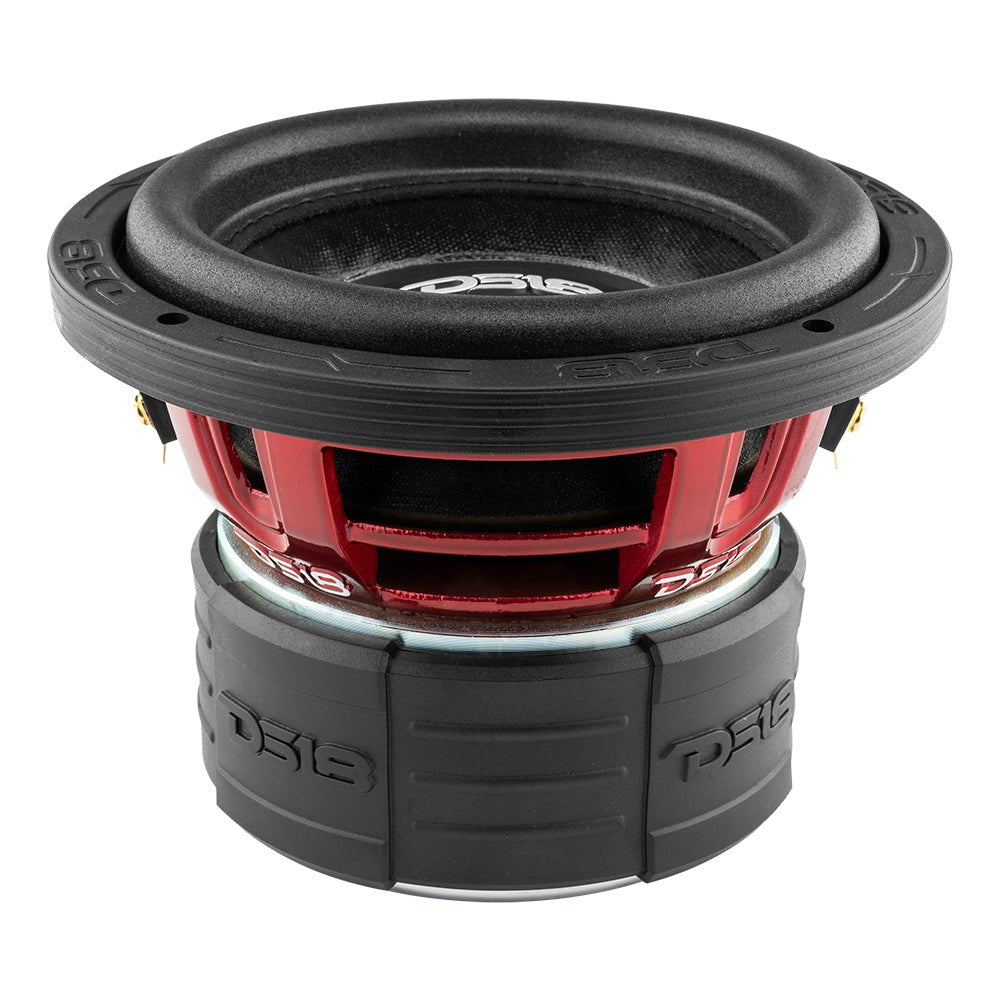

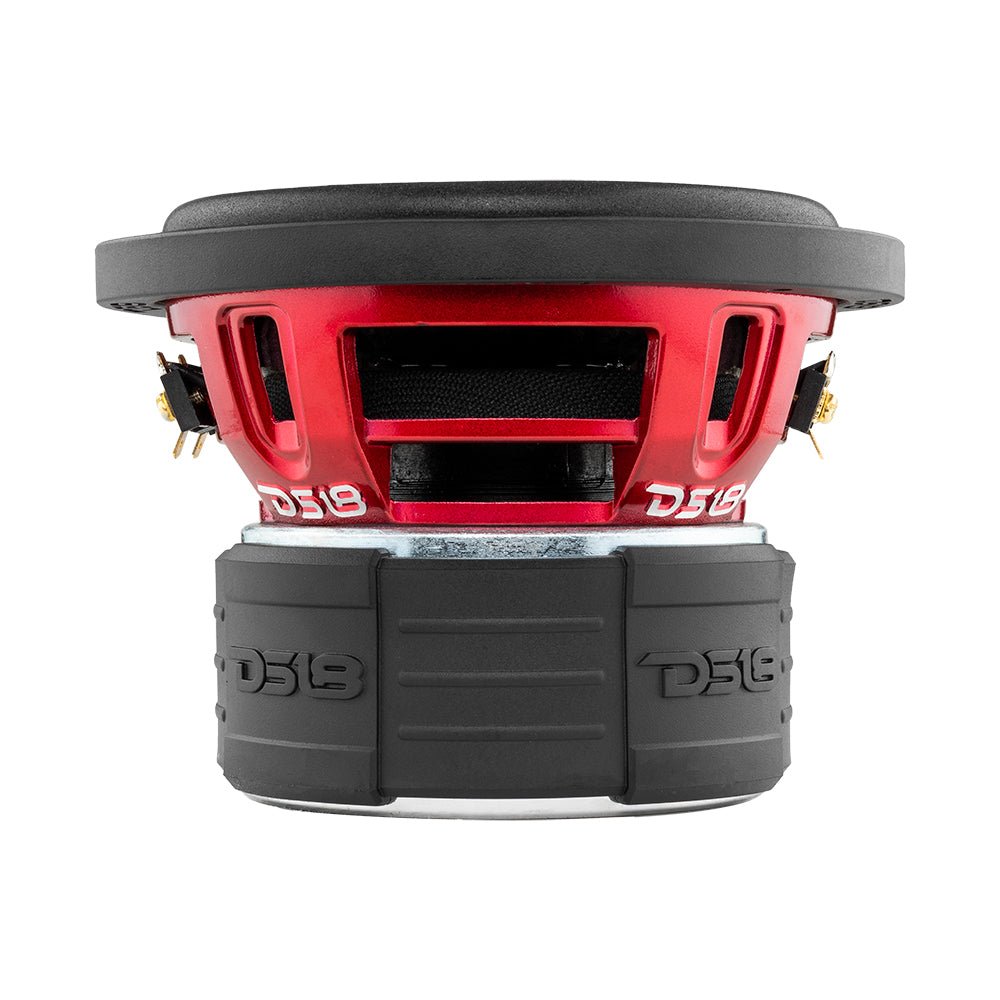

DS18 EXL-X6.4D EXL-X 6.5" Subwoofer 400 Watts Rms DVC 4-Ohms

Name: DS18 EXL-X6.4D EXL-X 6.5" Subwoofer 400 Watts Rms DVC 4-Ohms
Brand: DS18
Price: 143.95 USD
Availability: OutOfStock

$143.95

Sale Sold out

Shipping calculated at checkout.

DS18 EXL-X6.4D 6.5" Car Subwoofer 800 Watts 4-Ohm DVC

EXL X (Extremely loud) competition grade subwoofers features DS18 private red aluminum basket, fiber glass dust cap, 2" voice coils and 800 watts of power, with the combination of modern technologies and unique engineering solutions this subwoofer is the evidence of DS18 technological and methodical dominance, EXL X is the best choice to enter the bass head world in the lanes or to play daily music.

Highlights

Big bass in a small package. Small sized sub with full size ferrite magnet and lots of Xmax.
High strength foam surround holding a durable pressed cone with fiberglass
DS18 dustpan will not only give you DS18 flare but is strong enough to force great bass out even with a small cone area size.
Works great in ported and sealed boxes in all vehicles shapes and sizes!

Technical Details

EXL-X6.4D Product Manual

Model:	EXL-X6.4D
Type:	Subwoofer
Size:	6.5"
RMS Power:	400W
MAX Power:	800W
Impedance:	4 + 4 Ohms
Voice Coil Size:	2"
Magnet:	Ferrite
Magnet Weight:	90oz
Frequency Response:	40Hz-820Hz
Materials
Frame:	DS18 Private Red Aluminum
Surround:	Foam Edge
Dust Cap:	Glass Fiber
Voice Coil Former Material:	Black Aluminum

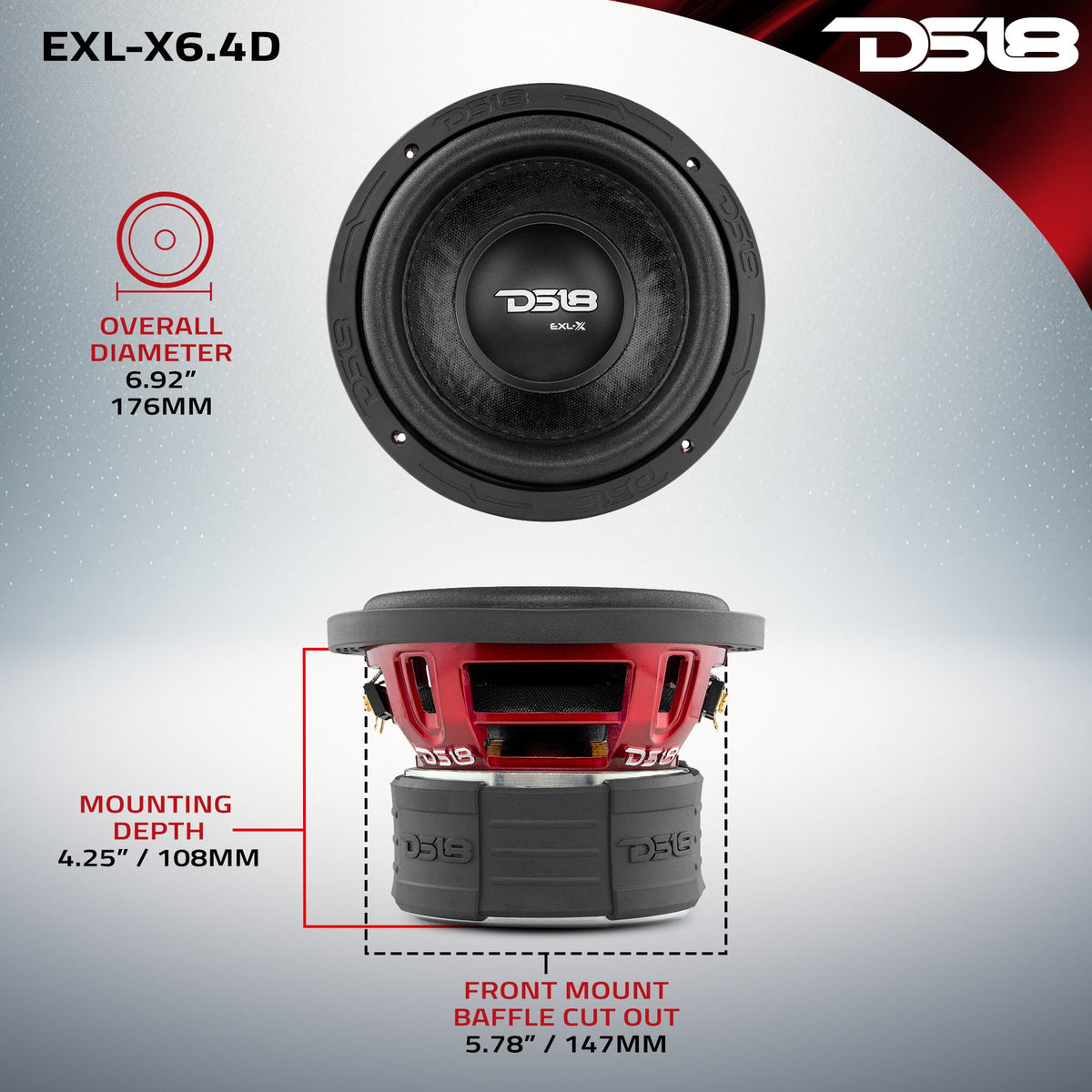

Diameters
Mounting Cut-Out:	5.78"
Mounting Depth:	4.25"
Overall Diameter:	6.92"
Optimum Sealed ft³	0.24
Optimum Ported ft³	0.6
Port Tune	46Hz

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

RMS Power	400W
MAX Power	800W
Impedance	4 + 4 Ohms
Voice Coil Size	2"
Frequency Response	40Hz-820Hz
Weight	90oz
Mounting Cut-Out	5.78"
Mounting Depth	4.25"
Overall Diameter	6.92"
Magnet	Ferrite Magnet
Frame	DS18 Private Red Aluminum
Surround	Foam Edge
Dust Cap	Glass Fiber
Voice Coil Former Material	Black Aluminum
SKU	EXL-X6.4D
Nominal Diameter	6.5" / 165.1mm
Nominal Impedance	4+4 ohms
RMS Power Handling	400W
Maximum Power Handling	800W
Sensitivity (1w/1m)	89.8dB
Recommended Lo Pass Crossover	90Hz
Voice Coil Diameter	2" / 50.8mm
Winding Material	SV
Cone Material	Non Pressed Paper + Glass fiber
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Aluminum
Basket Color/Finish	Glossy Red
Magnet Material	Ferrite
Magnet Weight	90 oz
Displacement Volume	N/A
Equivalent Volume	2.2L / 0.078ft3
Free Air Resonance	76Hz
Mechanical Factor	4.518
Electrical Factor	0.802
Total Factor	0.681
Moving Mass	55.742g
Compliance	0.077mm/N
Bl Factor	7.3
Voice Coil Inductance	1.073mH
Diaphragm Area	143.14cm2
DC Resistance	3.2+3.2 ohm
Efficiency Bandwidth Product	94.7
Sealed Internal Volume	0.2ft3
Sealed Box Output Response	75Hz
Ported Internal Volume	0.3ft3
Port Size *Square (W x H x Long)	0.75" x 7.24" x 10.68" / 19 x 184 x 271.2mm
Port Tuning Frequency	60Hz
Ported Box Output Response	48Hz
Overall Depth	5.15" / 131mm
Front Mount Baffle Cutout	5.78" / 147mm
Motor Diameter	4.96" / 126mm
Gross Single Unit Weight (lb)	10
Dimensions W x L x H (Inches)	7 x 7 x 6
Quantity of Units in Master Carton	4
Gross Master Carton Weight (lb)	20.5
M/C Dimensions W x L x H (Inches)	16 x 8 x 14
