DS18

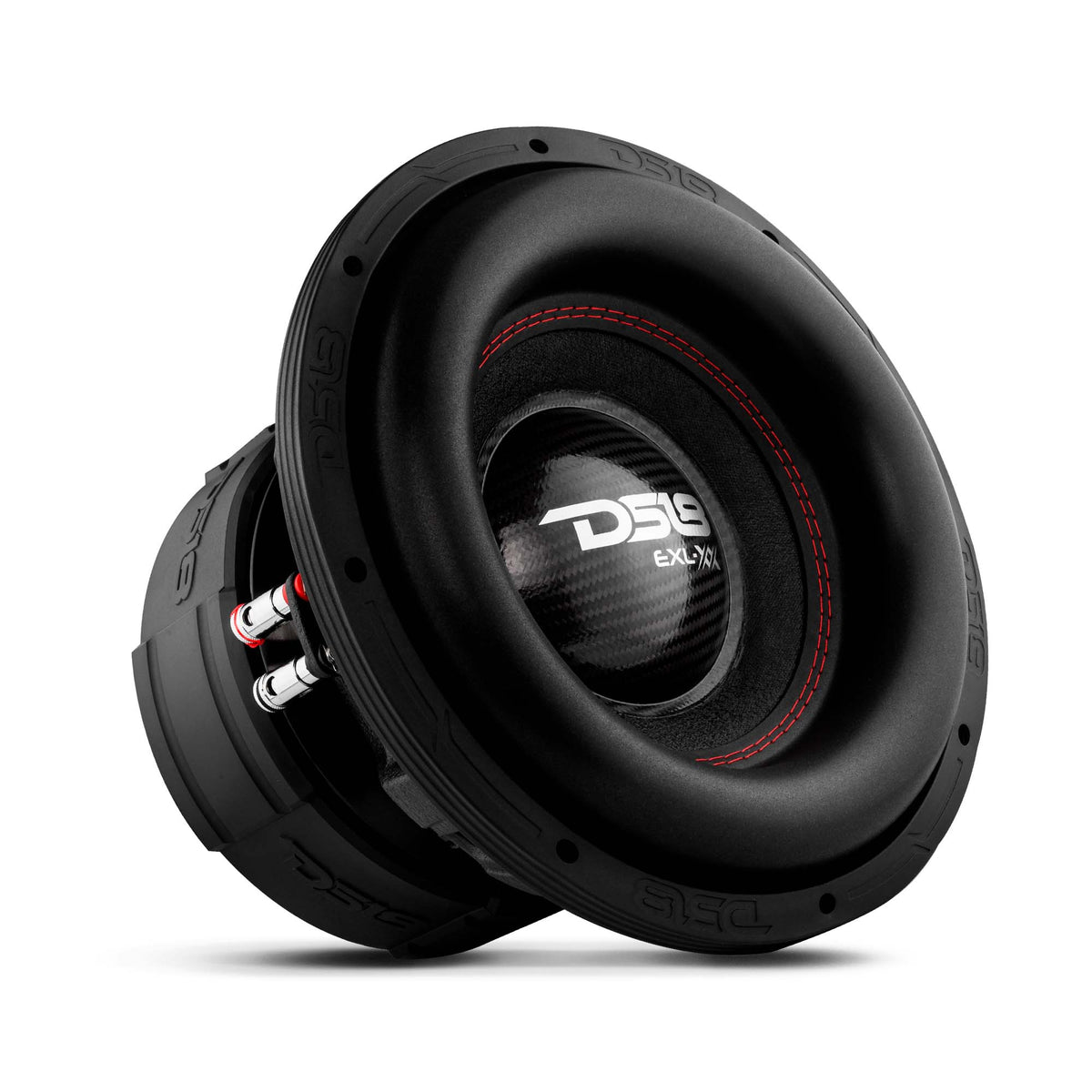

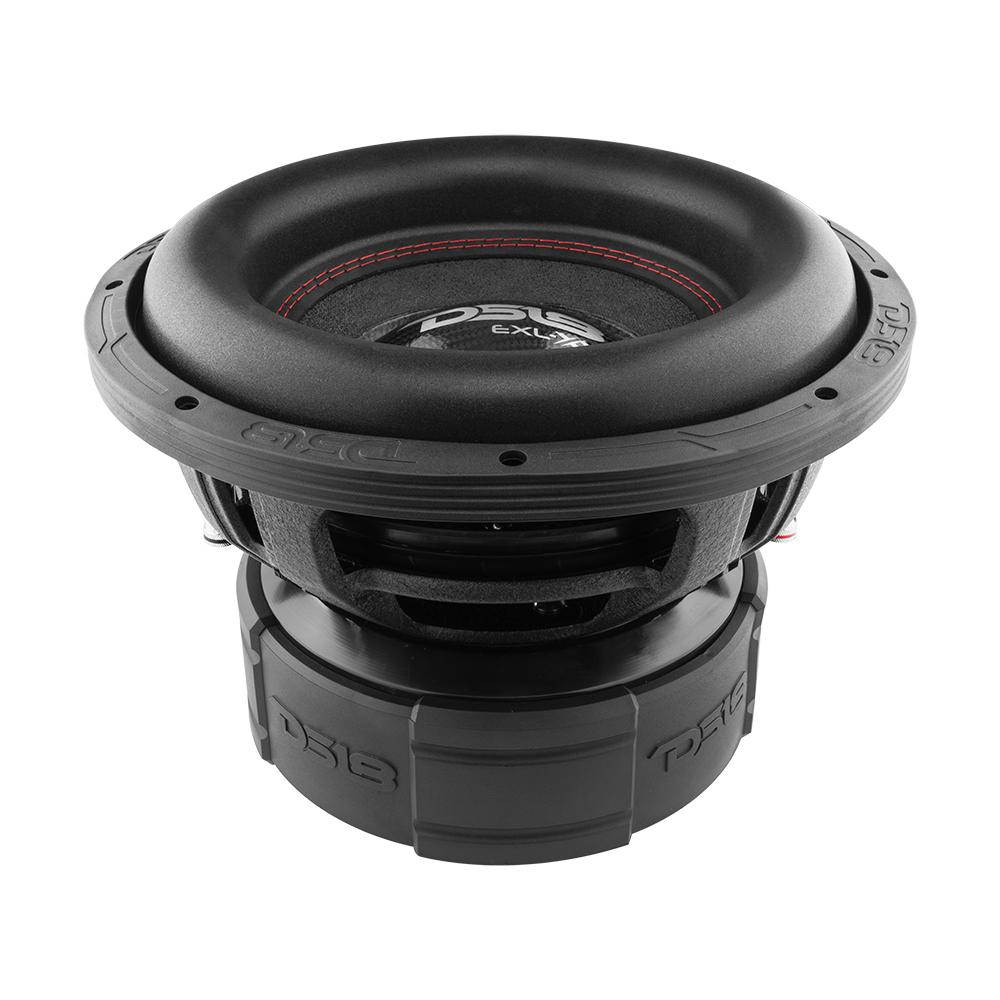

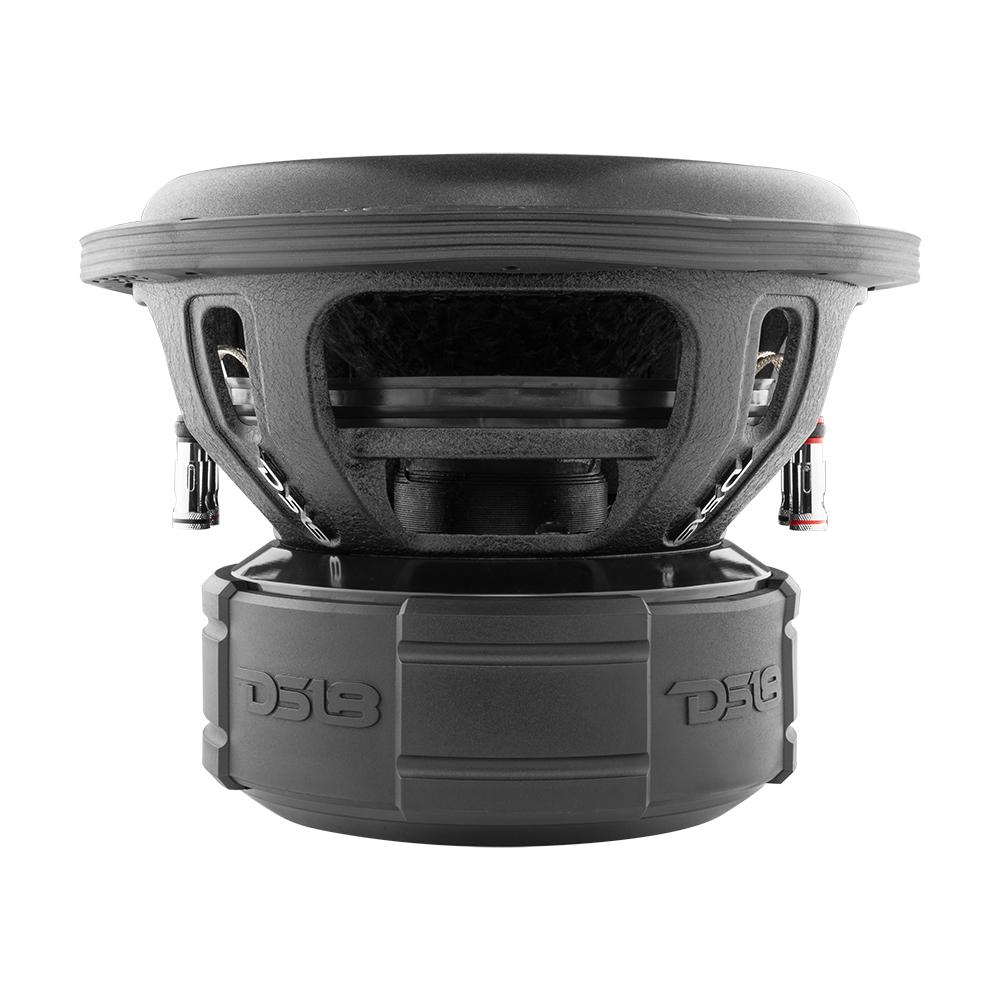

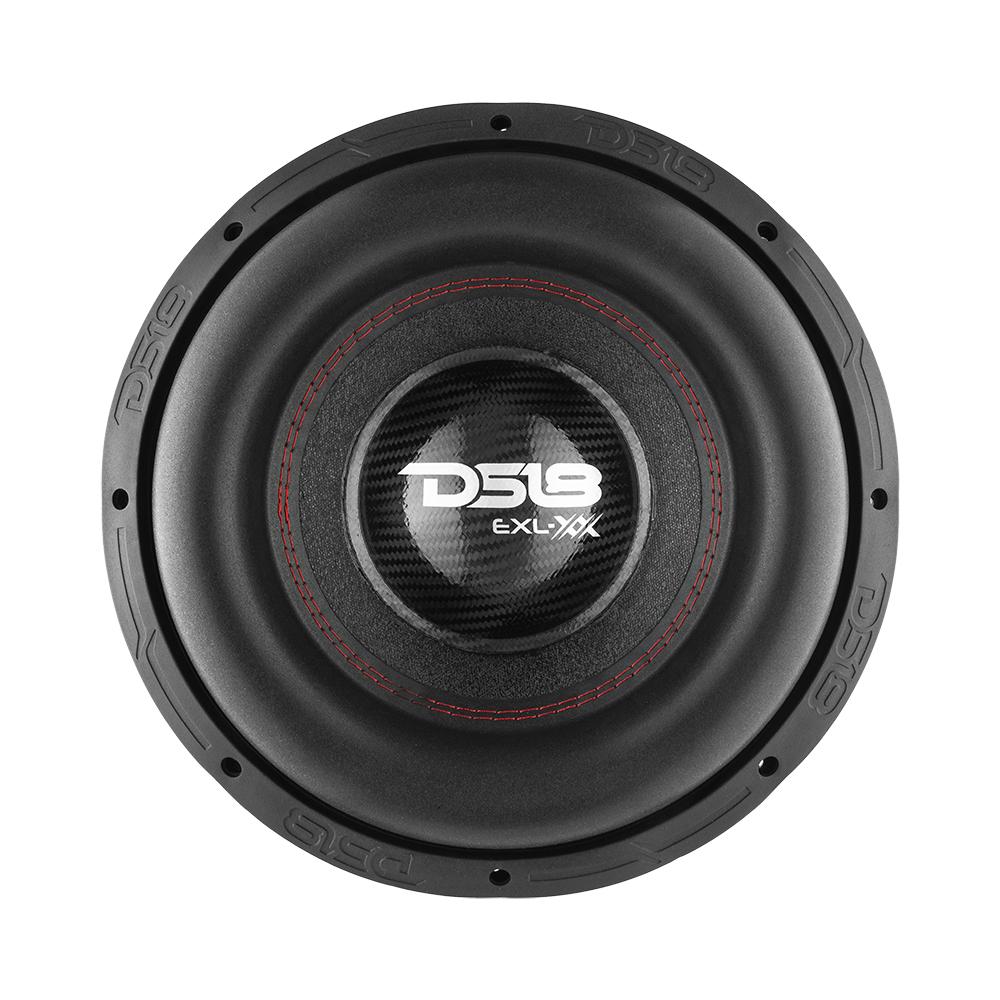

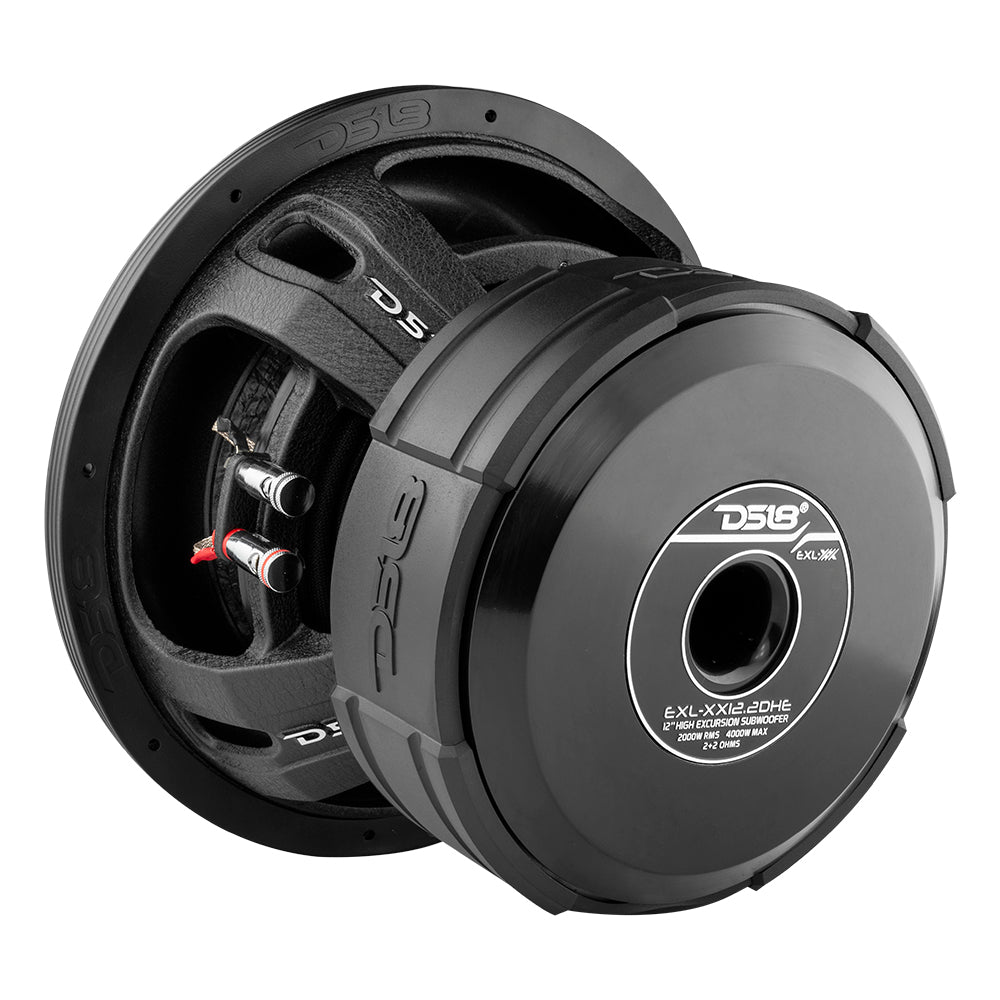

DS18 EXL-XX12.2DHE 12"

Name: DS18 EXL-XX12.2DHE 12"
Brand: DS18
Price: 544.95 USD
Availability: InStock

$544.95

Sale Sold out

✓ In store · free same-day pickupFree shippingShipping calculated at checkout.

Upgrade your ride with the DS18 EXL-XX12.2DHE 12" — available at EB Electronics, your local car audio experts.

Feel every bass line the way it was meant to be heard. These DS18 subwoofers bring deep, tight, room-shaking bass to your vehicle.

Key Specifications:

12"
2000 Watts RMS
2Ohm
DVC

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Piece of DS18 EXL-XX12.2DHE
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Diameter	12"
Power (RMS)	2000 Watts RMS
Impedance	2Ohm
Voice Coil	DVC
SKU	EXL-XX12.2DHE
Nominal Diameter	12"
Nominal Impedance	2+2 ohms
RMS Power Handling	2000W
Maximum Power Handling	4000W
Sensitivity (1w/1m)	87dB
Frequency Response	20-1.3K Hz
Recommended Lo Pass Crossover	80 Hz
Voice Coil Diameter	3" / 75.6mm
Voice Coil Former Material	Black Aluminum
Winding Material	CCAW
Cone Material	Paper
Dust Cap Material	Glass Fiber
Surround Material	Foam
Basket Material	Aluminum
Basket Color/Finish	Black
Magnet Material	Ferrite
Magnet Weight	306 OZ
Displacement Volume	3.26L
Equivalent Volume Vas	21.986L
Free Air Resonance Fs	39.8 Hz
Mechanical Factor Qms	5.128
Electrical Factor Qes	0.529
Total Factor Qts	0.468
Moving Mass Mms	302.158 g
Compliance Cms	0.025 mm/N
Bl Factor Bl	16.523
Voice Coil Inductance Le	6.9 mH
Diaphragm Area Sd	433.74 cm²
Dc Resistance Re	2 + 2 ohms
Efficiency Bandwidth Product EBP	75.2

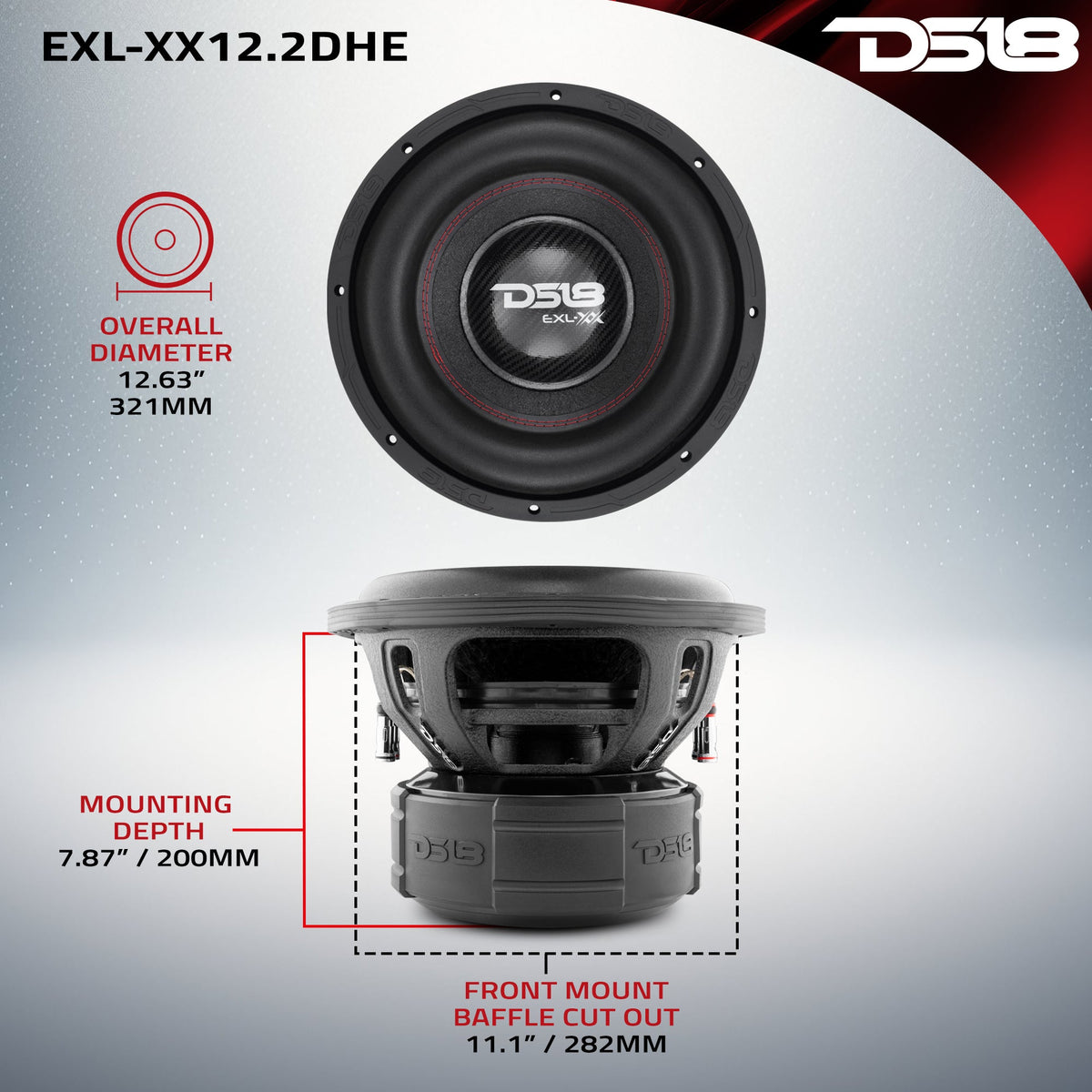

Overall Diameter	12.63" / 321mm
Overall Depth	9.25" / 235mm
Front Mount Baffle Cutout	11.1" / 282mm
Mounting Depth	7.87" / 200mm
Motor Diameter	8.89" / 226mm
Gross Single Unit Weight (lb)	53.5
Dimensions W x L x H (Inches)	15 x 15 x 12.5
Quantity of Units in Master Carton	1
Gross Master Carton Weight (lb)	53.5
M/C Dimensions W x L x H (Inches)	15 x 15 x 12.5
