DS18

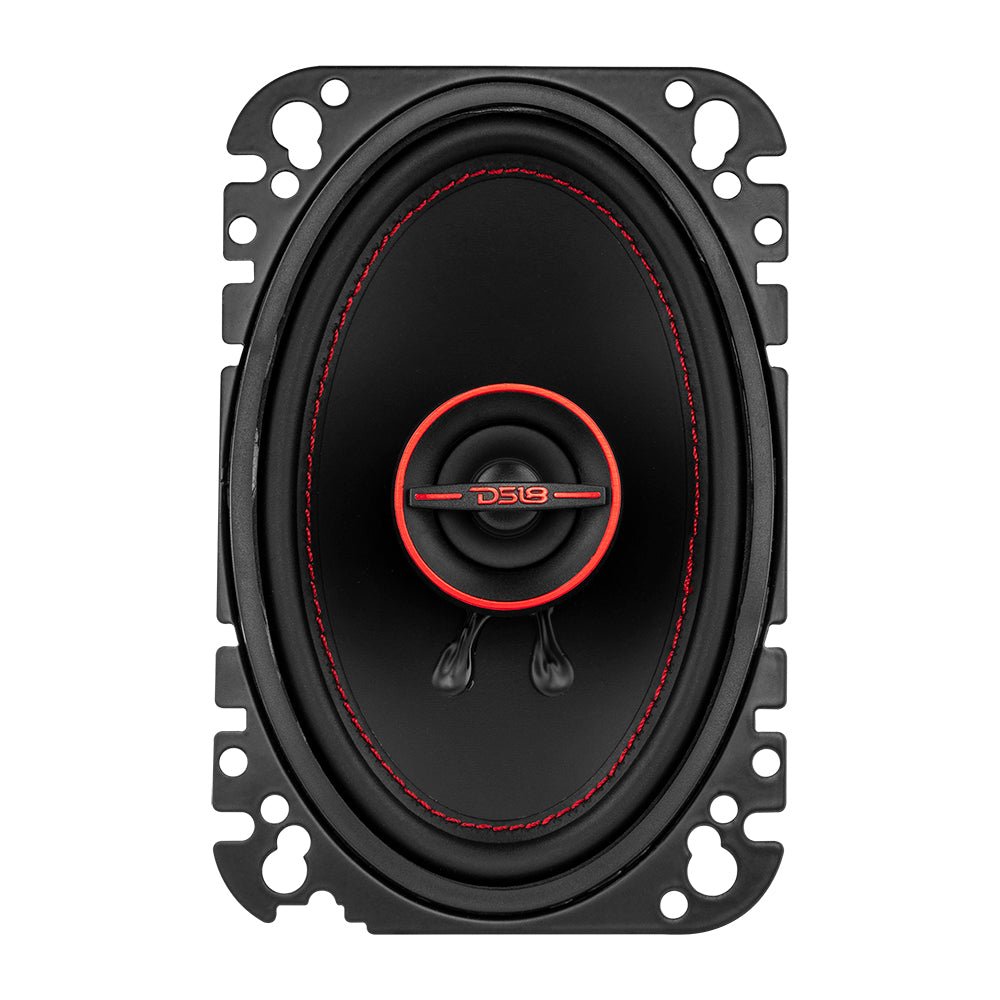

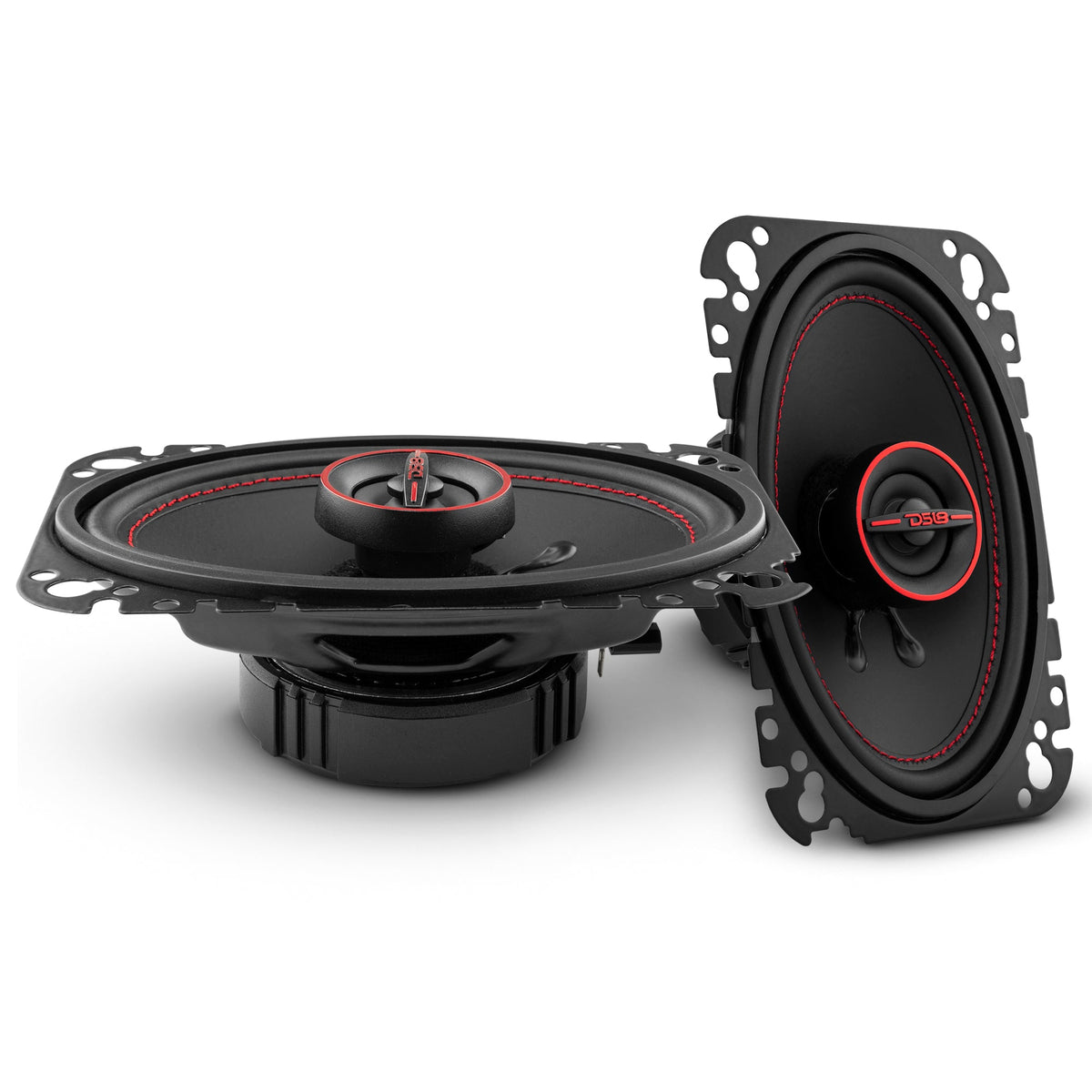

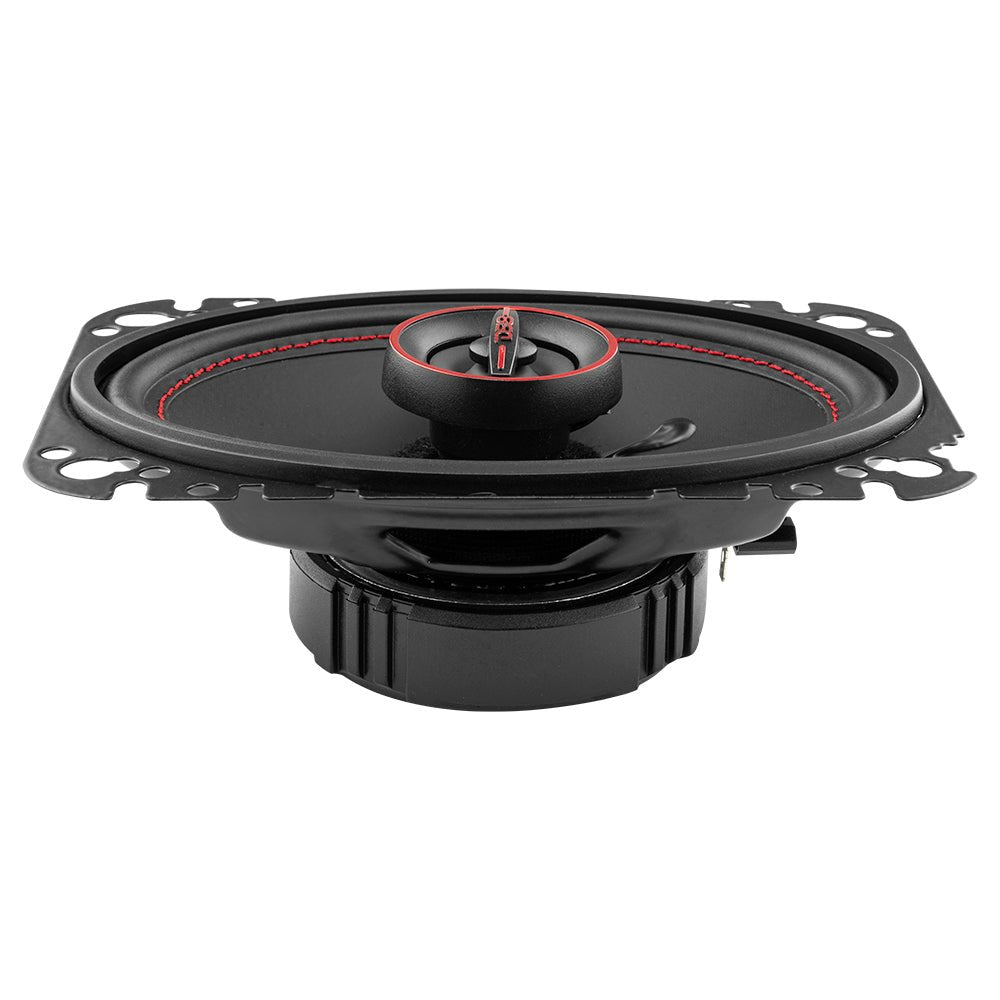

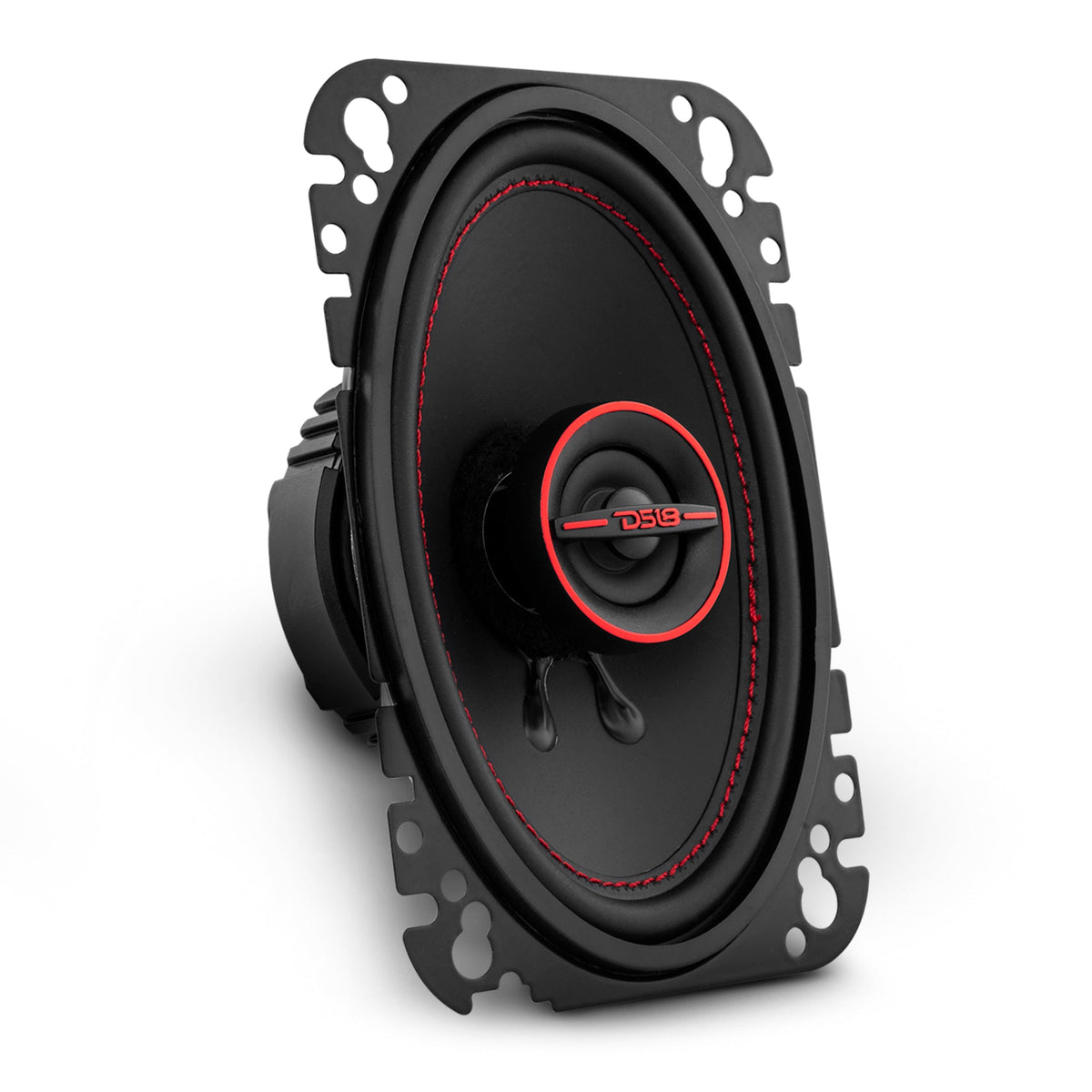

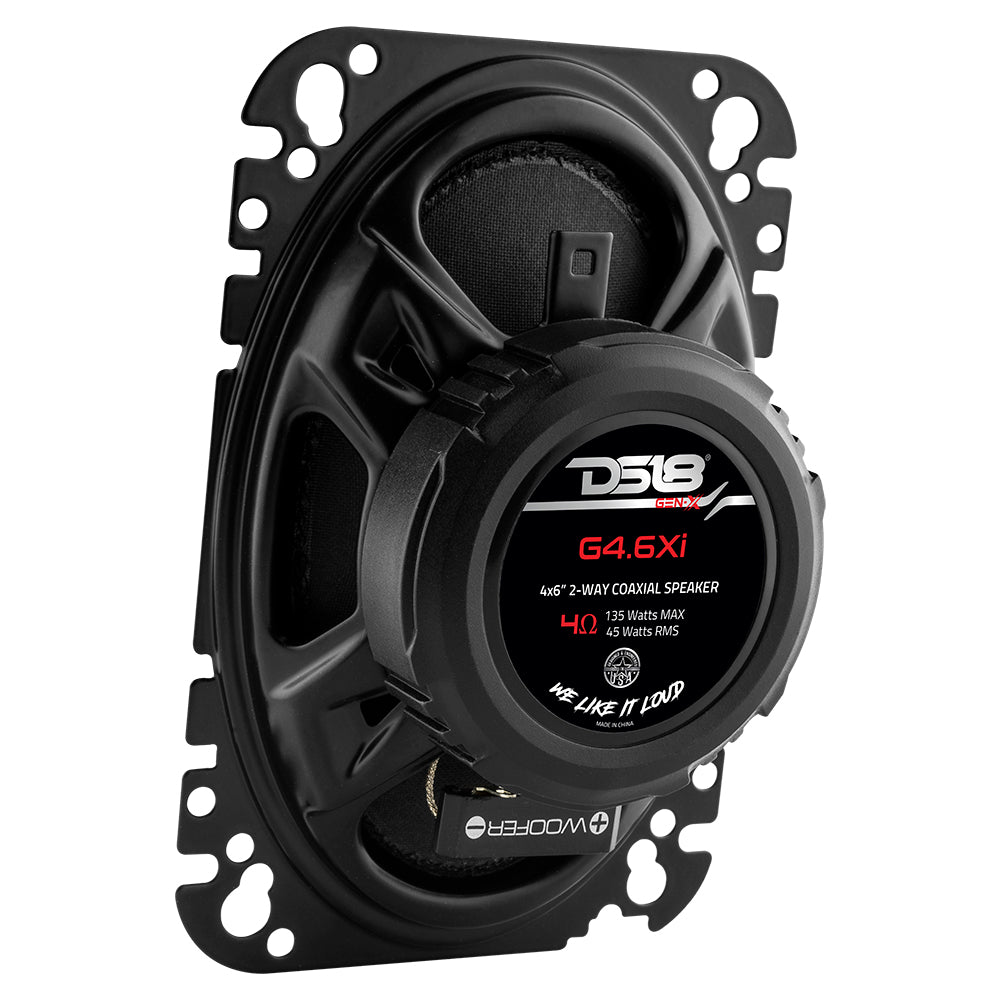

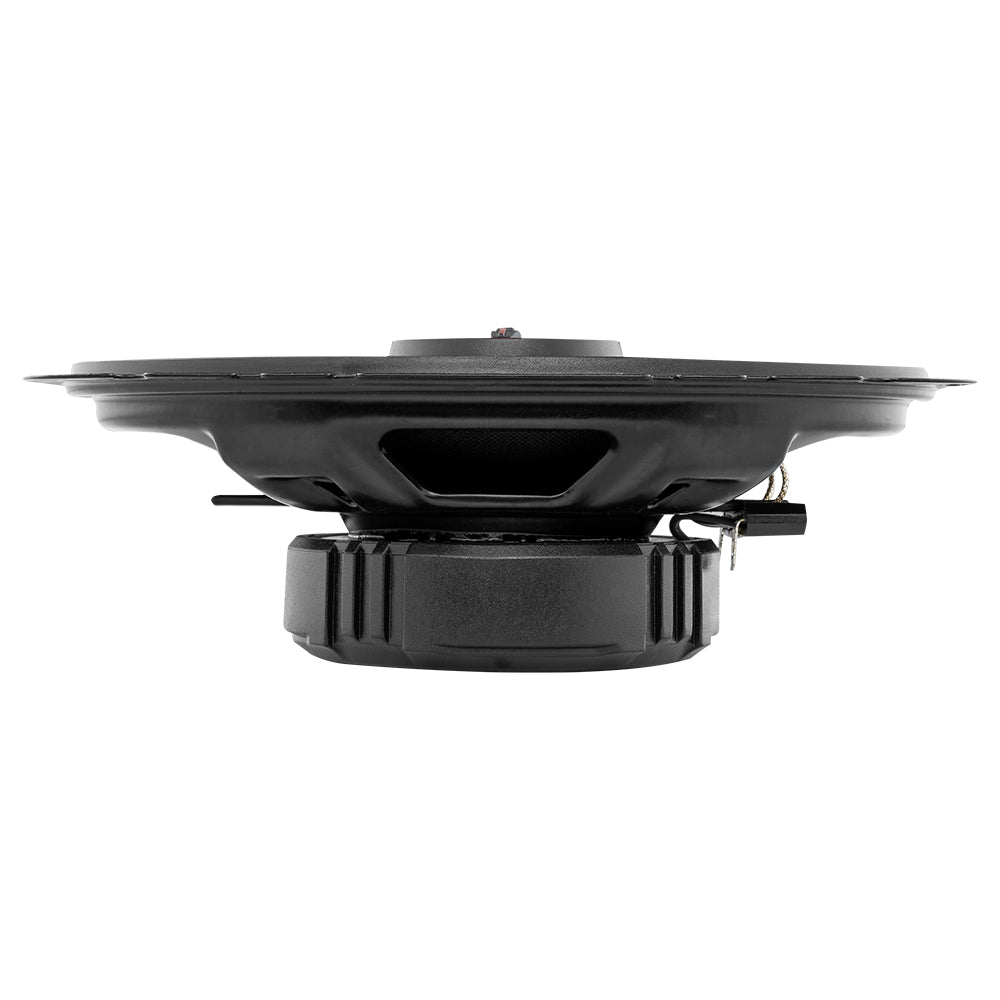

DS18 G4.6XI 4x6" Coaxial

Name: DS18 G4.6XI 4x6" Coaxial
Brand: DS18
Price: 54.95 USD
Availability: InStock

$54.95

Sale Sold out

✓ In store · free same-day pickupFree shipping on $175+ ordersShipping calculated at checkout.

Upgrade your ride with the DS18 G4.6XI 4x6" Coaxial — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

4x6"
45 Watts RMS
4Ohm
2-Way
Coaxial

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Pair of DS18 G4.6XI
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

GENERAL SPECIFICATIONS
Nominal Diameter	4x6" / 101x152mm
Nominal Impedance	4 Ohms
RMS Power Handling	45W
MAX Power Handling	135W
Sensitivity (1w/1m)	84dB
Frequency Response	45Hz-20KHz
Recommended HI Pass Crossover	80Hz
Number of ways	2
Pair or Single	Pair
Grill Included	No
WOOFER SPECIFICATIONS
Voice Coil Diameter	1" / 25.5mm
Voice Coil Former Material	ASV
Winding Material	EISV
Cone Material	Paper
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Black Matte
Magnet Material	Barium Ferrite
Magnet Weight	6.3Oz / 180g
TWEETER SPECIFICATIONS
Nominal Diameter	1" / 25.5mm
Voice Coil Diameter	0.5" / 13.25mm
Voice Coil Former Material	ASV
Winding Material	EISVM
Diaphragm Material	Mylar
Magnet Material	Neodymium
Magnet Weight	1.8g

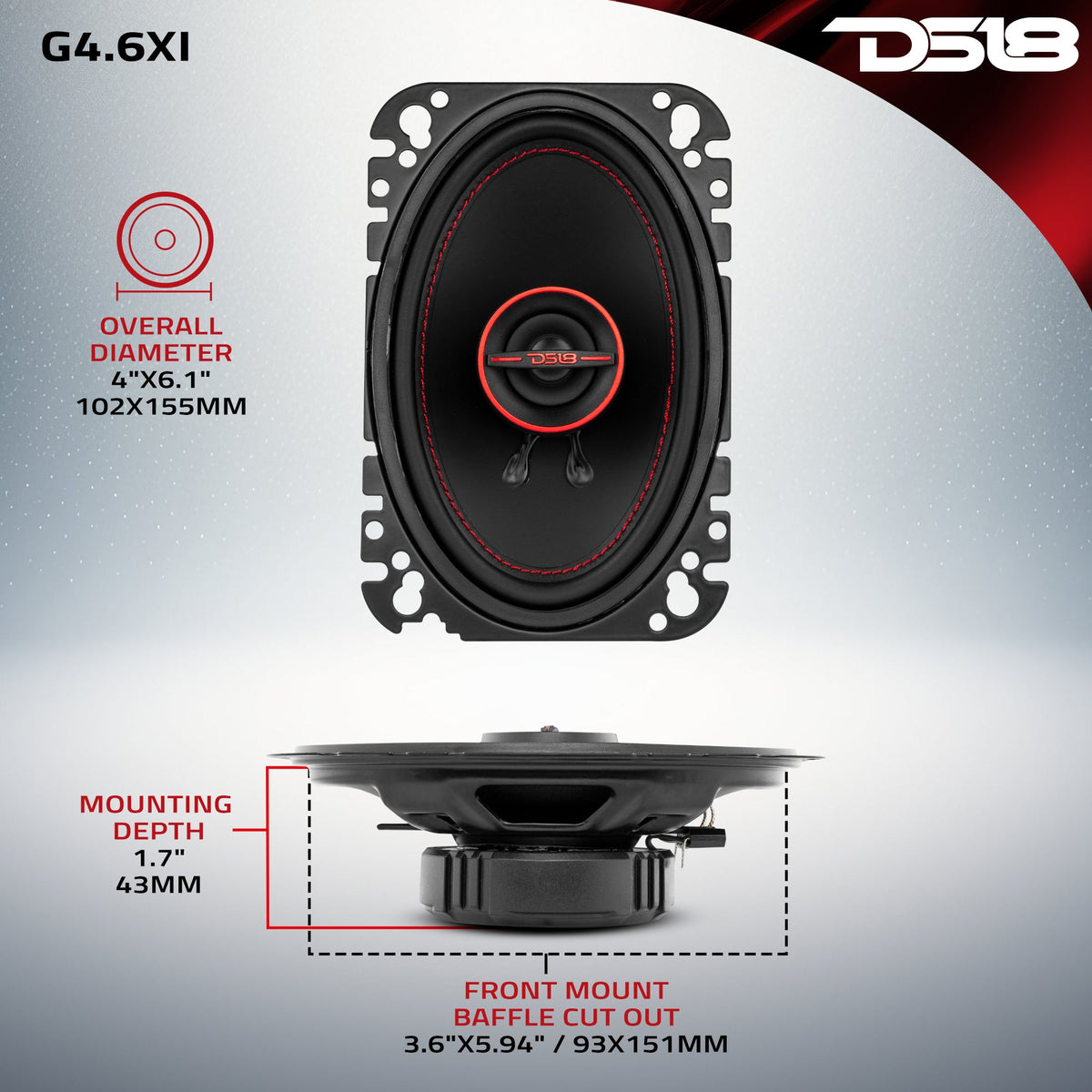

SPEAKERS MEASUREMENT
Overall Diameter	4"x6.1" / 102x155mm
Overall Depth	2.18" / 55.3mm
Overall Diameter (With Grill)	N/A
Overall Depth (With Grill)	N/A
Front Mount Baffle Cutout	3.6"x5.94" / 93x151mm
Mounting Depth	1.7" / 43mm
Motor Diameter	3" / 76mm
Tweeter Protrusion	0.48" / 12.3mm
SKU	G4.6XI
Maximum Power Handling	135W
Equivalent Volume Vas	1.8L / 0.063ft3
Excursion (one way) Xmax	2.2mm
Free Air Resonance Fs	115Hz
Mechanical Factor Qms	4.3
Electrical Factor Qes	2.3
Total Factor Qts	1.5
Moving Mass Mms	9.4g
Compliance Cms	195mm/N
Bl Factor Bl	3.1
Voice Coil Inductance Le	151uH
Cone Area Sd	84.3cm2
DC Resistance Re	3.7 Ohms
Moving Mass without Air Mmd	8.5g
Gross Single Unit Weight	0.45KG
Single Unit Box Dimensions W x L x H	170 x 80 x 230mm
Quantity of Units in Master Carton	10 PRS/CTN
Gross Master Carton Weight	13.0KG
Master Carton Dimensions W x L x H	425 x 360 x 250mm

Manual

📄 Download Owner's Manual (PDF)
