DS18

DS18 G5.25XI 5.25" Coaxial

Name: DS18 G5.25XI 5.25" Coaxial
Brand: DS18
Price: 50.95 USD
Availability: OutOfStock

$50.95

Sale Sold out

Shipping calculated at checkout.

Upgrade your ride with the DS18 G5.25XI 5.25" Coaxial — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

5.25"
45Watts RMS
4Ohm
2-Way
Coaxial

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Pair of DS18 G5.25XI
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

GENERAL SPECIFICATIONS
Nominal Diameter	5.25" / 133mm
Nominal Impedance	4 Ohms
RMS Power Handling	45W
MAX Power Handling	135W
Sensitivity (1w/1m)	84dB
Frequency Response	50Hz-20KHz
Recommended HI Pass Crossover	80Hz
Number of ways	2
Pair or Single	Pair
Grill Included	Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter	1" / 25.5mm
Voice Coil Former Material	ASV
Winding Material	EISV
Cone Material	Paper
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Black Matte
Magnet Material	Barium Ferrite
Magnet Weight	6.3Oz / 180g
TWEETER SPECIFICATIONS
Nominal Diameter	1" / 25.5mm
Voice Coil Diameter	0.5" / 13.25mm
Voice Coil Former Material	ASV
Winding Material	EISVM
Diaphragm Material	Mylar
Magnet Material	Neodymium
Magnet Weight	1.8g

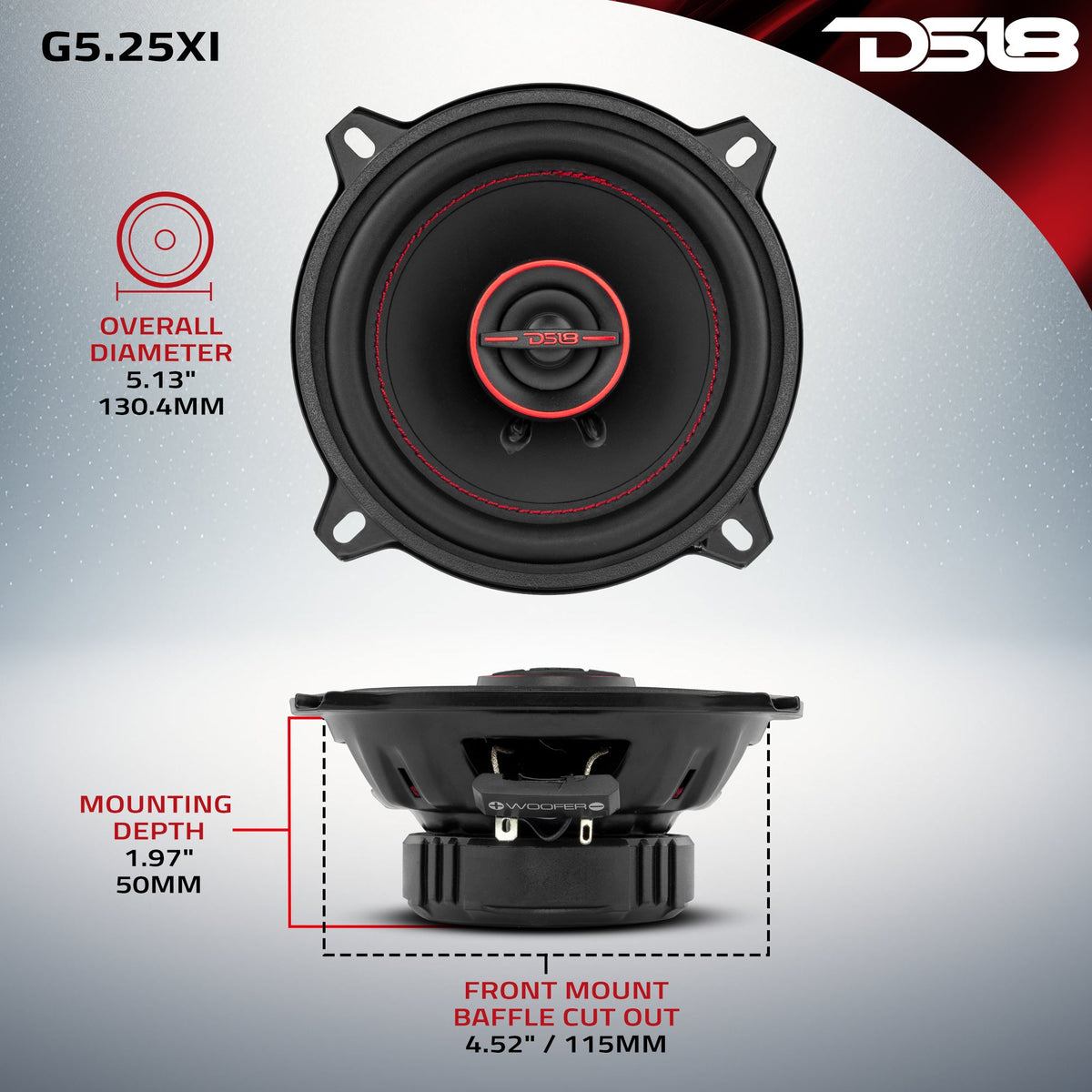

SPEAKERS MEASUREMENT
Overall Diameter	5.13" / 130.4mm
Overall Depth	2.47" / 62.8mm
Overall Diameter (With Grill)	6.38" / 162mm
Overall Depth (With Grill)	2.75" / 69.8mm
Front Mount Baffle Cutout	4.52" / 115mm
Mounting Depth	1.97" / 50mm
Motor Diameter	3" / 76mm
SKU	G5.25XI
Maximum Power Handling	135W
Equivalent Volume Vas	3.66L / 0.129ft3
Excursion (one way) Xmax	2.2mm
Free Air Resonance Fs	86Hz
Mechanical Factor Qms	3.5
Electrical Factor Qes	1.63
Total Factor Qts	1.1
Moving Mass Mms	9.15g
Compliance Cms	330mm/N
Bl Factor Bl	3.4
Voice Coil Inductance Le	151uH
Cone Area Sd	84.5cm2
DC Resistance Re	3.7 Ohms
Mechanical Mass w/o air Mmd	8.3g
Overall Diameter with Grill	6.38" / 162mm
Overall Depth with Grill	2.75" / 69.8mm
Tweeter Protrusion	0.5" / 12.8mm
Gross Single Unit Weight	0.52 KG
Single Unit Box Dimensions W x L x H	185 x 85 x 325mm
Quantity of Units in Master Carton	10 PRS/CTN
Gross Master Carton Weight	14 KG
Master Carton Dimensions W x L x H	450 x 340 x 390mm

Manual

📄 Download Owner's Manual (PDF)
