DS18 G6.5XI 6.5" Coaxial

Name: DS18 G6.5XI 6.5" Coaxial
Brand: DS18
Price: 59.95 USD
Availability: InStock

$59.95

Sale Sold out

✓ In store · free same-day pickupFree shipping on $175+ ordersShipping calculated at checkout.

Upgrade your ride with the DS18 G6.5XI 6.5" Coaxial — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

6.5"
50Watts RMS
4Ohm
2-Way
Coaxial

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Pair of DS18 G6.5XI
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

GENERAL SPECIFICATIONS
Nominal Diameter	6.5" / 165mm
Nominal Impedance	4 Ohms
RMS Power Handling	50W
MAX Power Handling	150W
Sensitivity (1w/1m)	86dB
Frequency Response	35Hz-20KHz
Recommended HI Pass Crossover	60Hz
Number of ways	2
Pair or Single	Pair
Grill Included	Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter	1" / 25.5mm
Voice Coil Former Material	ASV
Winding Material	EISV
Cone Material	Paper
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Black Matte
Magnet Material	Barium Ferrite
Magnet Weight	9.87oz / 280g
TWEETER SPECIFICATIONS
Nominal Diameter	1" / 25.5mm
Voice Coil Diameter	0.5" / 13.25mm
Voice Coil Former Material	ASV
Winding Material	EISVM
Diaphragm Material	Mylar
Magnet Material	Neodymium
Magnet Weight	1.8g
SPEAKERS MEASUREMENT

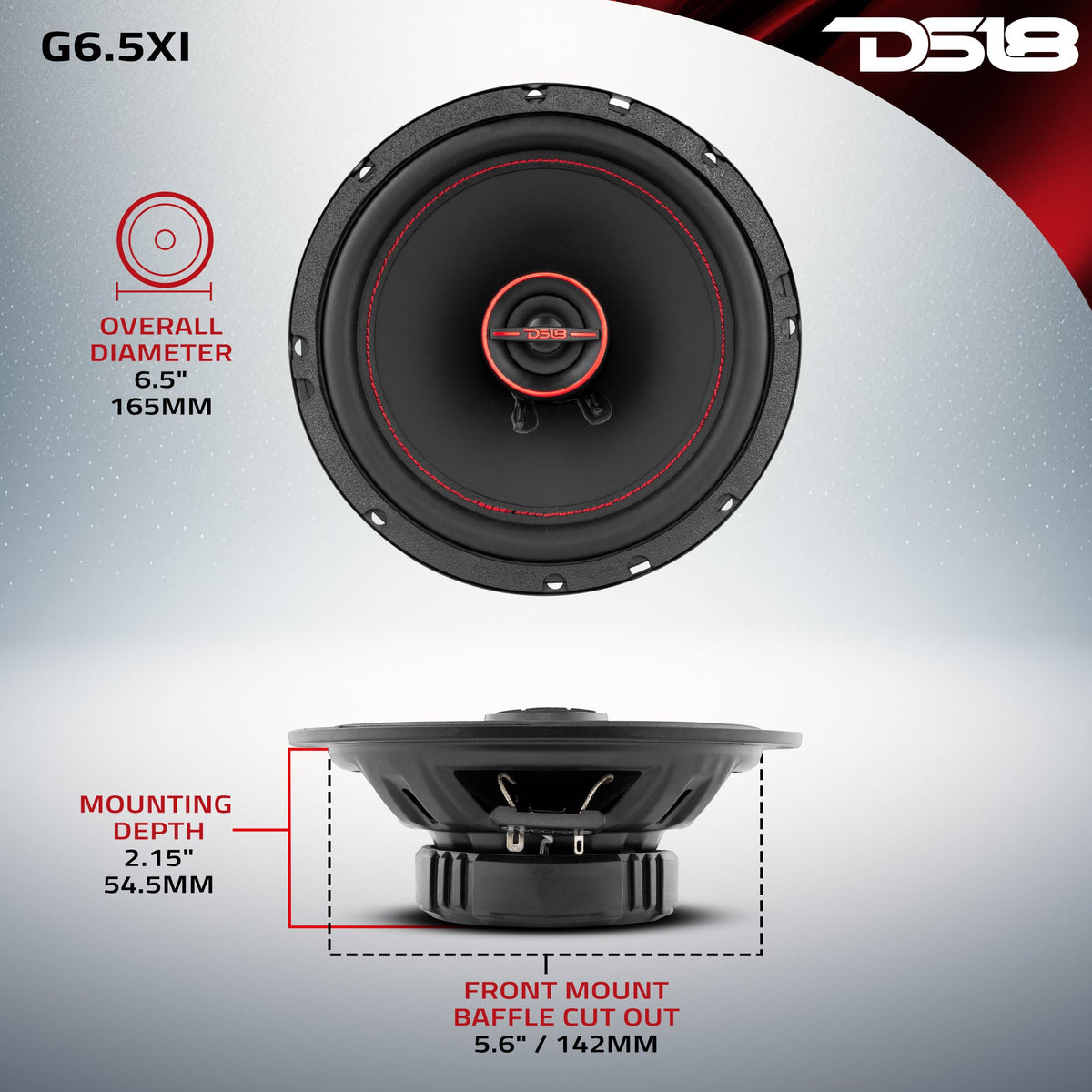

Overall Diameter	6.5" / 165mm
Overall Depth	2.65" / 67.3mm
Overall Diameter (With Grill)	7" / 179mm
Overall Depth (With Grill)	3" / 76.4mm
Front Mount Baffle Cutout	5.6" / 142mm
Mounting Depth	2.15" / 54.5mm
Motor Diameter	3.4" / 86mm
Tweeter Protrusion	0.5" / 12.8mm
SKU	G6.5XI
Maximum Power Handling	150W
Equivalent Volume Vas	9.47L / 0.33ft3
Excursion (one way) Xmax	2.7mm
Free Air Resonance Fs	76Hz
Mechanical Factor Qms	4.6
Electrical Factor Qes	2
Total Factor Qts	1.4
Mechanical Mass Mms	11.4g
Mechanical Compliance Cms	350mm/N
Bl Factor Bl	3.2
Voice Coil Inductance Le	172uH
Cone Area Sd	136.8cm2
DC Resistance Re	3.7 Ohms
Mechanical Mass w/o air Mmd	10.5g
Gross Single Unit Weight	0.8KG
Single Unit Box Dimensions W x L x H	210 x 106 x 360mm
Quantity of Units in Master Carton	10 PRS/CTN
Gross Master Carton Weight	18.5KG
Master Carton Dimensions W x L x H	555 x 375 x 440mm

Manual

📄 Download Owner's Manual (PDF)
