DS18

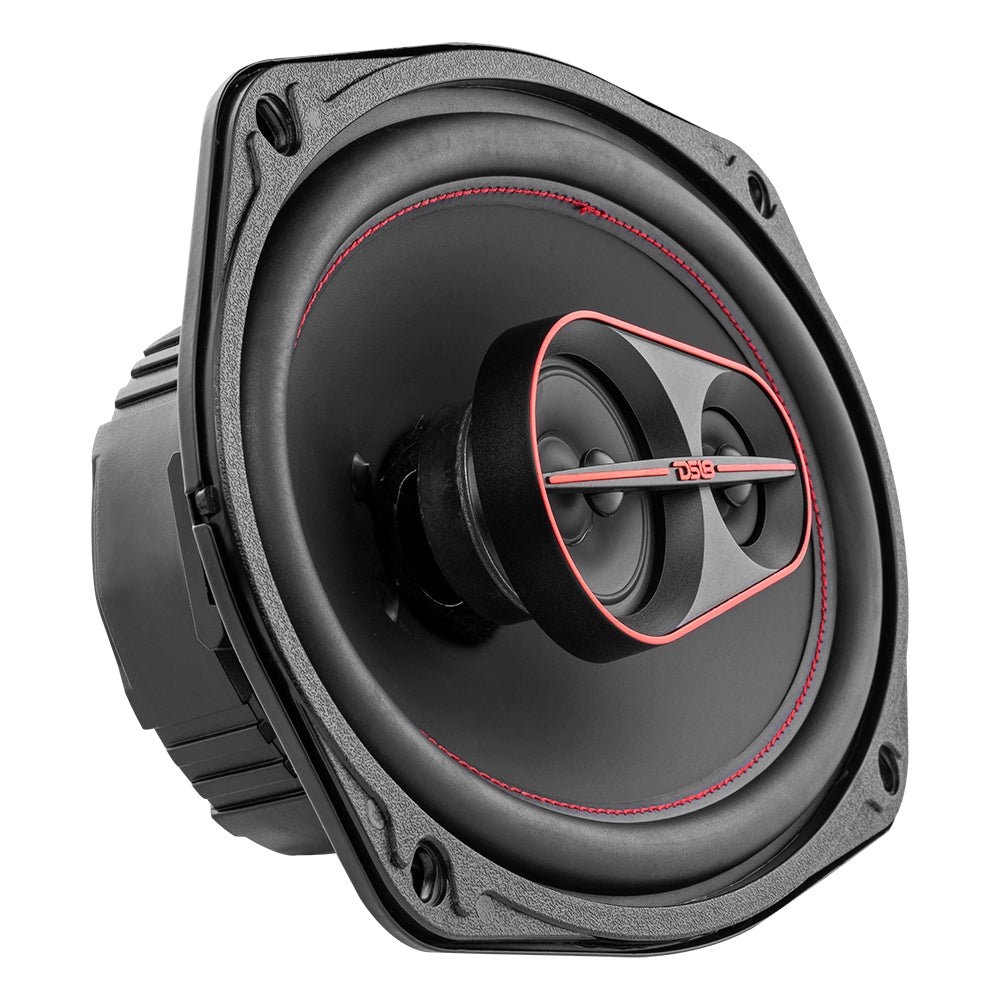

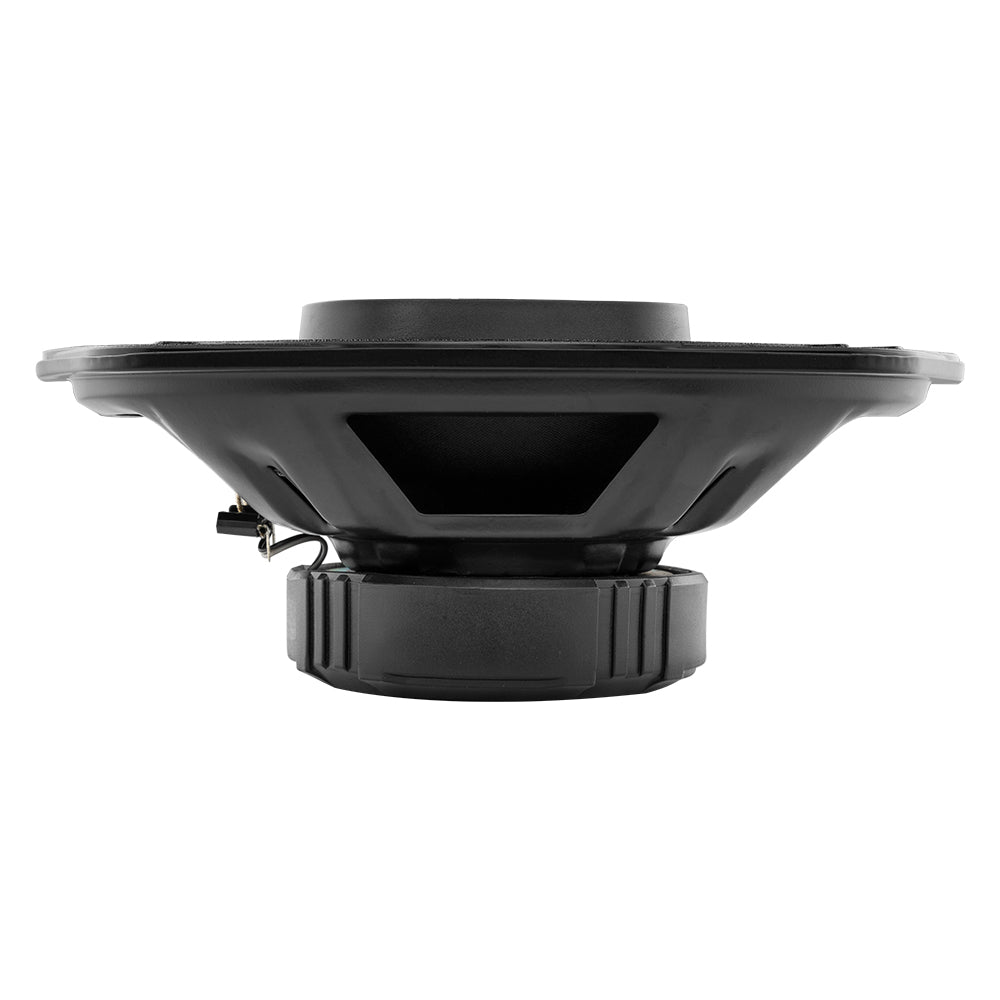

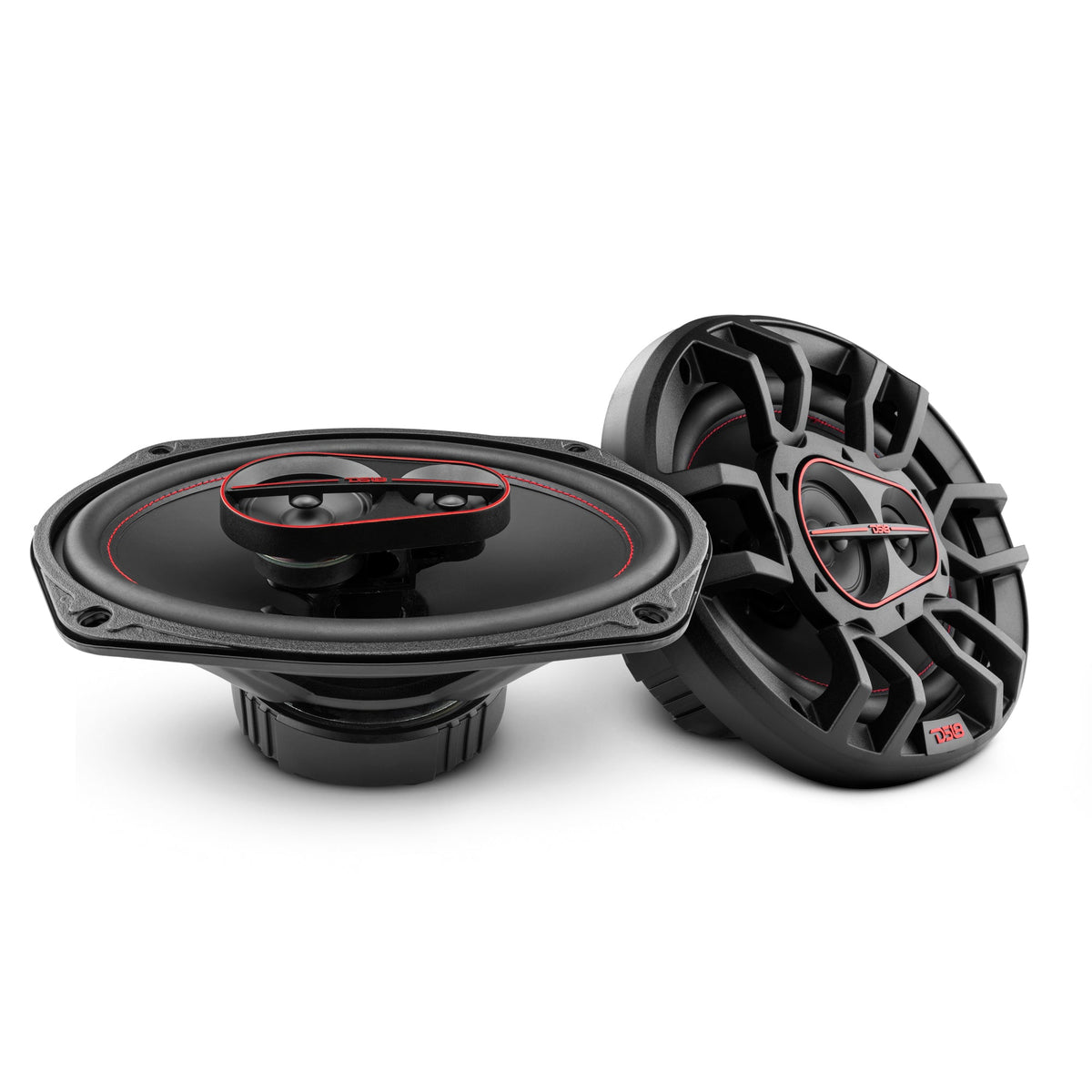

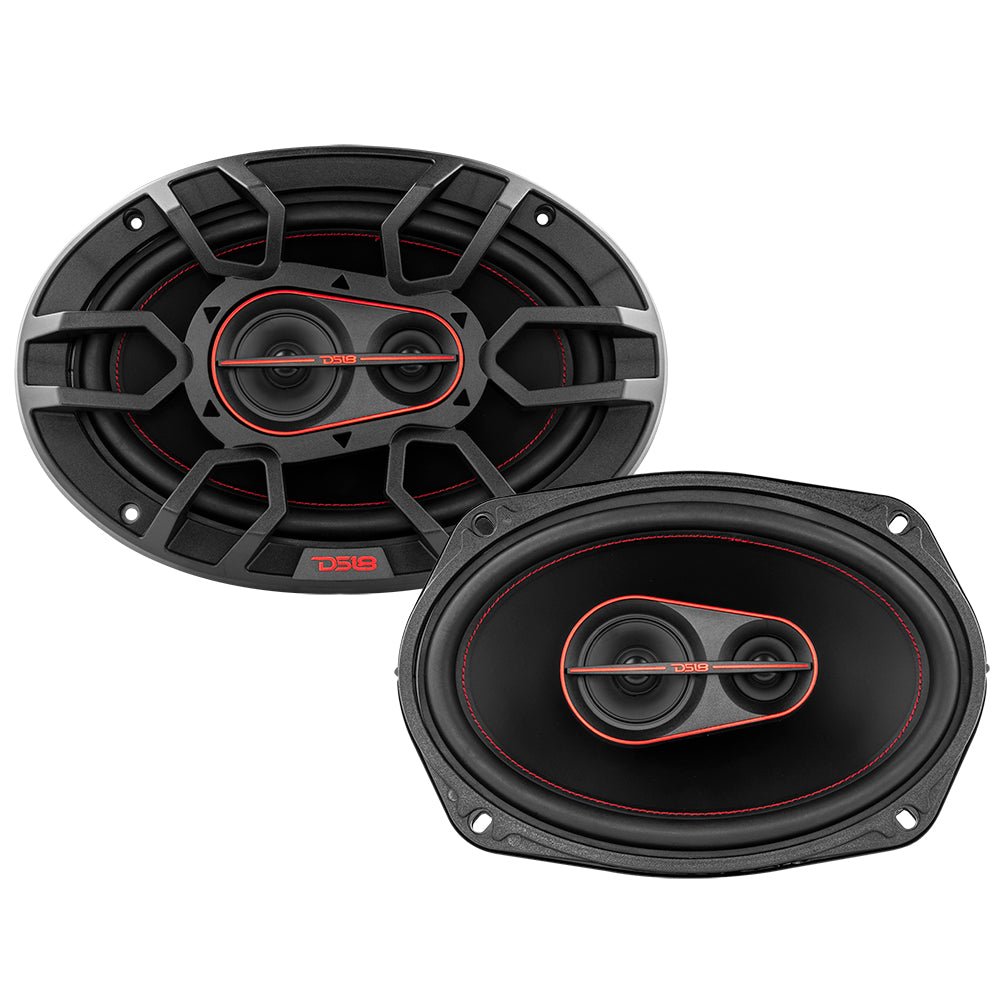

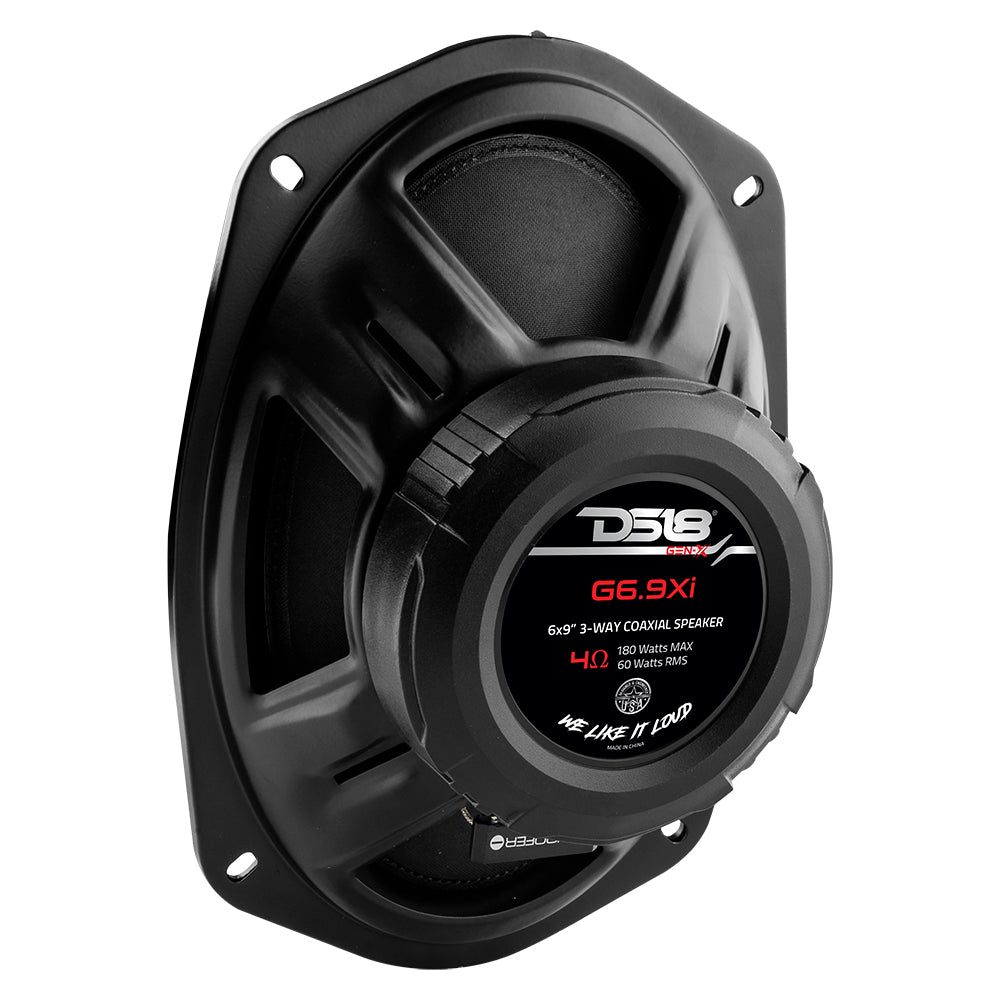

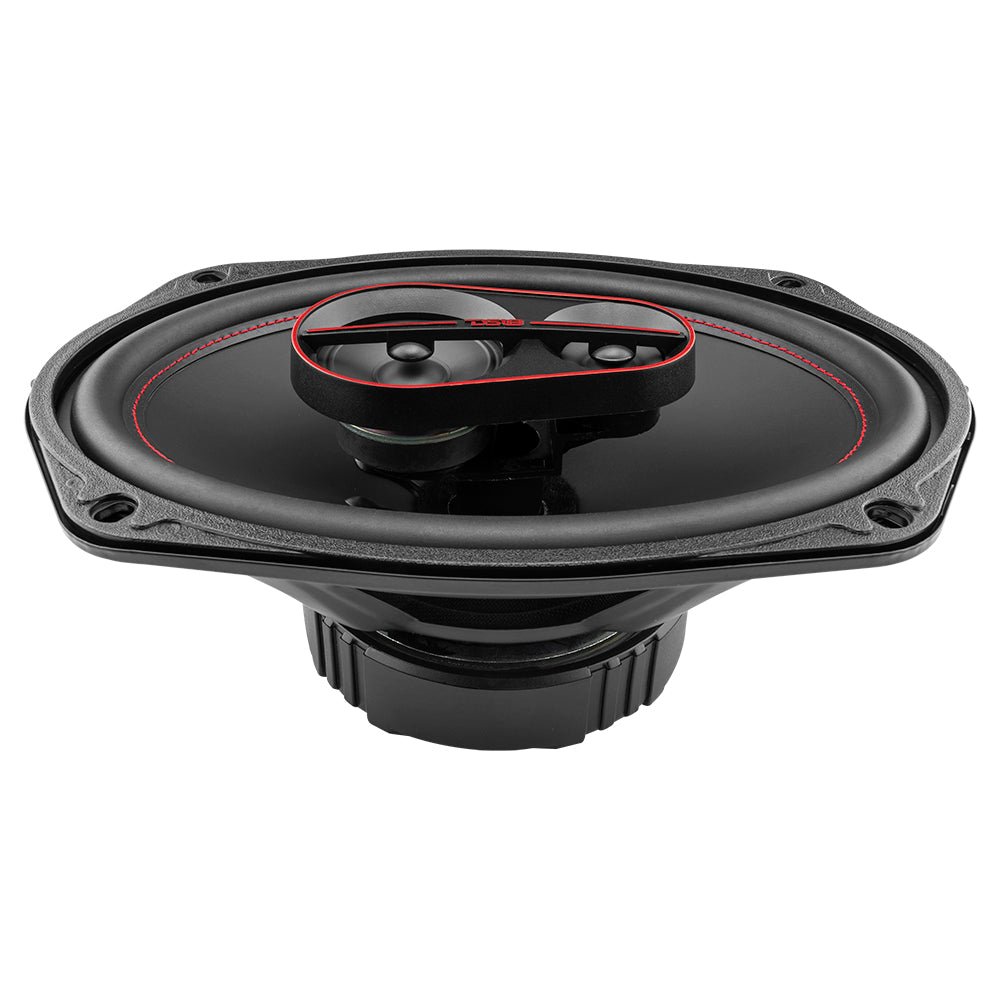

DS18 G6.9XI 6x9" Coaxial

Name: DS18 G6.9XI 6x9" Coaxial
Brand: DS18
Price: 74.95 USD
Availability: InStock

$74.95

Sale Sold out

✓ In store · free same-day pickupFree shipping on $175+ ordersShipping calculated at checkout.

Upgrade your ride with the DS18 G6.9XI 6x9" Coaxial — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

6x9"
60 Watts RMS
4Ohm
3-Way
Coaxial

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Pair of DS18 G6.9XI
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

GENERAL SPECIFICATIONS
Nominal Diameter	6X9" / 152x228mm
Nominal Impedance	4 Ohms
RMS Power Handling	60W
MAX Power Handling	180W
Sensitivity (1w/1m)	86dB
Frequency Response	35Hz-20KHz
Recommended HI Pass Crossover	50Hz
Number of ways	3
Pair or Single	Pair
Grill Included	Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter	1" / 25.5mm
Voice Coil Former Material	ASV
Winding Material	EISV
Cone Material	Paper
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Black Matte
Magnet Material	Barium Ferrite
Magnet Weight	15.7Oz / 445g
TWEETER SPECIFICATIONS
Nominal Diameter	Tw1: 2.3" / 59mm Tw2: 1.1" / 29mm
Voice Coil Diameter	Tw1: 0.6" / 17mm Tw2: Peizo
Voice Coil Former Material	Tw1: PESV Tw2: N/A
Winding Material	Tw1: EISVM Tw2: N/A
Diaphragm Material	Tw1: Mylar Tw2: Mylar
Magnet Material	Tw1: Barium Ferrite Tw2: N/A
Magnet Weight	Tw1: 34g Tw2: N/A

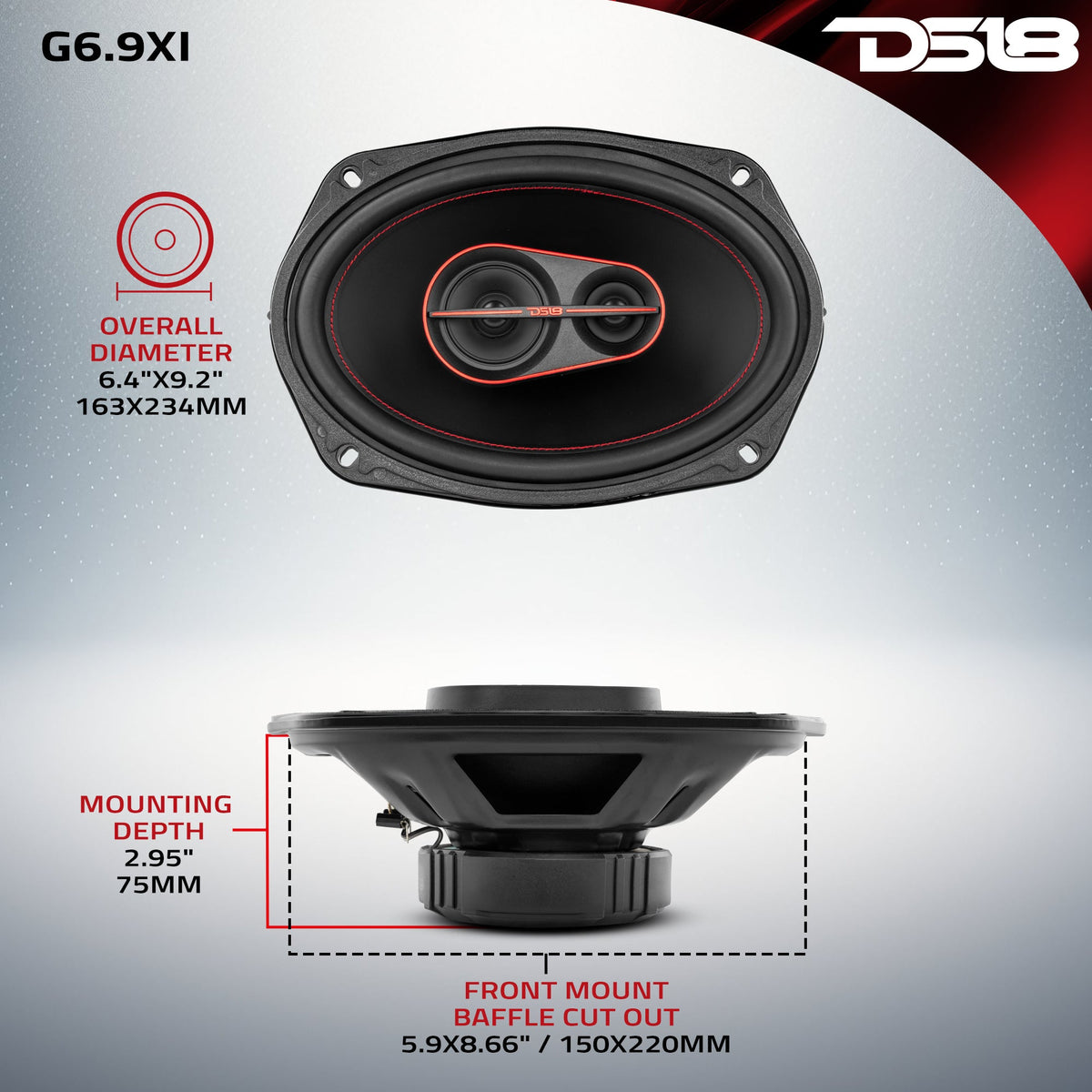

SPEAKERS MEASUREMENT
Overall Diameter	6.4"x9.2" / 163x234mm
Overall Depth	3.85" / 97.8mm
Overall Diameter (With Grill)	7.24"x10.4" / 184x264mm
Overall Depth (With Grill)	4.15" / 105.5mm
Front Mount Baffle Cutout	5.9x8.66" / 150x220mm
Mounting Depth	2.95" / 75mm
Motor Diameter	4.17" / 106mm
Tweeter Protrusion	0.9" / 22.8mm
SKU	G6.9XI
Maximum Power Handling	180W
Equivalent Volume Vas	14.3L / 0.5ft3
Excursion (one way) Xmax	3.3mm
Free Air Resonance Fs	68Hz
Mechanical Factor Qms	4.8
Electrical Factor Qes	1.97
Total Factor Qts	1.4
Mechanical Mass Mms	23.8g
Mechanical Compliance Cms	248mm/N
BL Factor BL	4.2
Voice Coil Inductance Le	197uH
Cone Area Sd	202cm2
DC Resistance Re	3.7 Ohms
Mechanical Mass w/o air Mmd	20.5g
Gross Single Unit Weight	1.25KG
Single Unit Box Dimensions W x L x H	305 x 125 x 375mm
Quantity of Units in Master Carton	5 PRS/CTN
Gross Master Carton Weight	15.5KG
Master Carton Dimensions W x L x H	650 x 320 x 390mm

Manual

📄 Download Owner's Manual (PDF)
