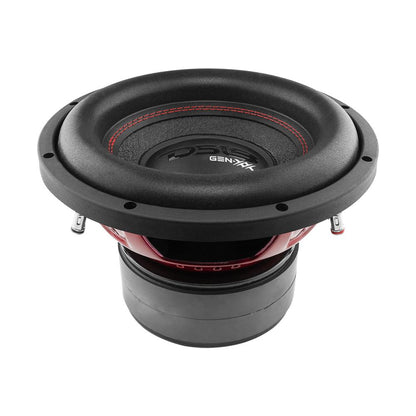

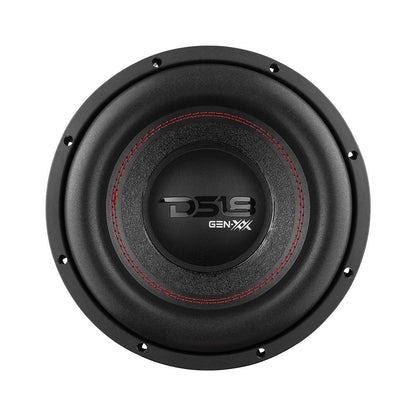

DS18 GEN-XX SUBWOOFER WITH CARBON FIBER DUST CAP

Name: DS18 GEN-XX SUBWOOFER WITH CARBON FIBER DUST CAP
Brand: DS18
Price: 164.95 USD
Availability: InStock

$164.95

Sale Sold out

Size 10" 12" 15"

✓ In store · free same-day pickupFree shipping on $175+ ordersShipping calculated at checkout.

Experience deep, resonant bass with the DS18 Gen-XX subwoofer line. Designed for powerful performance, each unit features a durable carbon fiber dust cap and delivers crystal-clear audio quality that elevates any listening experience.

Specs by size

Size	RMS (W)	Impedance (Ω)	Sensitivity (dB)
10"	500	4	85
12"	600	4	85
15"	—	—	—

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Motor:
Nominal Diameter	10
Nominal Impedance	4+4 ohms
RMS Power Handling	500W
MAX Power Handling	1000W
Sensitivity (1w/1m)	84.6 dB
Frequency Response	20Hz - 1.1KHz
Recommended Lo Pass Crossover	90Hz
VC Diameter	2
VC Former Material	Black Aluminum
Winding Material	SV
Cone Material	Paper
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Steel
Basket Color/Finish	Glossy Red
Magnet Material	Ferrite
Magnet Weight	136 Oz
Displacement Volume	1.82L
Thiele & Small Parameters
Equivalent Vol	Vas 16.583L
Excursion (one way)	Xmax 25 mm
Free Air Resonance	Fs 37.6 Hz
Mechanical Factor	Qms 4.705
Electrical Factor	Qes 0.476
Total Factor	Qts 0.432
Moving Mass	Mms 166.794g
Compliance	Cms 0.107mm/N
Bl Factor	BL 23.041N/A
VC Inductance	Le 0.6741mH
Diaphragm Area	Sd 330.64cm2
Dc Resistance	Re 3.2+3.2 ohms
Efficiency Bandwidth Product	EBP 78.99

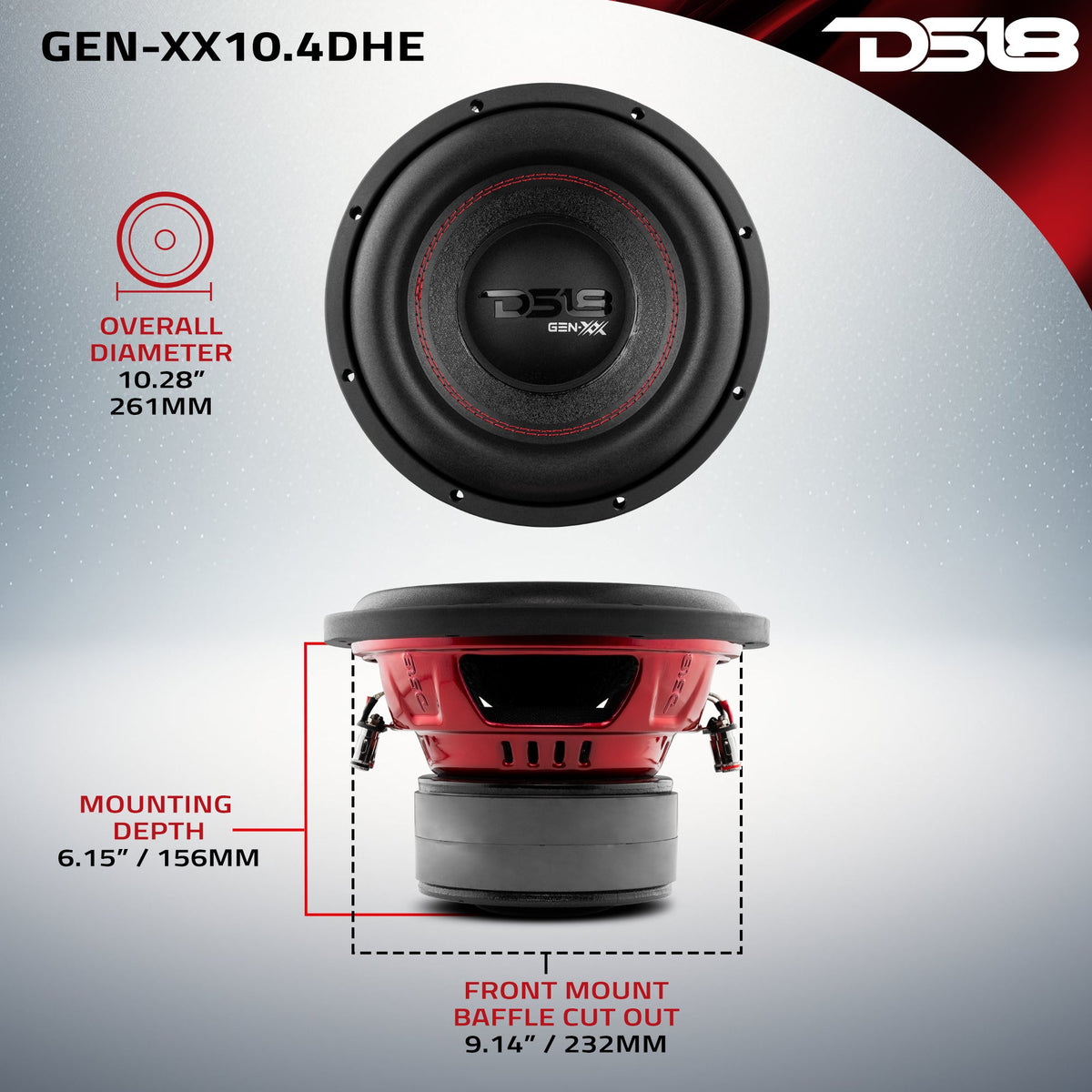

Measurements
Overall Diameter	10.28 / 261 mm
Overall Depth	7.21 / 183 mm
Front Mount Baffle Cutout	9.14 / 232 mm
Mounting Depth	6.15 / 156mm
Motor Diameter	6.15 / 156mm
SKU	GEN-XX10.4DHE
Maximum Power Handling	1000W
Voice Coil Diameter	2" / 50.8mm
Voice Coil Former Material	Black Aluminum
Equivalent Volume Vas	16.583 L
Free Air Resonance Fs	37.6 Hz
Mechanical Factor Qms	4.705
Electrical Factor Qes	0.476
Total Factor Qts	0.432
Moving Mass Mms	166.794g
Compliance Cms	0.107mm/N
Bl Factor BI	23.041N/A
Voice Coil Inductance Le	0.6741mH
Diaphragm Area Sd	330.64cm2
DC Resistance Re	3.2+3.2 ohms
Efficiency Bandwidth Product EBP	78.99
Gross Single Unit Weight (lb)	19
Dimensions W x L x H (Inches)	11.5 x 11.5 x 8.75
Quantity of Units in Master Carton	2
Gross Master Carton Weight (lb)	39
M/C Dimensions W x L x H (Inches)	12 x 12 x 18.5
