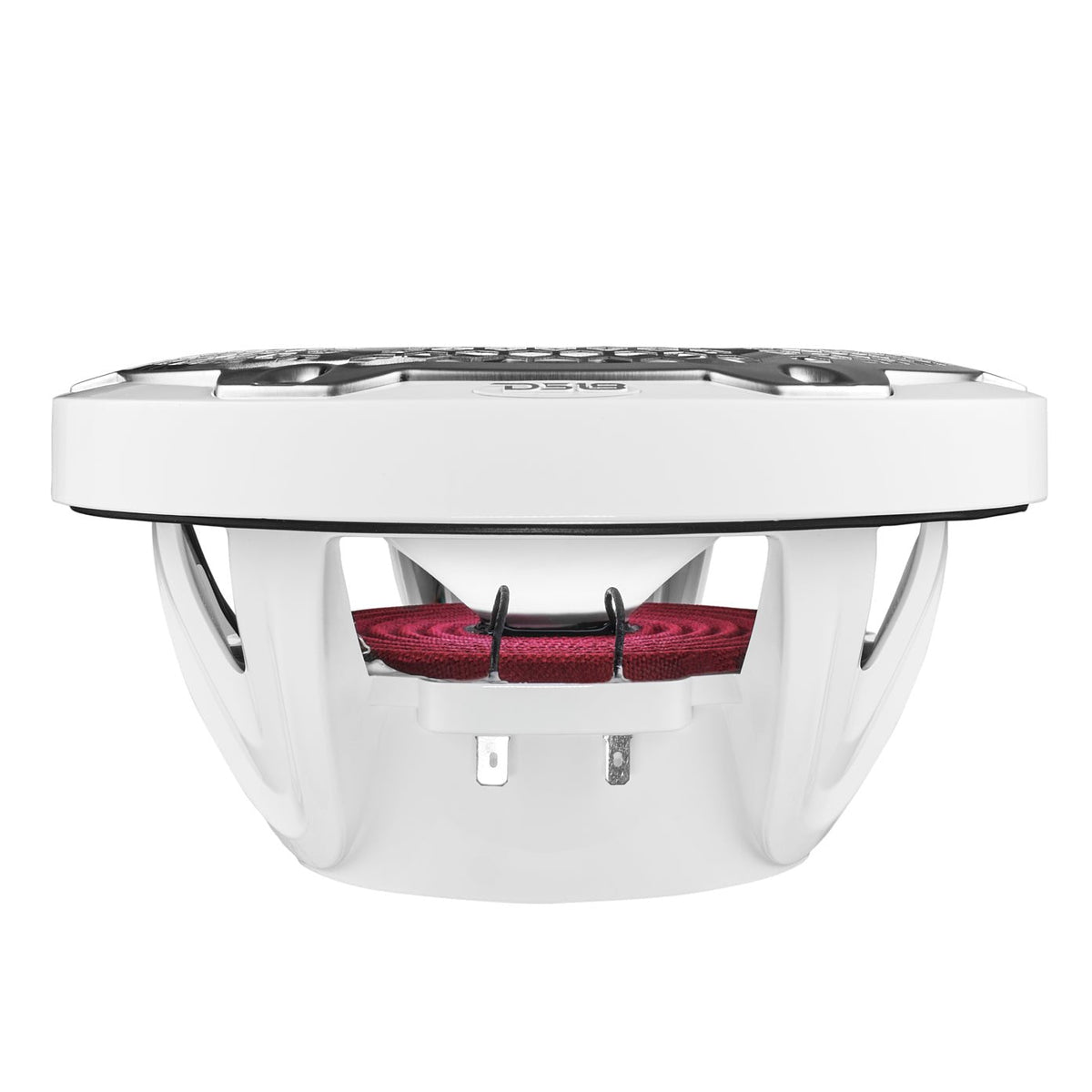

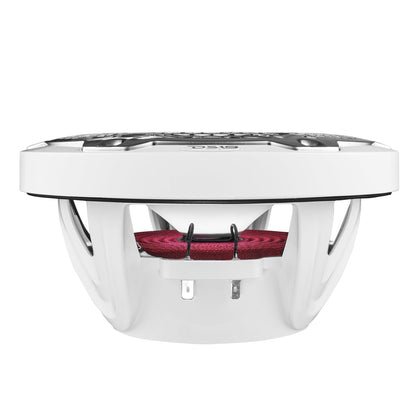

DS18 NXL-8M/WH 8"

Name: DS18 NXL-8M/WH 8"
Brand: DS18
Price: 299.95 USD
Availability: OutOfStock

$299.95

Sale Sold out

Free shippingShipping calculated at checkout.

Upgrade your ride with the DS18 NXL-8M/WH 8" — available at EB Electronics, your local car audio experts.

Built to handle the elements. DS18 marine audio gear is weather-sealed and UV-resistant, delivering concert-quality sound on the water.

Key Specifications:

8"
2-Way
125 Watts RMS
4Ohm
White

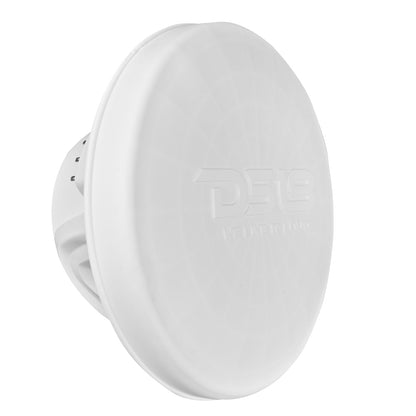

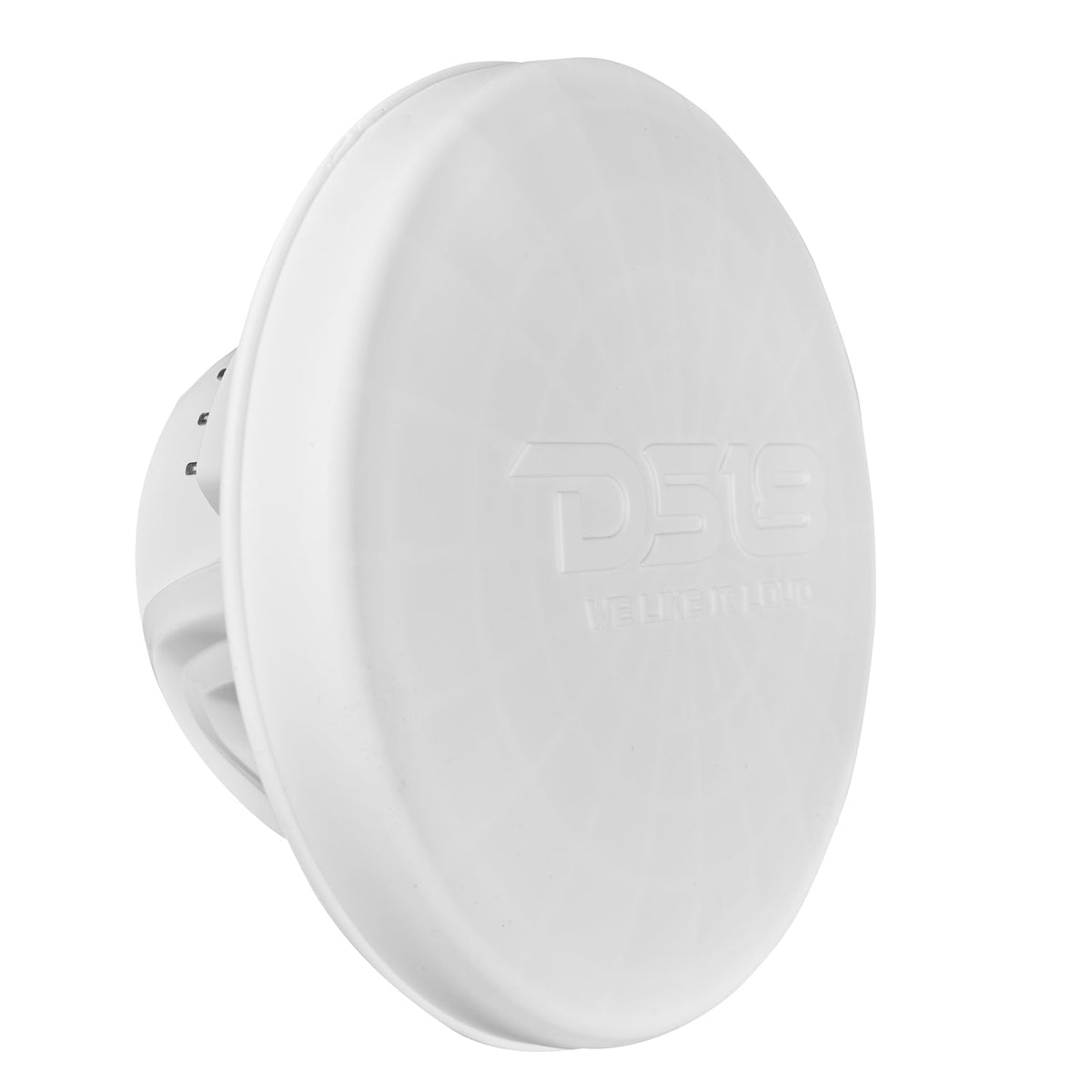

With Covers

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

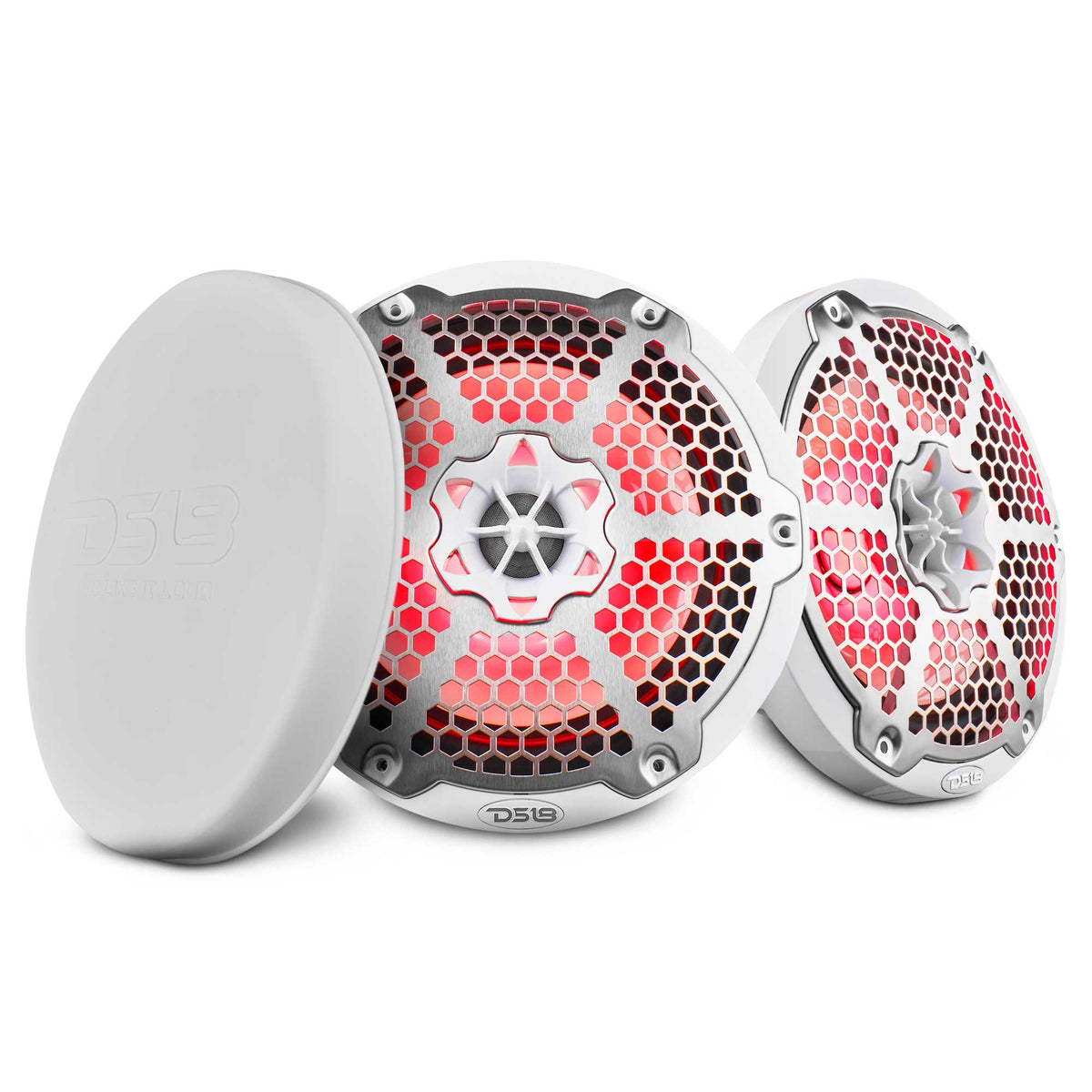

(1) Pair of DS18 NXL-8M/WH
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Diameter	8"
Configuration	2-Way
Power (RMS)	125 Watts RMS
Impedance	4 Ohm
SKU	NXL-8M/WH
Nominal Diameter	8" / 203mm
Nominal Impedance	4 Ohm
RMS Power Handling	125W
MAX Power Handling	375W
Sensitivity (1w/1m)	93dB
Frequency Response	35Hz-23KHz
Recommended HI Pass Crossover	50 Hz
UV Compliant	Yes, 100% Stable
Marine Grade Type	IP65

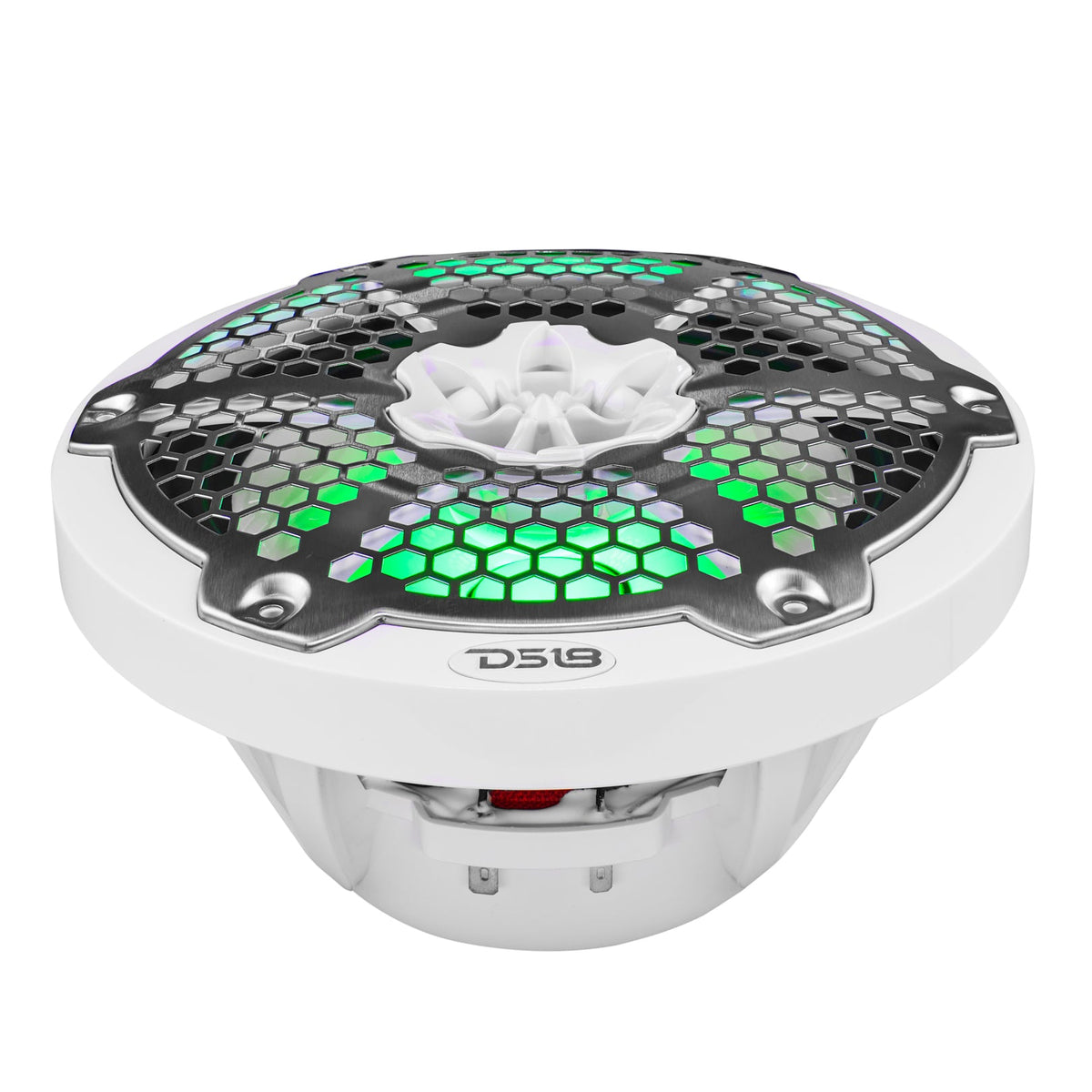

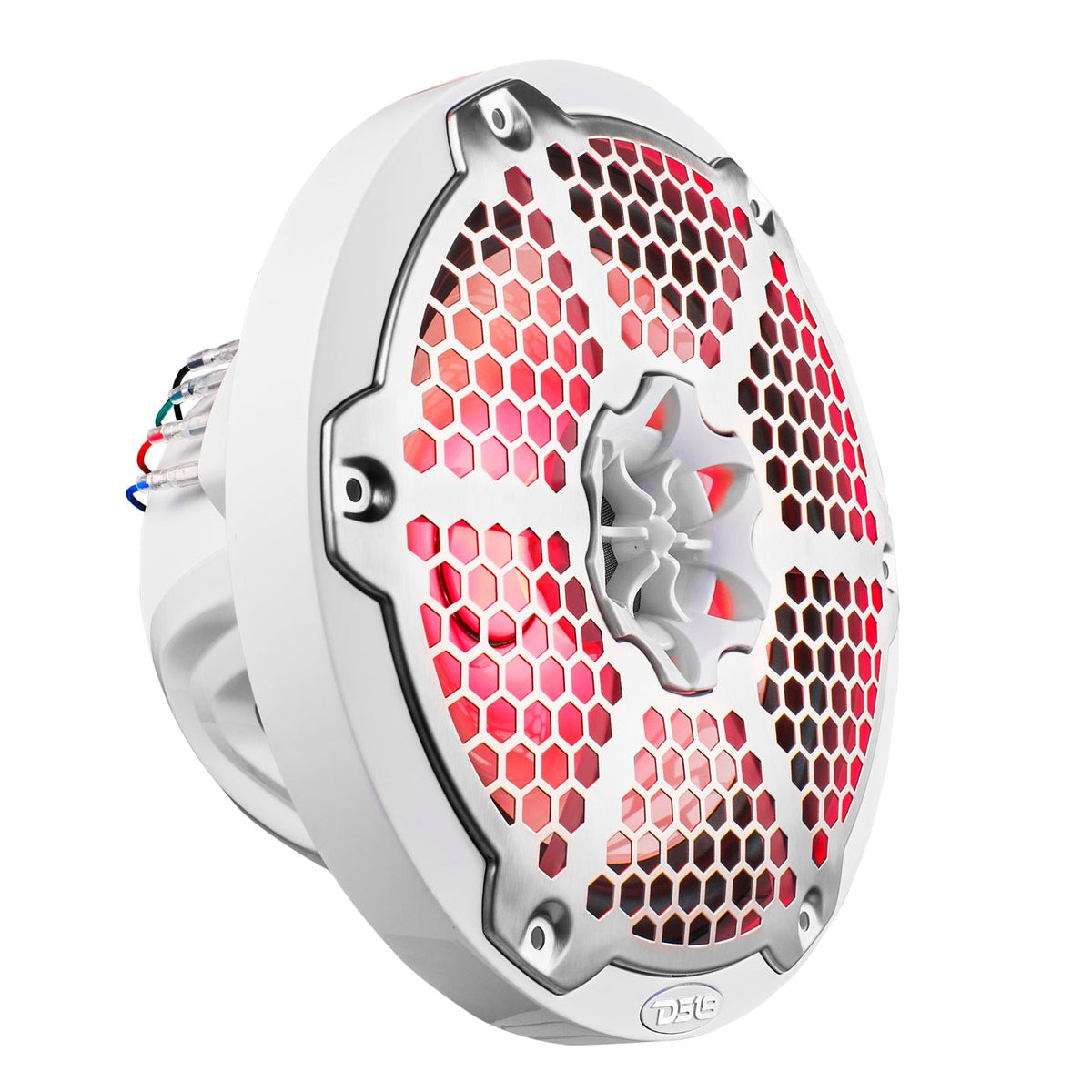

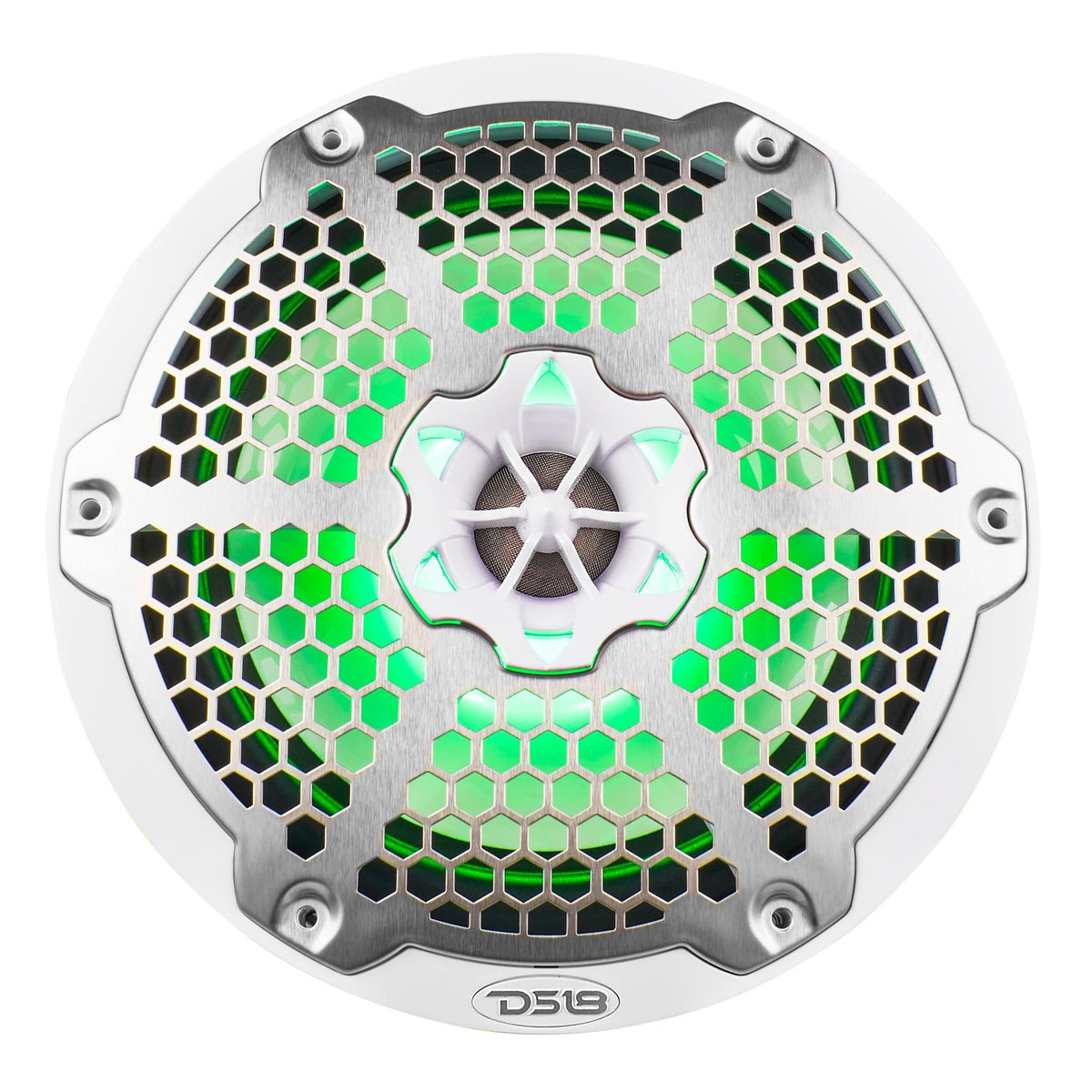

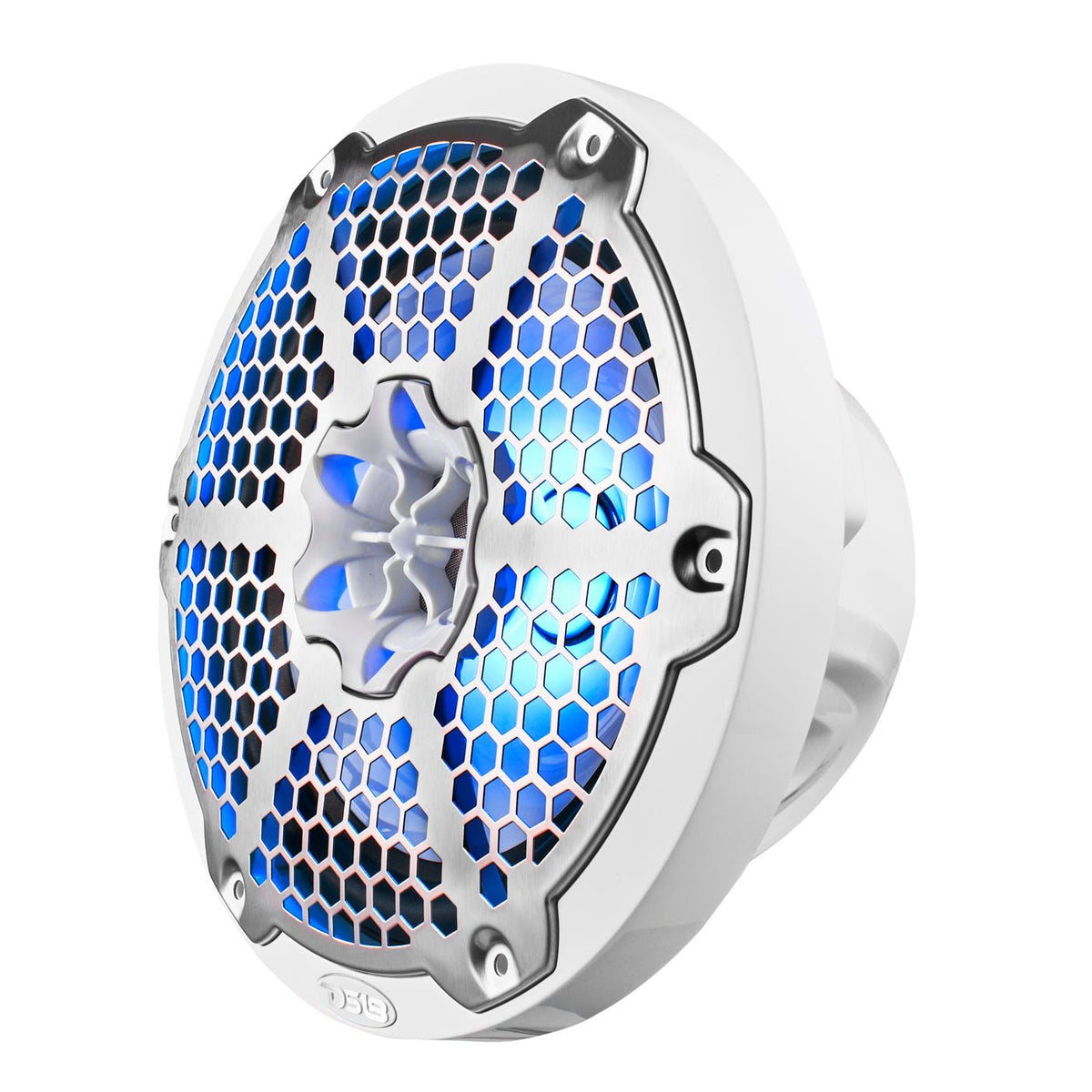

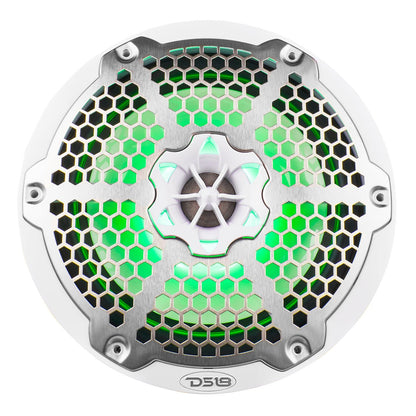

RGB LED	Yes, RGB integrated

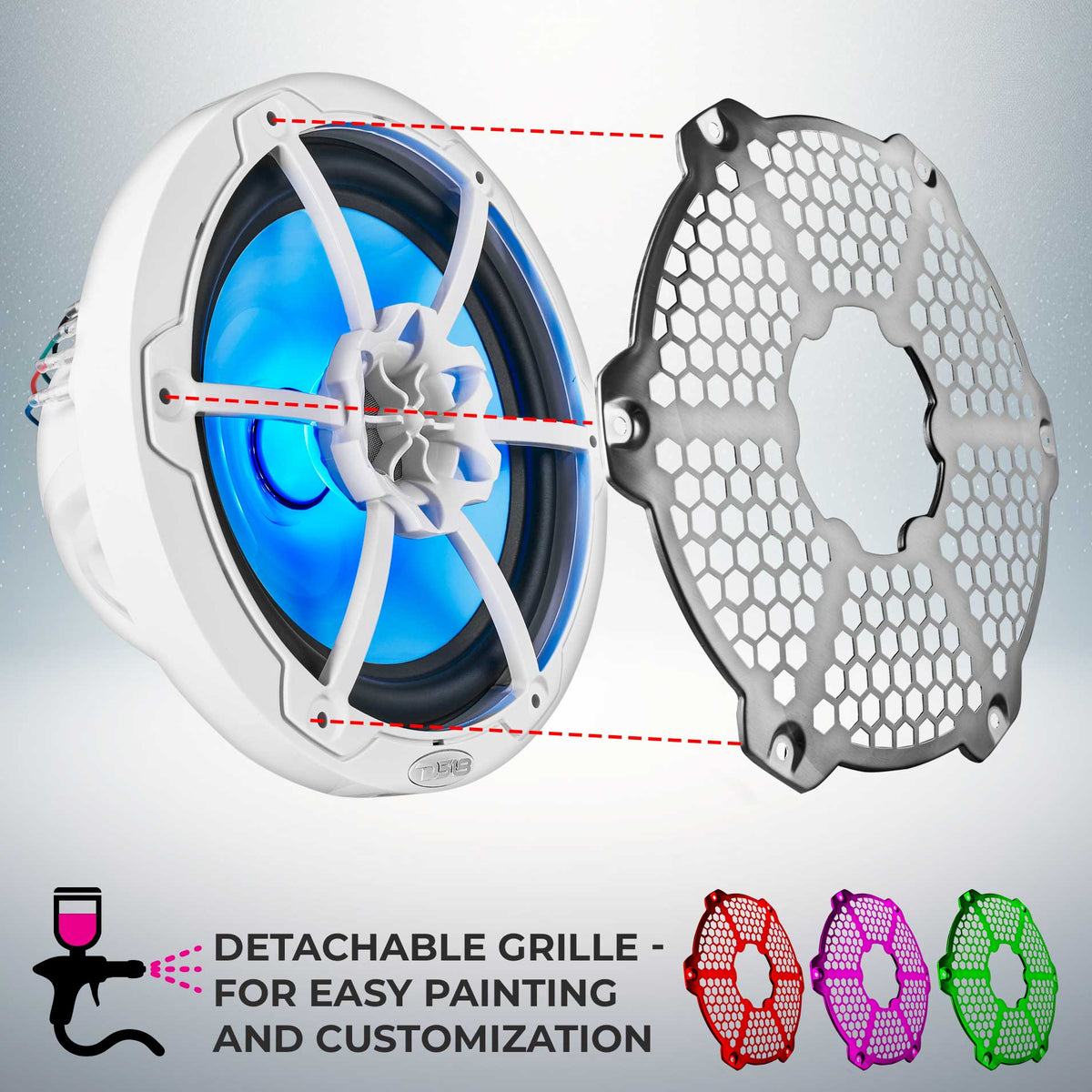

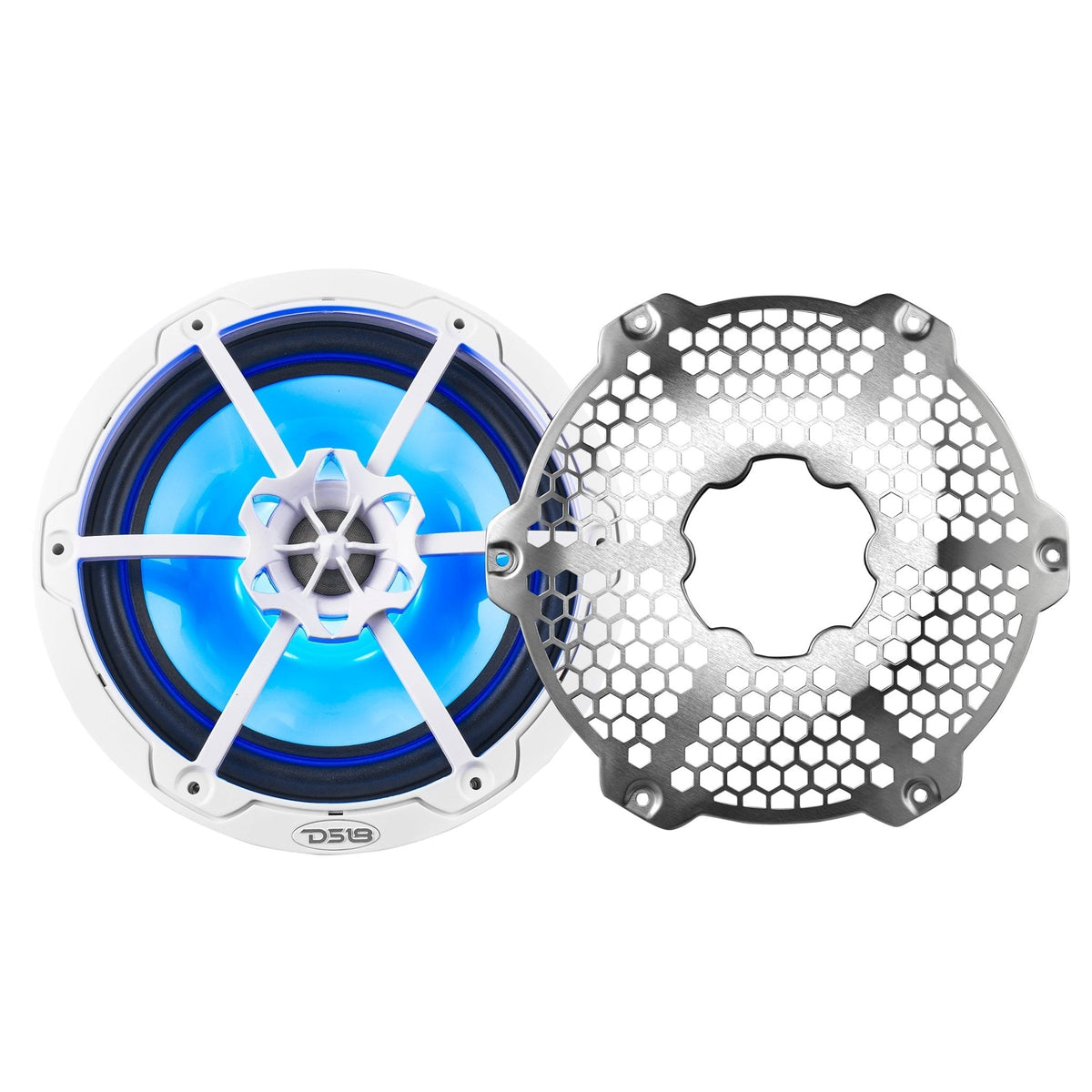

Grill Type	Injection Molded Composite ASA with 316 Stainless Steel mesh
Pair	Yes
Color / Finish	Glossy White
Voice Coil Diameter	1.2" / 30.5mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Injection Molded Polypropylene + UV Compliant
Surround Material	Butyl (Rubber)
Basket Material	High Temp Injection Molded Composite ASA with UV Protection coating
Magnet Material	Ferrite+Neodymium
Magnet Weight	24oz + 0.32oz
Diaphragm Material	Titanium + PEI Surround
Equivalent Volume Vas	66.7L / 2.35ft3
Excursion (one way) Xmax	8.5 mm
Free Air Resonance Fs	56Hz
Mechanical Factor Qms	7.701
Electrical Factor Qes	0.899
Total Factor Qts	0.805
Moving Mass Mms	7.265g
Compliance Cms	1.119mm/N
Bl Factor Bl	2.98
Voice Coil Inductance Le	0.49mH
Cone Area Sd	206.12cm2
DC Resistance Re	3.15ohms
Efficiency Bandwidth Product EBP	62.2
Overall Diameter	8.59" / 218.2mm
Overall Depth	4.45" / 113mm
Front Mount Baffle Cutout	6.97" / 177mm
Mounting Depth	3.09" / 78.5mm
Motor Diameter	4.32" / 110mm
Gross Single Unit Weight (lb)	10.5
Single Unit Box Dimensions W x L x H (Inches)	20 x 10.5 x 5.5
Quantity of Units in Master Carton	2
Gross Master Carton Weight (lb)	23
Master Carton Dimensions W x L x H (Inches)	20 x 11.5 x 11.5
