DS18 NXL-IQ7.7/WH 7.7" Bullet Tweeter

Name: DS18 NXL-IQ7.7/WH 7.7" Bullet Tweeter
Brand: DS18
Price: 374.95 USD
Availability: OutOfStock

$374.95

Sale Sold out

Free shippingShipping calculated at checkout.

Upgrade your ride with the DS18 NXL-IQ7.7/WH 7.7" Bullet Tweeter — available at EB Electronics, your local car audio experts.

Replace your factory head unit and take full control of your audio experience. DS18 stereos bring modern connectivity and superior sound staging to any vehicle.

Key Specifications:

7.7"
2-Way
175 Watts RMS
4Ohm
Digital LED Lights
Bullet Tweeter
Covers Included
White
Built-in Deck Light New

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Pair of DS18 NXL-IQ7.7/WH
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Size	7.7"
Configuration	2-Way
Power (RMS)	175 Watts RMS
Impedance	4Ohm
Nominal Diameter	7.7" / 196mm
Nominal Impedance	4 ohms
RMS Power Handling	175W
MAX Power Handling	350W
Sensitivity (1w/1m)	96dB
Frequency Response	40Hz-20KHz
Number of Ways	2-Ways
Recommended High-Pass Crossover	50Hz
Sold in Pair or Single	Pair
UV Protection	Yes, 100% Stable
Marine Grade Type	IP65
LED Lights	Yes, Digital LED integrated (behind cone) / White Deck LED (Front Cover)
LED Connection Type	12V & Digital input terminal
Digital LED Chip Type	1815S
Grill Type	Injection Molded Composite ASA with UV Protection coating
Color / Finish	Matte Black
Voice Coil Diameter	1.5" / 38.6mm
Voice Coil Former Material	Glass Fiber
Winding Material	CCAW
Cone Material	PPI
Dust Cap Material	PPI
Surround Material	Rubber
Basket Material	Injection Molded Composite PC with UV Protection coating
Magnet Material	Ferrite+Neodymium
Magnet Weight	18 oz + 1.1 oz
Type	Floating Bullet Tweeter
Diaphragm Material	Aluminium
Bullet Material	Injection Molded Composite PC with UV Protection coating
Equivalent Volume	8L / 0.283ft3
Excursion (one way)	3mm
Free Air Resonance	69Hz
Mechanical Factor	8.975
Electrical Factor	1.228
Total Factor	1.080
Moving Mass	25.661g
Compliance	0.208 mm/N
Bl Factor	5.592
Voice Coil Inductance	0.044 mH
Diaphragm Area	165.13cm2
DC Resistance	3.2 Ohms
Efficiency Bandwidth Product	56

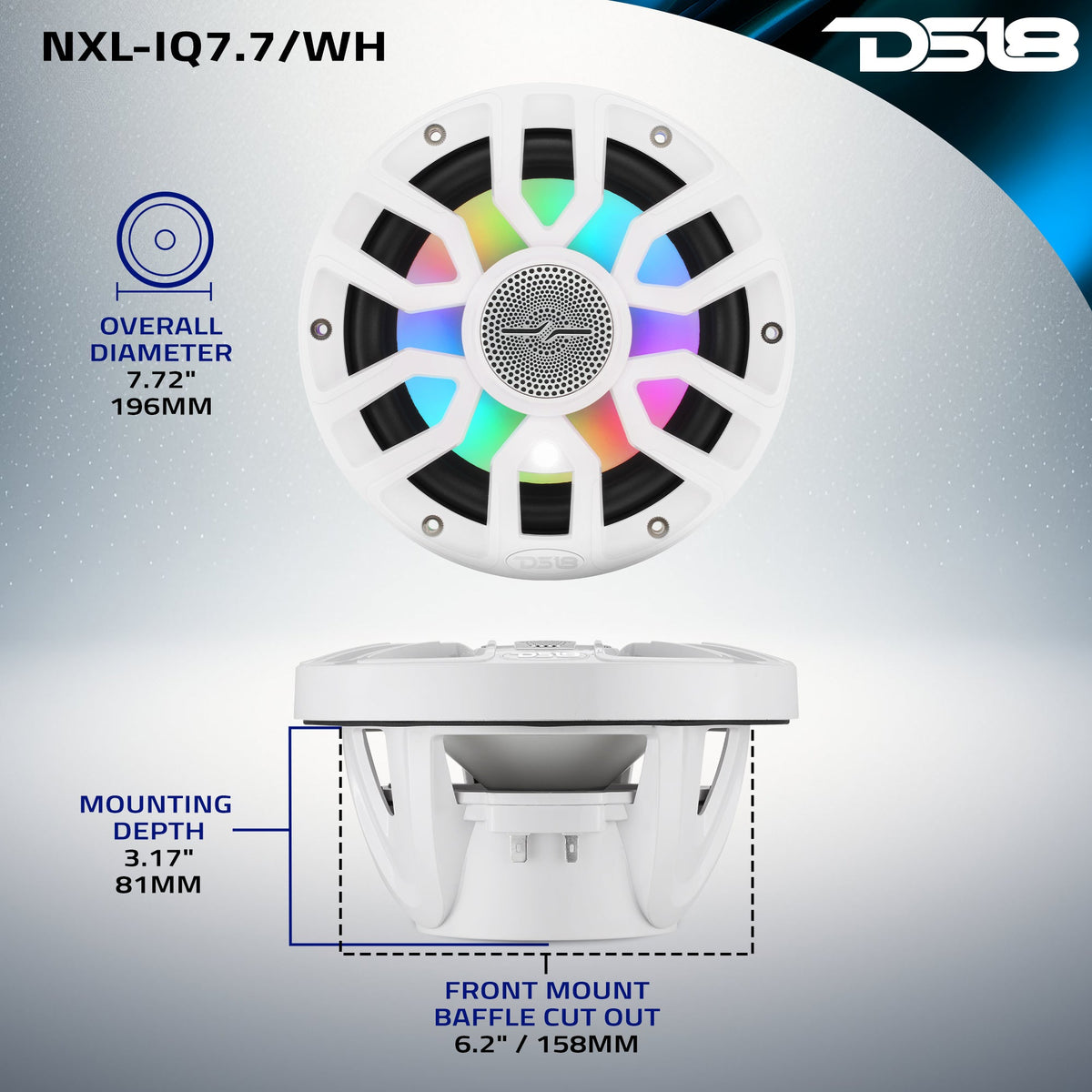

Overall Diameter	7.72" / 196mm
Overall Depth	4.4" / 112mm
Front Mount Baffle Cutout	6.2" / 158mm
Mounting Depth	3.17" / 81mm
Motor Diameter	3.75" / 95mm
