DS18 NXL-IQ8/WH 8" Bullet Tweeter

Name: DS18 NXL-IQ8/WH 8" Bullet Tweeter
Brand: DS18
Price: 374.95 USD
Availability: OutOfStock

$374.95

Sale Sold out

Free shippingShipping calculated at checkout.

Upgrade your ride with the DS18 NXL-IQ8/WH 8" Bullet Tweeter — available at EB Electronics, your local car audio experts.

Built to handle the elements. DS18 marine audio gear is weather-sealed and UV-resistant, delivering concert-quality sound on the water.

Key Specifications:

8"
2-Way
175 Watts RMS
4Ohm

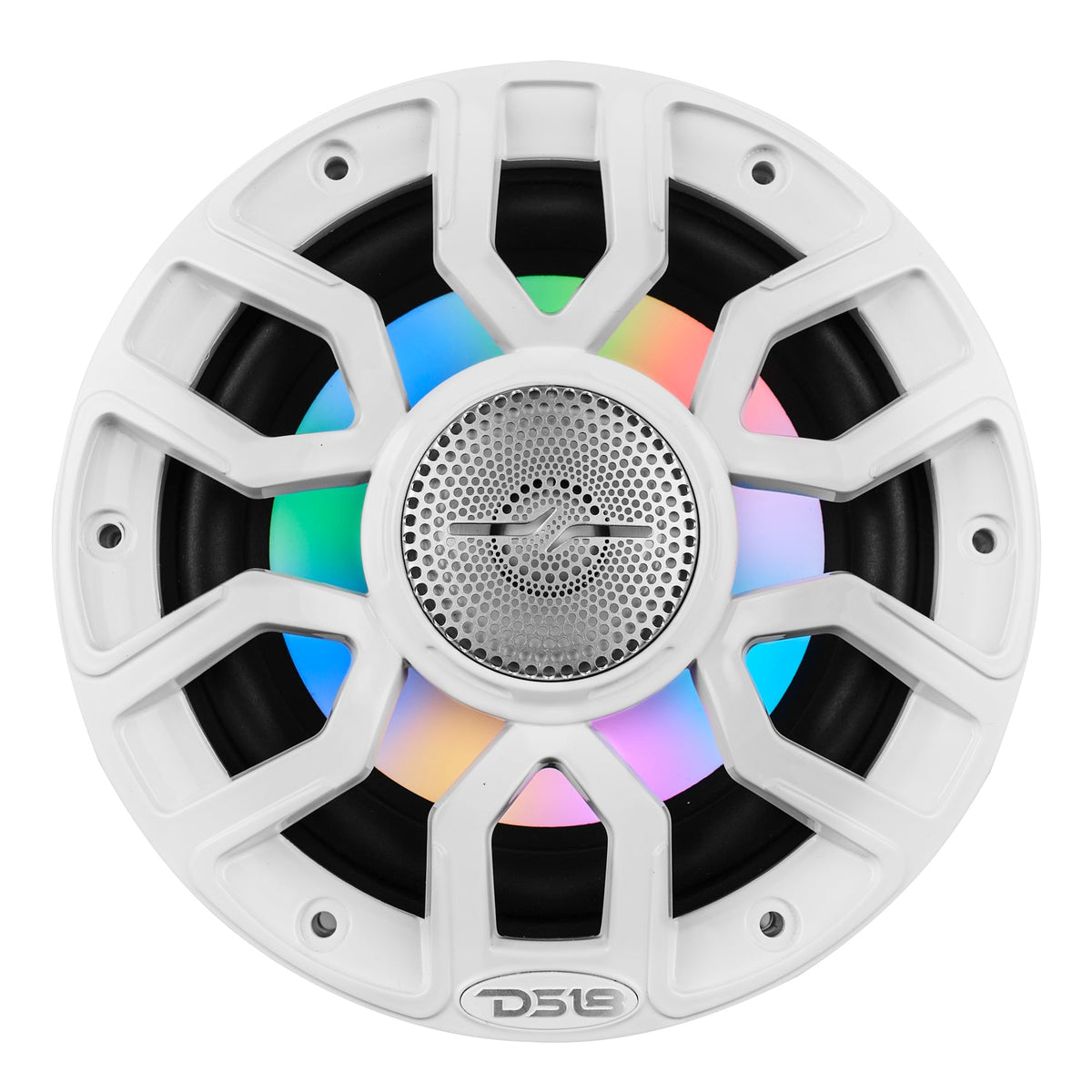

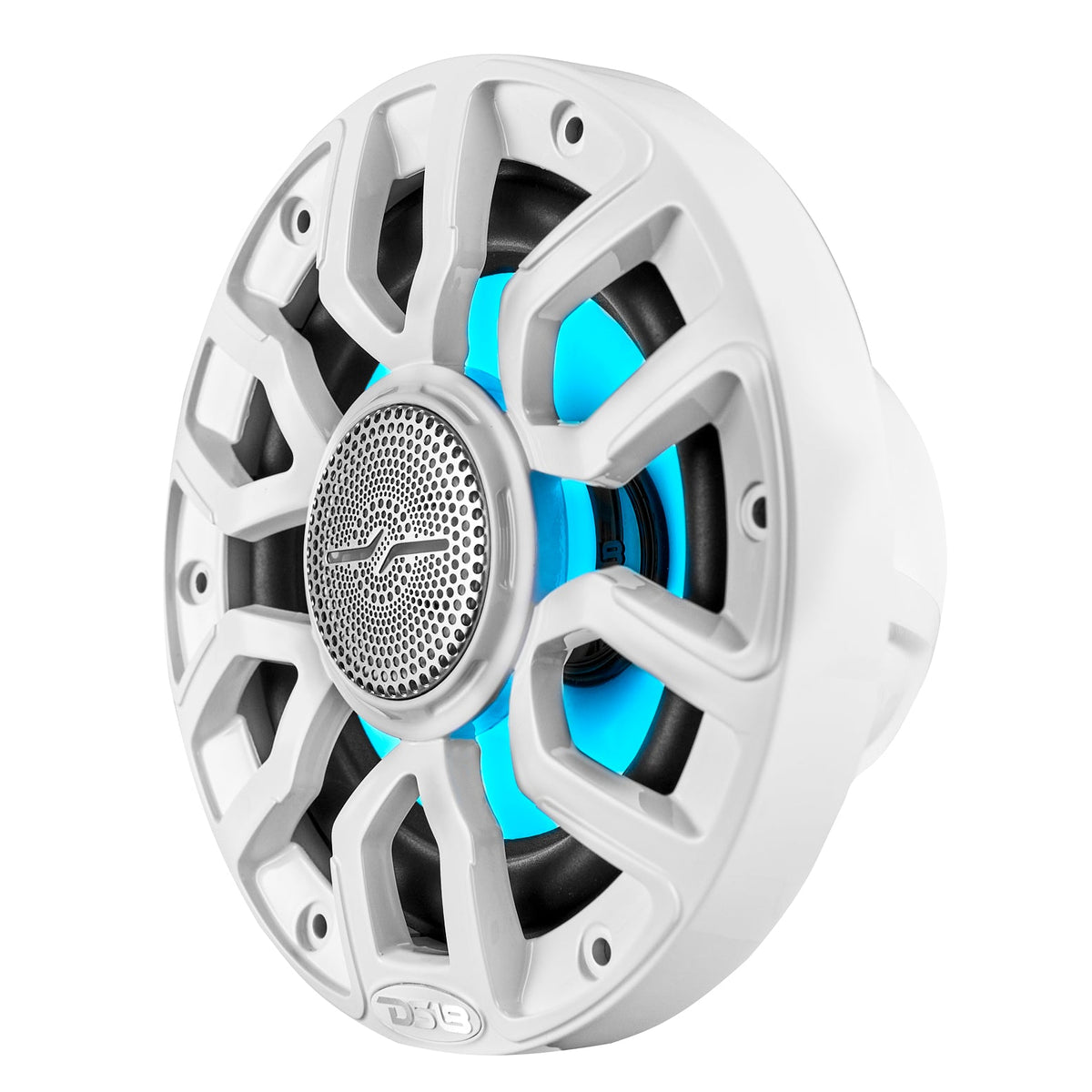

Digital LED Lights
Bullet Tweeter

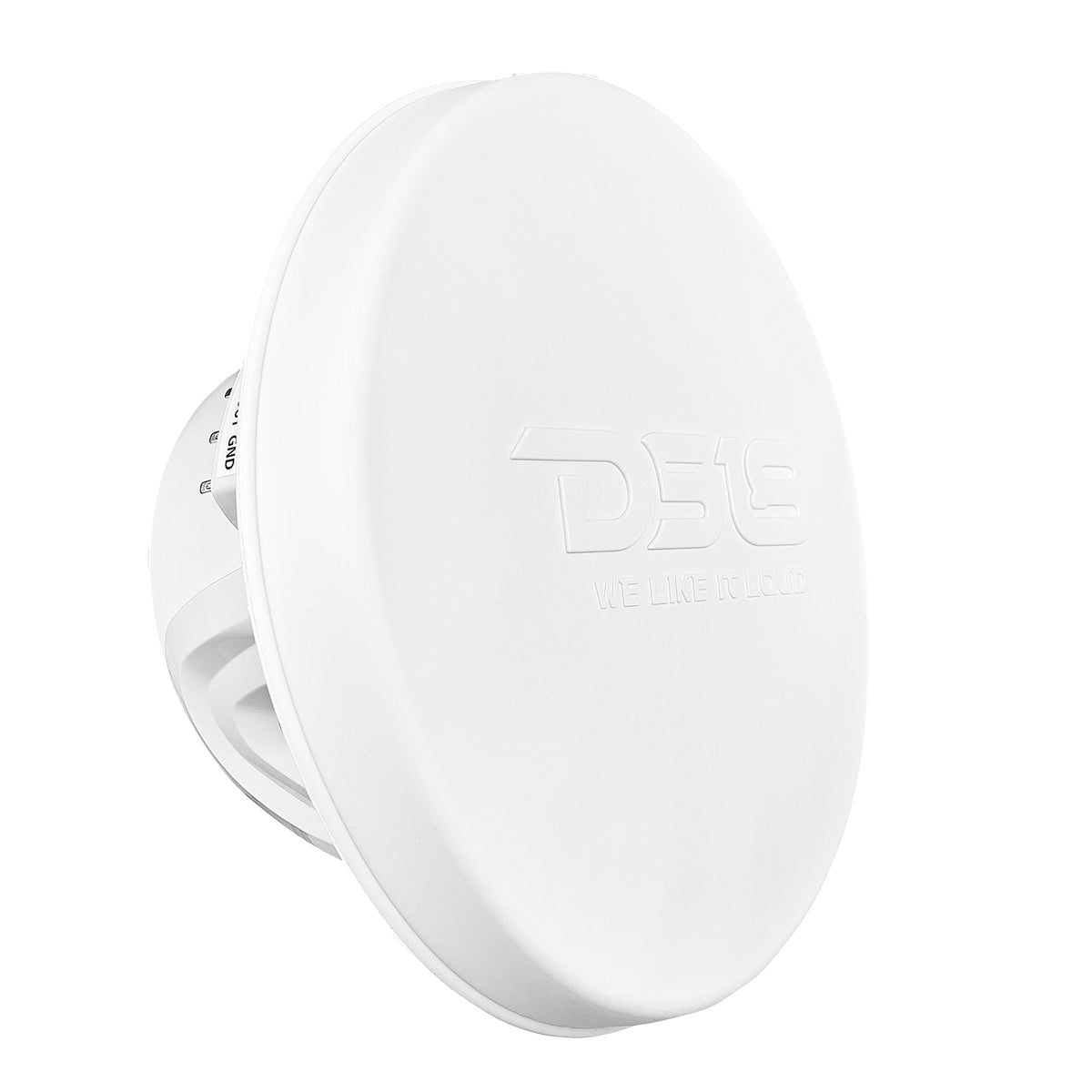

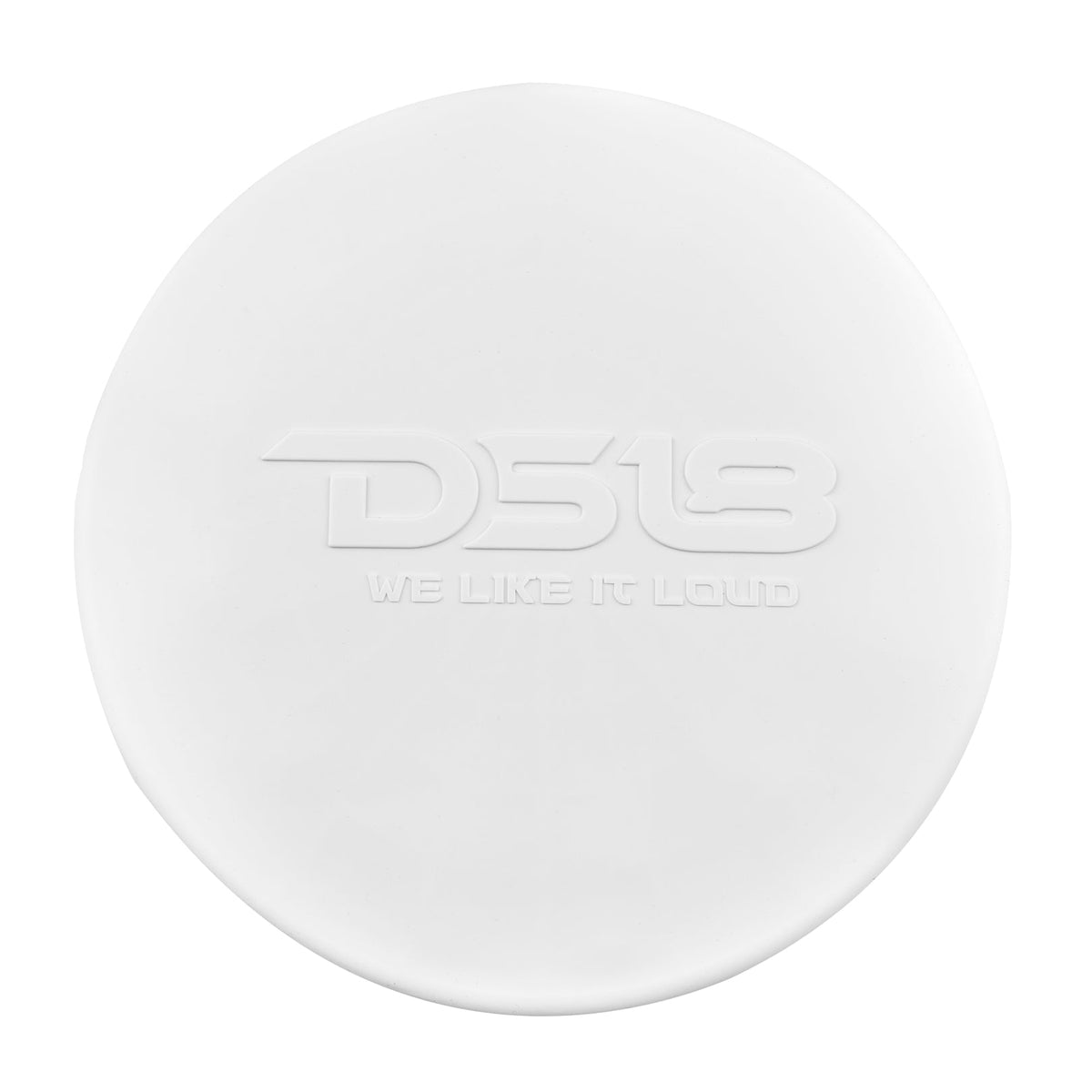

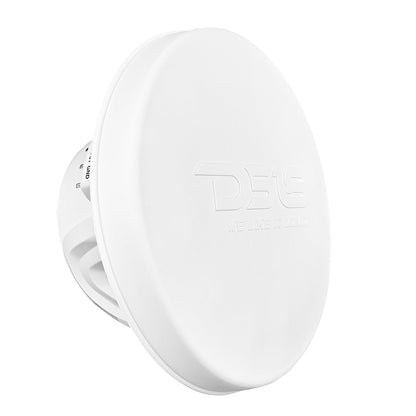

Covers Included

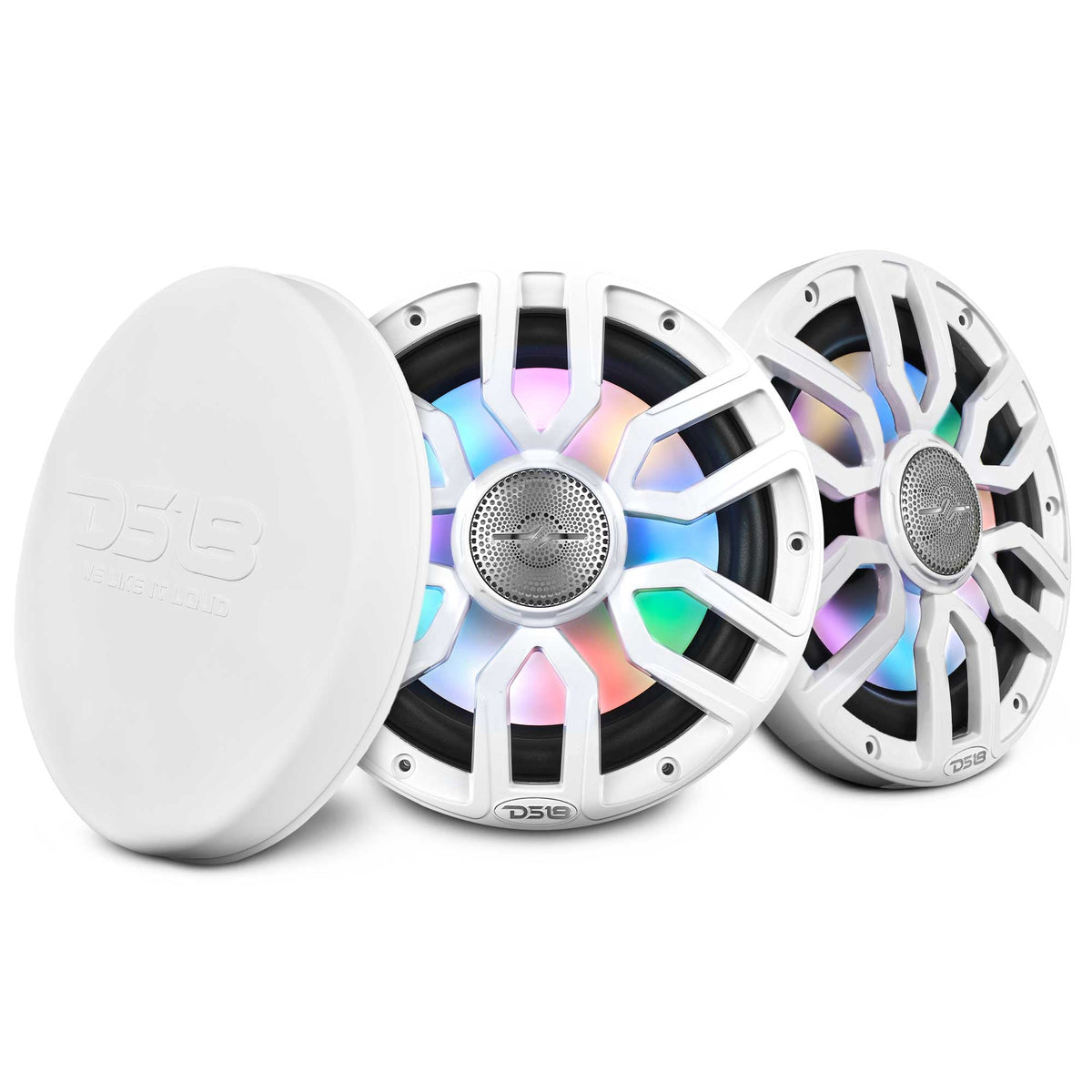

White NXL COAXIAL HYBRID MARINE SPEAKERS WITH BUILT-IN DRIVER AND RGB LED

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

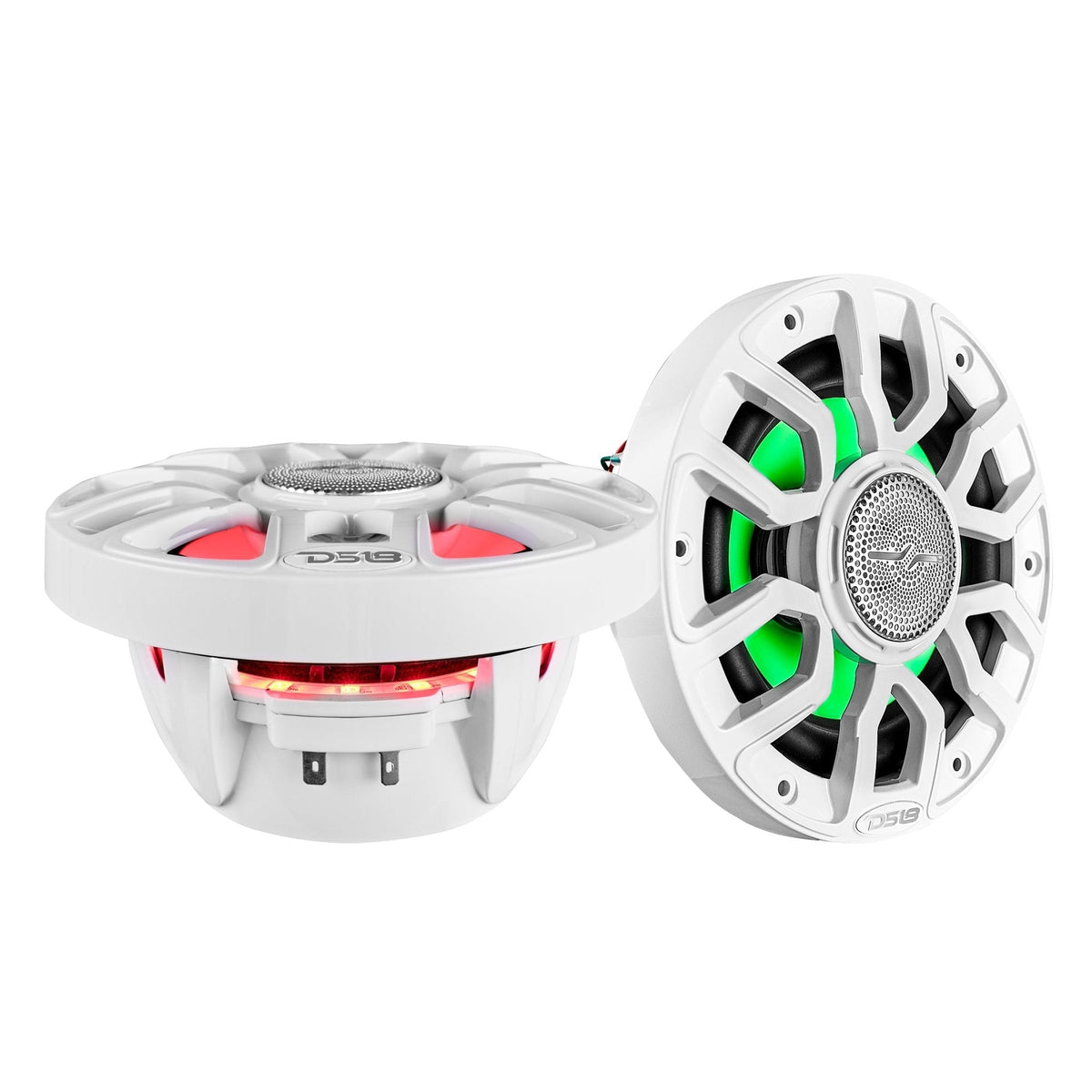

(1) Pair of DS18 NXL-IQ8/WH
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Diameter	8"
Configuration	2-Way
Power (RMS)	175 Watts RMS
Impedance	4Ohm
SKU	NXL-IQ8/WH
Nominal Diameter	8" / 203mm
Nominal Impedance	4 ohms
RMS Power Handling	175W
MAX Power Handling	350W
Sensitivity (1w/1m)	96dB
Frequency Response	35Hz-20KHz
Number of Ways	2-Ways
Recommended High-Pass Crossover	40Hz
Sold in Pair or Single	Pair
UV Protection	Yes, 100% Stable
Marine Grade Type	IP65

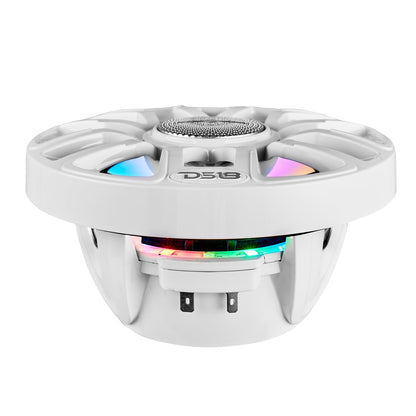

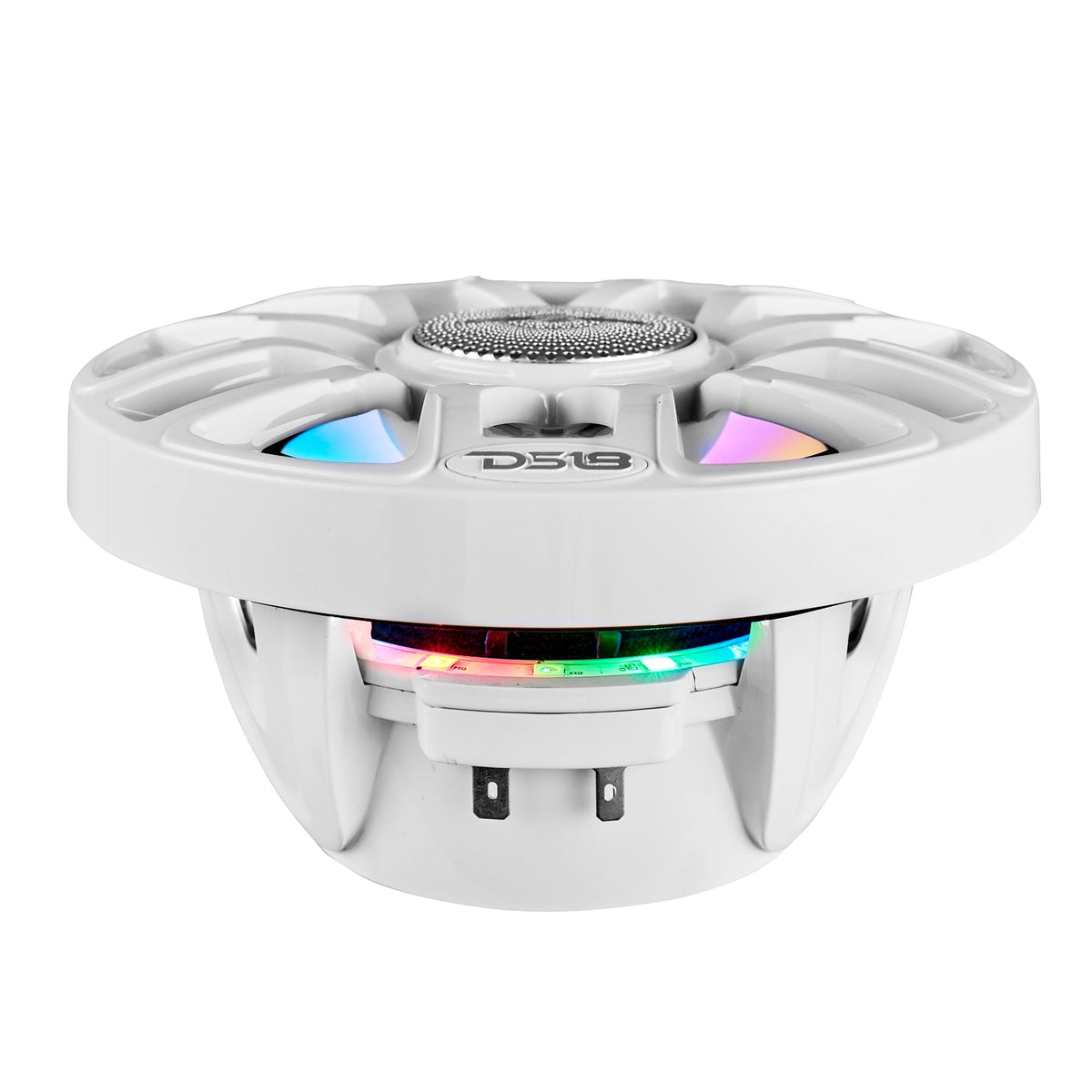

LED Lights	Yes, Digital LED integrated (behind cone)
Digital LED Connection Type	12V & Digital IN/OUT terminal
Digital LED Chip Type	1815S
Grill Type	Injection Molded Composite ASA with UV Protection coating
Color / Finish	White
Specifications	Voice Coil Diameter
1.5" / 38.6mm	Voice Coil Former Material
Glass Fiber	Winding Material
CCAW	Cone Material
PPI	Dust Cap Material
Rubber	Basket Material
Injection Molded Composite PC with UV Protection coating	Magnet Material
Ferrite+Neodymium	Magnet Weight
Floating Bullet Tweeter	Voice Coil Diameter
1" / 25.4mm	Voice Coil Former Material
Kapton	Winding Material
Aluminium	Bullet Material
Neodymium (N35H)	Magnet Weight
Equivalent Volume Vas	16.9L / 0.596ft3
Excursion (one way) Xmax	3mm
Free Air Resonance Fs	58Hz
Mechanical Factor Qms	7.599
Electrical Factor Qes	0.834
Total Factor Qts	0.752
Moving Mass Mms	25.604 g
Compliance Cms	0.2875 mm/N
Bl Factor BI	6.016
Voice Coil Inductance Le	1.4 mH
Diaphragm Area Sd	203.58cm2
DC Resistance Re	3.3 Ohms
Efficiency Bandwidth Product EBP	69.5

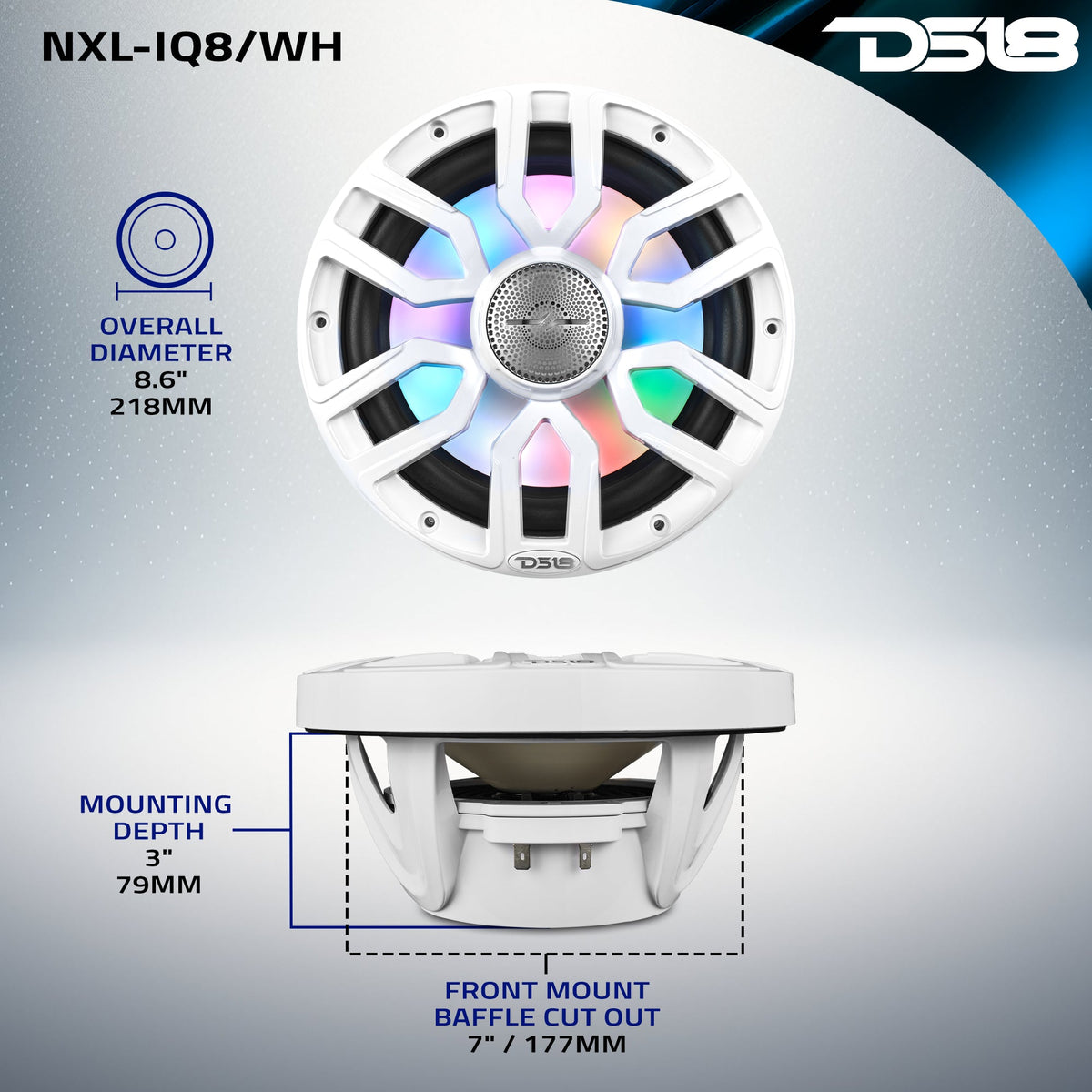

Measurement	Overall Diameter
8.6" / 218mm	Overall Depth
4.4" / 112mm	Front Mount Baffle Cutout
7" / 177mm	Mounting Depth
3" / 79mm	Motor Diameter
