DS18 NXL-LXY Bullet Tweeter

Name: DS18 NXL-LXY Bullet Tweeter
Brand: DS18
Price: 449.95 USD
Availability: OutOfStock

$449.95

Sale Sold out

Size 6.5" 8"

Free shippingShipping calculated at checkout.

Elevate your car's soundscape with the crystal-clear highs of our bullet tweeter line. Designed for seamless integration, these speakers deliver pristine audio quality across various vehicle setups.

Specs by size

Size	RMS (W)	Impedance (Ω)	Sensitivity (dB)
6.5"	150	4	90
8"	175	4	90

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Size	6.5"
RMS (W)	150
Impedance (Ω)	4
Sensitivity (dB)	90
Size	8"
RMS (W)	175
Impedance (Ω)	4
Sensitivity (dB)	90
Nominal Diameter	6.5" / 165mm
Nominal Impedance	4 ohms
RMS Power Handling	150W
MAX Power Handling	300W
Sensitivity (1w/1m)	95 dB
Frequency Response	60Hz-20KHz
Recommended HI Pass Crossover	70Hz
Sold in Pair or Single	Pair

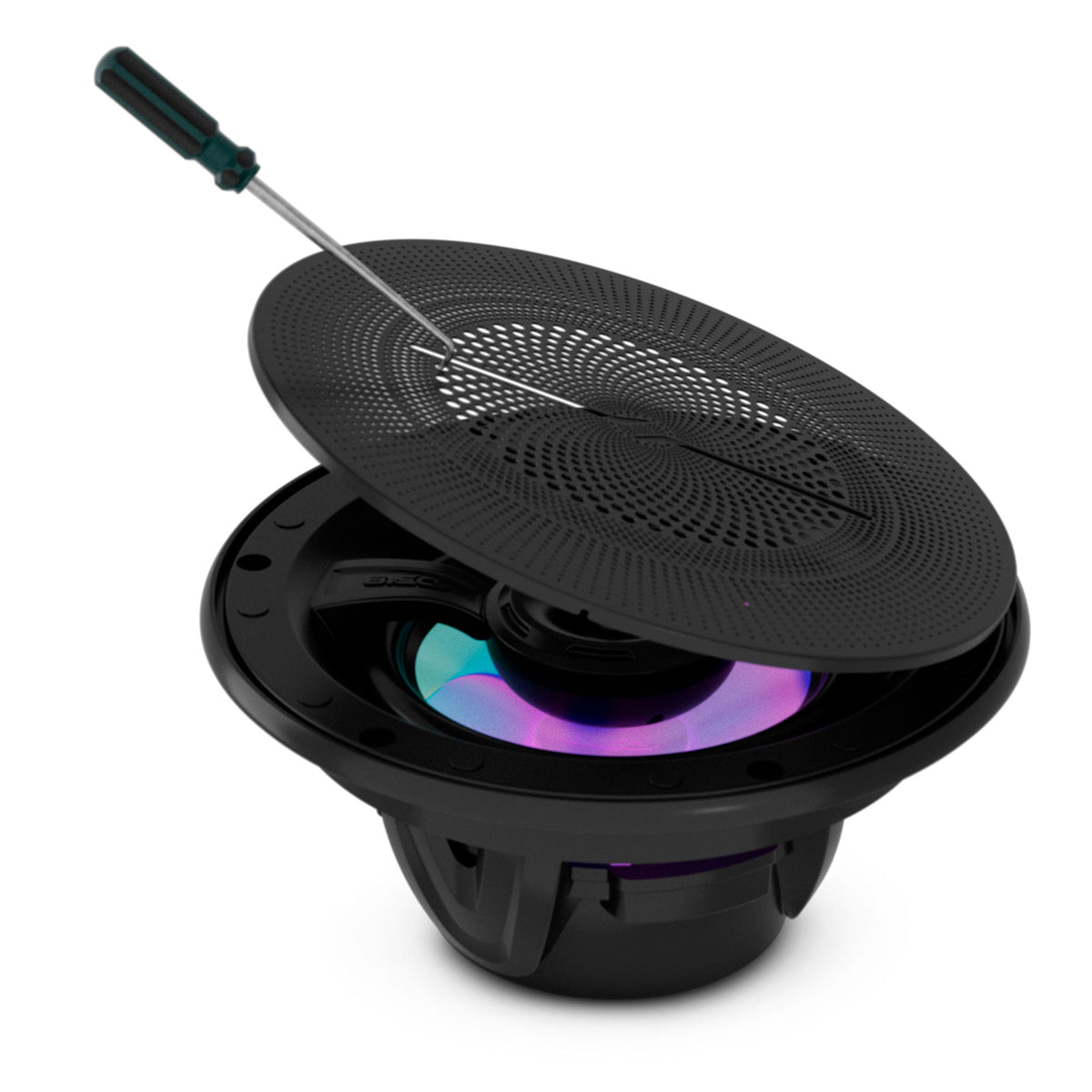

Grill Type	PC+Stainless Steel
Marine Grade Type	IP65

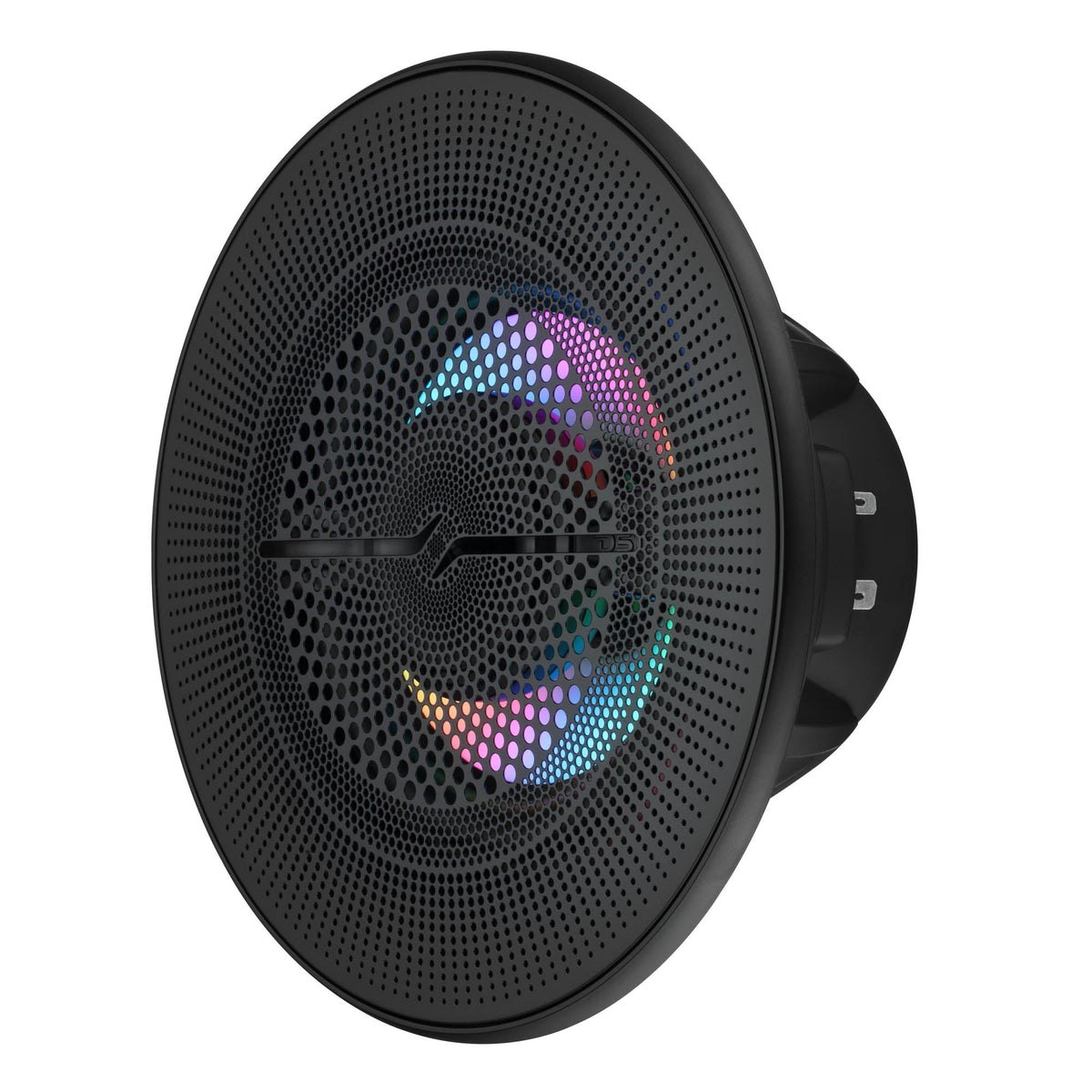

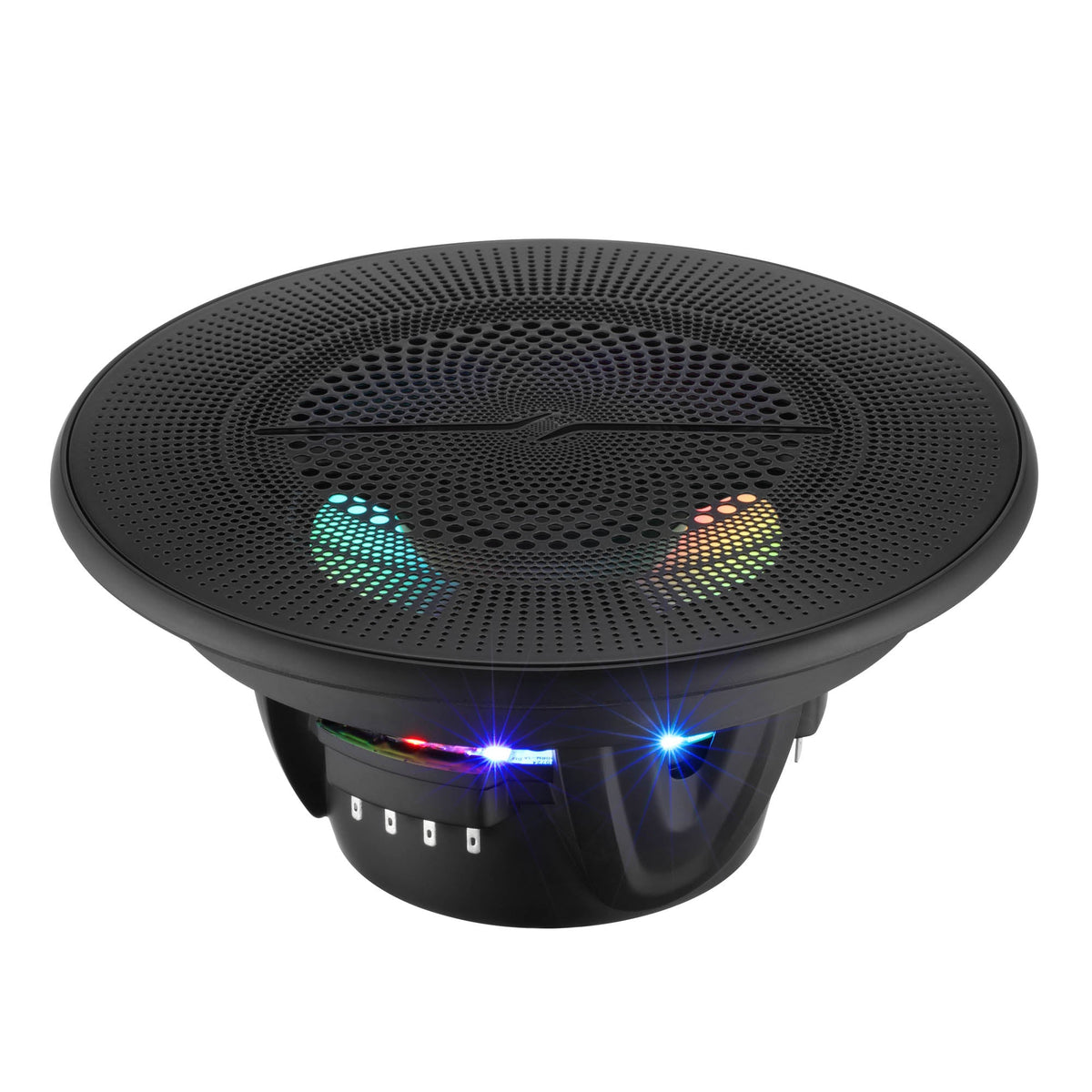

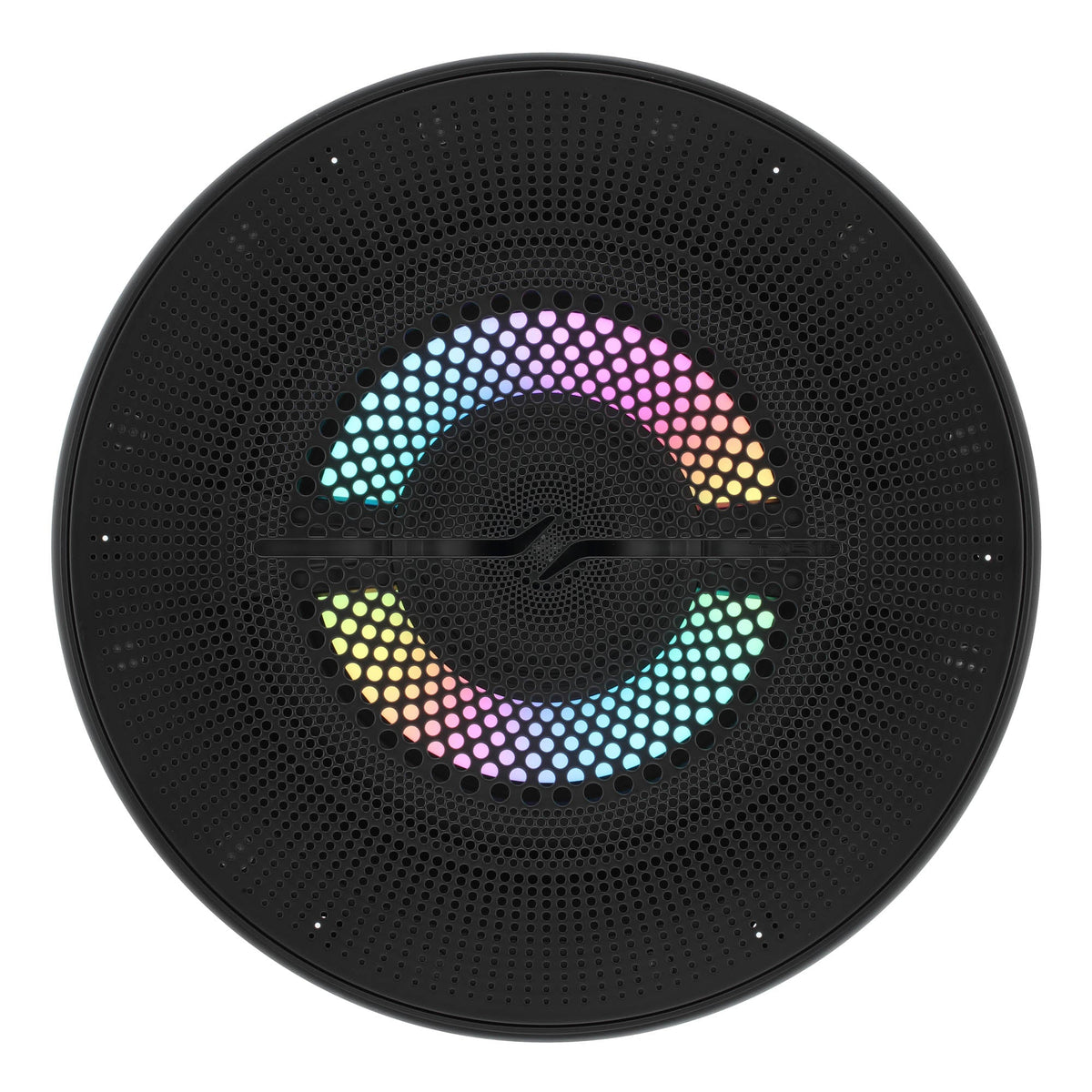

RGB LED	Yes, Digital LED integrated (behind cone)
Digital LED Chip Type	1815S
Basket Material	Injection Molded Composite ASA with UV Protection Coating
Color / Finish	Matte Black
Voice Coil Diameter	1.5" / 38.6mm
Voice Coil Former Material	Glass Fiber
Winding Material	CCAW
Cone Material	PPI
Surround Material	Rubber
Magnet Material	Ferrite+Neodymium
Magnet Weight	13oz + 1.1oz
Diaphragm Material	Aluminium
Equivalent Volume	3.15L / 0.11ft3
Excursion (one way)	3mm
Free Air Resonance	88Hz
Mechanical Factor	7.497
Electrical Factor	1.205
Total Factor	1.038
Moving Mass	16.603g
Compliance	0.1679mm/N
Bl Factor	5.138
Voice Coil Inductance	1.4mH
Diaphragm Area	114.99cm2
DC Resistance	3.2 Ohms
Efficiency Bandwidth Product	78.8

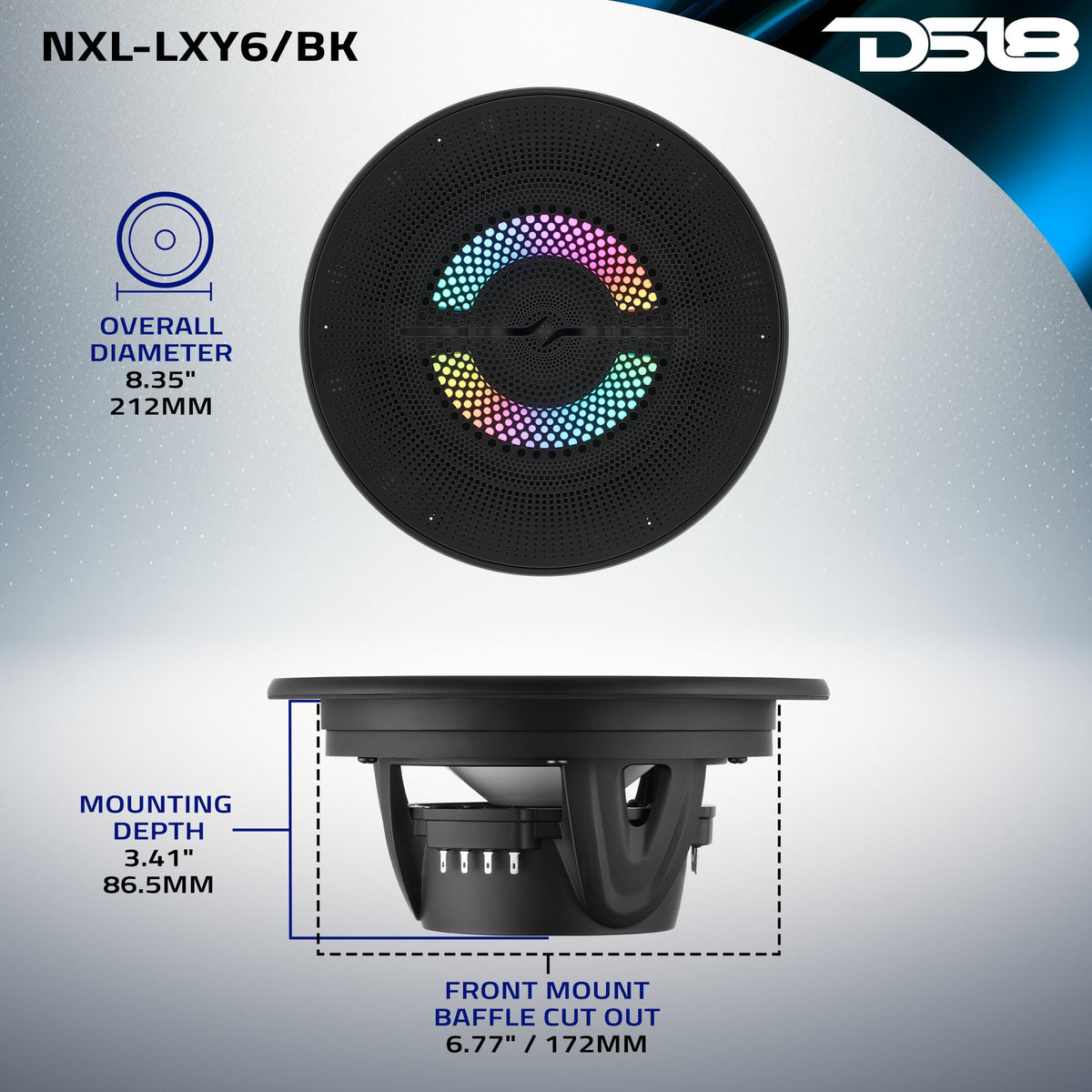

Overall Diameter	8.35" / 212mm
Overall Depth	3.8" / 96.5mm
Front Mount Baffle Cutout	6.77" / 172mm
Mounting Depth	3.41" / 86.5mm
Motor Diameter	3.54" / 90mm
