DS18

DS18 NXL-M5 5-Channel

Name: DS18 NXL-M5 5-Channel
Brand: DS18
Price: 699.95 USD
Availability: OutOfStock

$699.95

Sale Sold out

Free shippingShipping calculated at checkout.

Upgrade your ride with the DS18 NXL-M5 5-Channel — available at EB Electronics, your local car audio experts.

Power your entire system with confidence. DS18 amplifiers are engineered for clean, stable output — from daily listening to competition builds.

Key Specifications:

5-Channel
Full-Range
4 x 180 @ 4Ohm and 1 x 600 @ 2Ohm Watts RMS
IP55 Waterproof Rating

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

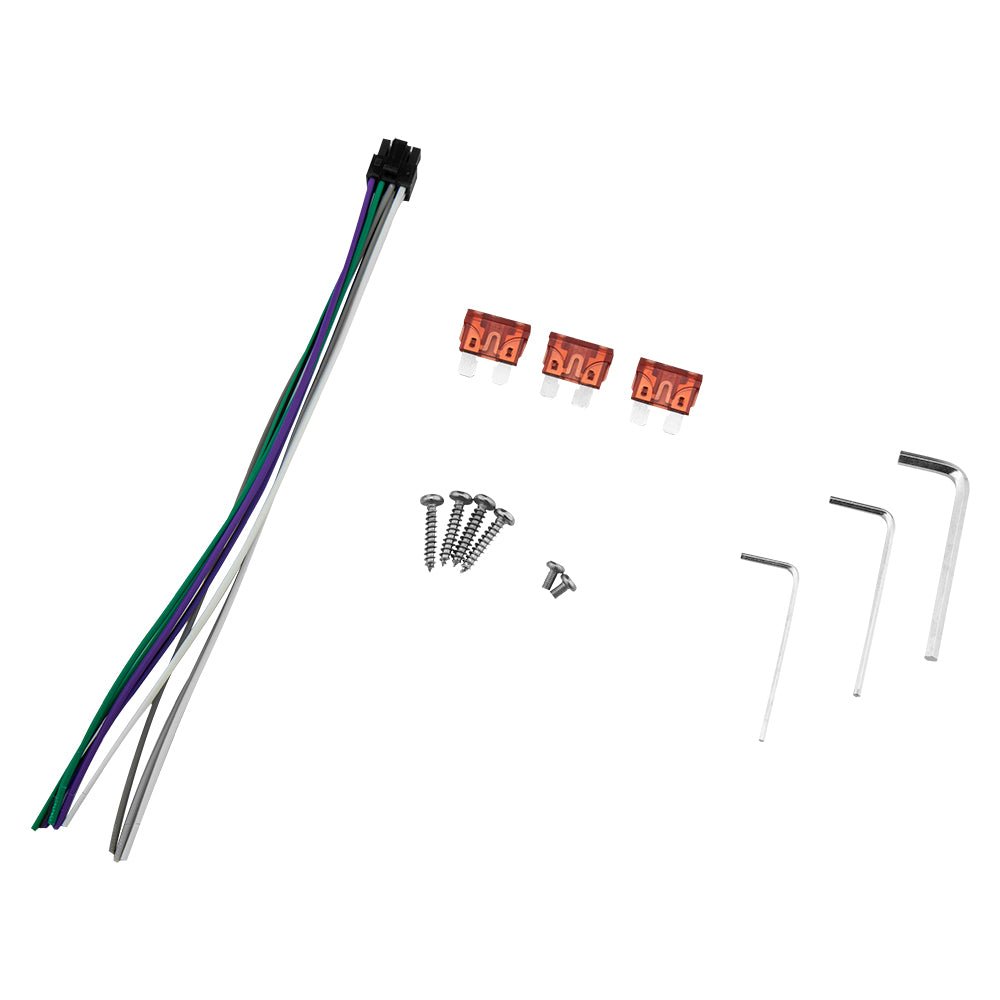

What's Included:

(1) Piece of DS18 NXL-M5
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Channels	5
Power (RMS)	4 x 180 Watts @ 4 Ohm
Power (RMS)	1 x 600 Watts @ 2 Ohm
SKU	NXL-M5
Total Watts (Peak)	3600W
RMS Power @ 4 ohm	4 x 150W + 1 X 300W SUB
RMS Power @ 2 ohm	4 x 230W + 1 X 600W SUB
RMS Power @ 4 ohm Bridge	2 x 440W
Frequency Response	20Hz - 20KHz
Signal to Noise Ratio 1W @ 4Ω	Efficiency @ 4 ohm
Channel Separation	Total Harmonic Distortion (THD)
Low Level Input Range	0.2V-6V
High Level Input	Yes: >5V

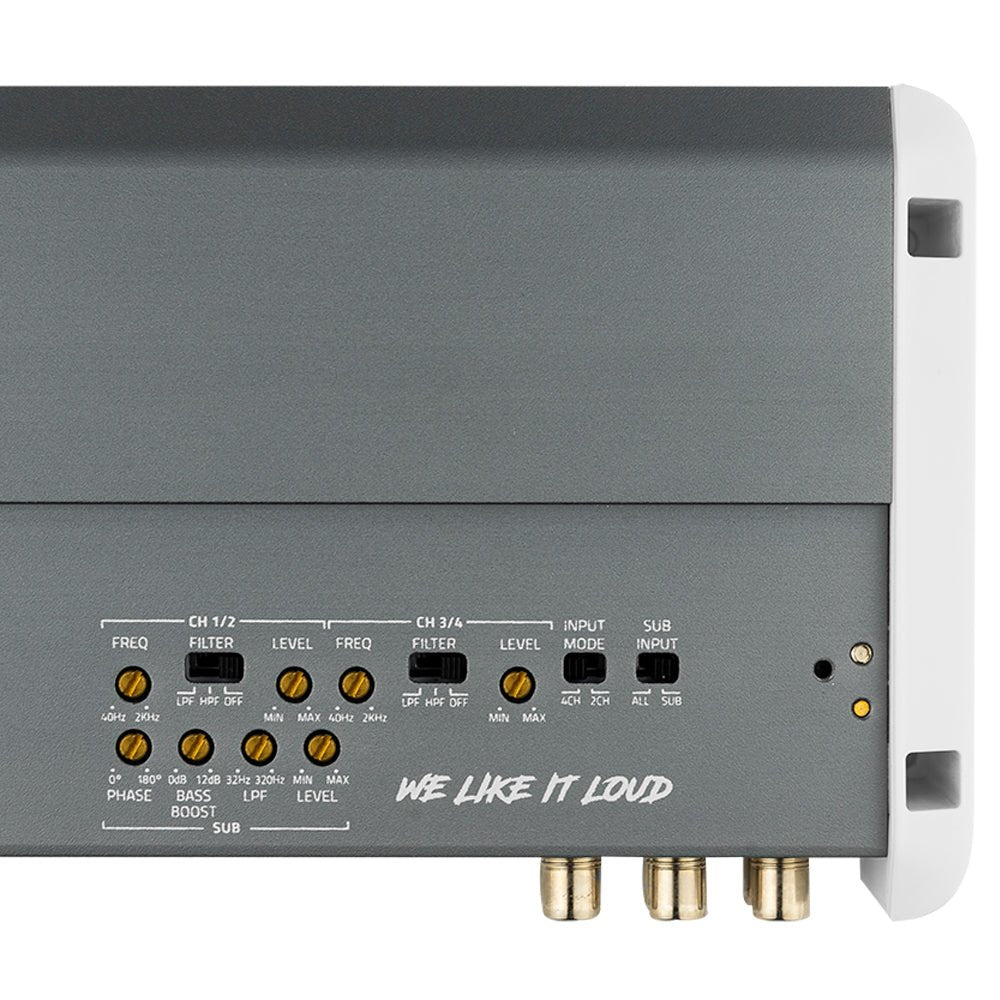

Selectable X-Over	HPF/LPF/FULL
X-Over Filter Range	40Hz - 2KHz / SW: 32Hz - 320Hz
Bass Boost Range	0-12dB (SW)
Bass Boost Frequency	45Hz +- 5Hz
Phase Selector	Yes 0~180 (SW)
Amplifier Class	Digital (D)
Amplifier Type	Stereo Full Range
Number of Channels	5 Channels
Minimum Impedance	2ohm St / 4ohm Bridge / 2ohm SW
Led Indicator	Clipping / Protect / Power

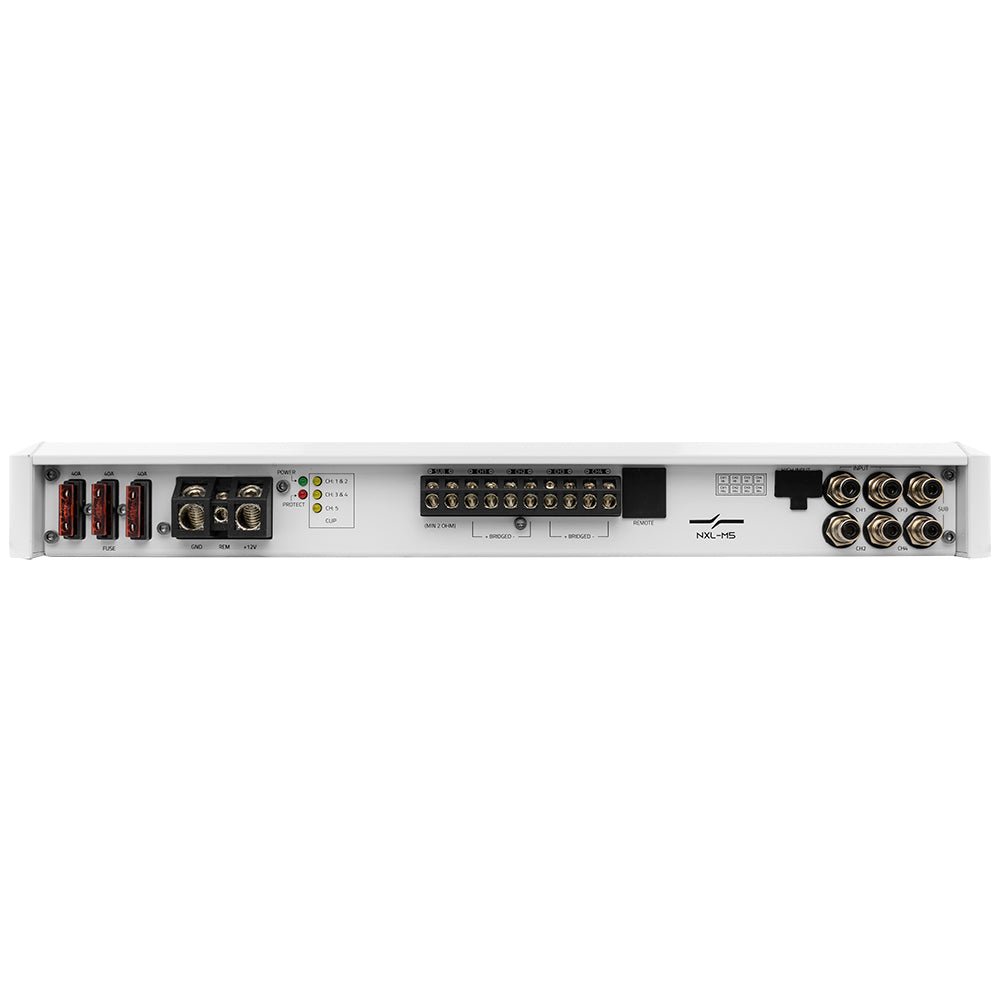

Power Input Terminal Size	4 Ga
Fuse Size	120A (3x40A)
Thermal Protection	Yes
Over-Load Protection	Yes
Short Circuit Output Protection	Yes
Voltage Input Protection	Yes
Body Color \| Finish	Gray+White / Aluminum+ABS
DC Output Protection	Yes
Clipping Protection	Yes
Water Resistant Rated	IP55
PCB Layout Design	4 Layers / Coated
RCA Output	No
UV Compliant	Yes, UV Protected and PCB Coated
Input Sum Selector	Yes, 2/4/5 Ch Input Mode
Tiffany Style RCA	Yes
Stainless Steel Hardware	Yes, (Screws)
Potenciometers	High Quality Metal Knob
Remote Level Control	No
Overall Length	14.3" / 365mm
Overall Wide	4.5" / 116mm
Overall Height	1.7" / 43mm
Heatsink Length	13.3" / 340mm
Gross Single Unit Weight	2.24kg
