DS18

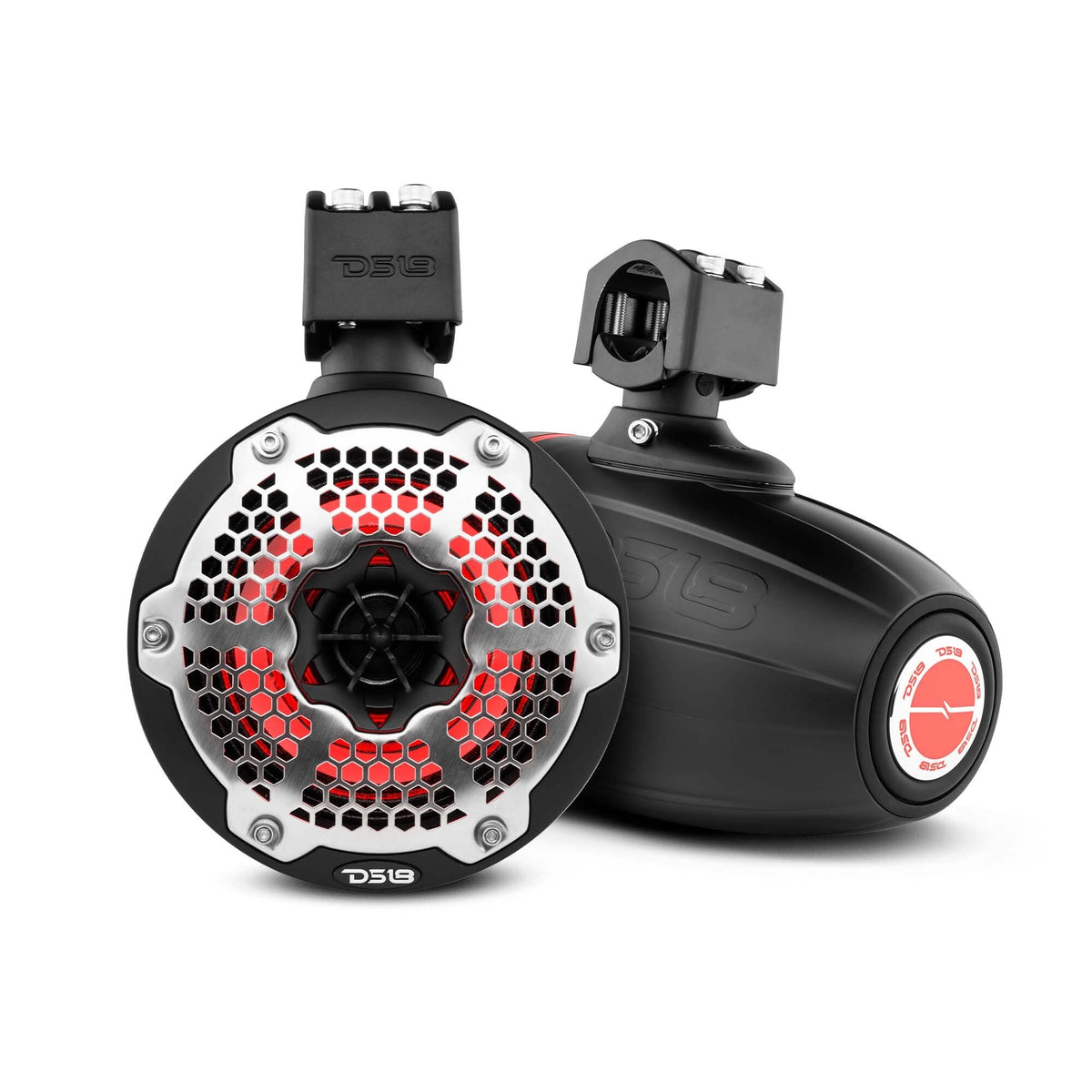

DS18 NXL-X TPNEO/BK Drivers

Name: DS18 NXL-X TPNEO/BK Drivers
Brand: DS18
Price: 1079.95 USD
Availability: InStock

$1,079.95

Sale Sold out

★★★★★5.0DS18 · 2 reviews on DS18.com

Size 6.5" 8" 10"

✓ In store · free same-day pickupFree shippingShipping calculated at checkout.

Upgrade your sound system with the powerful drivers from our lineup. Designed to deliver rich, clear audio across multiple vehicle applications, these speakers enhance every drive. Choose the perfect fit for unparalleled performance.

Specs by size

Size	RMS (W)	Impedance (Ω)	Sensitivity (dB)
6.5"	150	—	90
8"	180	—	90
10"	300	—	90

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

6.5" RMS Power	150 W
6.5" Sensitivity	90 dB
8" RMS Power	180 W
8" Sensitivity	90 dB
10" RMS Power	300 W
10" Sensitivity	90 dB
SKU	NXL-X6TPNEO
Nominal Diameter	6.5 inch
Nominal Impedance	4 Ohm
RMS Power Handling	150W
MAX Power Handling	450W
Sensitivity (1w/1m)	93 dB
Frequency Response	70 Hz - 21 KHz
Recommended HI Pass Crossover	90Hz
Enclosure Material	Injection PC+ABS
Marine Grade Type	IP65+UV Stable
Grill Type	ABS+316 Stainless Metal Mesh
Pair	Yes
Front Logo	Yes, can be rotated for correct angle display
Rear Logo	Yes, Radiator Fixed position
Colors Available	Black, White, Red, Carbon Fiber
Voice Coil Diameter	1.5 inch
Cone Material	Waterproof Compress Paper + Carbon Fiber
Surround Material	Soft PC Damping Glued
Basket Material	PC Injection Molded Composite
Magnet Material	Neodymium
Magnet Grade	N40H
Passive Radiator	Yes, 3.5" With LED RGB Light
Type	Compression Driver with CNC Solid Aluminum Horn
Diaphragm Material	PEN
Crossover	12dB with Over Power Protection
Equivalent Volume Vas	8.5 L
Excursion (one way) Xmax	3 mm
Free Air Resonance Fs	75 Hz
Total Factor Qts	0.783
Overall Diameter	6.93" / 176.1mm
Overall Depth	11.33" / 287.8mm
Overall Height	10.7" / 271.7mm
