DS18

DS18 NXL-X TPNEO/WH Drivers

Name: DS18 NXL-X TPNEO/WH Drivers
Brand: DS18
Price: 1079.95 USD
Availability: OutOfStock

$1,199.95

Sale Sold out

Size 6.5" 8" 10"

✓ In store · free same-day pickupFree shippingShipping calculated at checkout.

Upgrade your car's sound system with our versatile line of drivers, engineered to deliver crystal-clear audio across multiple vehicle setups. Whether you need a compact boost or deep bass power, these speakers provide exceptional performance and rich sound quality right out of the box.

Specs by size

Size	RMS (W)	Impedance (Ω)	Sensitivity (dB)
6.5"	150	—	90
8"	180	—	90
10"	300	—	90

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

General Specifications
Nominal Diameter	6.5"
Nominal Impedance	4 ohms
RMS Power Handling	150 Watts
MAX Power Handling	450 Watts
Sensitivity (1w/1m)	93 dB
Frequency Response	70Hz - 21KHz
Recommended HI Pass Crossover	90 Hz
Body / Features
Enclosure Material	Injection PC+ABS
Marine Grade Type	IP65 + UV Stable
RGB LED	Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker
Grill Type	ABS+316 Stainless Metal Mesh

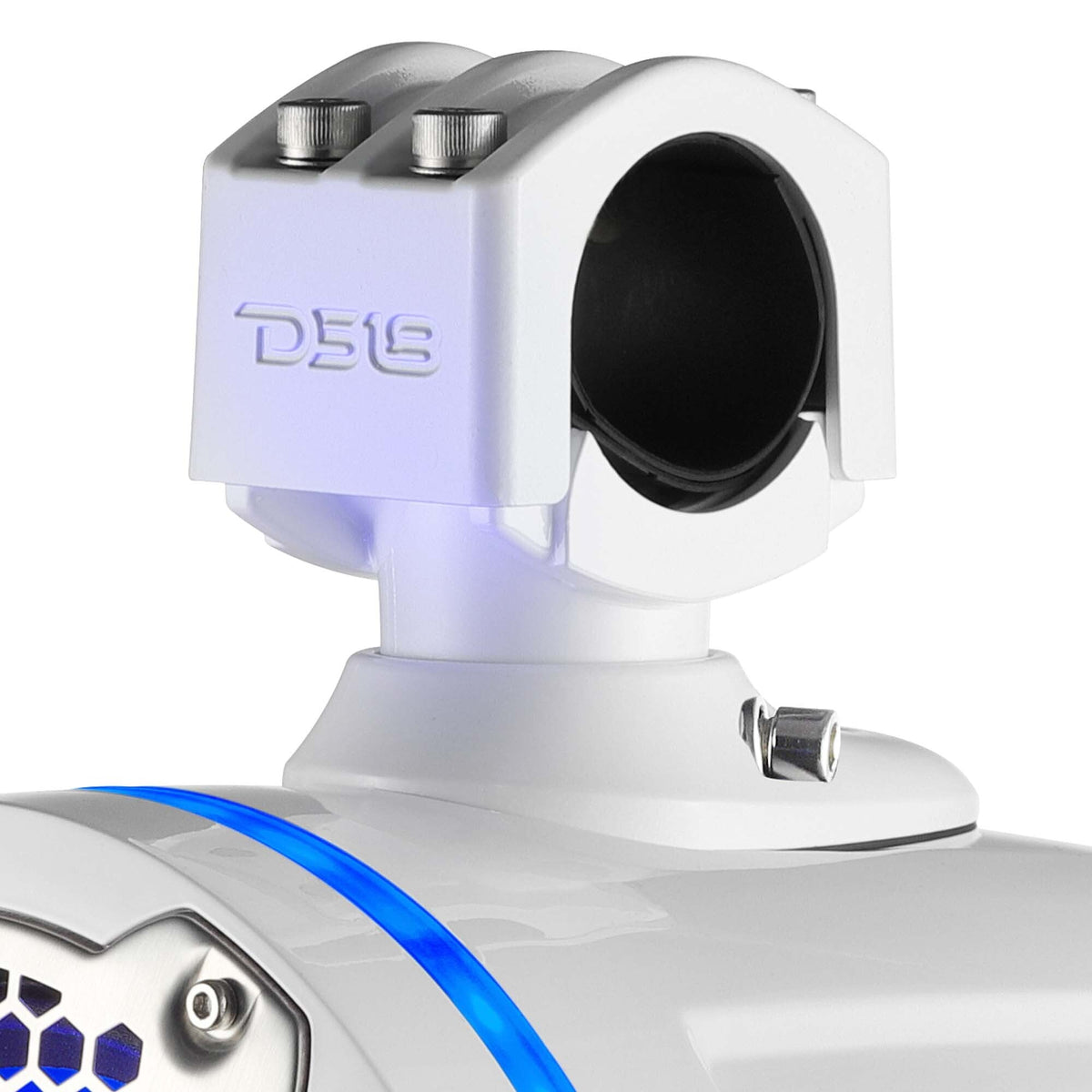

Clamps	Die-Cast adjustable (1" ~ 2")360 Degree Rotation MountingBuried Wire or Open Wire Mounting Optional,Included NBR Pad And Stainless Hardware(Screws,Stop Washers,Hexagon wrench,Safety Rope,Screw fastening Glue)
Front Logo	Can be Rotated For Correct Angle Display
Rear Logo	Radiator Fixed Position
Finish	Gloss White
Woofer Specifications
Voice Coil Diameter	1.5"
Cone Material	Waterproof Compress Paper+Carbon Fiber
Surround Material	Soft PC Damping Glued
Basket Material	PC Injection Molded Composite
Magnet Material	Neodymium
Magnet Grade	N40H
Passive Radiator	3.5" With LED RGB Light
Tweeter Specifications
Voice Coil Diameter	1"
Type	Compression Driver with CNC Solid Aluminum Horn
Diaphragm Material	PEN
Magnet Material	Neodymium
Crossover	12dB with Over Power Protection
Thiele & Small Parameters
Equivilant Volume	Vas 8.5 L
Excursion (one way)	Xmax 3 mm
Free Air Resonance	Fs 75 Hz
Total Factor	Qts 0.783
Speaker Measurements
Overall Diameter	6.93" / 176.1mm
Overall Depth	11.33" / 287.8mm
Overall Height	10.7" / 271.7mm
SKU	NXL-X6TPNEO
Pair	Yes
Colors Available	Black, White, Red, Carbon Fiber
Equivalent Volume Vas	8.5 L
Excursion (one way) Xmax	3 mm
Free Air Resonance Fs	75 Hz
Total Factor Qts	0.783
Product	Overview
