DS18 PRO-GM6.4PK DS18 PRO-GM6.4PK Loudspeakers and Tweeters Package Including a Pair of PRO-GM6.4 + a Pair of PRO-TW1X/BK
DS18 PRO-GM6.4PK DS18 PRO-GM6.4PK Loudspeakers and Tweeters Package Including a Pair of PRO-GM6.4 + a Pair of PRO-TW1X/BK
Couldn't load pickup availability

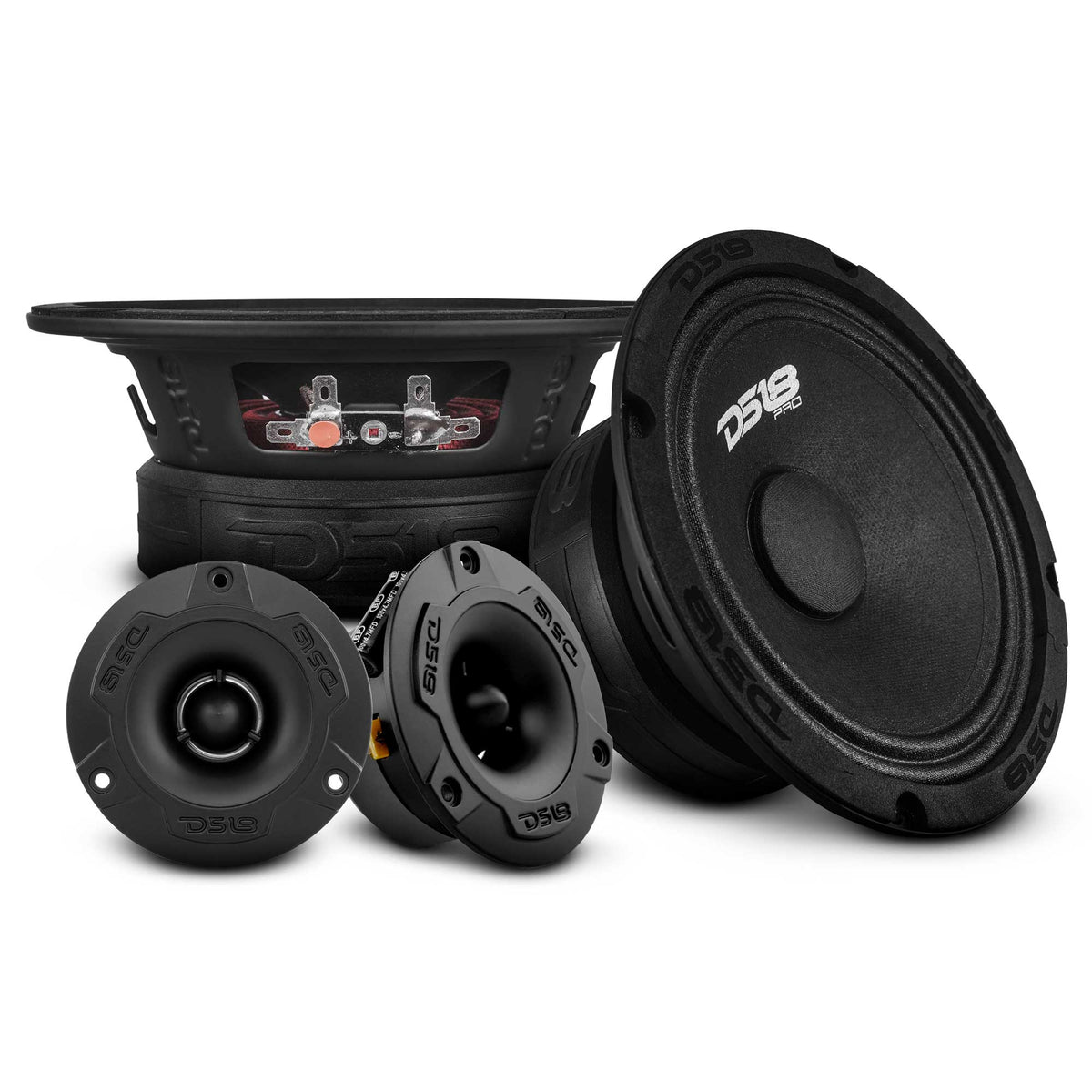

DS18 PRO-GM6.4PK Loudspeakers and Tweeters Package Including a Pair of PRO-GM6.4 + a Pair of PRO-TW1X/BK

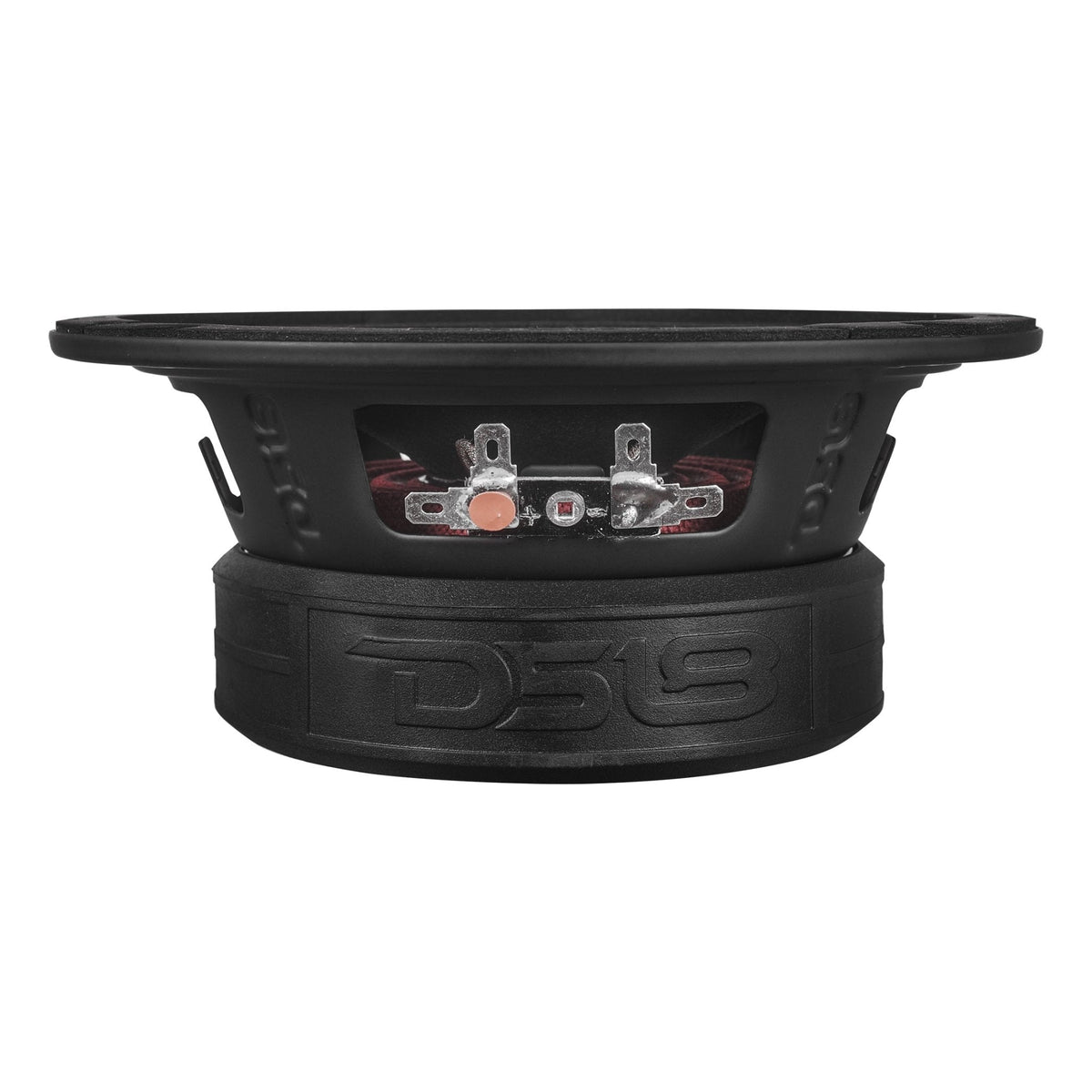

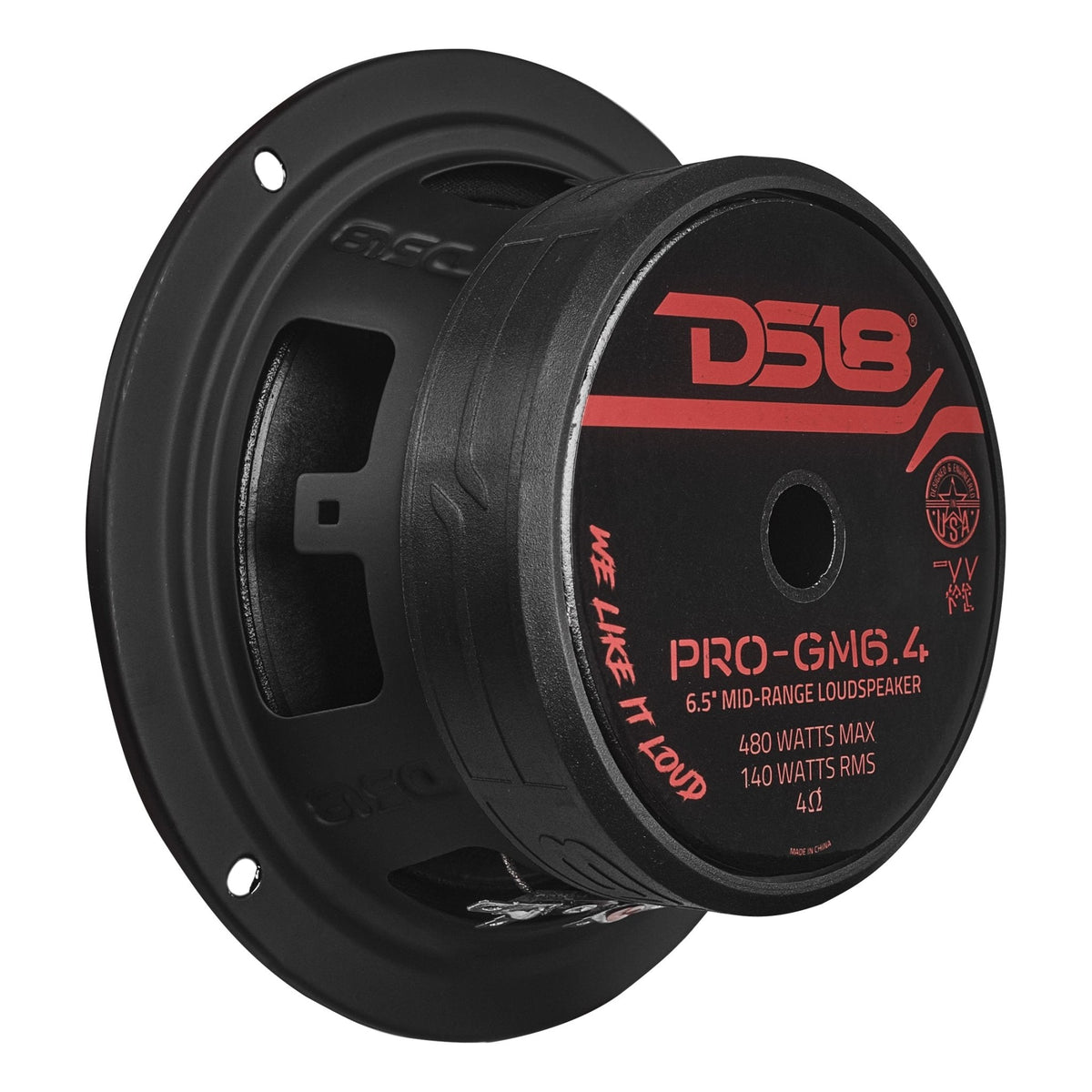

This HIGH WATTAGE speaker combo will no doubt blow you away! Our engineers have rigorously tested and included two of our bestselling speakers in one pack for 2020. Extreme testing has proven these two sets of speakers to be both very durable and able to handle high RMS power to give you maximum loudness! This pack comes with two of our very popular PRO GM6.4 midrange pro audio speakers that include a bullet resonator.
These 6.5s come with 1.5 voice coils that handle 140w RMS and have 4-ohms impedance. The 92dB sensitivity ensures the speaker gets loud even on lower power and handles max rms power more efficiently.
The super tweeters we included are the PRO-TWX1 which handle an impressive 120 watts RMS each. They are also 4 ohms, so they are easily paired on all amps and have a very small footprint for such an immensely loud super tweeter.
What's in the package?
- Pair PRO-GM6.4
- Pair PRO-TWX1/BK
Highlights
- PRO audio component package including two high powered solid cone mids along with two high powered tweeters.
- These two speakers complement each other and have been picked by DS18 professionals to produce the greatest sound together.
- With the correct amp, this will be a very loud addition to any audio system easily drowning out the competition.
Technical Details
| Model: | PRO-GM6.4 |
| Type: | Midrange Loudspeaker |
| Overall Diameter | 6.61" / 68mm |
| Baffle Cutout Diameter | 5.70" / 145mm |
| Mounting Depth | 2.51" / 64mm |
| Nominal Impedance | 4 Ohms |
| Rms Power Handing | 140 Watts |
| Maximum Power Handing | 480 Watts |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 98Hz - 10KHz |
| Voice Coil Diameter | 1.5 / 38.6mm |
| Winding Material |
KCCAW |
| Magnet Weight | Ferrite 23 Oz |
| Basket Material | Steel. |
| Model: | PRO-TWX1/BK |
| Nominal Diameter | 1 |
| Nominal Impedance | 4 ohms |
| AES Power Handling |
60 Watts |
| Program Power Handling |
120 Watts |
| Peak Power Handling |
240 Watts |
| Sensitivity (1W/1W) |
103 dB |
| Frequency Response | 3.5K-20KHz |
| Recommended HI Pass Crossover | 2 KHz |
| Voice Coil Diameter | 1" |
| Voice Coil Former Material | Kapton |
| Winding Material. |
KCCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Body Material | Aluminum |
| MEASUREMENTS | |
| Overall Diameter | 3.78" / 96mm |
| Overall Depth | 1.78"/ 45mm |
|
Front Mount Baffle cutout |
2.76"/ 70mm |
| Mounting Depth | 6.5"/ 64mm |
Shipping & Returns
Shipping & Returns
Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.
Warranty
Warranty
EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.
Why Buy From EB
Why Buy From EB
Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.
Specifications
Specifications
| PRO-GM6.4 RMS Power Handling | 140 Watts |
|---|---|
| PRO-GM6.4 Maximum Power Handling | 480 Watts |
| PRO-GM6.4 Nominal Impedance | 4 Ohms |
| PRO-GM6.4 Sensitivity (1w/1m) | 92dB |
| PRO-GM6.4 Frequency Response | 98Hz - 10KHz |
| PRO-GM6.4 Voice Coil Diameter | 1.5 / 38.6mm |
| PRO-GM6.4 Overall Diameter | 6.61" / 68mm |
| PRO-GM6.4 Mounting Depth | 2.51" / 64mm |
| PRO-TWX1/BK Program Power Handling | 120 Watts |
| PRO-TWX1/BK Peak Power Handling | 240 Watts |
| PRO-TWX1/BK Nominal Impedance | 4 ohms |
| PRO-TWX1/BK Sensitivity (1W/1W) | 103 dB |
| PRO-TWX1/BK Frequency Response | 3.5K-20KHz |
| PRO-TWX1/BK Overall Diameter | 3.78" / 96mm |
| Weight | 10.50 lb |
| PACKAGE SKU | PRO-GM6.4PK |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 140W |
| MAX Power Handling | 480W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 100Hz-10KHz |
| Recommended HI Pass Crossover | 120Hz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Equivalent Volume Vas | 7.15L / 0.252ft3 |
| Excursion (one way) Xmax | N/A |
| Free Air Resonance Fs | 102Hz |
| Mechanical Factor Qms | 11 |
| Electrical Factor Qes | 0.729 |
| Total Factor Qts | 0.684 |
| Mechanical Mass Mms | 8.384g |
| Mechanical Compliance Cms | 0.289mm/N |
| BL Factor BL | 4.95 |
| Voice Coil Inductance Le | 0.411mH |
| Cone Area Sd | 132.73cm2 |
| DC Resistance Re | 3.3 ohm |
| Overall Diameter | 6.57" / 167mm |
| Overall Depth | 2.7" / 69mm |
| Front Mount Baffle Cutout | 5.7" / 145 mm |
| Mounting Depth | 2.5" / 64mm |
| Motor Diameter | 4.33" / 110mm |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sold In Pair or Single | Pair |
| Filter (Bass Blocker) | N/A |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
| Gross Single Unit Weight (lb) | 10.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 17.75 x 9 x 3.5 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 44.5 |
| Master Carton Dimensions W x L x H (Inches) | 18.5 x 18.5 x 8.25 |
