DS18

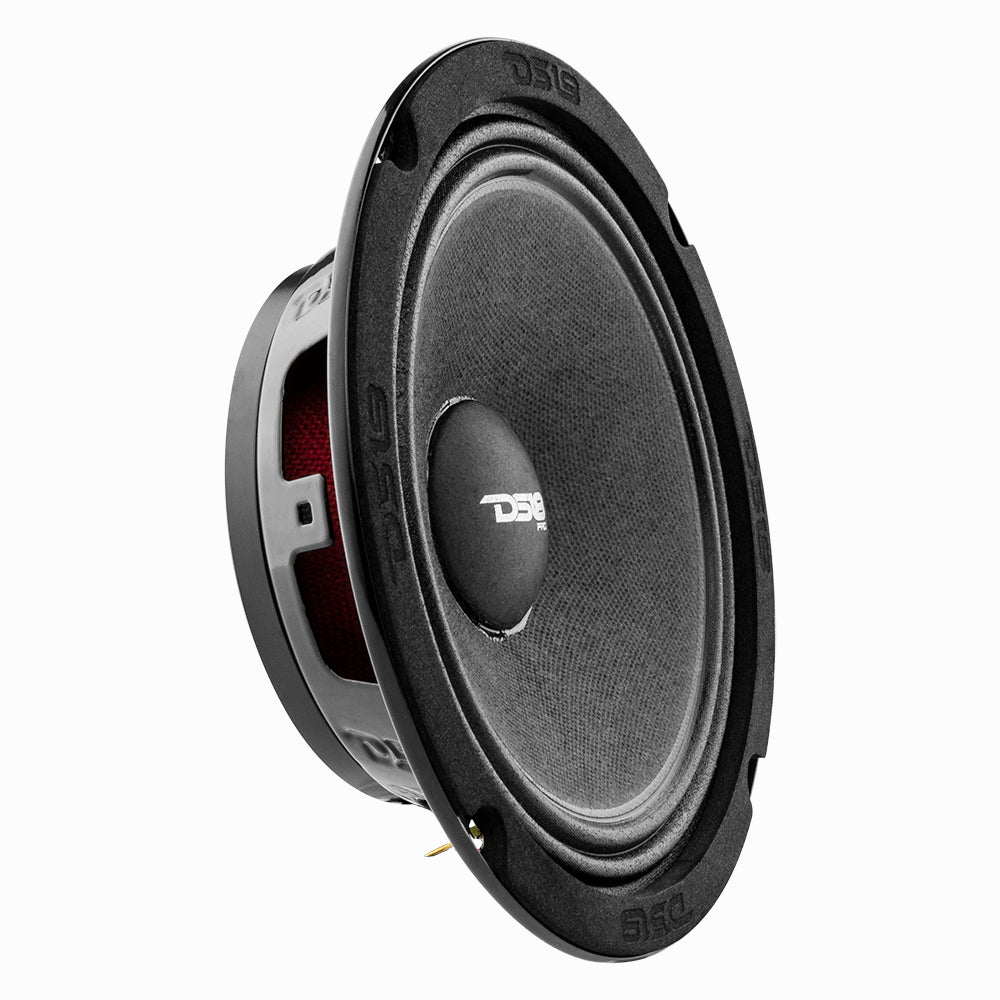

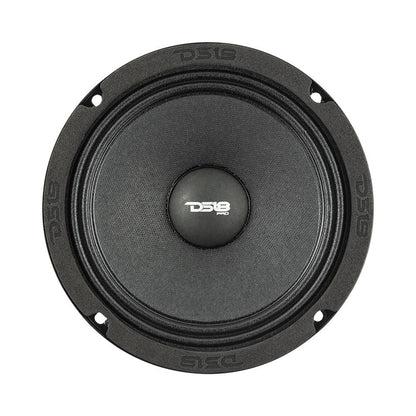

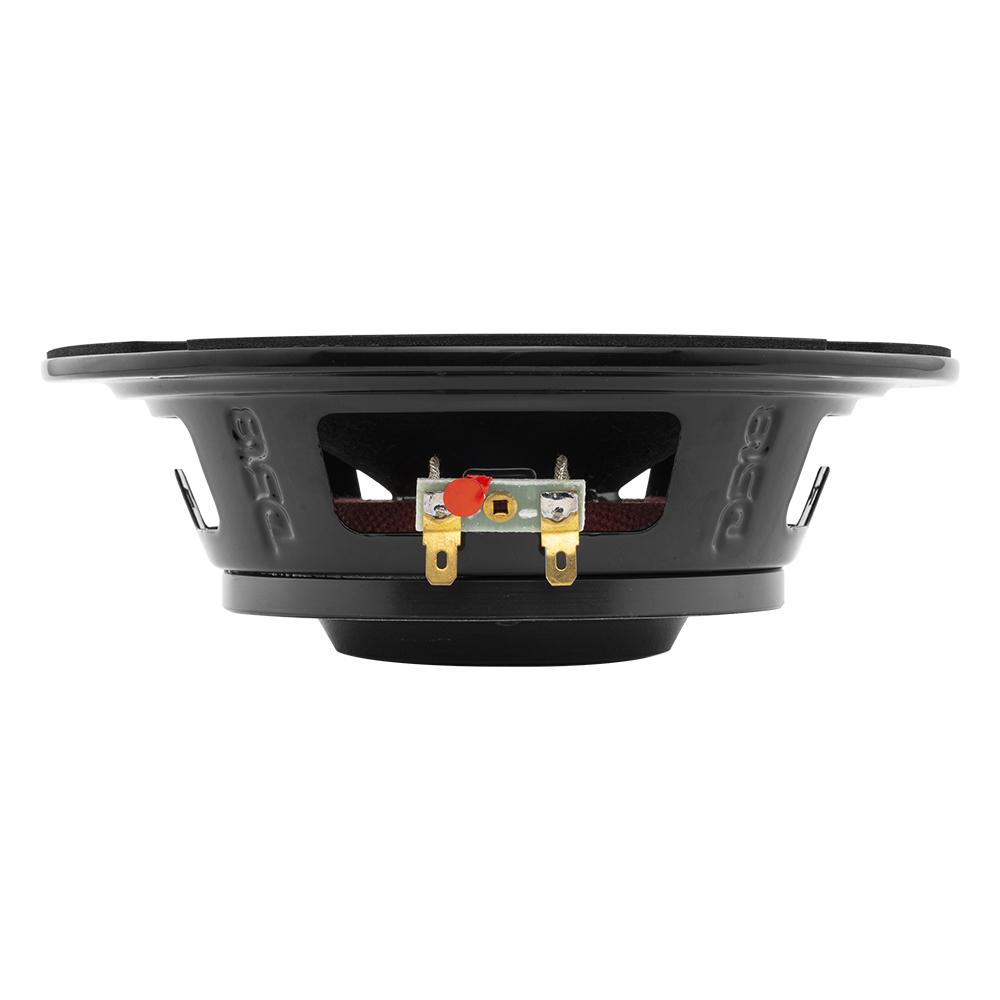

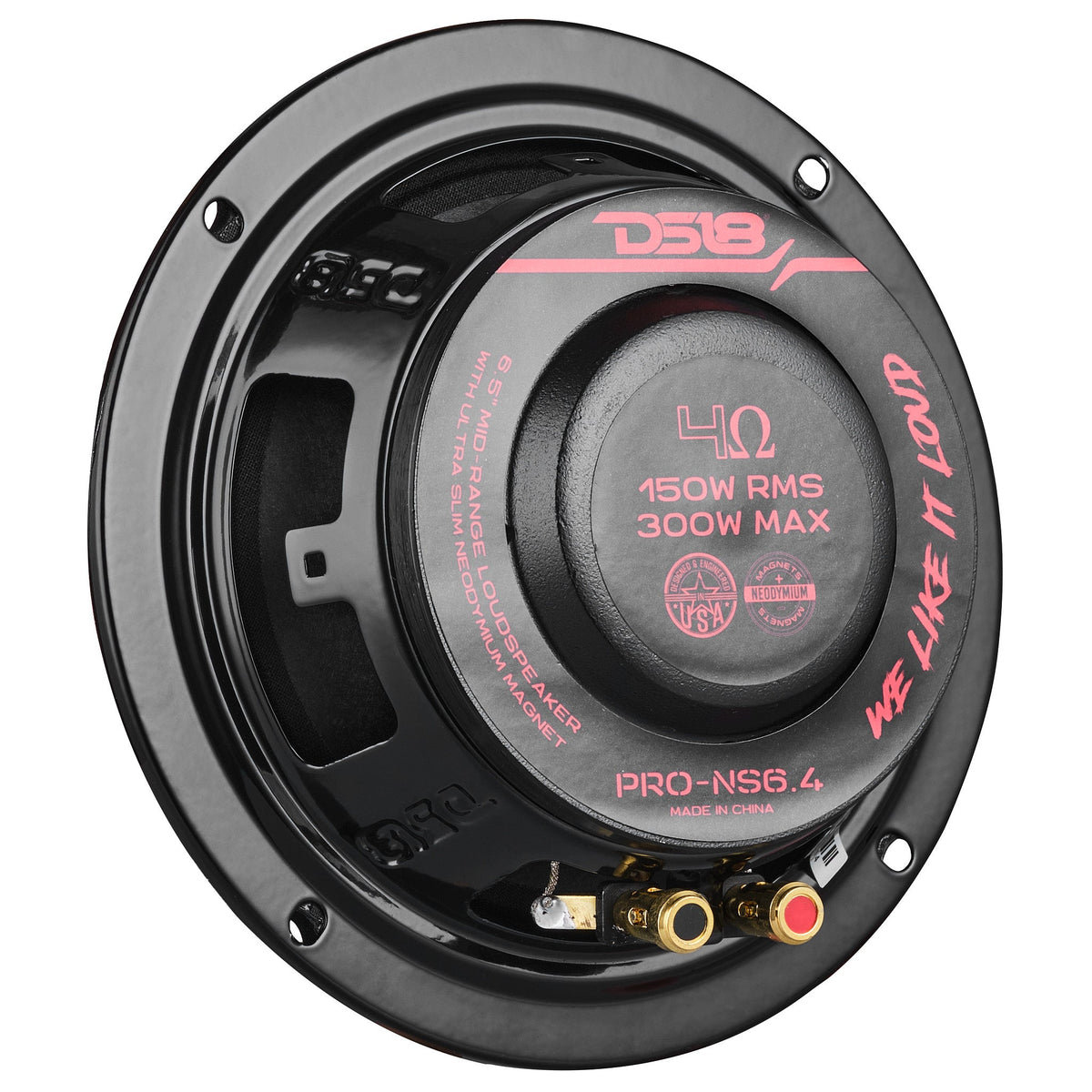

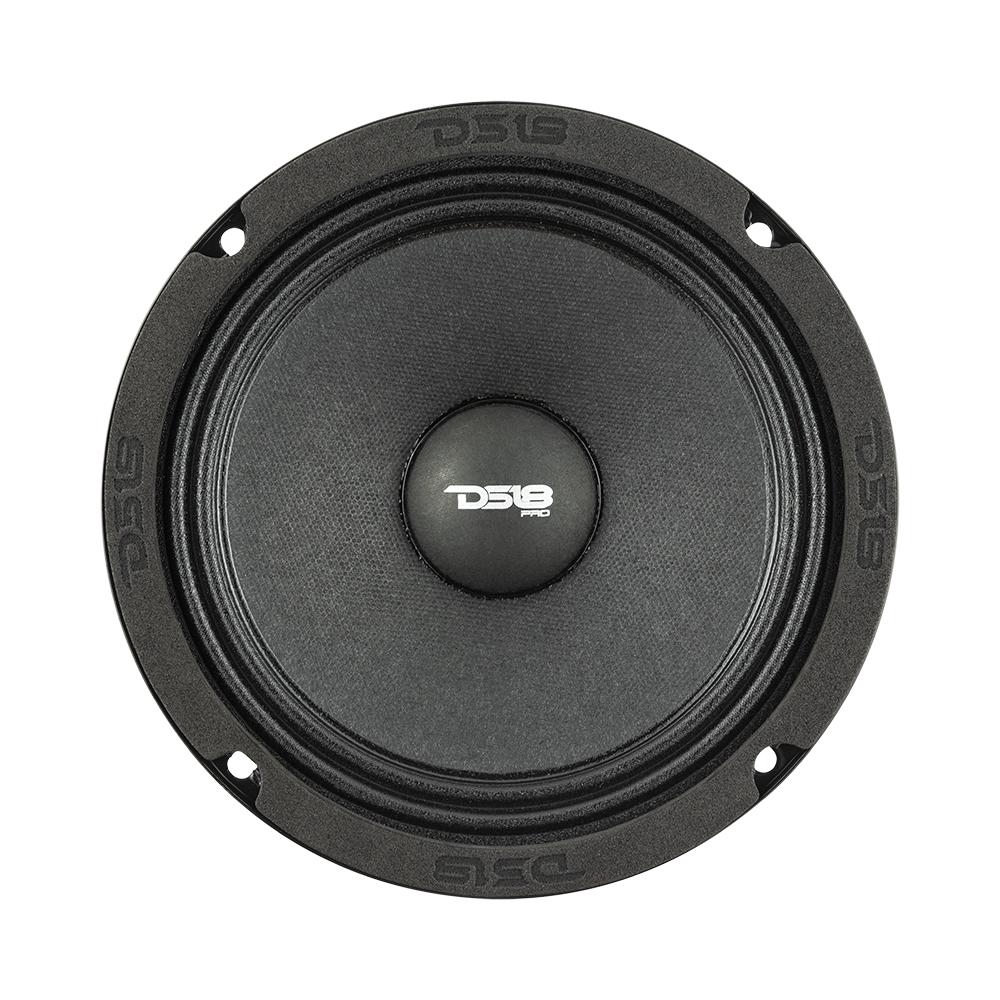

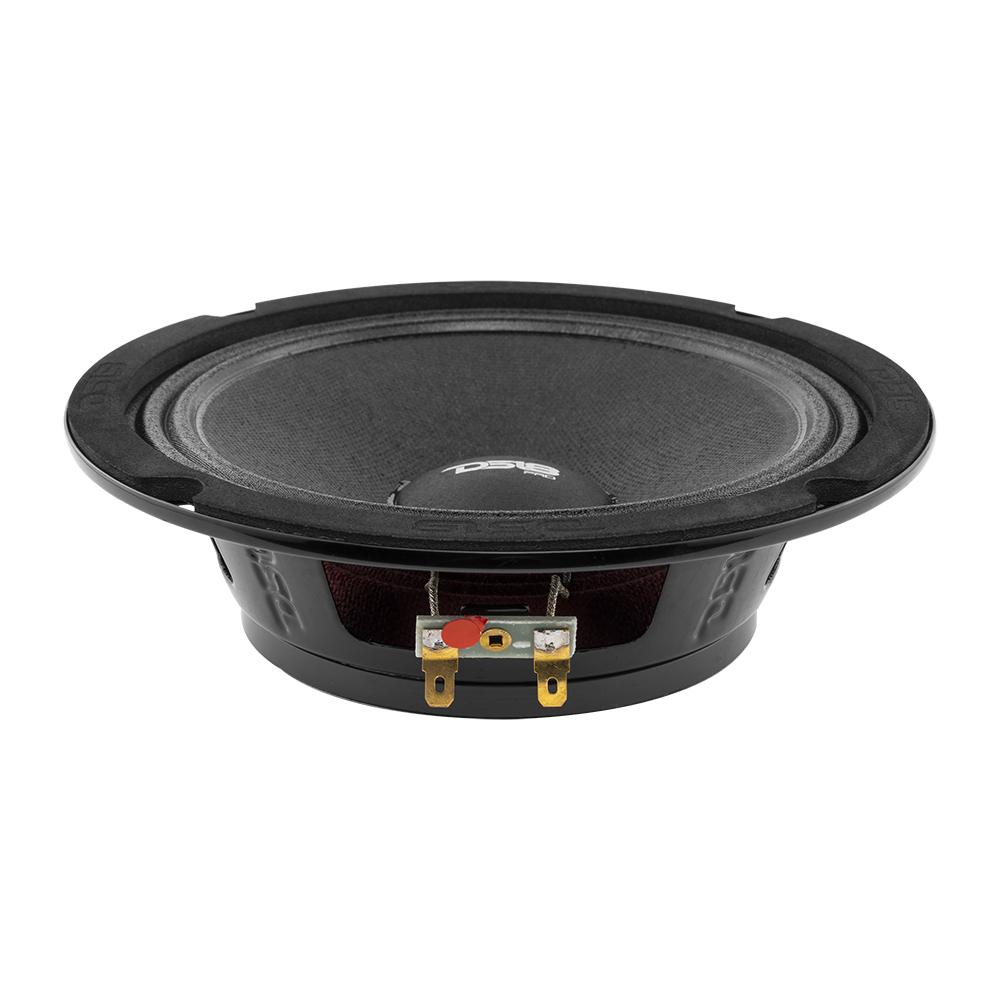

DS18 PRO-NS6.4 6.5" Shallow

Name: DS18 PRO-NS6.4 6.5" Shallow
Brand: DS18
Price: 74.95 USD
Availability: OutOfStock

$74.95

Sale Sold out

★★★★★5.0DS18 · 5 reviews on DS18.com

Shipping calculated at checkout.

Upgrade your ride with the DS18 PRO-NS6.4 6.5" Shallow — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

6.5"
150 Watts RMS
4Ohm
Neodymium
Shallow
Full Range PRO-NEO SHALLOW NEODYMIUM FULL RANGE LOUDSPEAKERS

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Piece of DS18 PRO-NS6.4
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Magnet Weight
Nominal Diameter	6.5" / 167mm
Nominal Impedance	4 Ohms
RMS Power Handling	150W
MAX Power Handling	300W
Sensitivity (1w/1m)	94 dB
Frequency Response	100Hz - 12KHz
Recommended Hi Pass Crossover	180Hz
Pair or Single	Single
MOTOR	1.5”/38.6 mm
Voice Coil Diameter	KSV
Voice Coil Former Material	Copper
Winding Material	Paper
Cone Material	Paper
Dust Cap Material	Cloth
Surround Materia	Steel
Basket Material	Glossy Red
Basket Color	Neodymium
Magnet Material	1.79 Oz
THIELE & SMALL PARAMETERS
Equivalent Volume	4.8L / 0.169ft3
Excursion (one way)	2 mm
Free Air Resonance	137 Hz
Mechanical Factor	4.906
Electrical Factor	1.072
Total Factor	0.88
Mechanical Mass	7.356g
Mechanical Compliance	183.287m cm/N
BL Factor	4.2
Voice Coil Inductance	2.695mH
Cone Area	132.732 Cm3
DC Resistance	3.2 ohms
Mechanical Mass w/o air/	6.477 g

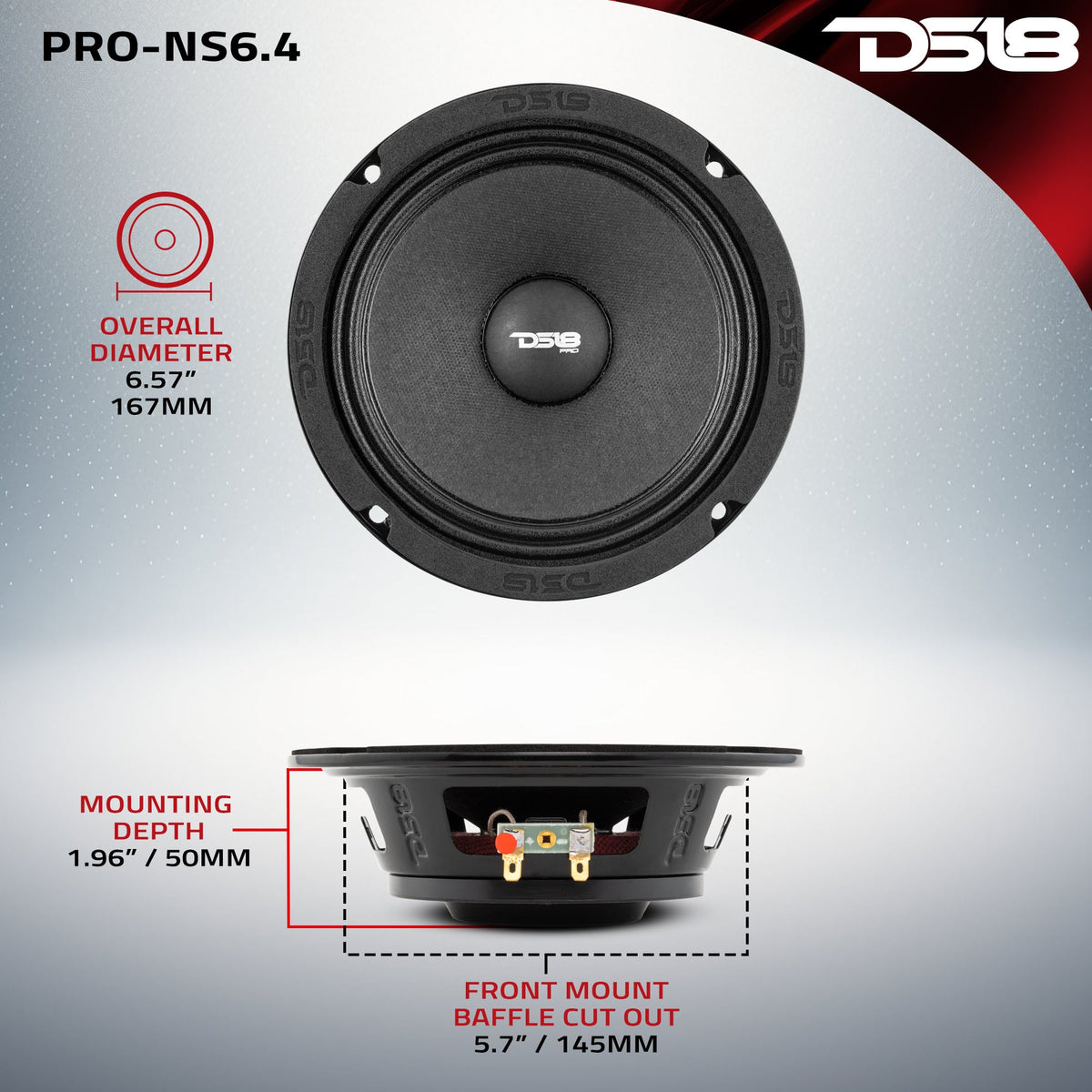

MEASUREMENTS
Overall Diameter	6.57” / 167mm
Overall Depth	2.2” / 56mm
Front Mount Baffle Cutout	5.7” / 145mm
Mounting Depth	1.96” / 50mm
Motor Diameter	4” / 103mm
SKU	PRO-NS6.4
RMS Power Handing	150W
Maximum Power Handing	300W
Vas	4.58L / 0.161ft3
Xmax	2 mm
Fs	137 Hz
Qms	4.906
Qes	1.072
Qts	0.88
Re	3.2 ohms
Product Weight	2 lbs
Product Dimensions	7 x 7 x 3
M/C Weight	17.5 lbs
M/C Dimensions	14.5 x 14.5 x 6.75
M/C QTY	8
Sold In	Piece

Manual

📄 Download Owner's Manual (PDF)
