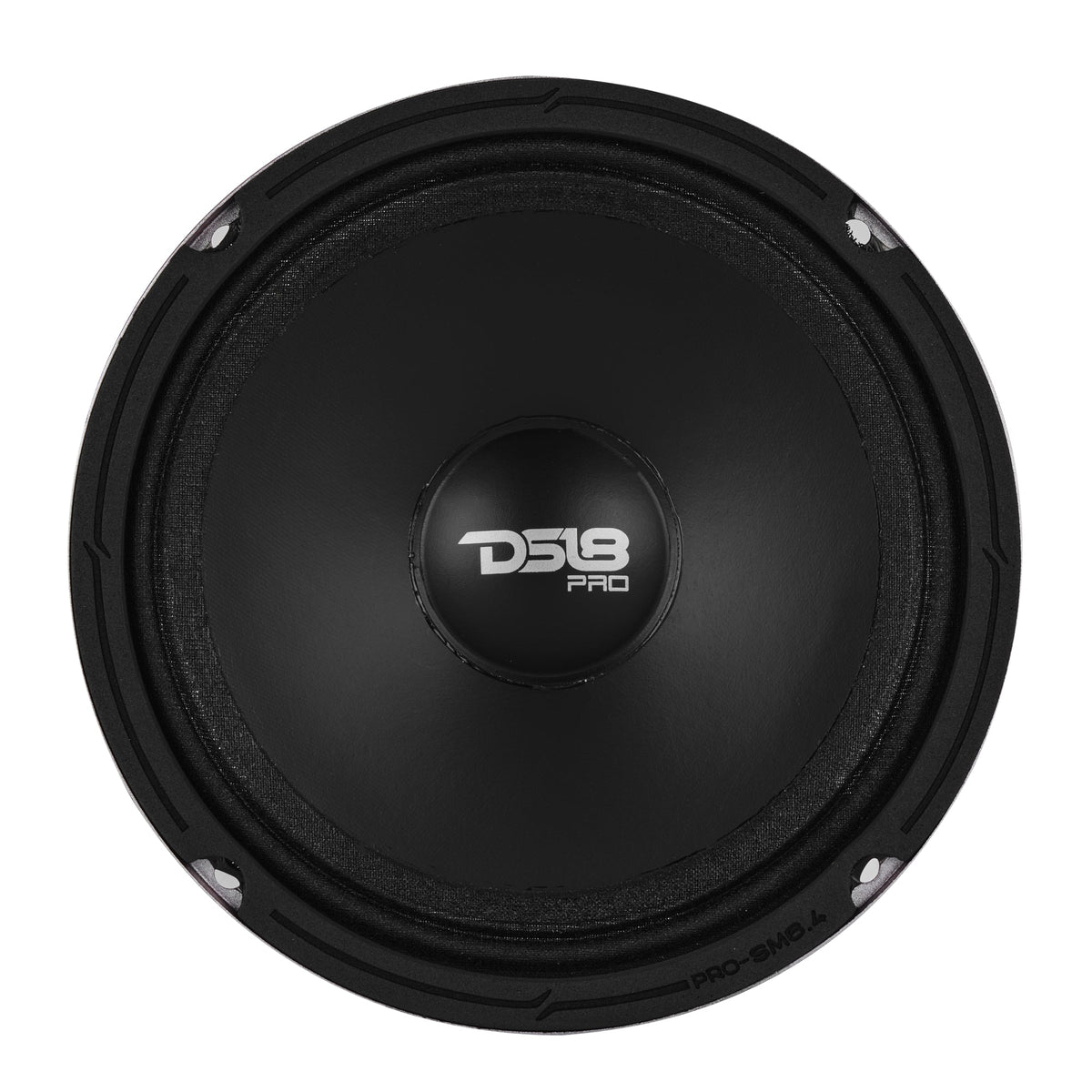

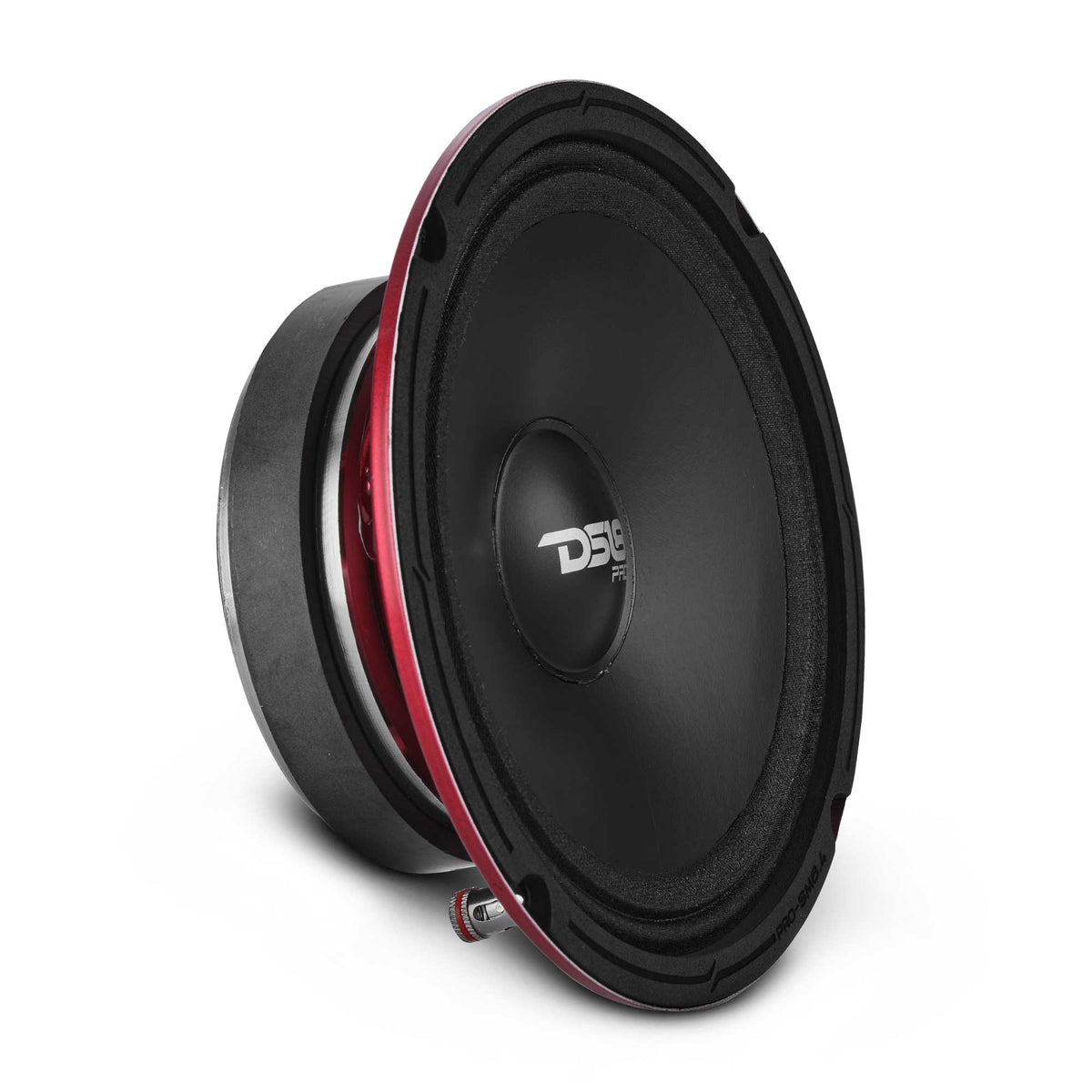

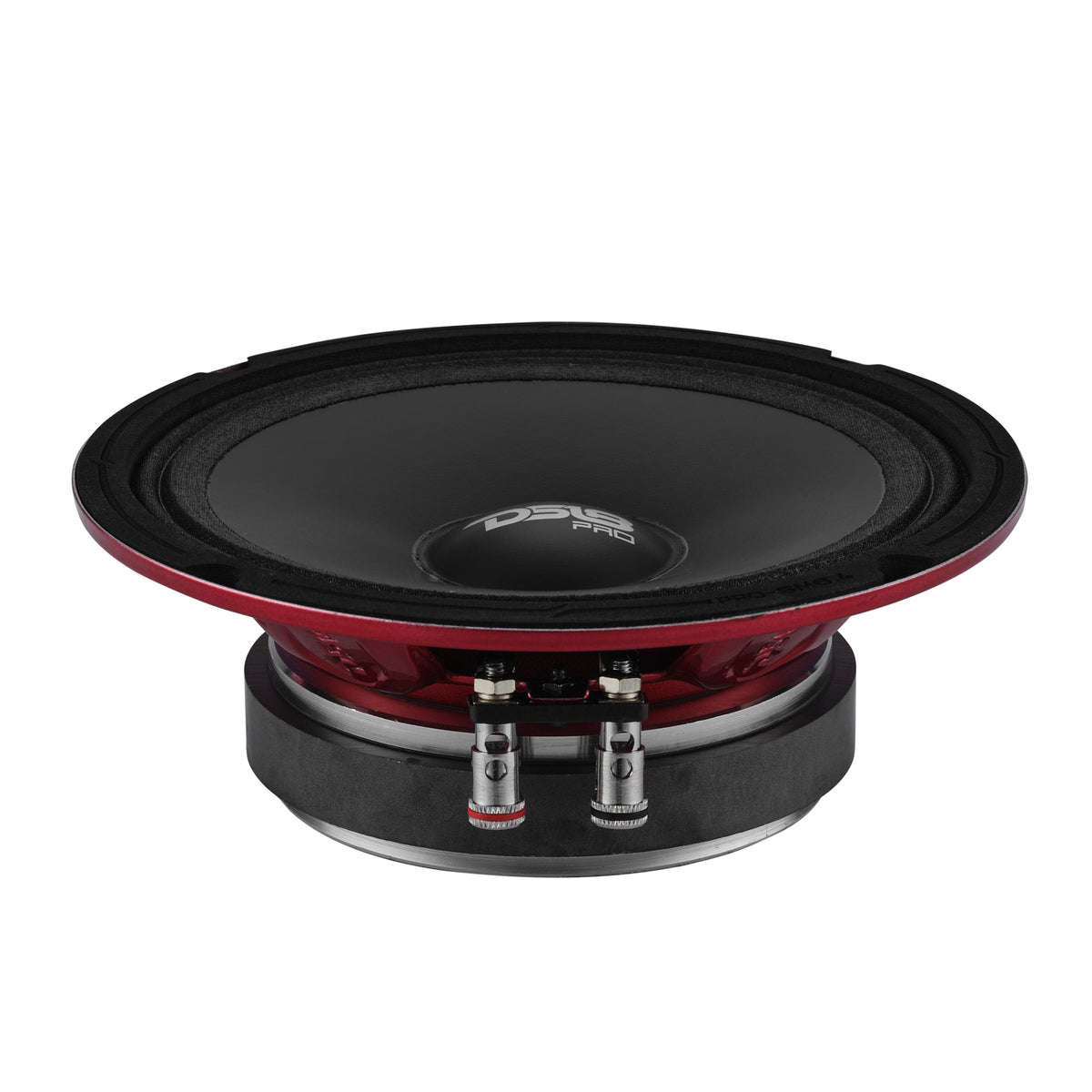

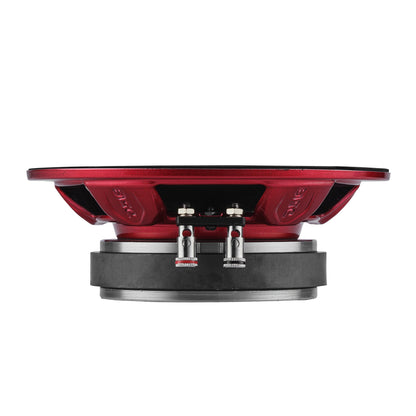

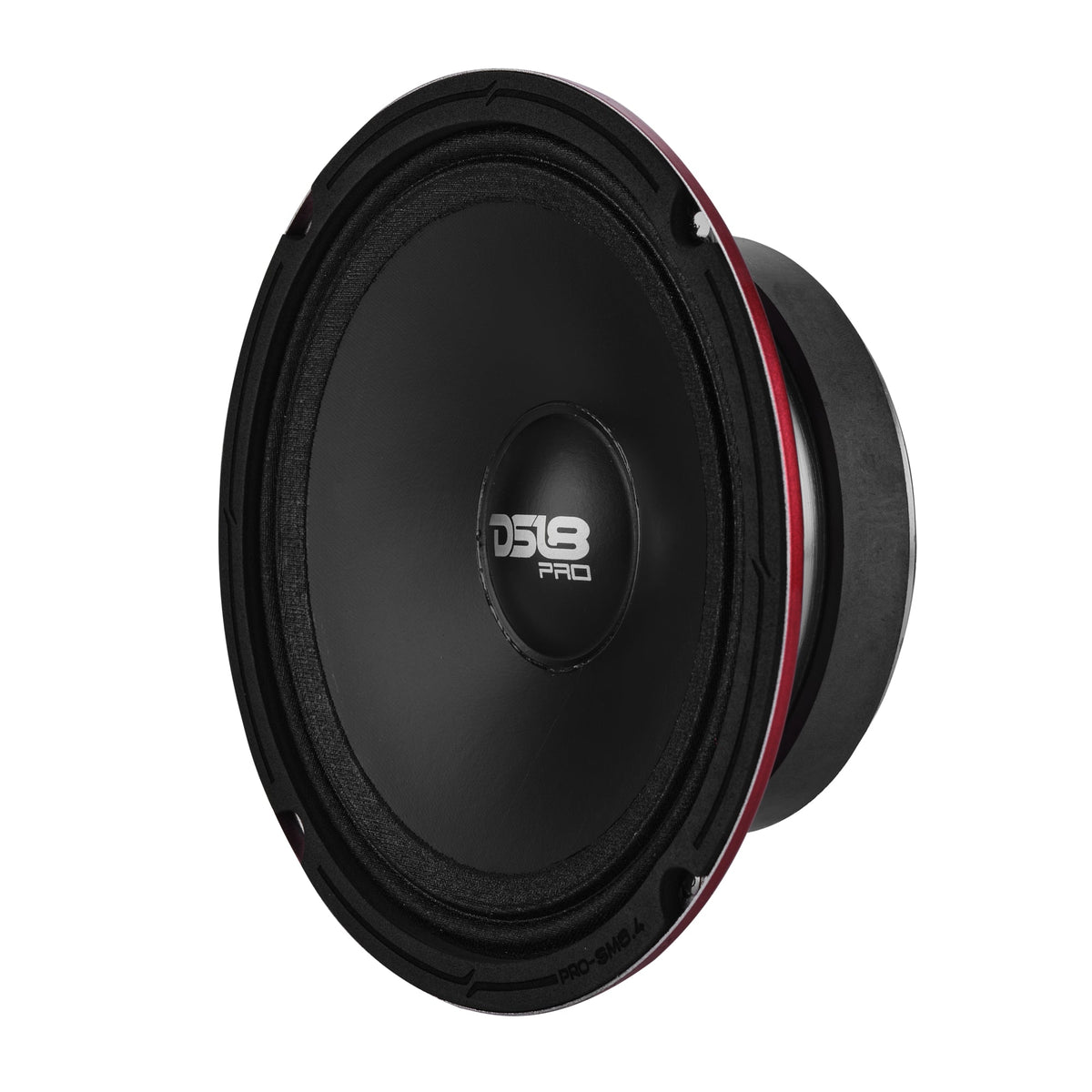

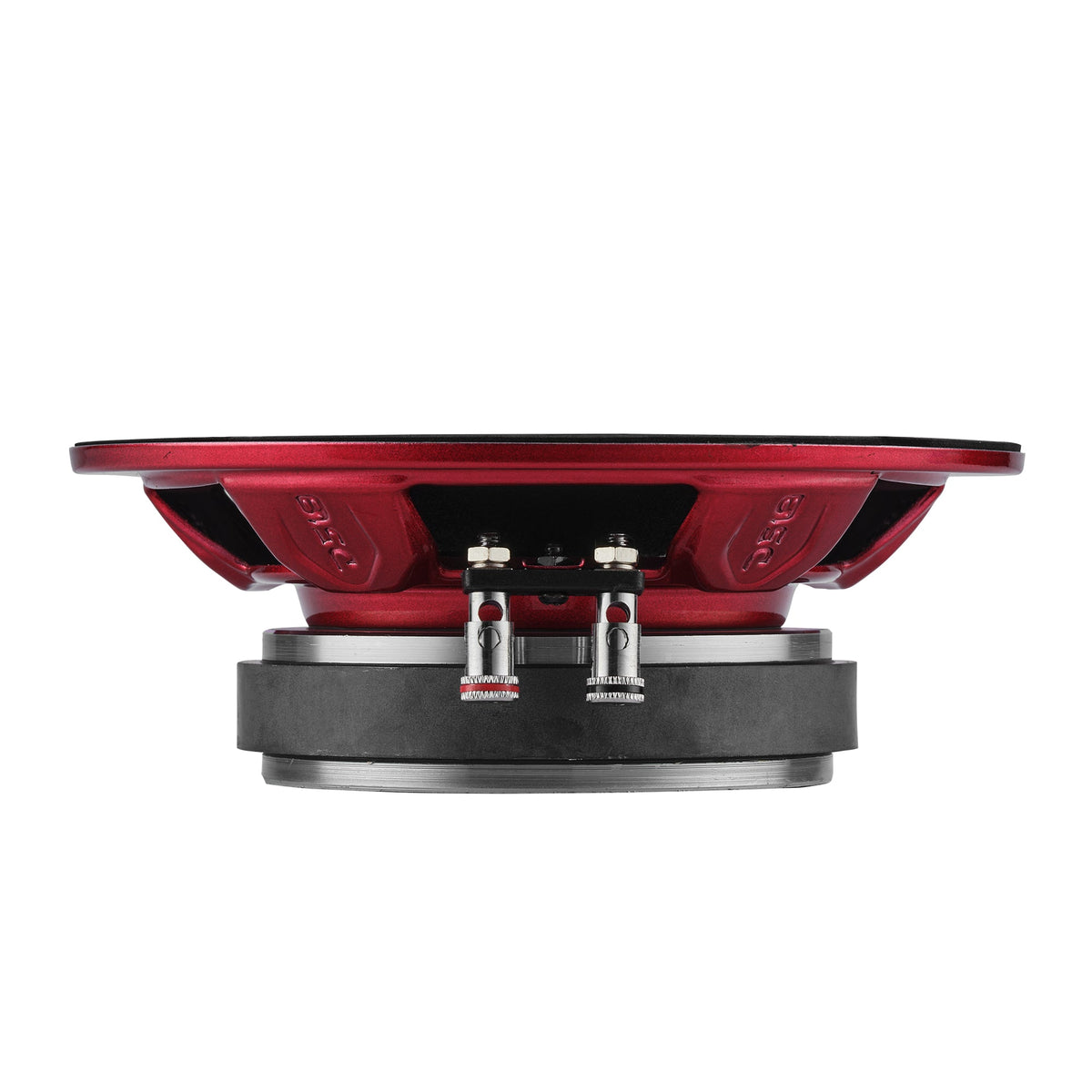

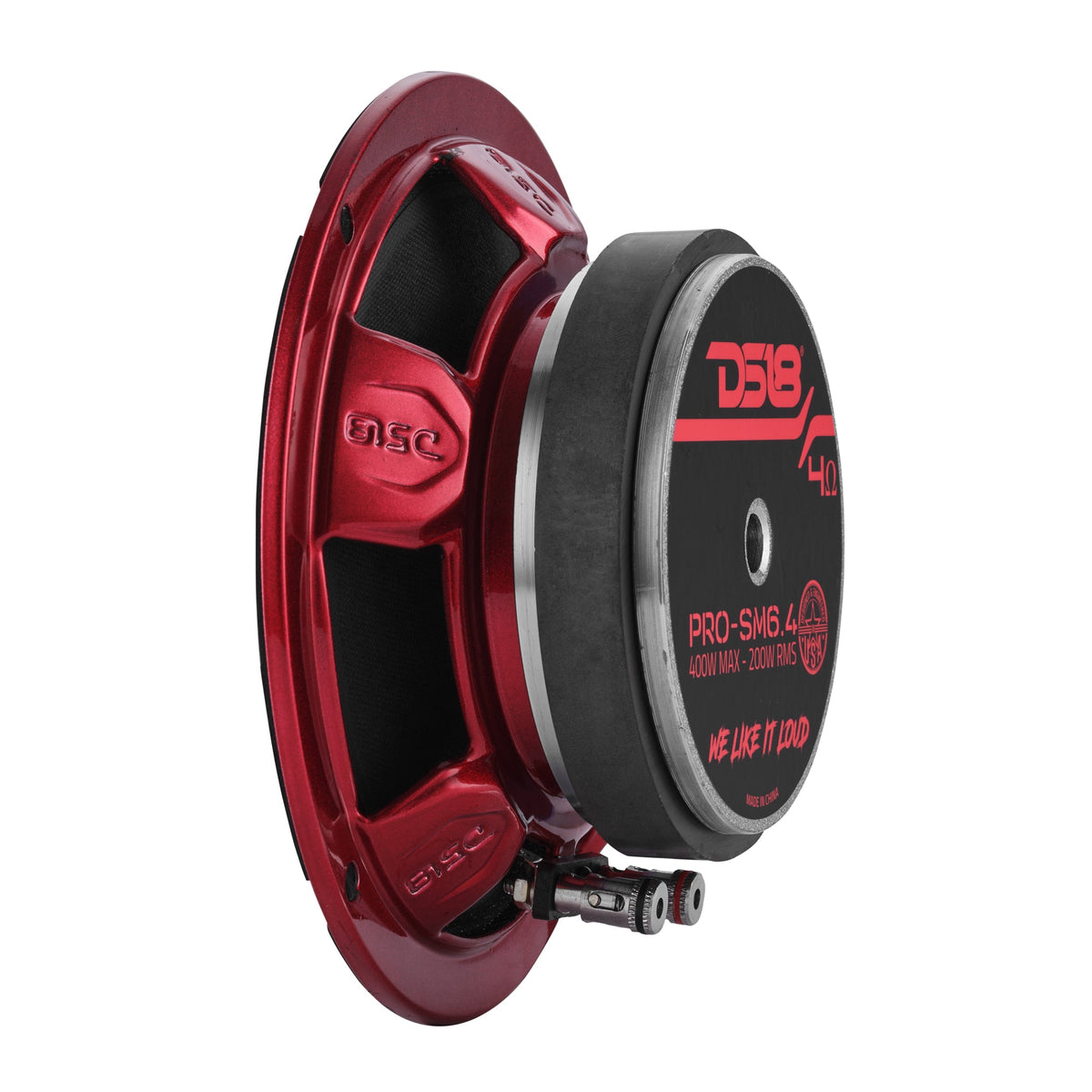

DS18 PRO-SM6.4 6.5" Mid-Range

Name: DS18 PRO-SM6.4 6.5" Mid-Range
Brand: DS18
Price: 64.95 USD
Availability: OutOfStock

$64.95

Sale Sold out

Shipping calculated at checkout.

Upgrade your ride with the DS18 PRO-SM6.4 6.5" Mid-Range — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

6.5"
200 Watts RMS
4Ohm
Mid-Range
Shallow New

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Piece of DS18 PRO-SM6.4
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Size	6.5"
Power (RMS)	200 Watts RMS
Impedance	4Ohm
SKU	PRO-SM6.4
Nominal Diameter	6.5” / 165.1mm
Nominal Impedance	4-Ohm
RMS Power Handling	200 Watts
MAX Power Handling	400 Watts
Sensitivity (1w/1m)	95 dB
Frequency Response	80Hz-14KHz
Recommended Hi Pass Crossover	180 Hz
Voice Coil Diameter	1.5” / 38.1 mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Water Resistant Paper
Dust Cap Material	Water Resistant
Surround Material	Coated Cloth
Basket Material	Steel
Basket Color	Glossy Red
Magnet Material	Ferrite
Magnet Weight	20 Oz
Equivalent Volume	3.9L / 0.137ft3
Excursion (one way)	8 mm
Free Air Resonance	190 Hz
Mechanical Factor	9.745
Electrical Factor	1.586
Total Factor	1.321
Mechanical Mass	6.080g
Mechanical Compliance	0.134mm/N
BL Factor	3.02
Voice Coil Inductance	0.36mH
Cone Area	140.95cm2
DC Resistance	3.2 Ohms

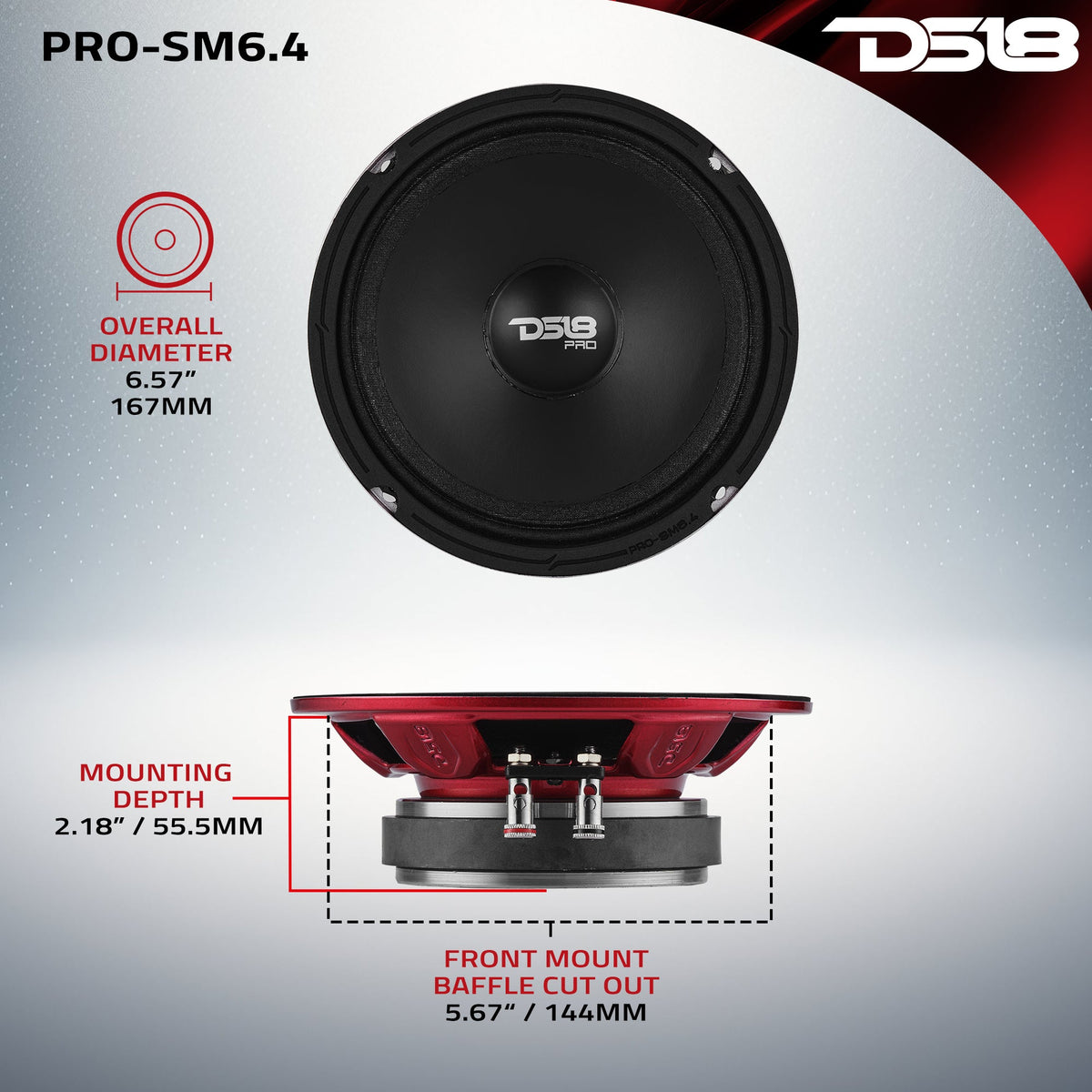

Overall Diameter	6.5” / 165mm
Overall Depth	2.32” / 59 mm
Front Mount Baffle Cutout	5.67“ / 144 mm
Mounting Depth	2.12” / 54 mm
Motor Diameter	4.33" / 110 mm
