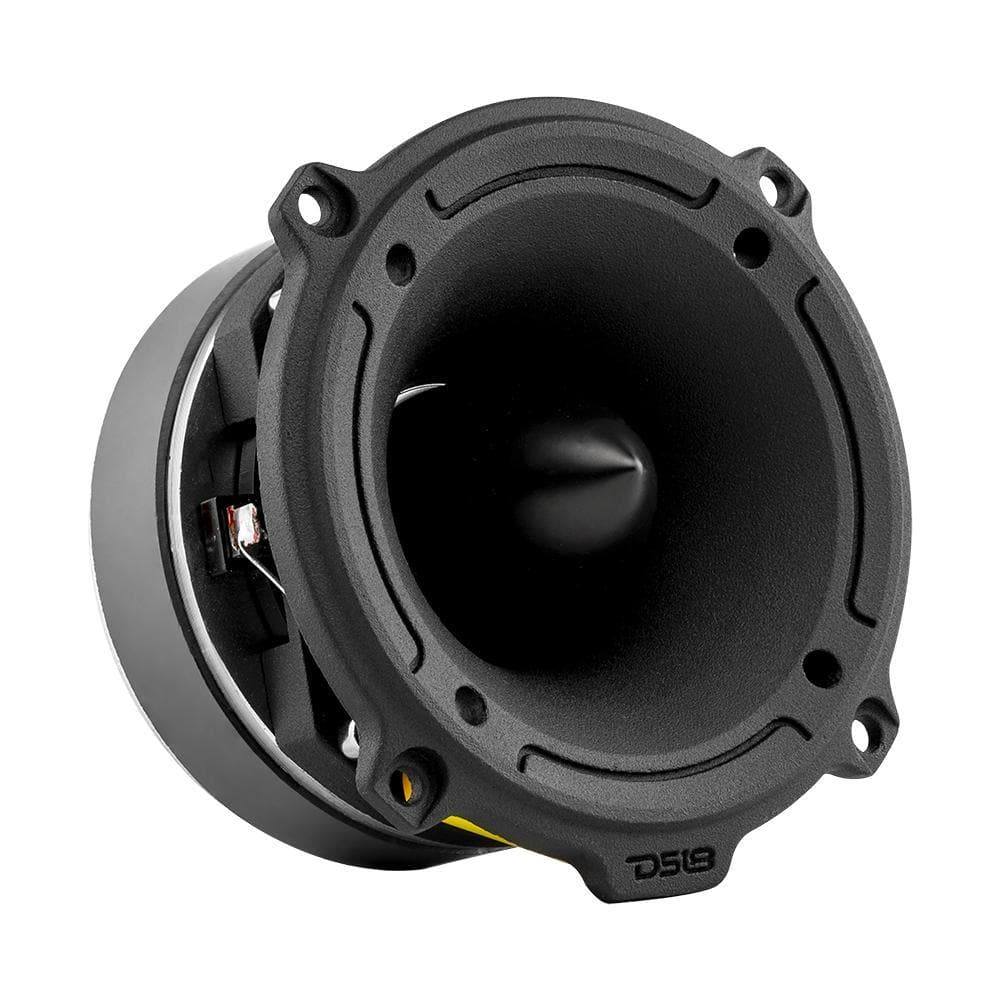

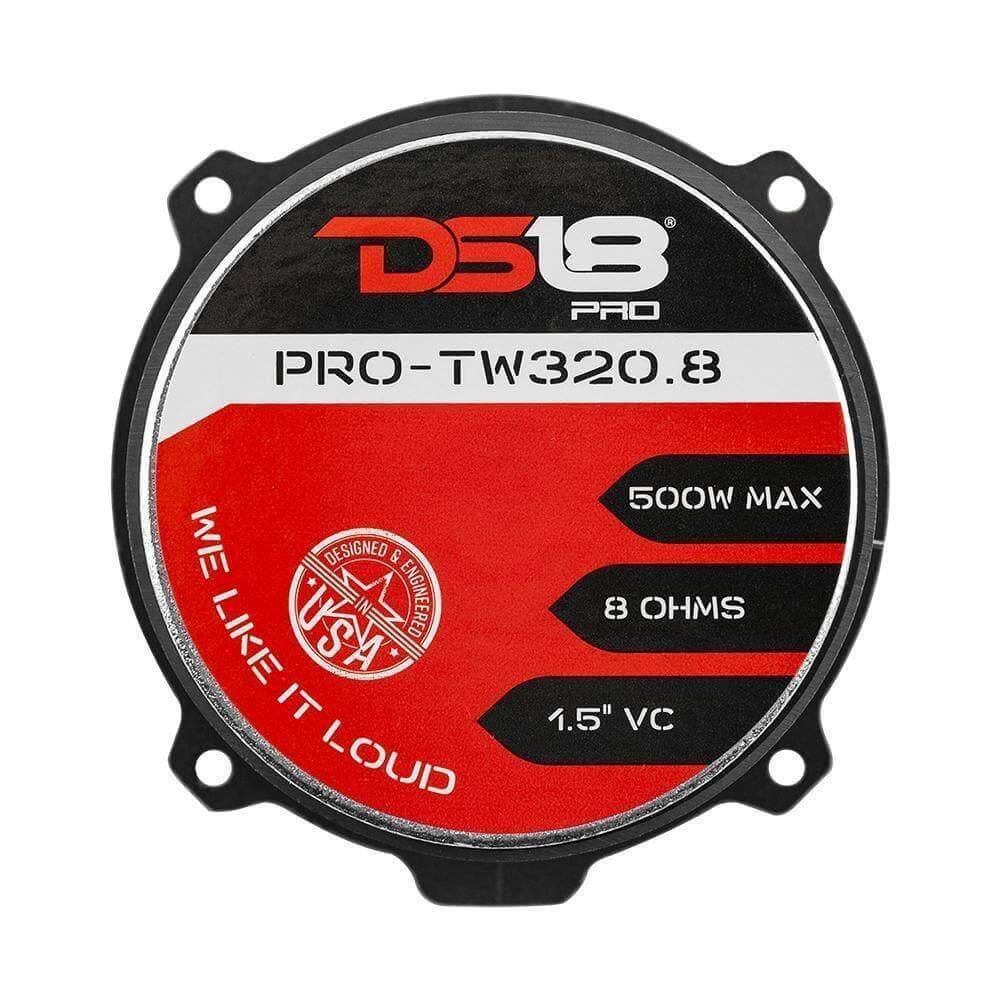

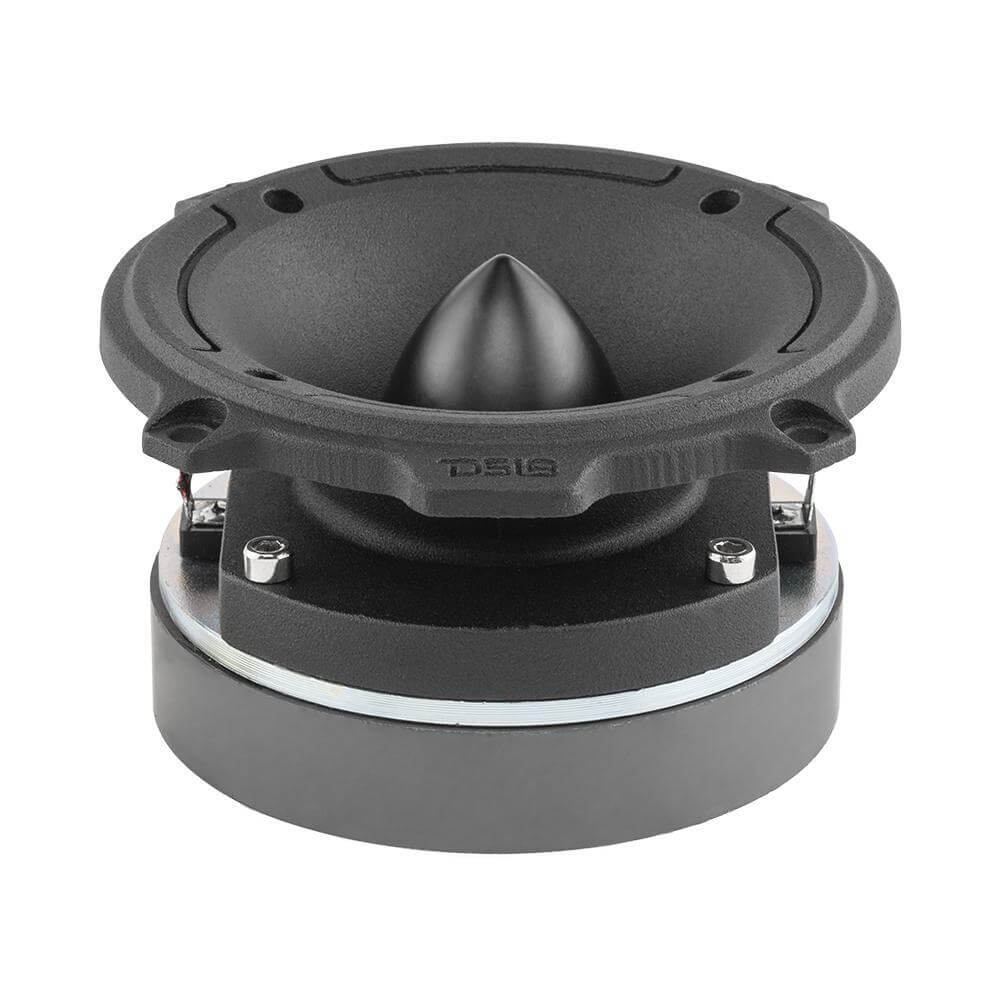

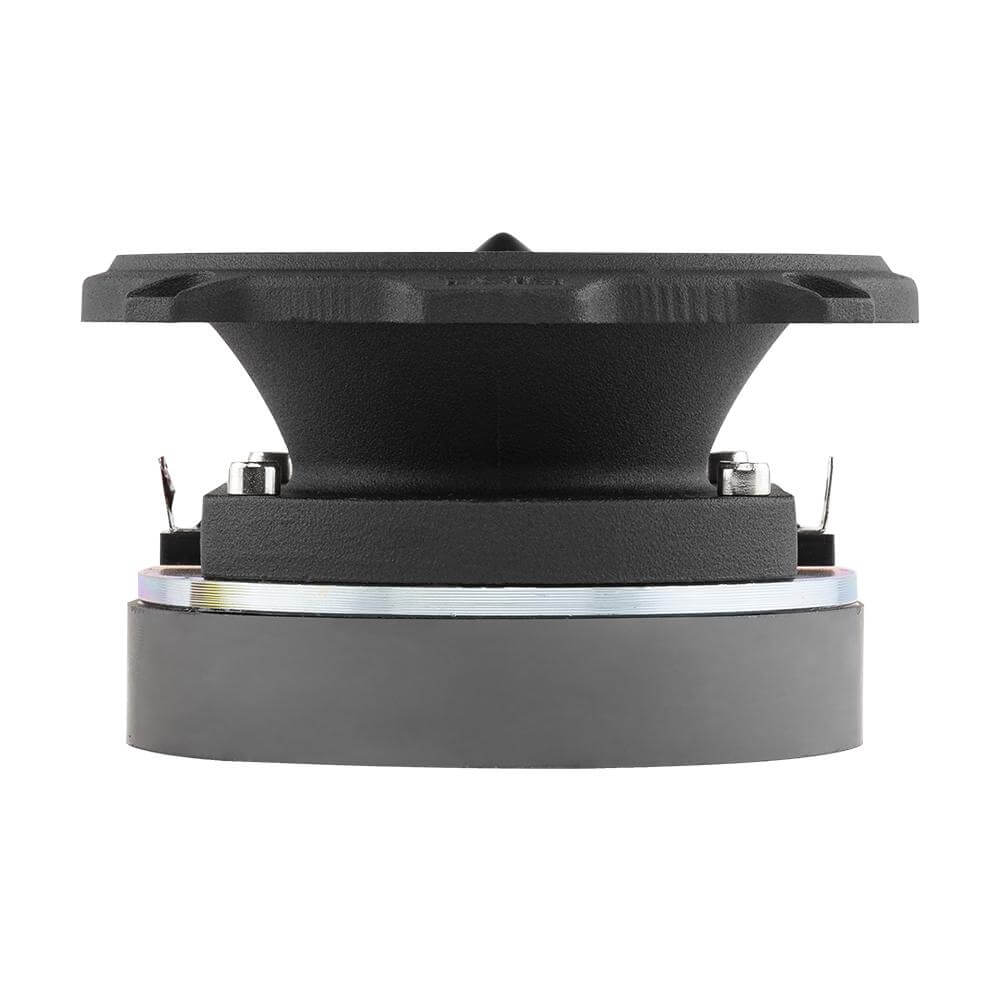

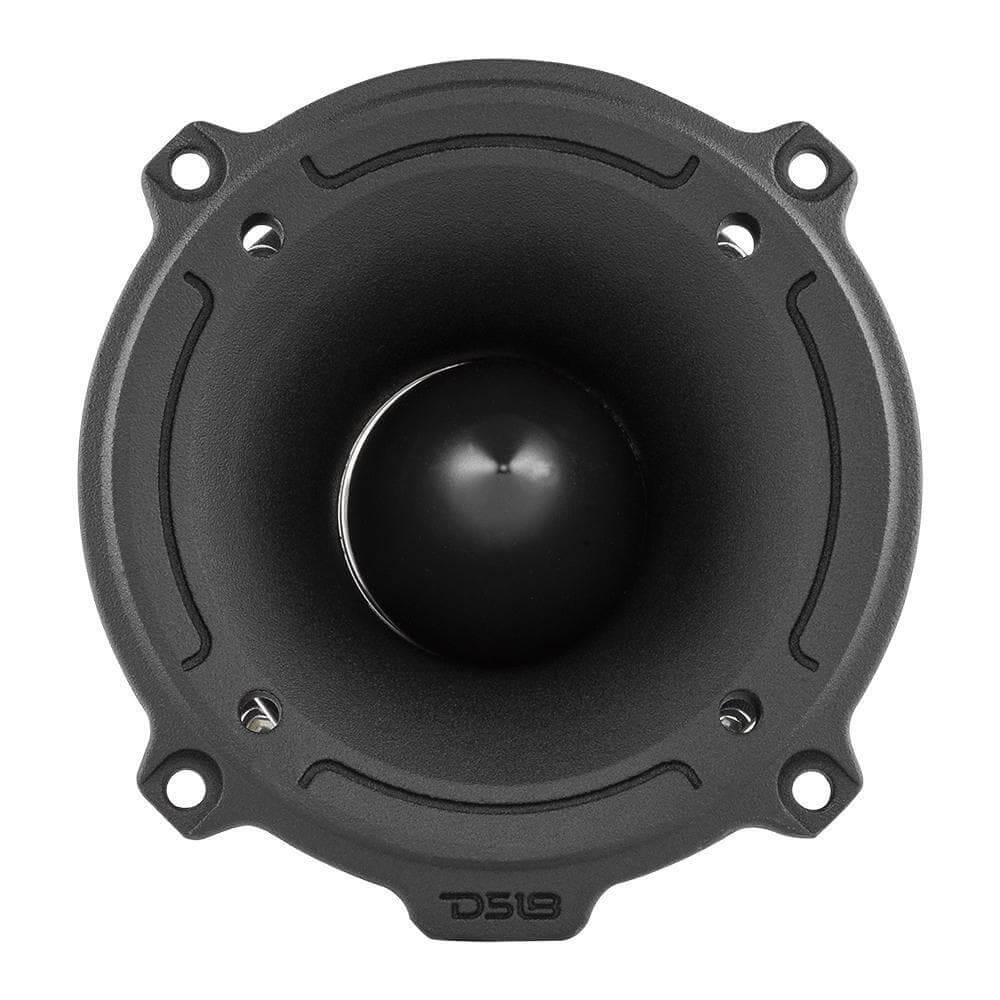

DS18 PRO-TW320.8 DS18 PRO-TW320.8 4" Super Tweeter with Bullet 8 Ohms (Single)

DS18 PRO-TW320.8 4" Super Tweeter with Bullet 8 Ohms (Single)

The PRO-TW 320.8 has all the characteristics of our best-selling counterpart except now we offer them in 8-ohm for even more possibilities of connections in your vehicle. This high intensity super tweeter has a sensitivity of 107 dB so it does not require full RMS power to get very loud. These super-tweeters handle an RMS of 250w and a maximum power of 500w. With such a high frequency range of 1.6KHz to 20KHz, you will be sure not to miss out on every hiss of a high hat and every cymbal crash. These die cast aluminum super tweeters house a massive 1.5-inch aluminum diaphragm and are easily replaceable with an allen key and 3 minutes of your time, ensuring fast and easy repair even on the go!

Highlights

• Extremely loud design that will let you pick your tweeter volume from subtle to extreme by making small adjustments to your amplifier.
• High Power super Tweeter bullet design brings extreme high range volume that can be heard for great distances and fill out your frequency range effortlessly.
• Designed to be repaired quickly and easily with our drop in voice coil kits that install in less than 5 minutes.

Technical Details

Download PRO-TW320.8 Product Manual

Model:	PRO-TW320.8
Type:	Super Bullet Tweeter
Peak Power Handling	480 Watts
Program Power Handling	240 Watts
AES Power Handling	120 Watts
Voice Coil Diameter:	1.5"
Diaphragm Material:	Aluminum
Sensitivity:	107dB
Impedance:	8 Ohms
Frequency Response:	1.6KHz - 20KHz
Package Quantity:	1
Magnet Weight	14.3 Oz
Replacement Diaphragm:	PRO-TW320VC
Magnet	Ferrite
Measurements
Overall Depth	2.57"
Mounting Depth	2.22"
Overall Width	4.01"
Cutout Diameter	3.54"
