DS18 PRO-X694BM 6x9" Mid-Range

Name: DS18 PRO-X694BM 6x9" Mid-Range
Brand: DS18
Price: 84.95 USD
Availability: InStock

$84.95

Sale Sold out

✓ In store · free same-day pickupFree shipping on $175+ ordersShipping calculated at checkout.

Upgrade your ride with the DS18 PRO-X694BM 6x9" Mid-Range — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

6x9"
275 Watts RMS
4Ohm
Mid-Range
Bullet
Grill Included

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Piece of DS18 PRO-X694BM
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Size	6x9"
Power (RMS)	275 Watts RMS
Impedance	4Ohm
SKU	PRO-X694BM
Nominal Diameter	6 x 9" / 152 x 228mm
Nominal Impedance	4 Ohm
RMS Power Handling	200W
MAX Power Handling	400W
Sensitivity (1w/1m)	96dB
Frequency Response	100Hz-12.5KHz
Recommended HI Pass Crossover	120HZ
Sold in Pair or Single	Single
Grill Included	Yes
Voice Coil Diameter	1.5" / 38.6mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Non-Pressed Paper
Bullet Material	Aluminum
Bullet Color/Finish	Glossy Red
Surround Material	Cloth
Basket Material	Steel
Basket Color/Finish	Glossy Red
Magnet Material	Ferrite
Magnet Weight	27Oz
Displacement Volume	0.32L / 0.011ft3
Equivalent Volume	20.38L / 0.719ft3
Excursion (one way)	7.7mm
Free Air Resonance	120Hz
Mechanical Factor	5.166
Electrical Factor	0.731
Total Factor	0.64
Mechanical Mass	8.551g
Mechanical Compliance	0.225mm/N
BL Factor	6.544
Voice Coil Inductance	3.86mH
Cone Area	207.34cm2
DC Resistance	3.2 ohms

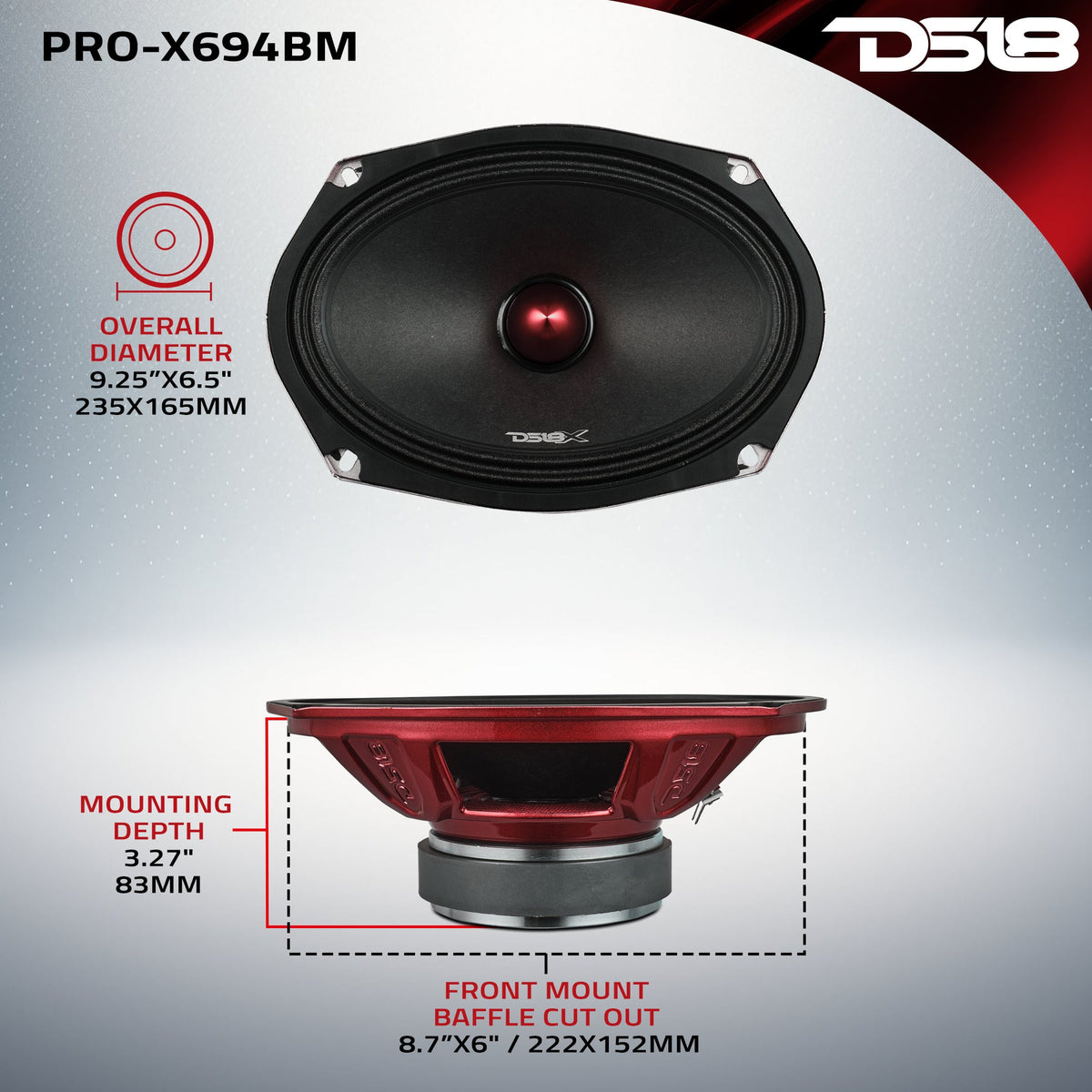

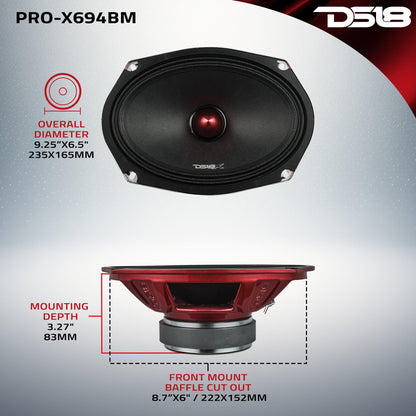

Overall Diameter	9.25 x 6.5" / 235 x 165mm
Overall Diameter With Grill	10.2 x 7.08" / 260 x 180mm
Overall Depth	3.5" / 88.85mm
Overall Depth With Grill	3.9" / 100mm
Front Mount Baffle Cutout	8.7 x 6" / 222 x 152mm
Mounting Depth	3.27" / 83mm
Motor Diameter	4.3" / 110mm
