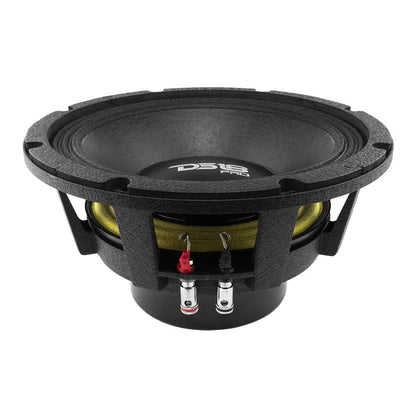

DS18 PRO-XLNEO Mid-Bass Loudspeakers

Name: DS18 PRO-XLNEO Mid-Bass Loudspeakers
Brand: DS18
Price: 347.95 USD
Availability: InStock

$347.95

Sale Sold out

★★★★★5.0DS18 · 1 reviews on DS18.com

Size 10" 12"

✓ In store · free same-day pickupFree shippingShipping calculated at checkout.

Experience deep, resonant bass and crystal-clear audio performance with the pro-grade sound of our loudspeaker line. Designed to elevate your car's acoustics, these speakers deliver powerful clarity across all music genres.

Specs by size

Size	RMS (W)	Impedance (Ω)	Sensitivity (dB)
10"	1000	8	90
12"	1000	8	90

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

MOTOR
Nominal Diameter	10” / 254mm
Nominal Impedance	8 Ohms
RMS Power Handling	1000W
MAX Power Handling	2000W
Sensitivity (1w/1m)	96.5 dB
Frequency Response	50Hz - 7KHz
Recommended HI Pass Crossover	100Hz
Pair or Single	Single
Voice Coil Diameter	4” / 99.8mm
VC Former Material	Glass Fiber
Winding Material	CCAW
Cone Material	Paper
Dustcap Material	Paper
Surround Material	Cloth
Basket Material	Aluminum
Basket Color	Sandblasted Black
Magnet Material	Neodymium
Magnet Weight	18.5 Oz
Displacement Volume	1.83L / 0.064ft3
THIELE & SMALL PARAMETERS
Equivalent Volume	20.53L / 0.72ft3
Excursion (one way)	13.8 mm
Free Air Resonance	64Hz
Mechanical Factor	3.03
Electrical Factor	0.255
Total Factor	0.235
Mechanical Mass	78.573g
Mechanical Compliance	0.125mm/N
BL Factor	20.072
Voice Coil Inductance	32.64mH
Cone Area	339.795CM²
DC Resistance	5.2 Ohm
Mechanical Mass w/o Air	65.971g

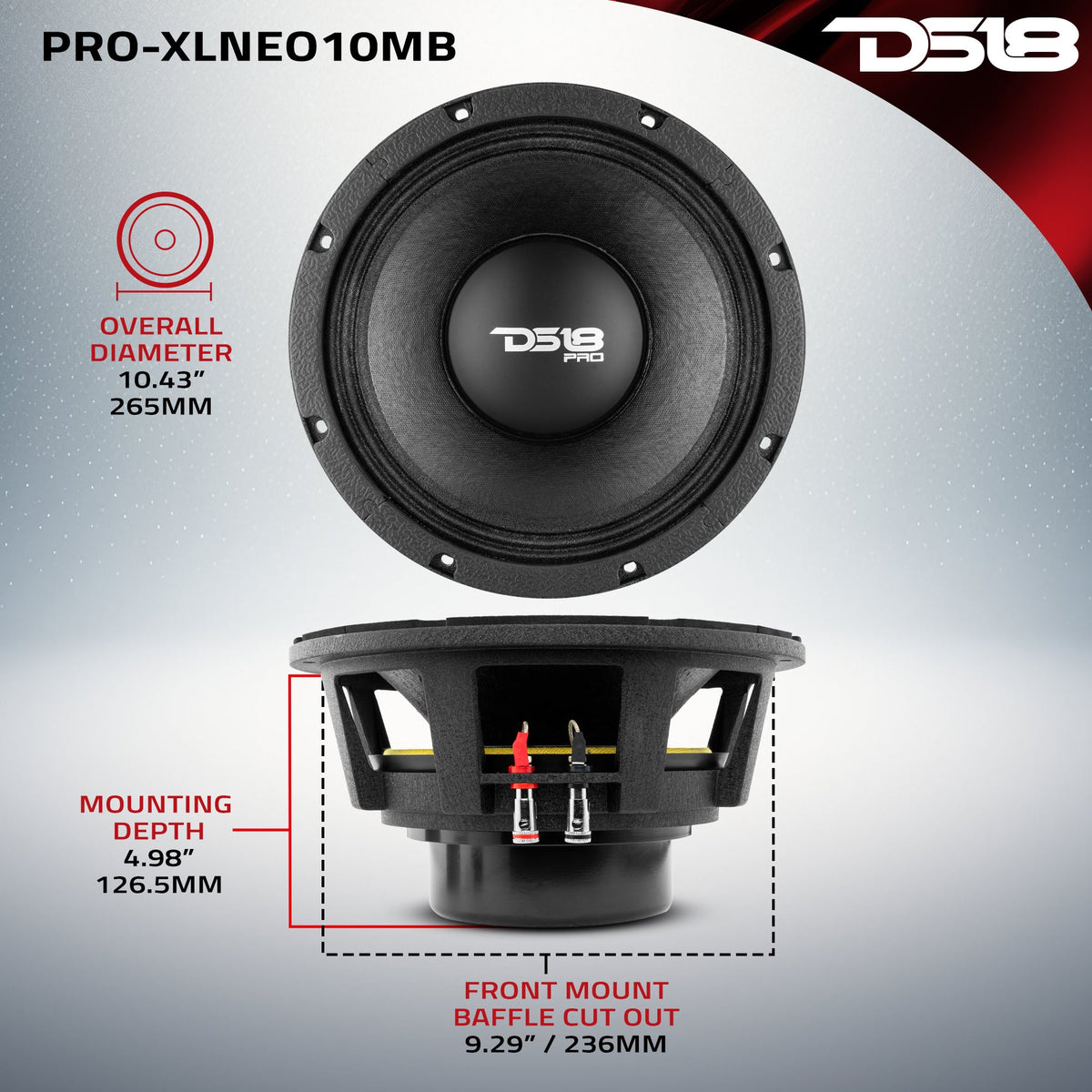

MEASUREMENTS
Overall Diameter	10.43”/265mm
Overall Depth	5.45” / 138.5mm
Front Mount Baffle Cutout	9.29”/236mm
Mounting Depth	4.98”/126.5mm
Motor Diameter	5.86”/149mm
SKU	PRO-XLNEO10MB
RMS Power Handing	1000W
Maximum Power Handing	2000
Voice Coil Former Material	Glass Fiber
Vas	20.53L / 0.72ft3
Xmax	13.8 mm
Fs	64Hz
Qms	3.03
Qes	0.255
Qts	0.235
Re	5.2 Ohm
Product Weight	0.72 lbs
Product Dimensions	10 x10 x 4.25
M/C Weight	13.5
M/C Dimensions	21 x 21 x 18.5
M/C QTY	16
Sold In	Piece
