DS18 SDX1 Single-DIN Headunit Mech-Less Player Receiver

Name: DS18 SDX1 Single-DIN Headunit Mech-Less Player Receiver
Brand: DS18
Price: 94.95 USD
Availability: OutOfStock

$94.95

Sale Sold out

Shipping calculated at checkout.

Upgrade your ride with the DS18 SDX1 Single-DIN Headunit Mech-Less Player Receiver — available at EB Electronics, your local car audio experts.

Replace your factory head unit and take full control of your audio experience. DS18 stereos bring modern connectivity and superior sound staging to any vehicle.

Key Specifications:

Single-DIN
Headunit Mech-Less Player Receiver
Dual USB
7 Volt Preouts

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

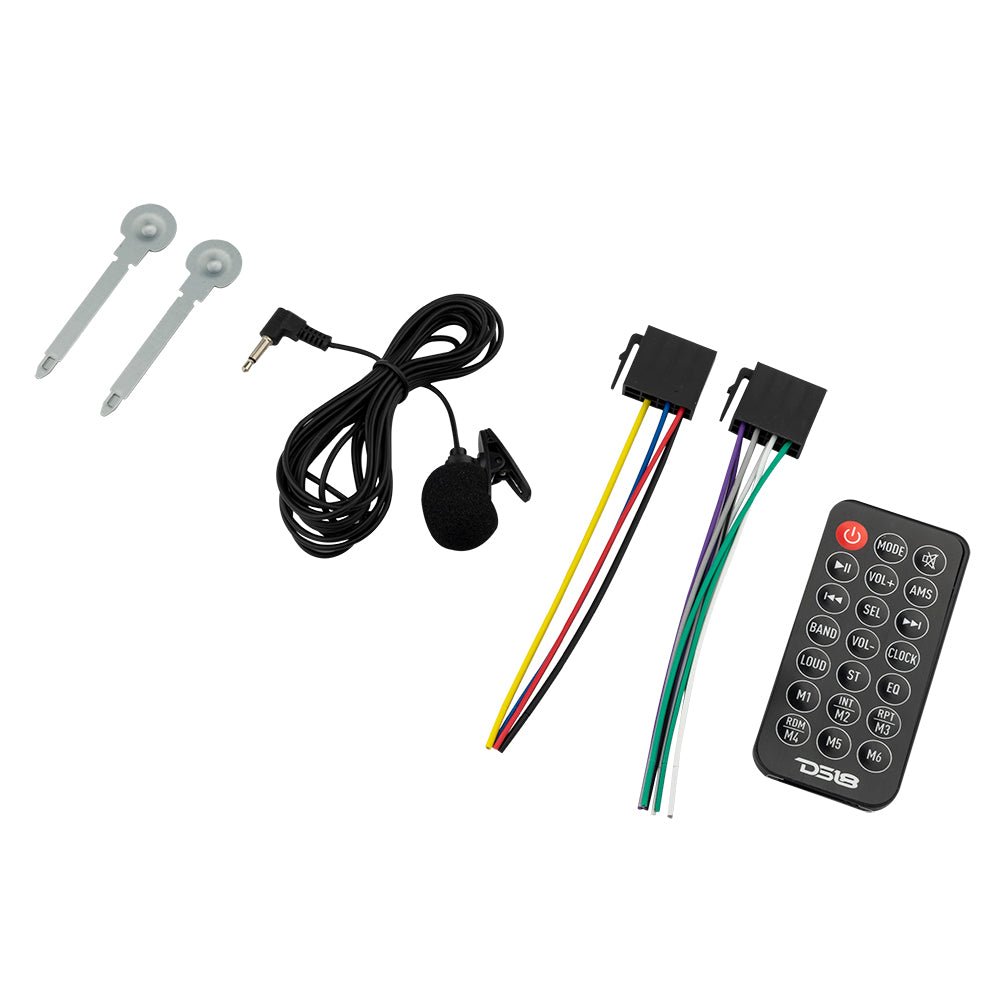

What's Included:

(1) Piece of DS18 SDX1
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

GENERAL
Rated power source	14.4V DC (11V to 16V operation)
Maximum Current Consumption	10 Amp
Dimensions (W x H x DI: Chassis	178mm x 50mm x 150mm
Bezel frame	188mm x 58mm x 30mm
Weight	15.9 Oz / 452 grams
DISPLAY
Screen Size	3” / 75 x 25mm
Display Type	VA LCD
Temperature Operation	-20°C to +60°C (14°F to 140°F)
AUDIO
Maximum Power Output	50W X 4 Ch @ 4 ohm (14.4v)
Continuos Power Output	17W x 4 Ch @ 4 ohm (14.4v)
Pre-output Level	7 Volts (14.4V)
Equalizer	2 bands (Bass: 60Hz, Treble: 10KHz)
Gain	+/- 7dB
Preset EQ	Jazz / Rock / Pop / Classic
Audio Control	Volume / Balance / Fader / Loudness / Bass / Treble
Subwoofer Control	Vol (0-20) / Cut (80/120/160 Hz)
Signal to Noise Ratio	>60dB
THD	<0.3%
Frequency Response	20Hz – 20Khz
TUNER
Frequency Range	FM: 87.5 ~ 107.9 KHz
Presets Memory	18 Stations
Region	North America “USA”
Sensitivity Adjustment	LOC / DX & ST / Mono
Sensitivity	<20dB
Stereo Separation	>25dB
USB / SD PLAYER
Type/Class	V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported	MP3, WMA, FLAC, MAV
Info Display Format	ID3 Tag
Memory Size Reader	up to 64 Gb
Max Current Supply	1.5 Amp (Charging USB port)
Number of USB Ports	2 x Front (1 for Audio / 1 for Charging)
SD Slot	1 x Front Micro SD
CONNECTIVITTY
Bluetooth Version / Services	V4.1 / Audio Streaming / Hands Free calls
Audio Protoco	A2DP v1.2 Sink (SNK)
Aux input	Front 3.5mm Jack Stereo Audio
Microphone	Built-In Microphone on faceplate
Remote Control	Frontal IR Receptor
SKU	SDX1
Dimensions (W x H x D)	Chassis: 178mm x 50mm x 150mm Bezel frame: 188mm x 58mm x 30mm

Manual

📄 Download Owner's Manual (PDF)
