DS18 ZR112LD Single 12" Loaded

Name: DS18 ZR112LD Single 12" Loaded
Brand: DS18
Price: 359.95 USD
Availability: OutOfStock

$359.95

Sale Sold out

Free shippingShipping calculated at checkout.

Upgrade your ride with the DS18 ZR112LD Single 12" Loaded — available at EB Electronics, your local car audio experts.

Feel every bass line the way it was meant to be heard. These DS18 subwoofers bring deep, tight, room-shaking bass to your vehicle.

Key Specifications:

Single 12" Loaded
750 Watts RMS
ZR12.2D

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Piece of DS18 ZR112LD
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

POWER
Total Watts (Peak)	3000W
RMS Power @ 4 ohm	380W
RMS Power @ 2 ohm	650W
RMS Power @ 1 ohm	1000W
AUDIO
Frequency Response	10-220Hz
Signal to Noise Ratio	>95dB
Efficiency @ 4ohm	80%
Damping Factor	220
Input Impedance	20K ohm
Channel Separation	N/A
Total Harmonic Distortion (THD)	0.01%
Low Level Input Range	0.2-6V
High Level Input	No
Selectable X-Over	LPF Fixed
X-Over Filter Range	40-180Hz
Bass Boost Range	0-12db
Bass Boost Frequency	30-80hz
Infrasonic Filter	10-50hz
Phase Selector	No
FEATURES
Amplifier Class	Digital
Amplifier Type	Monoblock Subwoofer
Number of Channels	1
Minimum Impedance	1 ohm
Led Indicator	clipping/protect/power
Power Input Terminal Size	4ga
Fuse Size	100A
Remote Level Control	Yes / Dash Mount
Cooling Fan	No
Voltmeter	No
Thermal Protection	Yes
Over-Load Protection	Yes
DC Output Protection	Yes
Short Circuit Output Protection	Yes
Voltage Input Protection	Yes <9 / >16 Volts
Clipping Protection	Yes
Body Color / Finish	Black Aluminum Brush
MEASUREMENT
Overall Length	11.8" / 301mm
Overall Wide	7.24" / 184mm
Overall Height	2" / 53mm
Heatsink Length	10.47" / 266mm
Gross Single Unit Weight	5.8Lb
SKU	ZR112LD
Speaker Type / Size	Single 12" / 316mm
Total Impedance	1 Ohm
Total RMS Power Handling	800w
Total MAX Power Handling	1600w
Sensitivity (1w/1m)	84 db
Recommended Lo Pass Crossover	70Hz
Voice Coil Diameter	2.5" / 61.6mm
Voice Coil Former Material	Aluminum
Winding Material	Copper
Cone Material	Non-Pressed Paper
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Steel
Magnet Material	Ferrite
Magnet Weight	100 Oz
Internal Volume	79.3L / 2.8 ft3
Port Tune FB	29 Hz
Load Configuration	Ported Box
Box Type	Single 12"
Box Material	3/4" (19mm) MDF
Finish Material	Black Carpet
Logo	Red Stitched
-3Db Dropping Point F3	24 Hz

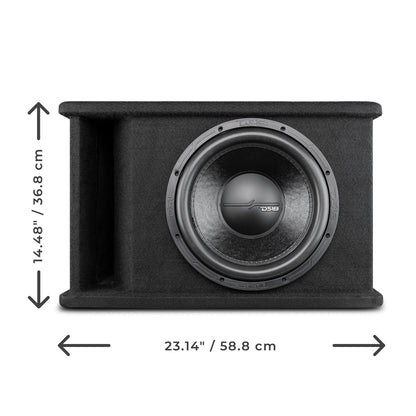

Height	14.48" / 36.8 cm
Width	23.14" / 58.8 cm
Depth 1	17.71" / 45 cm
Depth 2	19.68" / 50 cm
Gross Single Unit Weight (lb)	68
Single Unit Box Dimensions W x L x H (Inches)	26.5 x 23 x 18.7
Quantity of Units in Master Carton	1
Gross Master Carton Weight (lb)	68
Master Carton Dimensions W x L x H (Inches)	26.5 x 23 x 18.7

Manual

📄 Download Owner's Manual (PDF)
