DS18

DS18 ZXI-3542 3.5" Coaxial

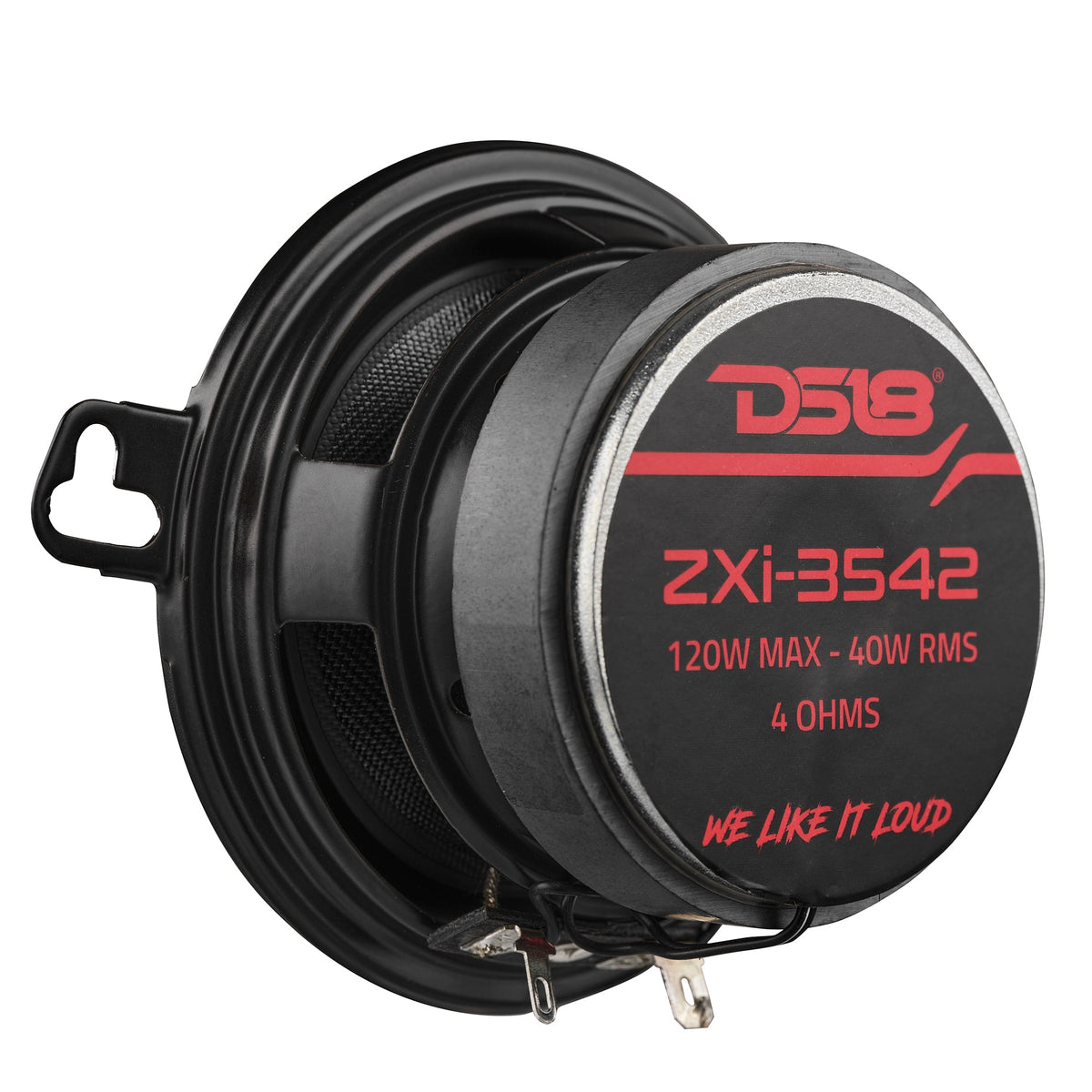

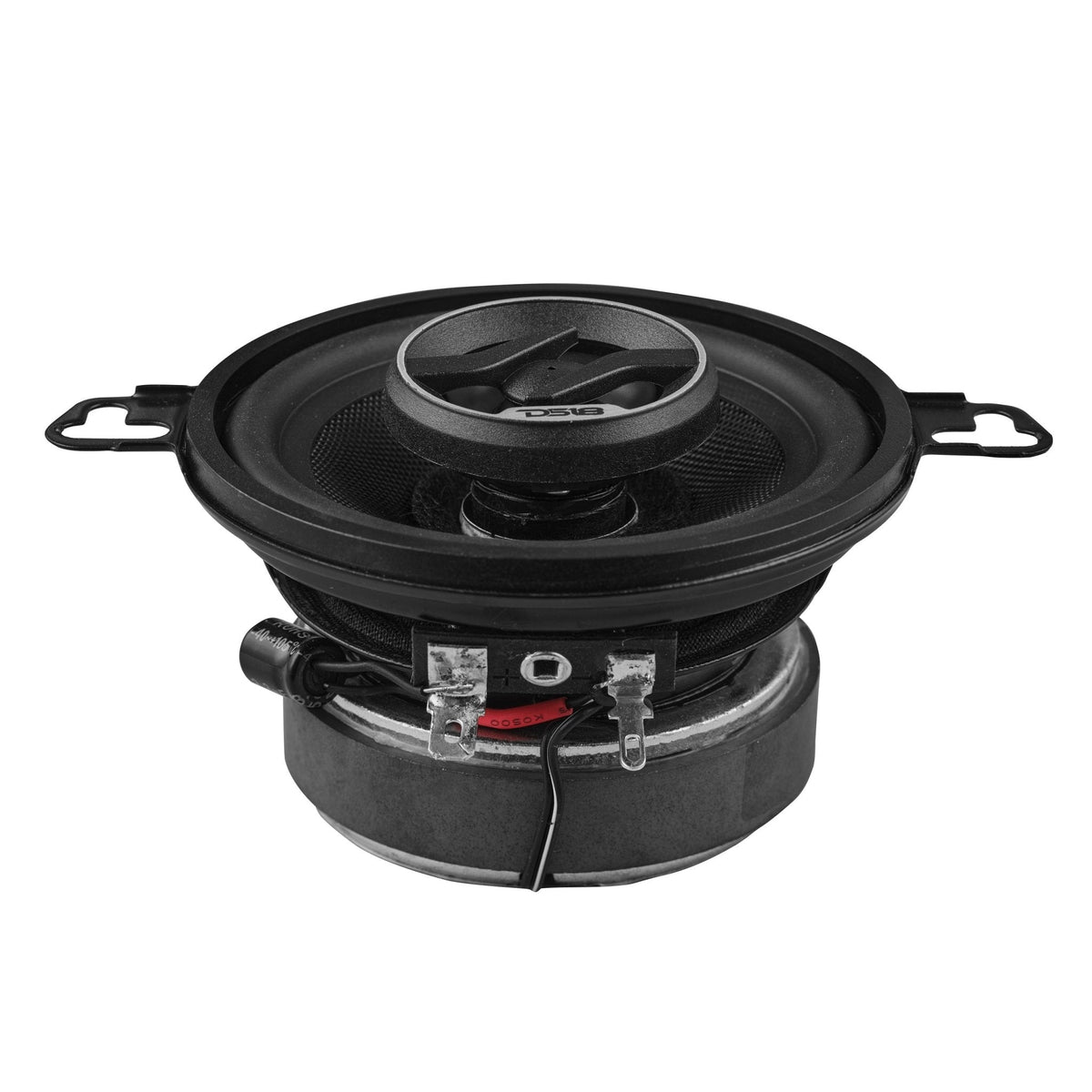

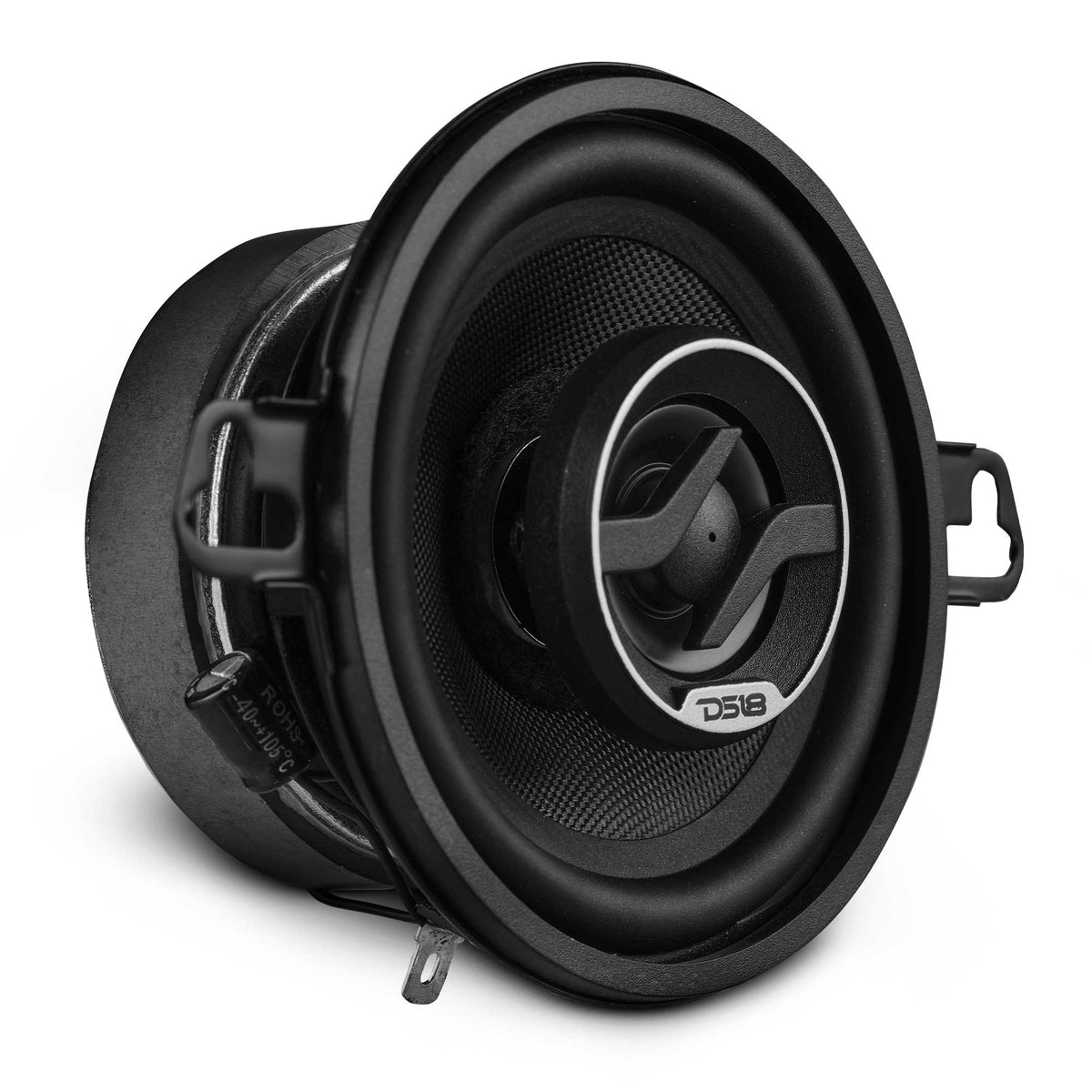

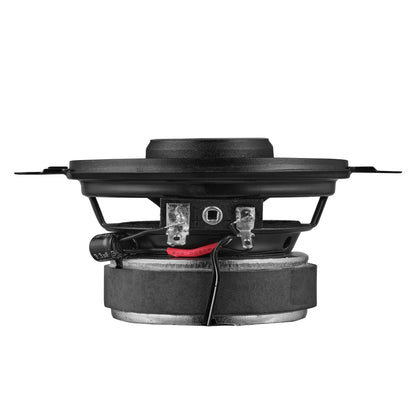

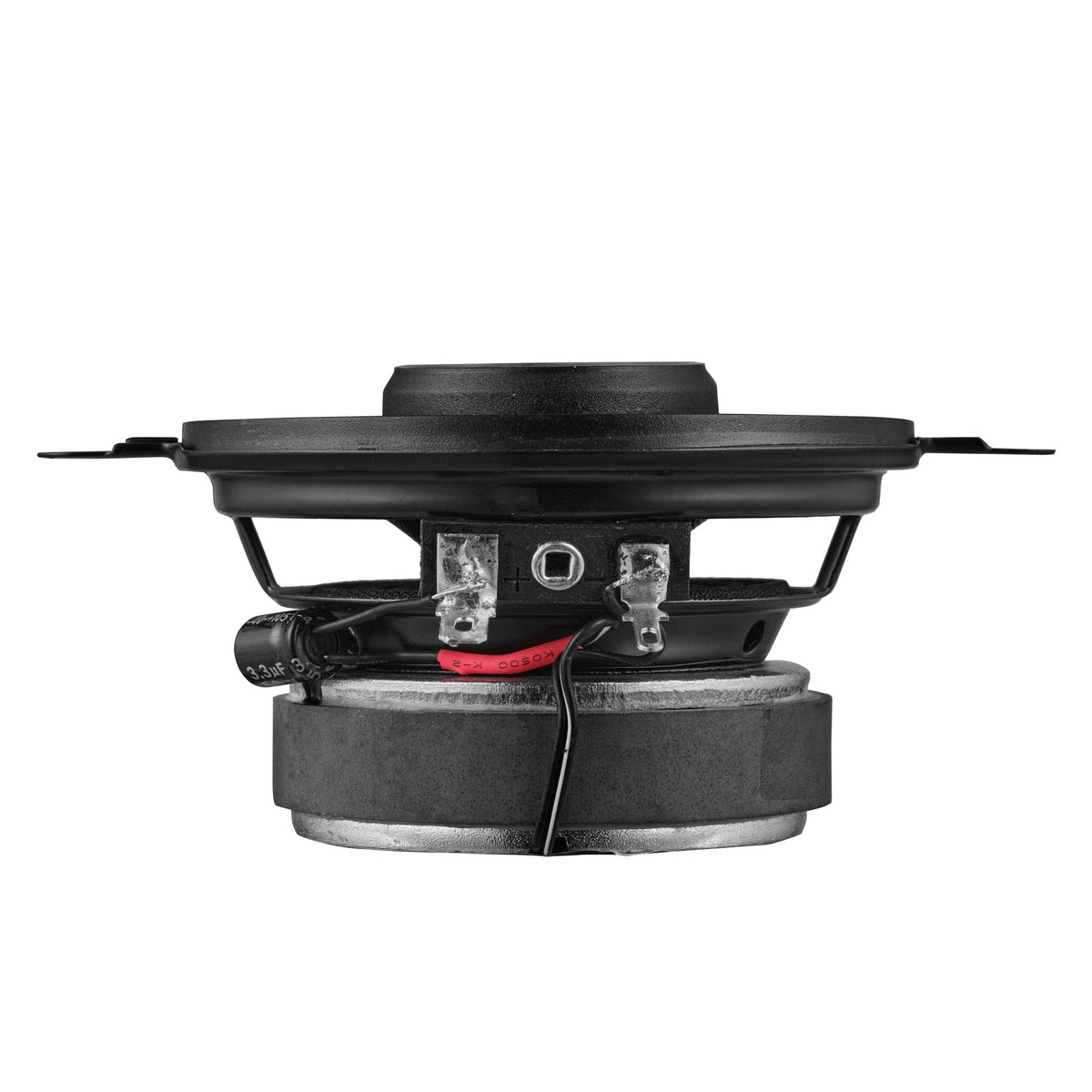

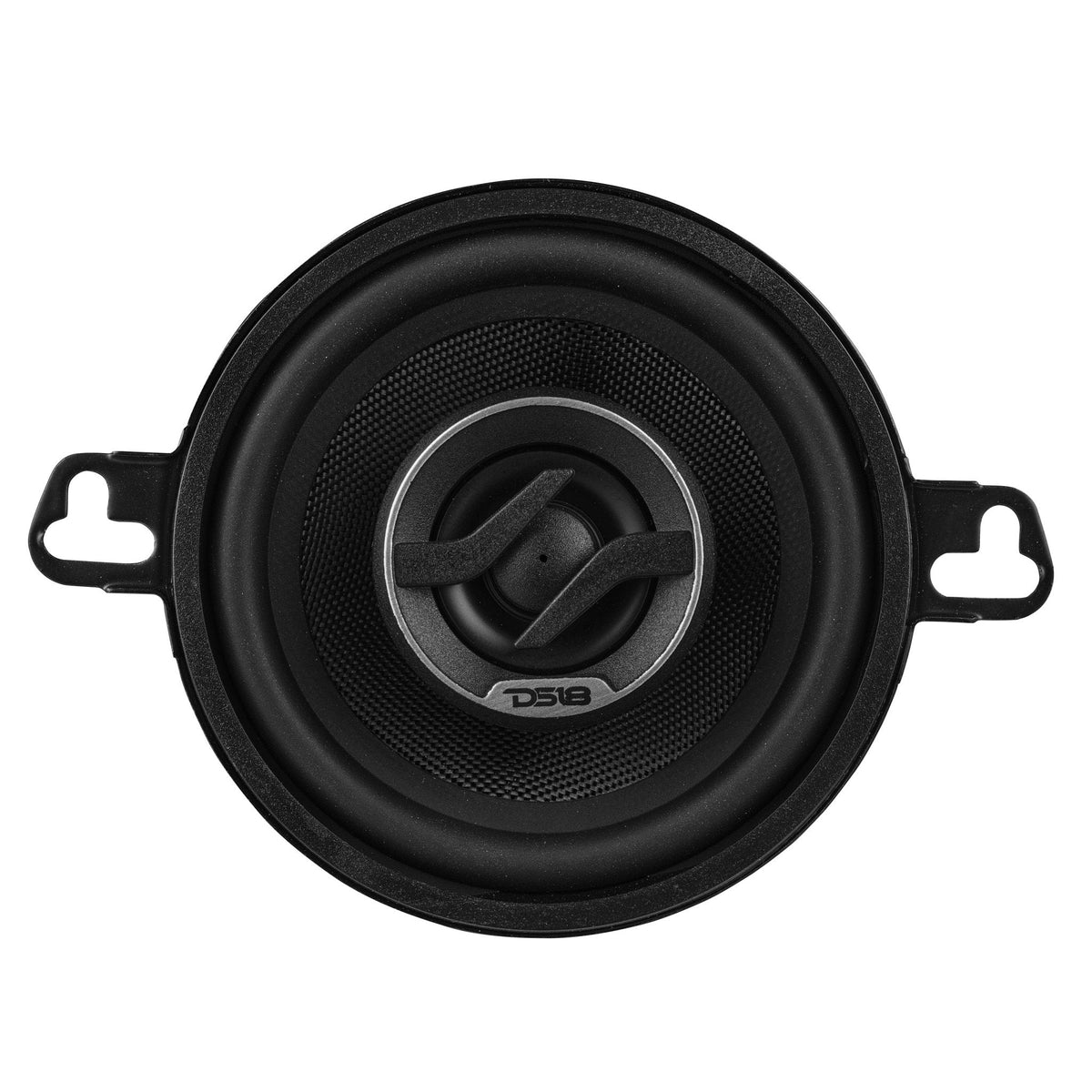

Name: DS18 ZXI-3542 3.5" Coaxial
Brand: DS18
Price: 69.95 USD
Availability: OutOfStock

$69.95

Sale Sold out

Shipping calculated at checkout.

Upgrade your ride with the DS18 ZXI-3542 3.5" Coaxial — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

3.5"
40 Watts RMS
4Ohm
2-Way
Coaxial

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

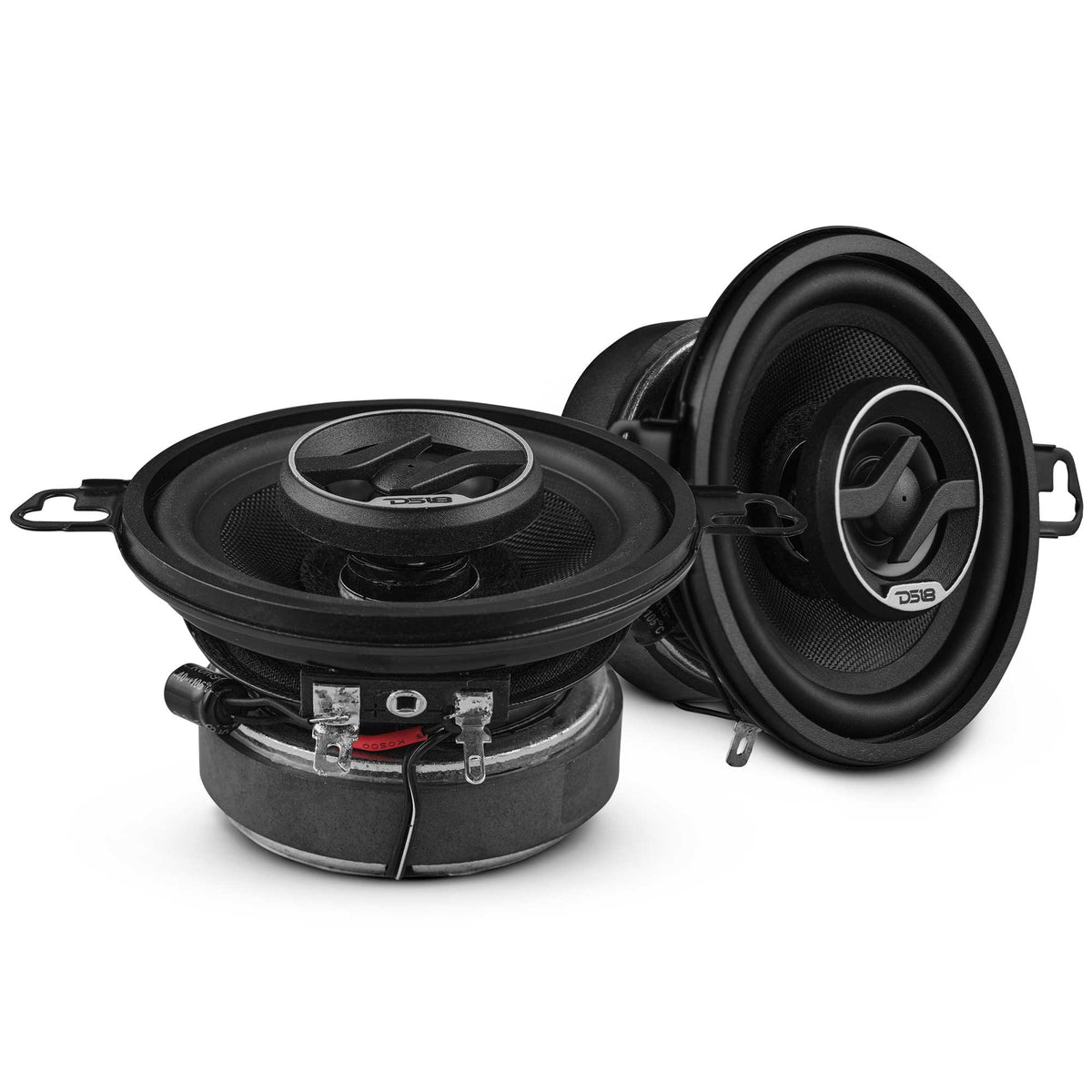

(1) Pair of DS18 ZXI-3542
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Diameter	3.5"
Power (RMS)	40 Watts RMS
Impedance	4Ohm
Configuration	2-Way Coaxial
SKU	ZXI-3542
Nominal Diameter	3.5" / 89mm
Nominal Impedance	4 Ohm
RMS Power Handling	40W
MAX Power Handling	120W
Sensitivity (1w/1m)	87dB
Frequency Response	80Hz-20kHz
Recommended HI Pass Crossover	120Hz
Number of Ways	2-Way
Sold in Pair or Single	Pair
Grill Included	No
Voice Coil Diameter	0.8" / 20.4mm
Voice Coil Former Material	ASV
Winding Material	EISV
Cone Material	Glass fiber
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Black
Magnet Material	Barium Ferrite
Magnet Weight	172g
Equivalent Volume Vas	2.4L / 0.0849ft3
Excursion (one way) Xmax	1.2mm
Free Air Resonance Fs	106Hz
Mechanical Factor Qms	4.39
Electrical Factor Qes	1.034
Total Factor Qts	0.836
Mechanical Mass Mms	3.8g
Mechanical Compliance Cms	1.225mm/N
BL Factor BL	3.4
Voice Coil Inductance Le	105.5uH
Cone Area Sd	38cm2
DC Resistance Re	3.7 ohm
Mechanical Mass w/o air Mmd	2.6g
Diaphragm Material	PEI

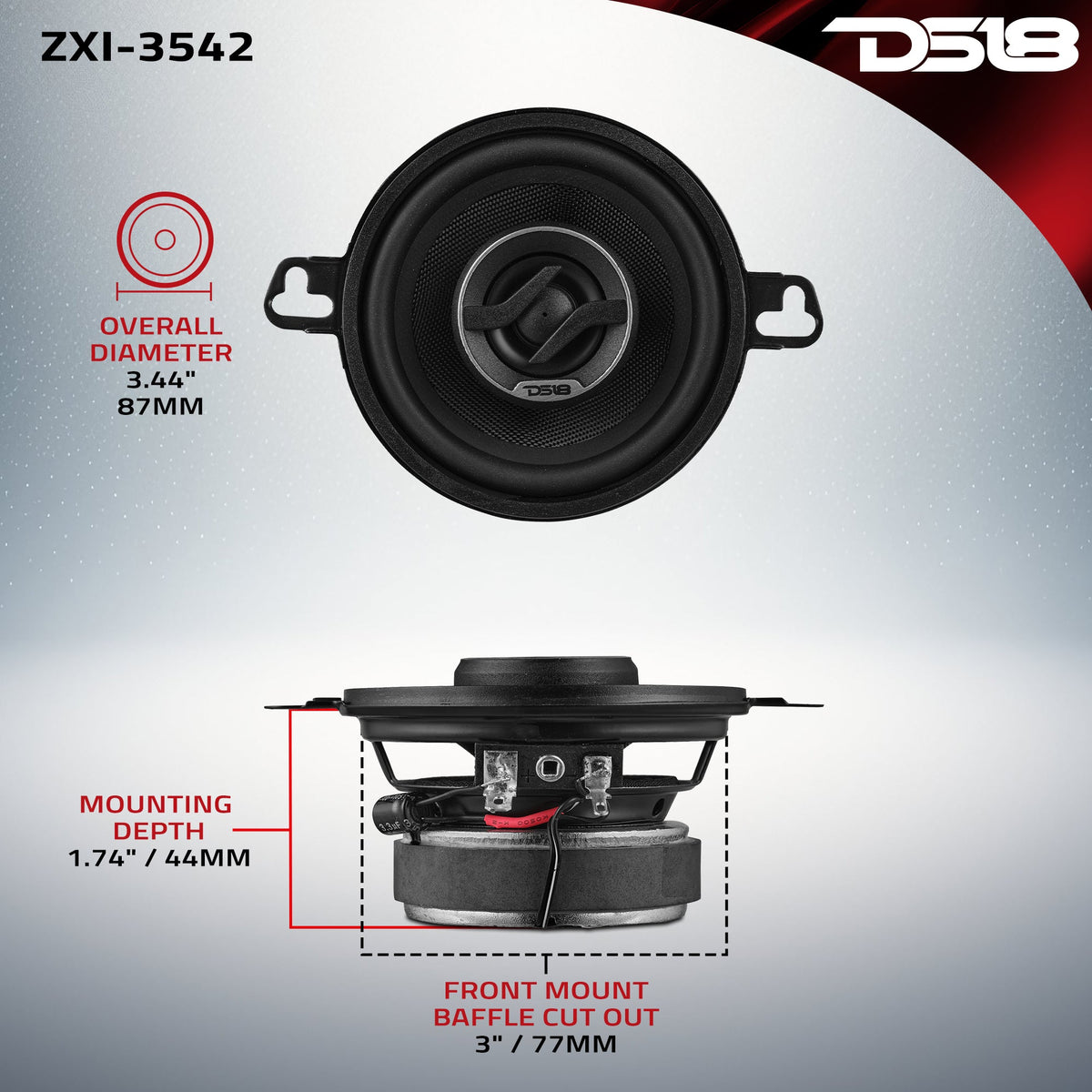

Overall Diameter (Without Grill)	3.44" / 87.3mm
Overall Depth (Without Grill)	2.21" / 56.2mm
Front Mount Baffle Cutout	3" / 77mm
Mounting Depth	1.74" / 44.3mm
Motor Diameter	2.56" / 65mm
Gross Single Unit Weight	0.387KG
Single Unit Box Dimensions W x L x H	24012070mm
Quantity of Units in Master Carton	20
Master Carton Dimensions W x L x H	500365260mm
