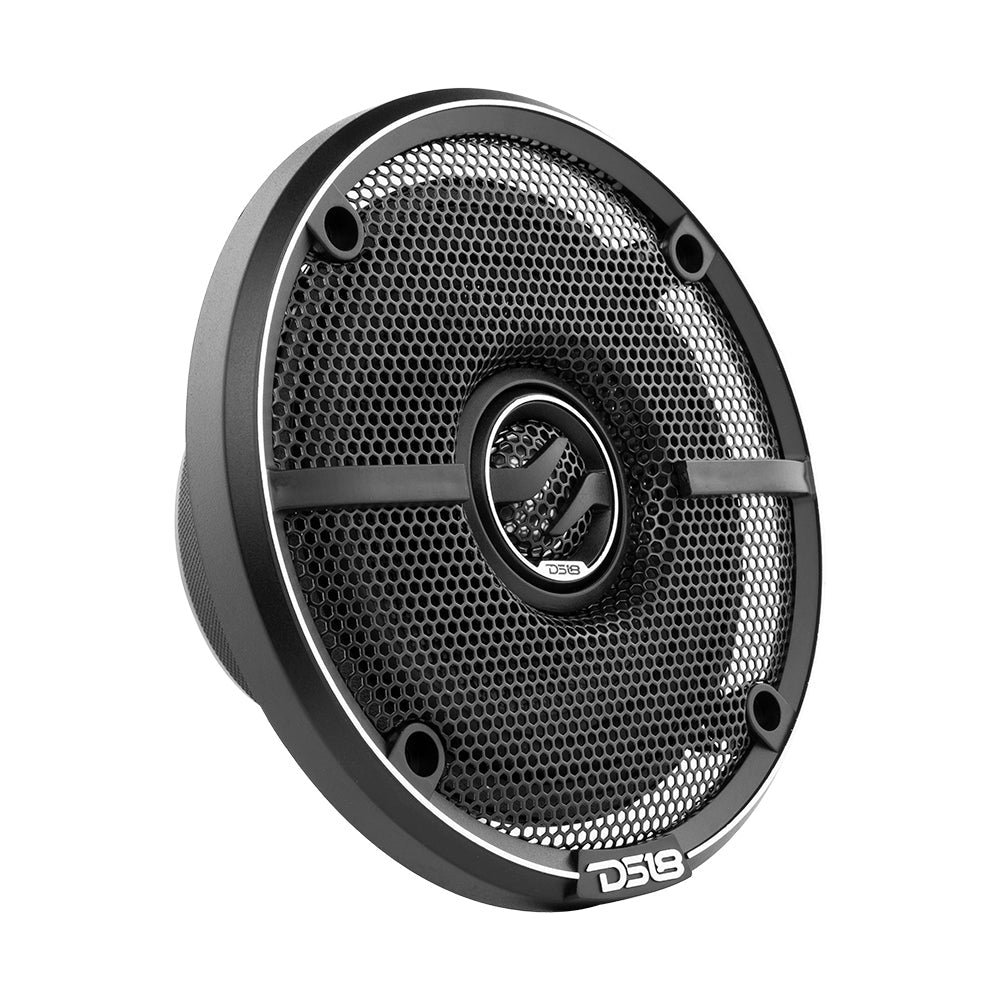

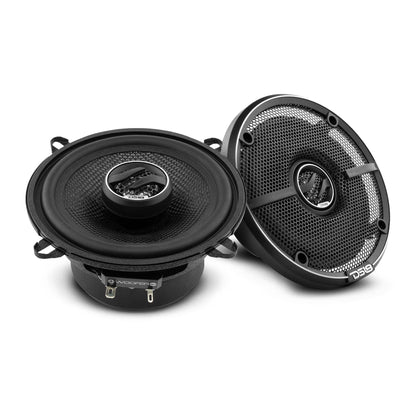

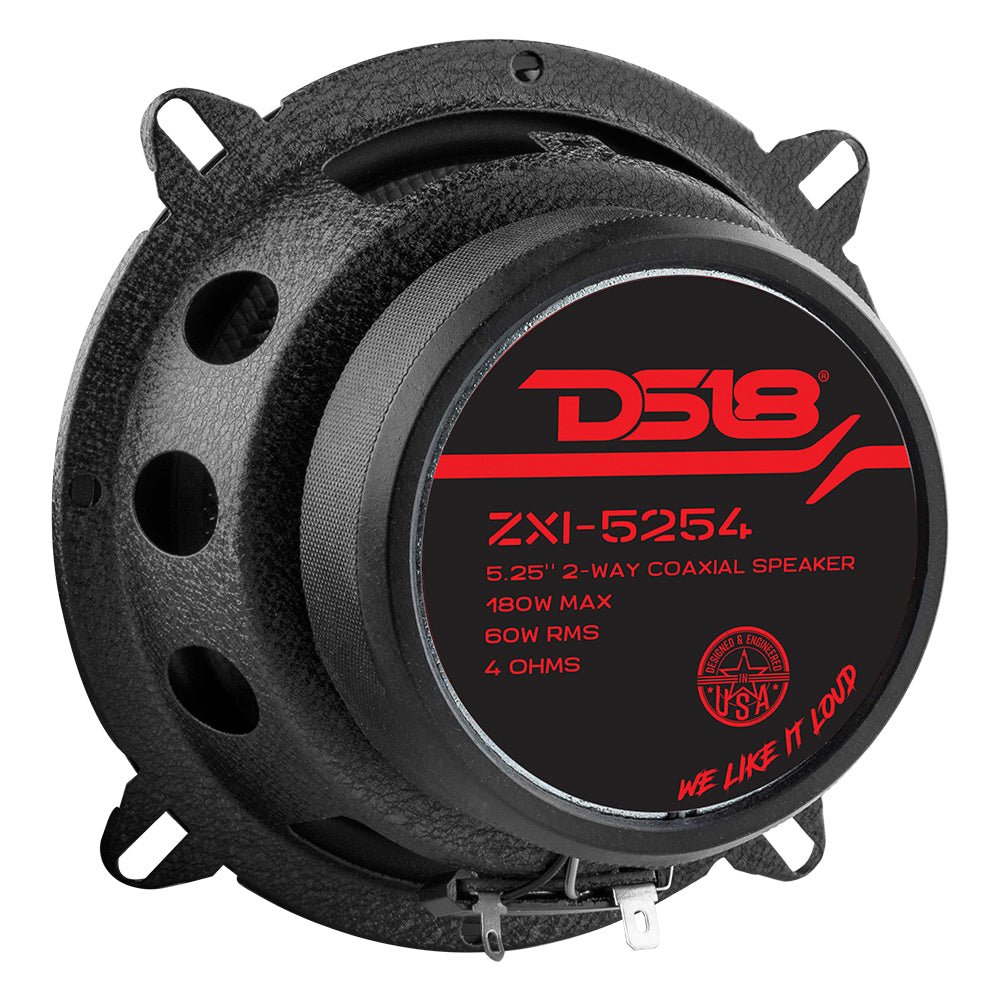

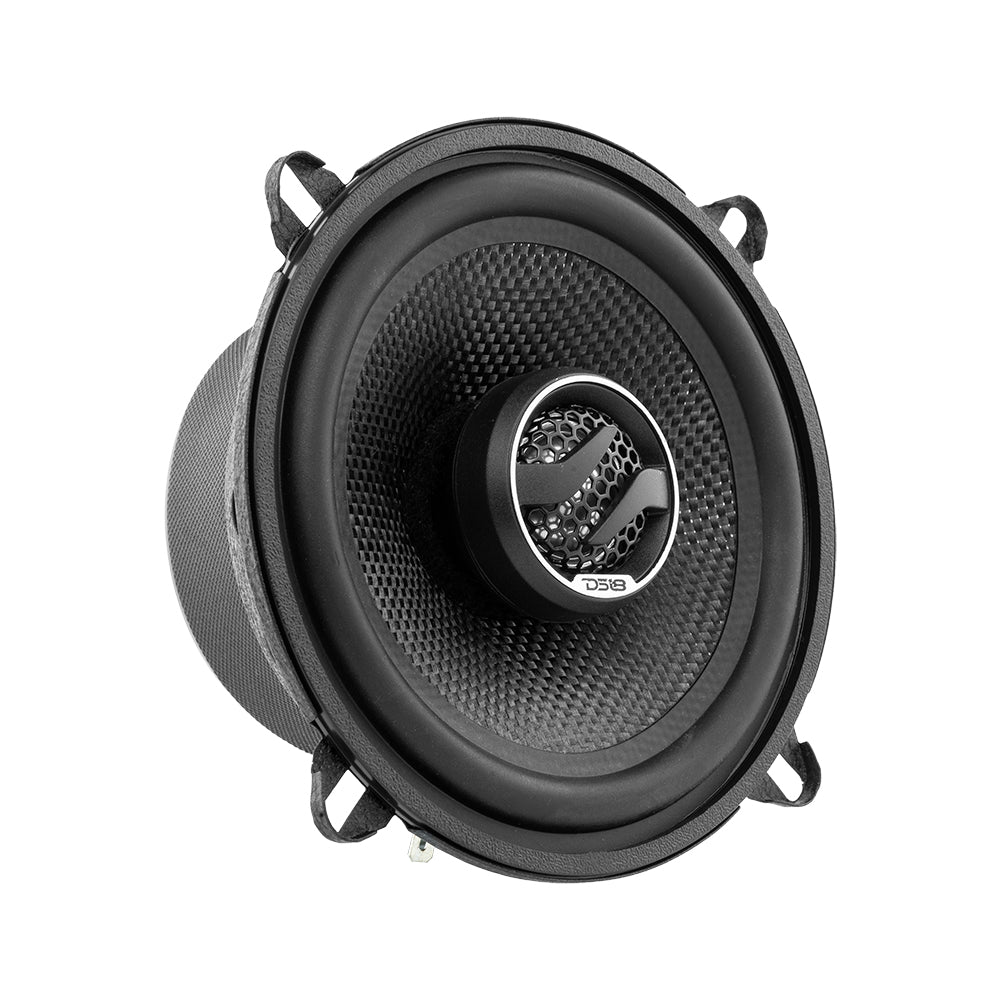

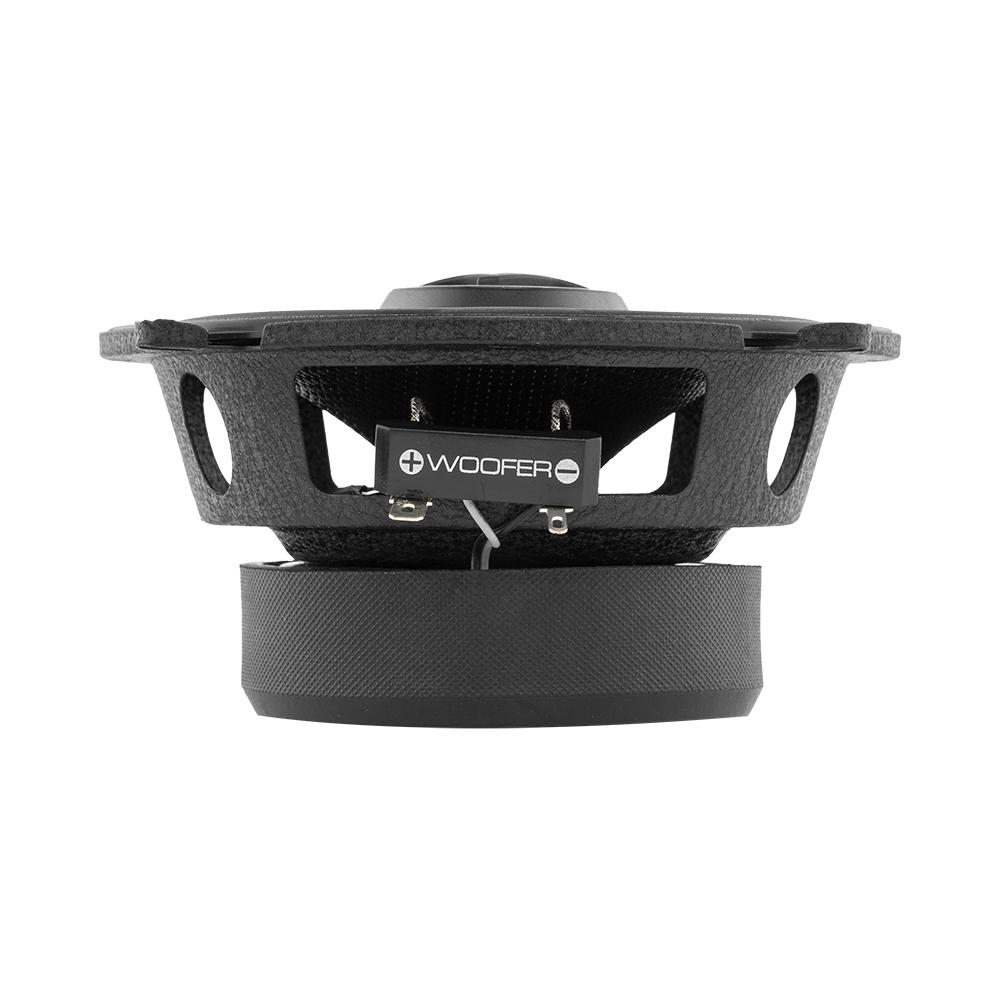

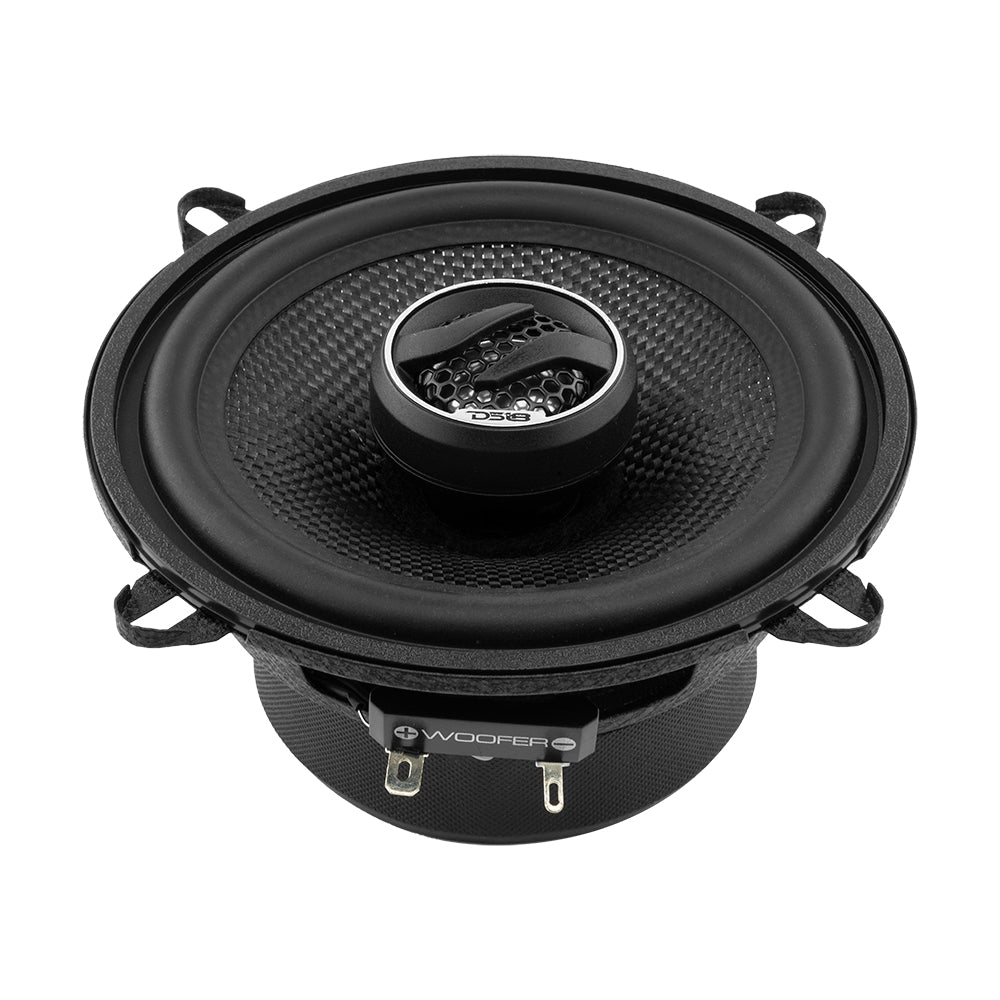

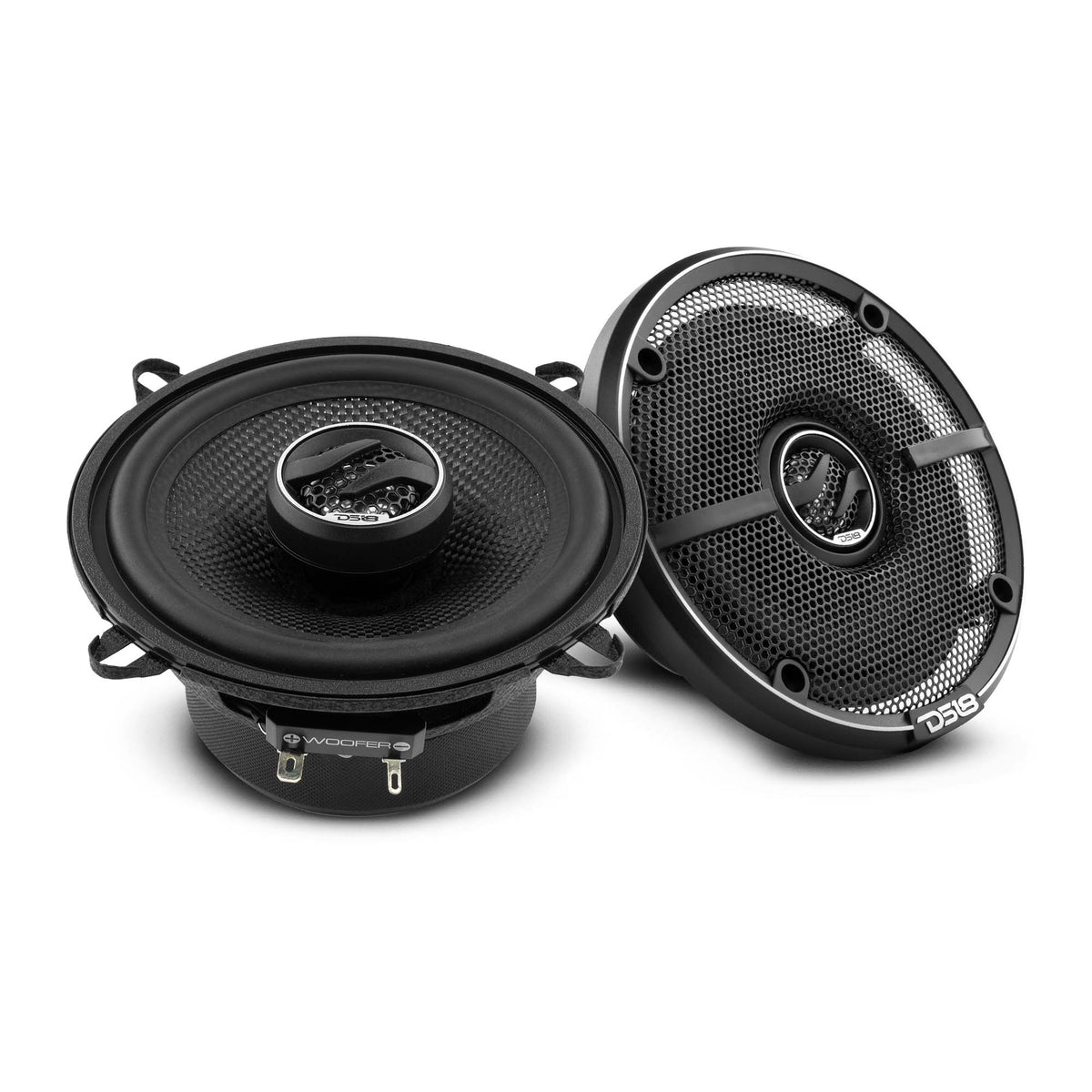

DS18 ZXI-5254 5.25" Coaxial

Name: DS18 ZXI-5254 5.25" Coaxial
Brand: DS18
Price: 84.95 USD
Availability: InStock

$84.95

Sale Sold out

✓ In store · free same-day pickupFree shipping on $175+ ordersShipping calculated at checkout.

Upgrade your ride with the DS18 ZXI-5254 5.25" Coaxial — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

5.25"
60Watts RMS
4Ohm
2-Way
Coaxial

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

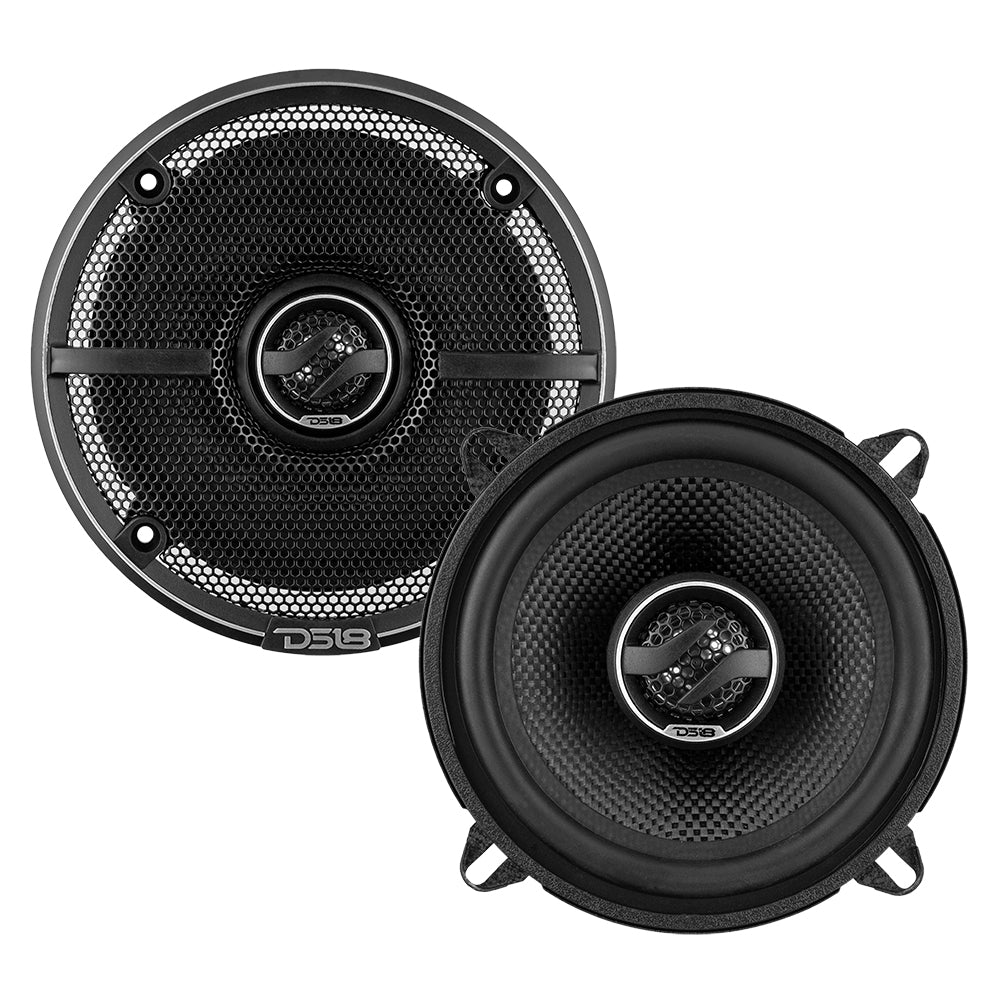

(1) Pair of DS18 ZXI-5254
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

Midrange:
Nominal Diameter	5.25”
Nominal Impedance	4 ohms
RMS Power Handling	60 Watts
MAX Power Handling	180 Watts
Sensitivity (1w/1m)	89dB
Frequency Response	40Hz-20KHz
Recommended HI Pass Crossover	60Hz
Speaker Type	2-Way
Voice Coil Diameter	1” / 25.5mm
Voice Coil Former Material	KSV
Winding Material	EISV
Cone Material	Glass fiber
Surround Material	Rubber
Basket Material	Steel
Magnet Material.	Barium Ferrite
Magnet Weight	10.9 oz / 310g
Tweeter:
Nominal Diameter	1" / 25.4mm
Voice Coil Diameter	0.8" / ø20.4mm
Voice Coil Former Material	KSV
Winding Material	EISVM
Diaphragm Material	PEI
Magnet Material.	Neodymium
Magnet Weight	0.3 oz / 8.5g
Thiele & Small Parameters
Equivalent Volume	4.86L
Excursion (one way)	2.3mm
Free Air Resonance	77Hz
Mechanical Factor	8.39
Electrical Factor	0.87
Total Factor	0.79
Mechanical Mass	9.93g
Mechanical Compliance	457mm/N
BL Factor	4.321
Cone Area	86.5cm2
DC Resistance	3.5 ohm
Mechanical Mass w/o air	9.0g

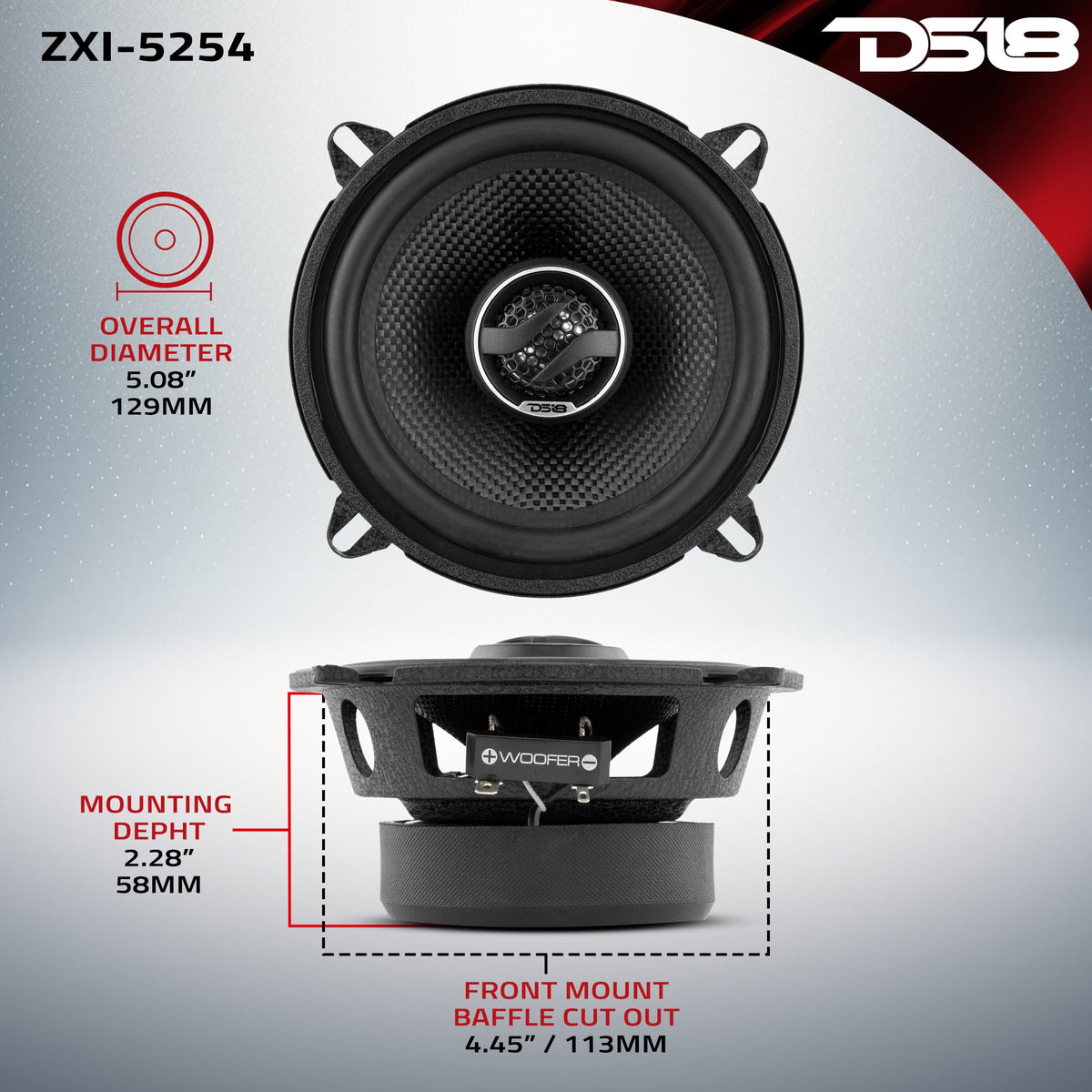

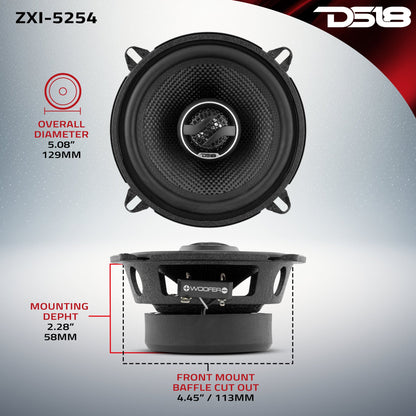

Measurements
Overall Diameter	5.08” / 129mm
Overall Depth	2.80” / 71mm
Front Mount Baffle Cutout	4.45” / 113mm
Mouting Depth	2.28” / 58mm
Motor Diameter	3.31” / 84mm
SKU	ZXI-5254
RMS Power Handing	60 WATTS
MAX Power Handing	180 WATTS
Sensitivity	89 dB
Recommended HI Pass	60 Hz
Magnet Material	Barium Ferrite
Vas	4.86 LTR
Xmax	2.3 mm
Fs	77 Hz
Qms	8.39
Qes	0.87
Qts	0.79
Mms	9.93 g
Cms	457 mm / N
BL	4.321
Le	216 mH
Sd	86.5 cm2
Re	3.5 ohm
Mmd	9.0 g
Mounting Depth	58 mm (2.28 inch)
Product Weight	4.5 lbs
Product Dimensions	14.25 x 7 x 3.5
M/C Weight	27 lbs
M/C Dimensions	15 x 15 x 11
M/C QTY	6
Sold In	Pair

Manual

📄 Download Owner's Manual (PDF)
