DS18 ZXI-574 5x7" Coaxial

Name: DS18 ZXI-574 5x7" Coaxial
Brand: DS18
Price: 119.95 USD
Availability: OutOfStock

$119.95

Sale Sold out

Shipping calculated at checkout.

Upgrade your ride with the DS18 ZXI-574 5x7" Coaxial — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

5x7"
70 Watts RMS
4Ohm
2-Way
Coaxial

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Pair of DS18 ZXI-574
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

MOTOR
Nominal Diameter	5x7”
Nominal Impedance	4 ohms
RMS Power Handling	70 Watts
MAX Power Handling	210 Watts
Sensitivity (1w/1m)	91dB
Frequency Response	40Hz-20KHz
Recommended HI Pass Crossover	60Hz
Speaker Type	2-Way
Voice Coil Diameter	1” / 25.5mm
Voice Coil Former Material	KSV
Winding Material	EISV
Cone Material	Glass fiber
Surround Material	Rubber
Basket Material	Steel
Magnet Material	Barium Ferrite
Magnet Weight	14.46 oz / 410g
TWEETER
Nominal Diameter	1" / 25.4mm
Voice Coil Diameter	0.8"/ ø20.4mm
Voice Coil Former Material	KSV
Winding Material	EISVM
Diaphragm Material	PEI
Magnet Material	Neodymium
Magnet Weight	0.3 oz / 8.5g
THIELE & SMALL PARAMETERS
Equivalent Volume	8.6L
Excursion (one way)	2.7mm
Free Air Resonance	68Hz
Mechanical Factor	7.04
Electrical Factor	1.28
Total Factor	1.08
Mechanical Mass	16.1g
Mechanical Compliance	258.7mm/N
BL Factor	4.6
Voice Coil Inductance	228mH
Cone Area	153.5cm2
DC Resistance	3.5 ohm
Mechanical Mass w/o air	14g

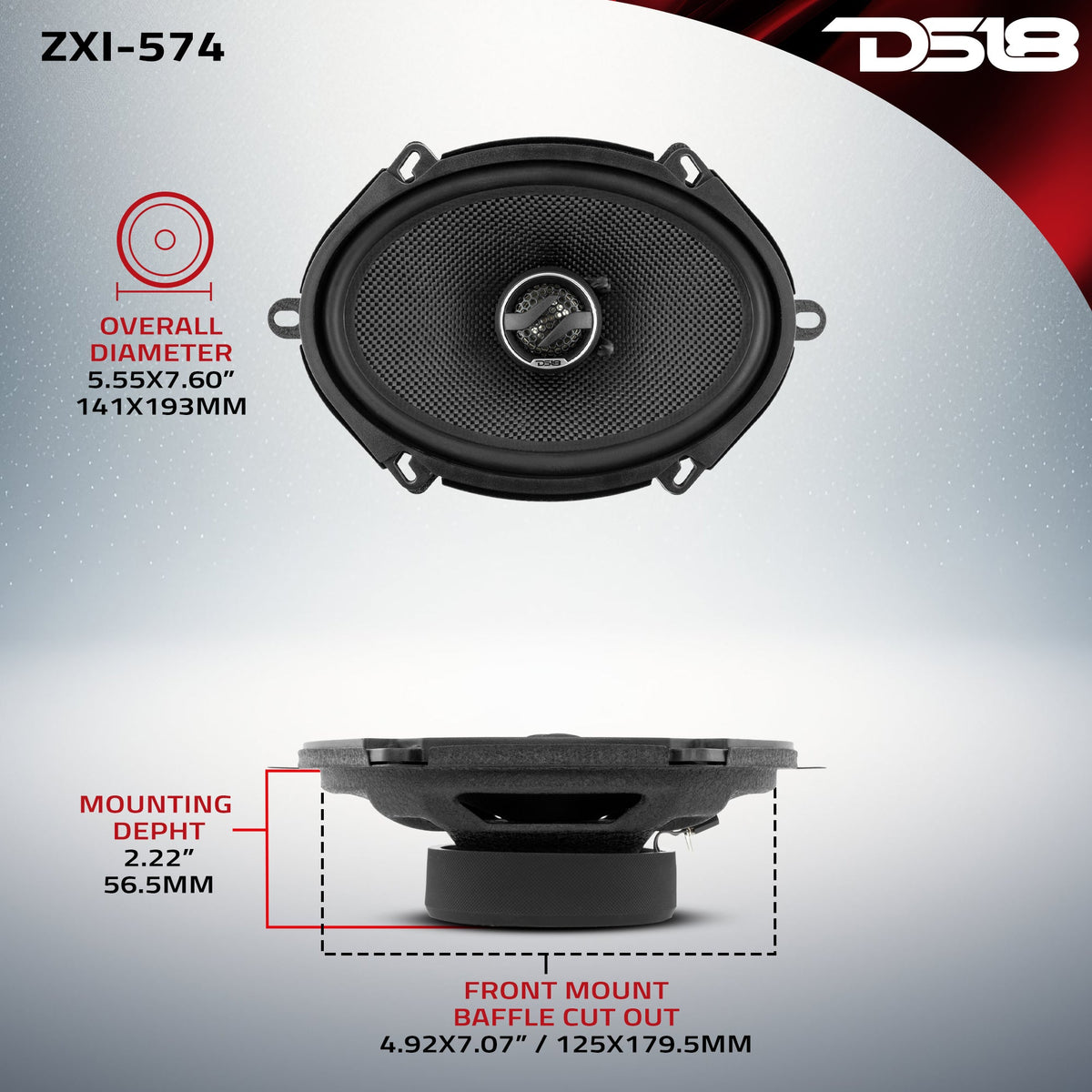

MEASUREMENTS
Overall Diameter	5.55x7.60” / 141x193mm
Overall Depth	3.07" / 78mm
Front Mount Baffle Cutout	4.92x7.07”/ 125x179.5mm
Mouting Depth	2.22” / 56.5mm
Motor Diameter	3.70” / 94mm
SKU	ZXI-574
RMS Power Handing	70 WATTS
MAX Power Handing	210 WATTS
Sensitivity	91 dB
Recommended Hi Pass	60 Hz
Vas	8.66 LTR
Xmax	2.7 mm
Fs	68 Hz
Qms	7.04
Qes	1.28
Qts	1.08
Mms	16.1 g
Cms	258.7 mm / N
BL	4.66
Le	228 mH
Sd	153.5 cm2
Re	3.5 ohm
Mmd	14 g
Mounting Depth	56.5 mm (2.22 inch)
Product Weight	6 lbs
Product Dimensions	14 x 9.5 x 3.75
M/C Weight	36 lbs
M/C Dimensions	20 x 14.75 x 11.75
M/C QTY	6
Sold In	Pair

Manual

📄 Download Owner's Manual (PDF)
