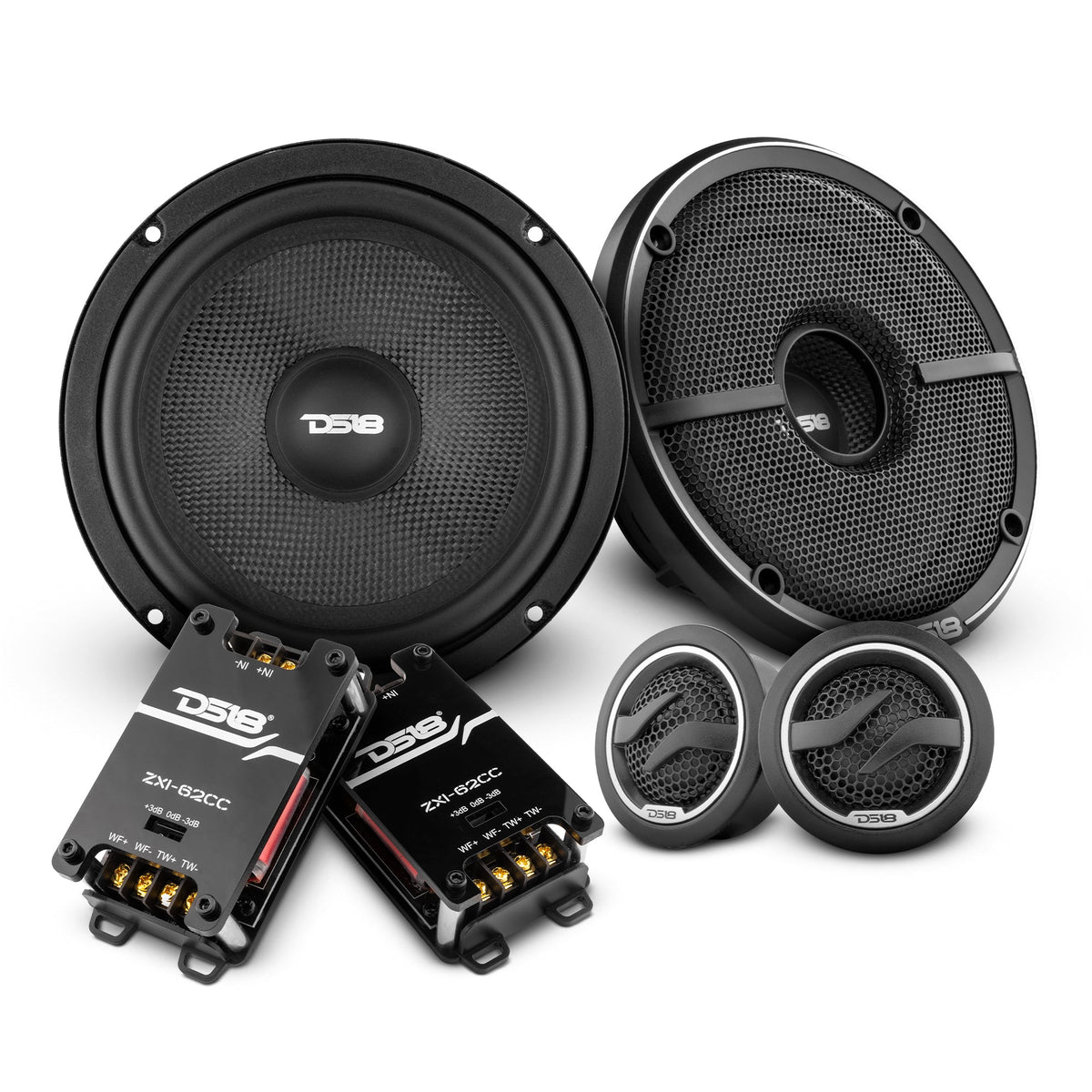

DS18 ZXI-62C 6.5" Component GEN-X COAXIAL SPEAKERS AND COMPONENT SYSTEM

Name: DS18 ZXI-62C 6.5" Component GEN-X COAXIAL SPEAKERS AND COMPONENT SYSTEM
Brand: DS18
Price: 174.95 USD
Availability: OutOfStock

$174.95

Sale Sold out

Shipping calculated at checkout.

Upgrade your ride with the DS18 ZXI-62C 6.5" Component GEN-X COAXIAL SPEAKERS AND COMPONENT SYSTEM — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

6.5"
80 Watts RMS
4Ohm
2-Way
Component GEN-X COAXIAL SPEAKERS AND COMPONENT SYSTEM

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Pair of DS18 ZXI-62C
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

General Specifications
Nominal Diameter	6.5” / 165mm
Nominal Impedance	4 Ohms
RMS Power Handing	80W
MAX Power Handing	240W
Sensitivity (1w/1m)	88dB
Frequency Response	40Hz - 20KHz
Recommended HI Pass Crossover	60Hz
Speaker Type	2-Way

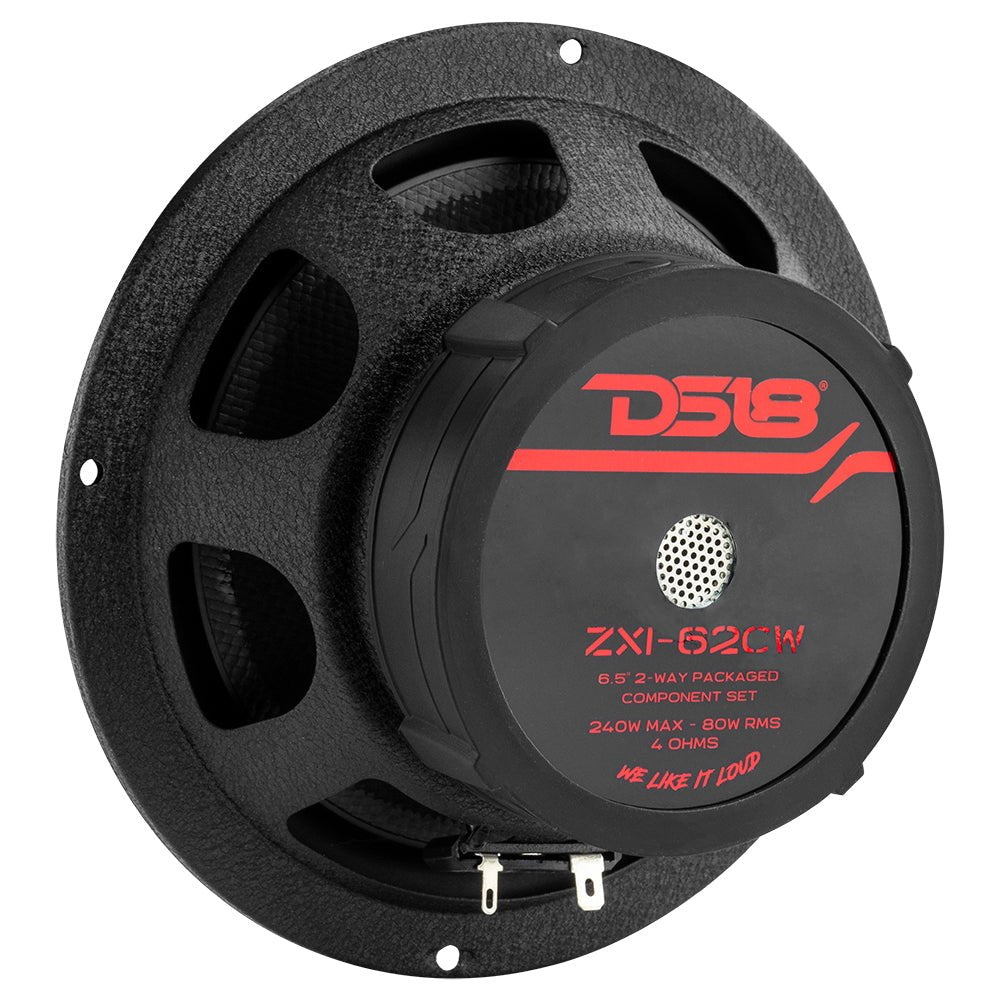

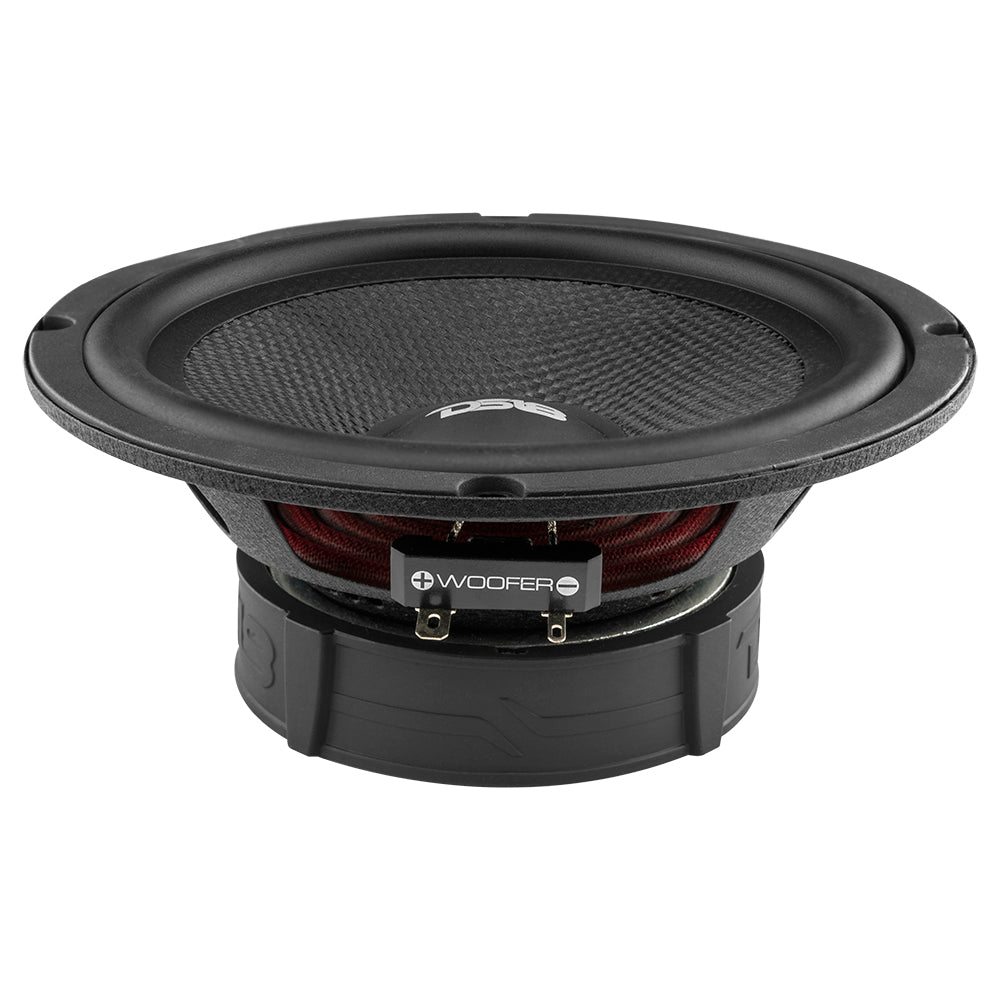

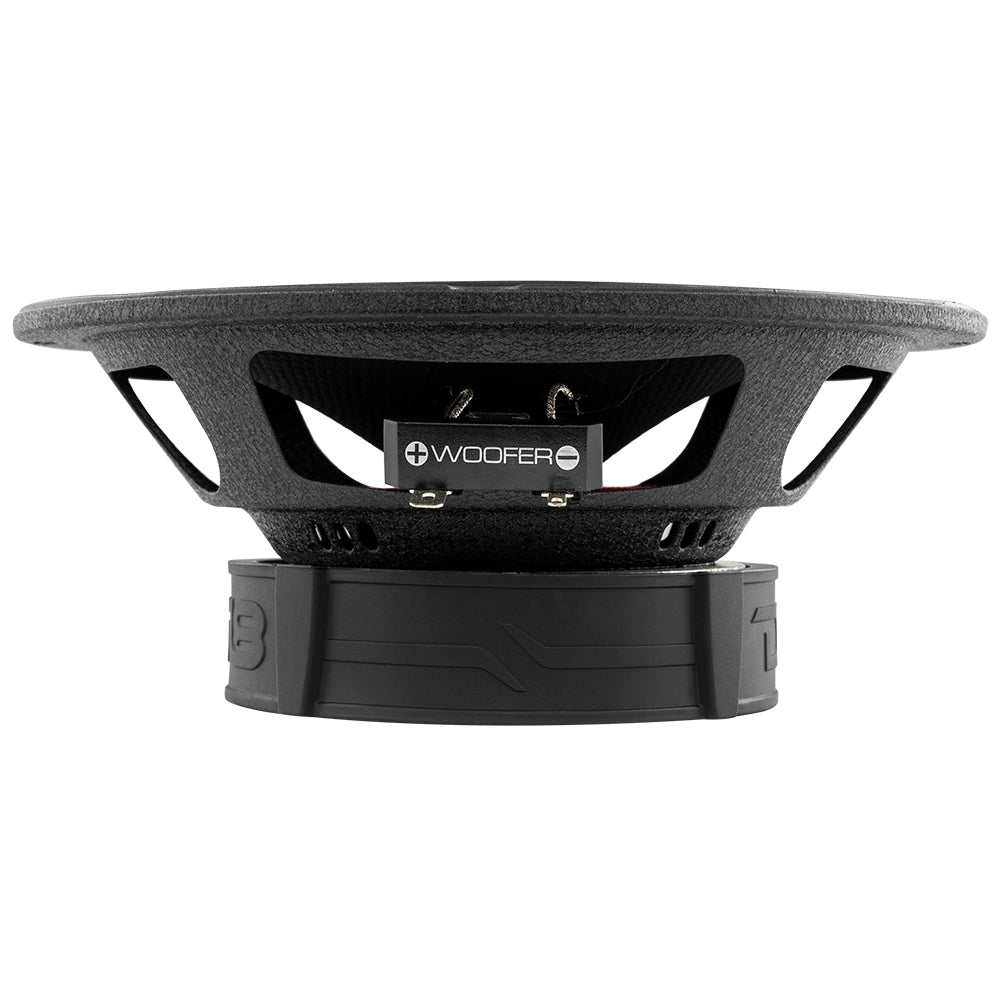

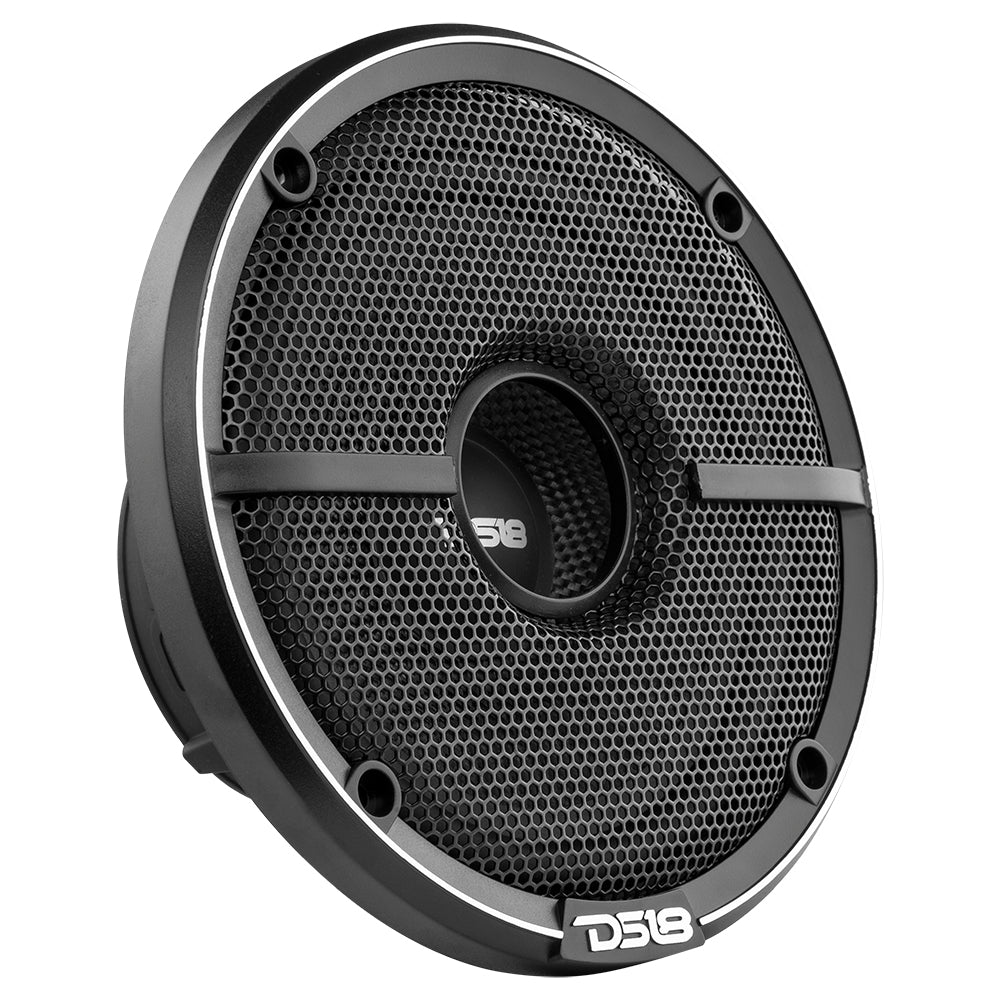

Woofer Specifications:
Voice Coil Diameter	1” / 25.5mm
Voice Coil Former Material	KSV
Winding Material	EISV
Cone Material	Glass fiber
Surround Material	Rubber
Basket Material	Steel
Magnet Material	Barium Ferrite
Magnet Weight	14.4 oz / 410g
Grill Included	Yes
Pair	Yes

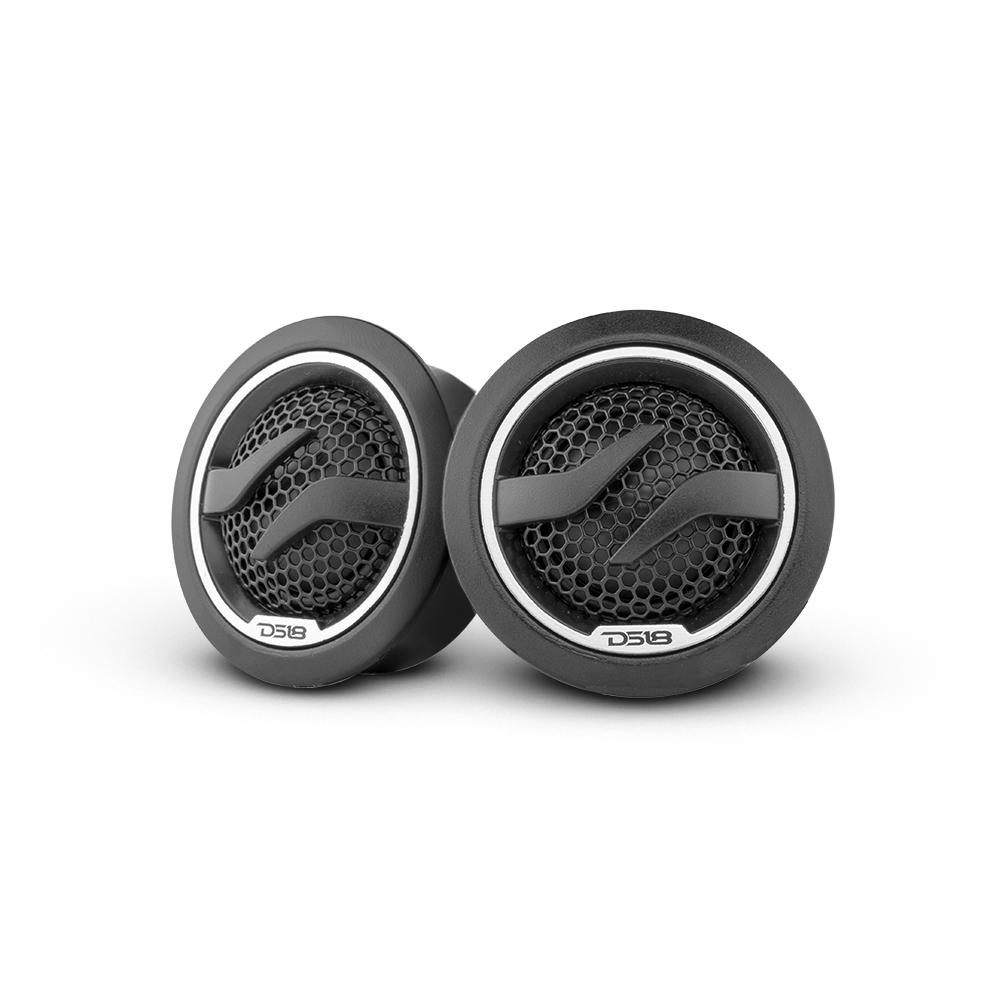

Tweeter Specifications:
Nominal Diameter	1.25" (31.7mm)
Voice Coil Diameter	1"(25.5mm)
Voice Coil Former Material	ASV
Winding Material	EISVM
Diaphragm Material	SILK
Magnet Material	Neodymium
Magnet Weight	0.46 oz / 13g
Pair	Yes

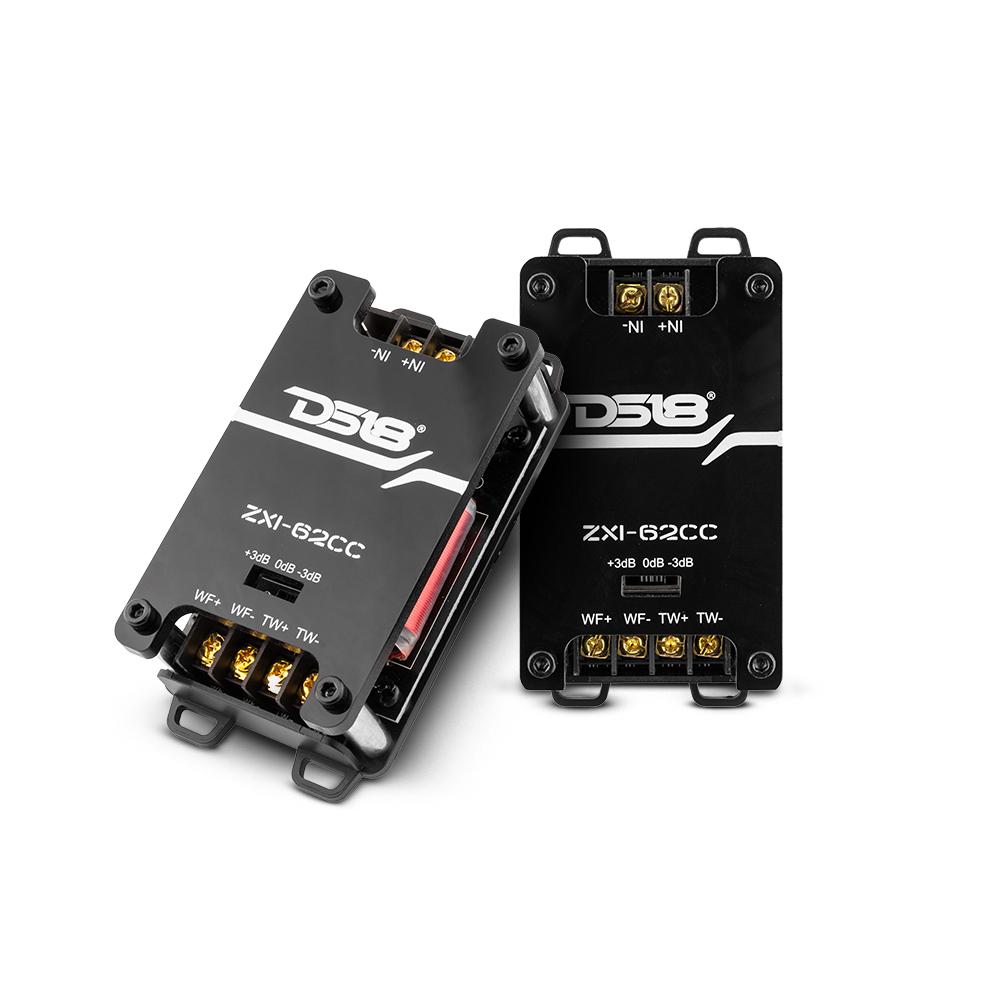

Crossover Specifications & Features
Passive Crossover Ways	2 Ways
Frequency Crossover point	3.5Khz
Cut-Off Slope	12 dB/Oct
Tweeter Attenuation	(+/- 3dB)
Capacitor Type	NP
Coil Type	KSV
Terminal Type	Screw-On
Housing Material	ABS / Acrylic
Adjustments	Tw Attenuation
Extra Features	Pt Tw protection
Pair	Yes
Thiele & Small Parameters
Equivalent Volume	10.36L
Excursion (one way)	2.7mm
Free Air Resonance	64Hz
Mechanical Factor	9.5
Electrical Factor	0.85
Total Factor	0.78
SKU	ZXI-62C
Sensitivity	88 dB
Recommended HI Pass	60 Hz
Vas	10.36 LTR
Xmax	2.7 mm
Fs	64 Hz
Qms	9.50
Qes	0.85
Qts	0.78
Product Weight	7 lbs
Product Dimensions	16 x 10.75 x 3.5
M/C Weight	29.5 lbs
M/C Dimensions	22 x 17 x 7.75
M/C QTY	4
Sold In	Pair

Manual

📄 Download Owner's Manual (PDF)
