DS18

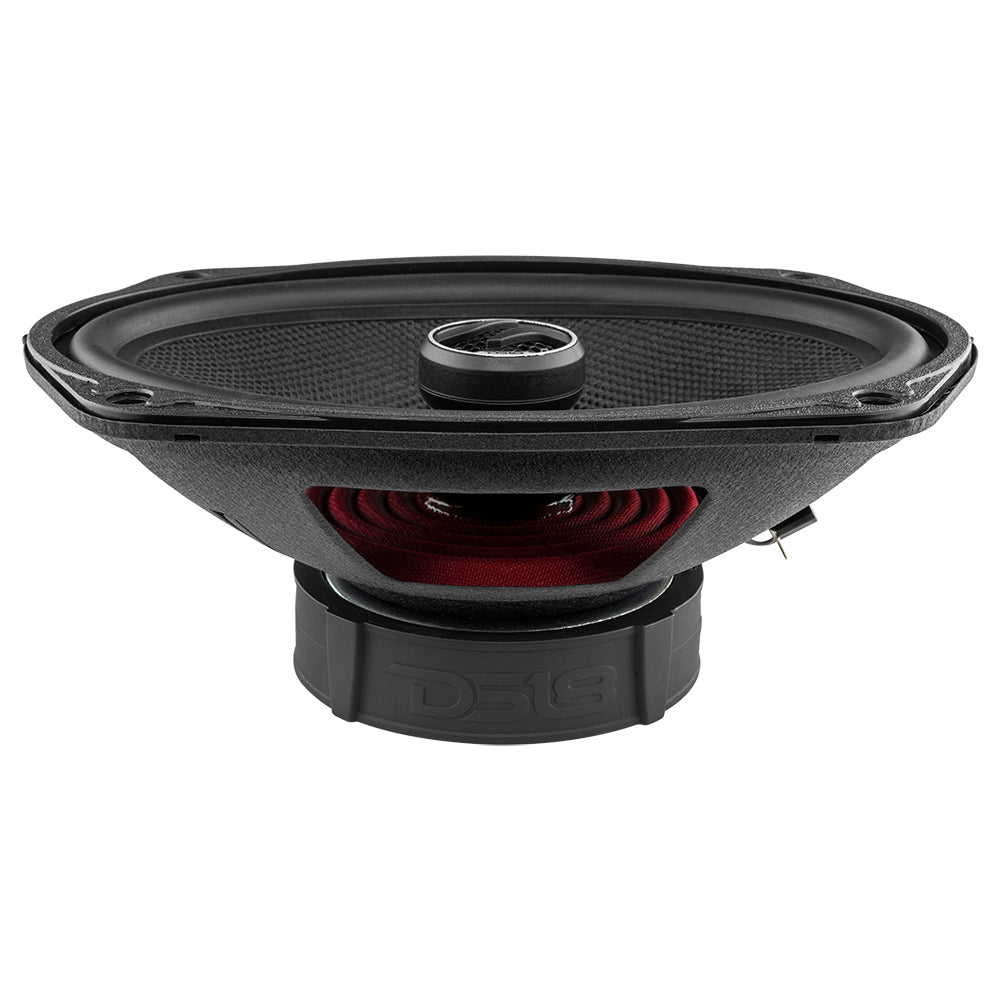

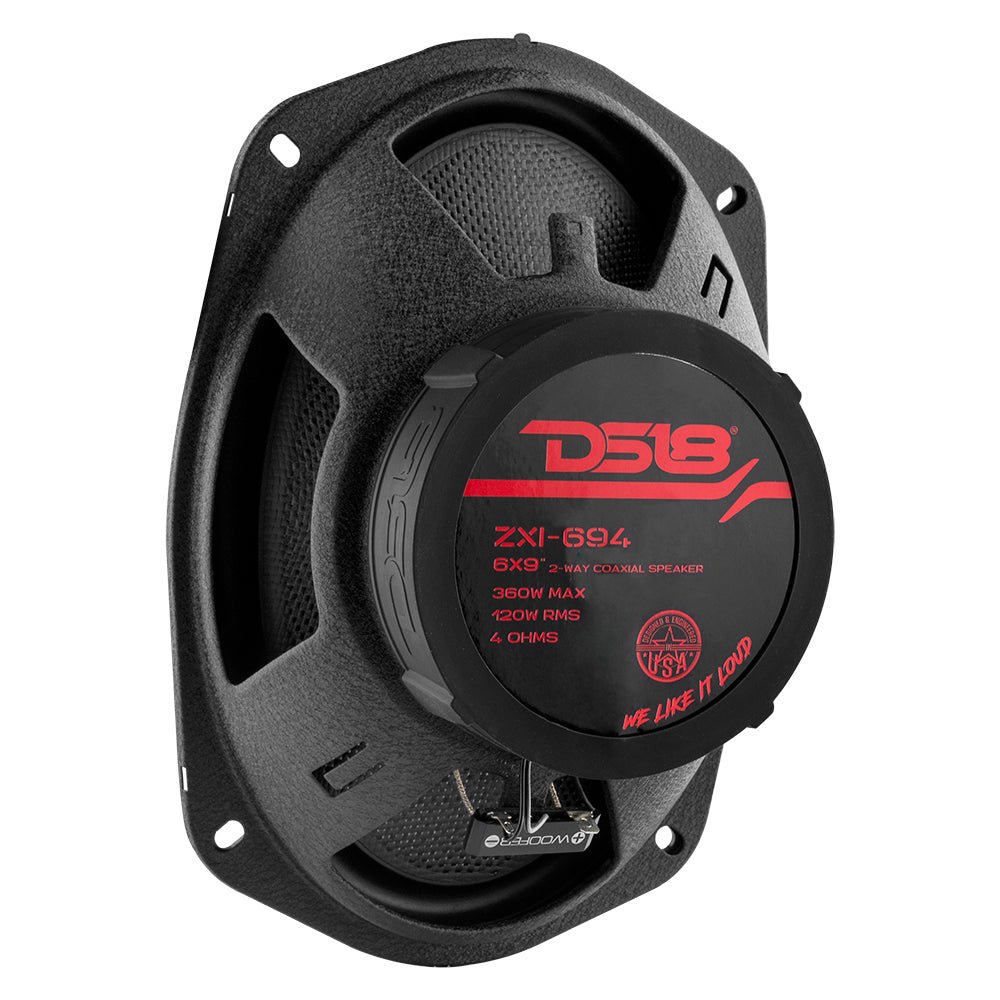

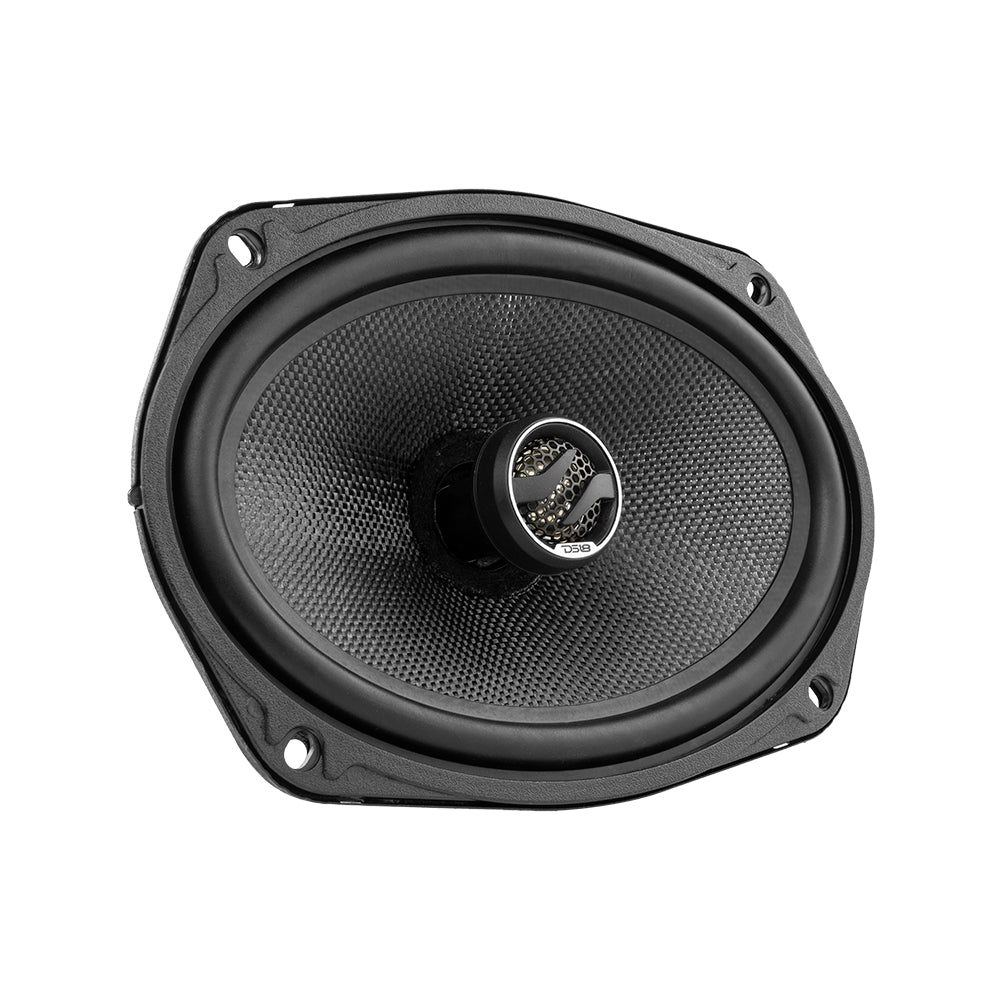

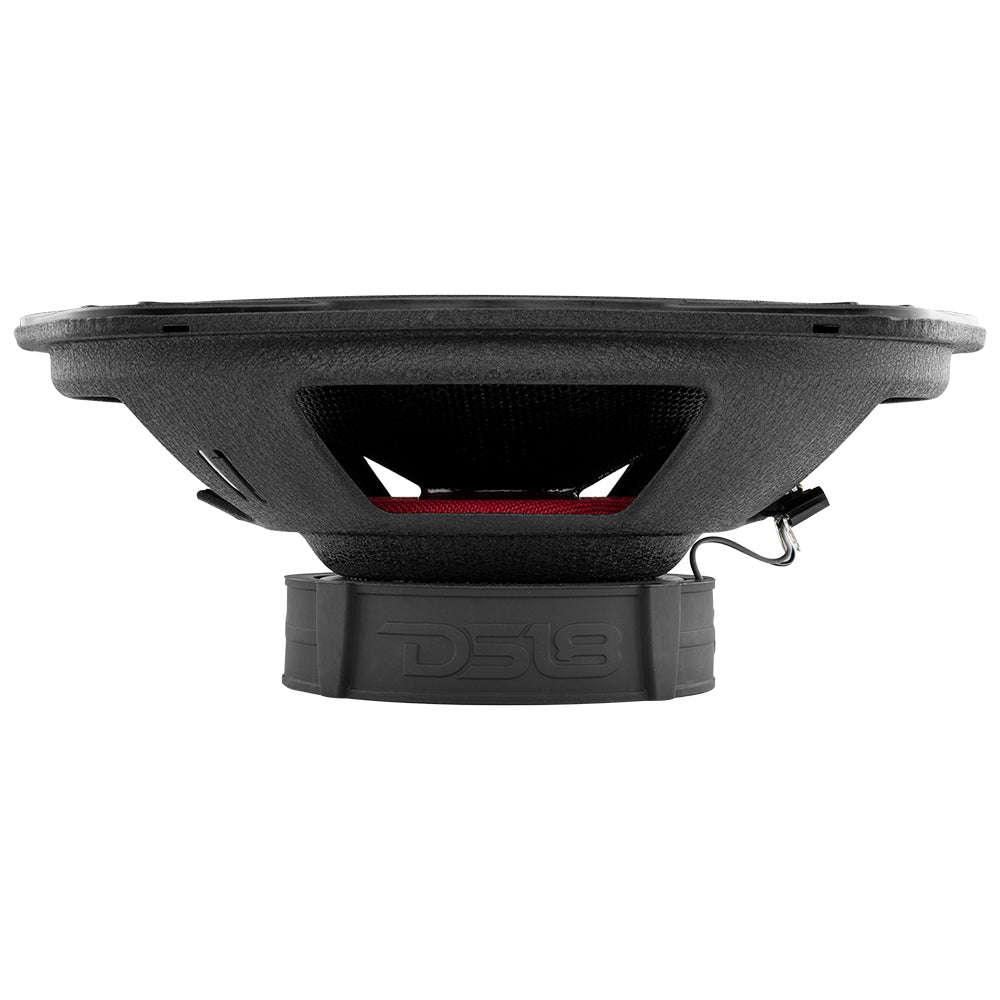

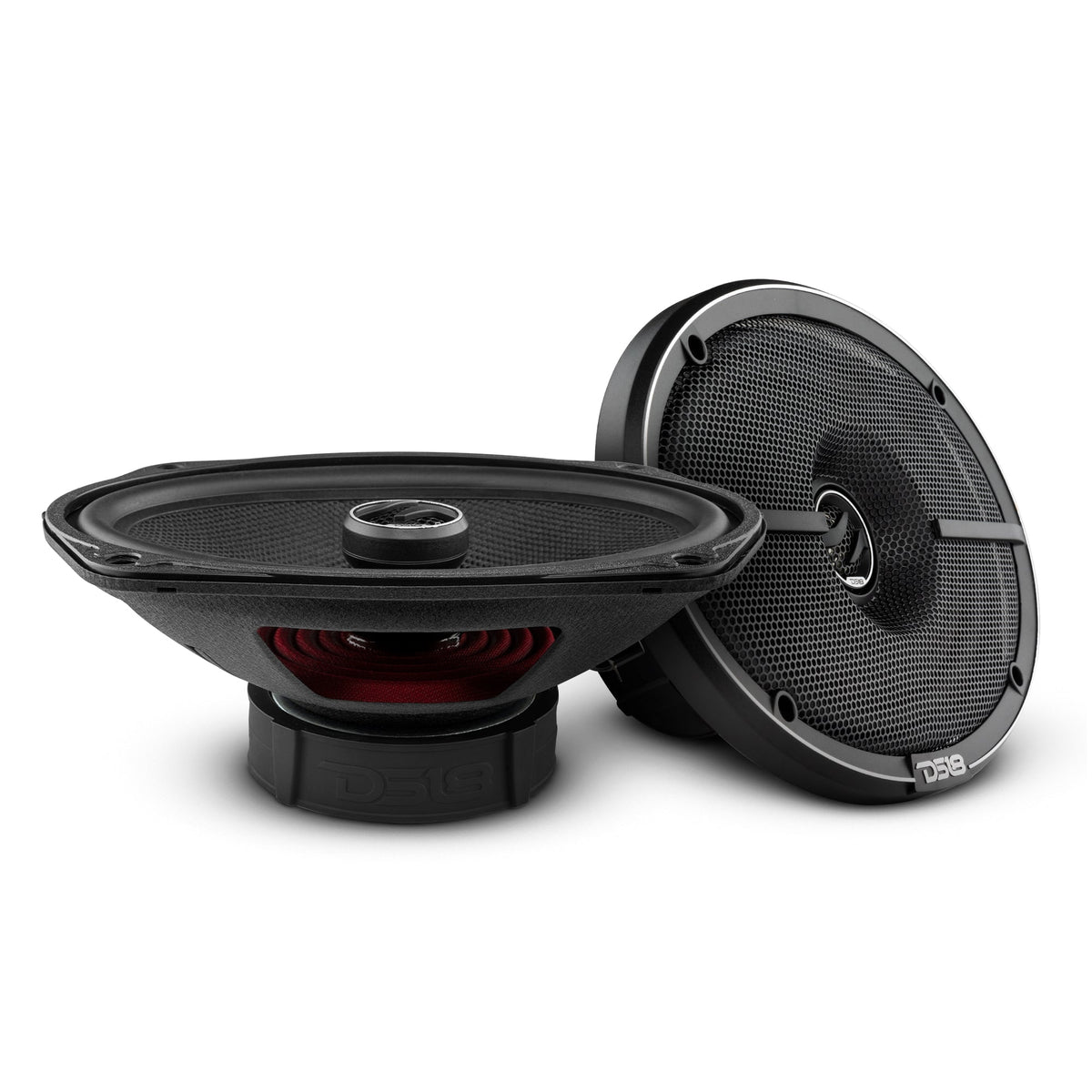

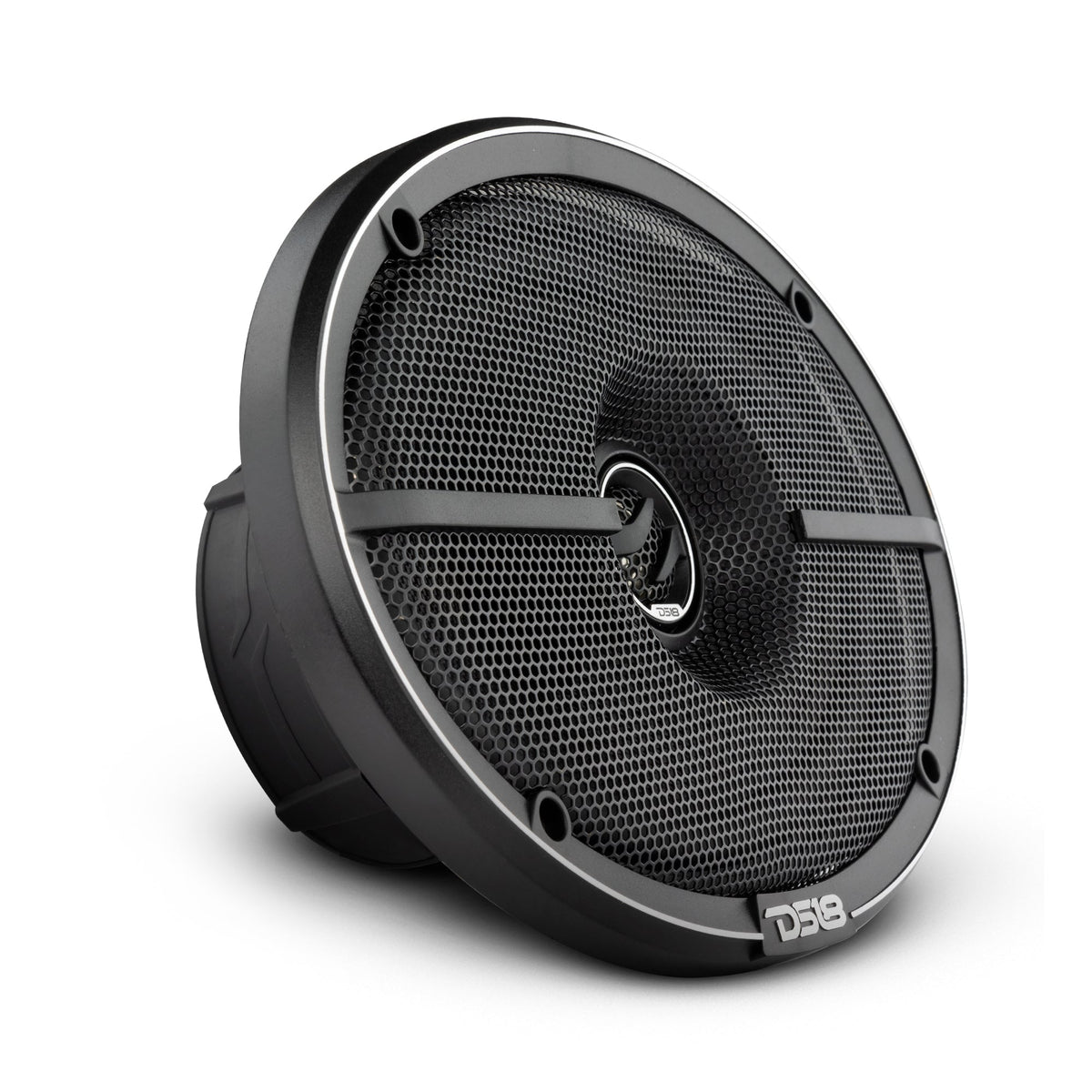

DS18 ZXI-694 6x9" Coaxial

Name: DS18 ZXI-694 6x9" Coaxial
Brand: DS18
Price: 134.95 USD
Availability: OutOfStock

$134.95

Sale Sold out

Shipping calculated at checkout.

Upgrade your ride with the DS18 ZXI-694 6x9" Coaxial — available at EB Electronics, your local car audio experts.

Whether you're upgrading a daily driver or building a dedicated show car, these DS18 speakers deliver the clarity and punch your system deserves.

Key Specifications:

6x9"
120 Watts RMS
4Ohm
2-Way
Coaxial

Every DS18 product we carry is brand new, in original manufacturer packaging, and backed by the manufacturer's warranty. We stock a wide selection in our warehouse so your order ships fast.

What's Included:

(1) Pair of DS18 ZXI-694
Original Packaging

Have questions about fitment or installation? Stop by our store or give us a call — our team is happy to help you build the perfect system.

Shipping & Returns

Orders ship fast from our Arizona location. We accept returns within 30 days on eligible items in new condition. Full details.

Warranty

EB Electronics is an authorized DS18 dealer — every product is 100% genuine and carries the manufacturer warranty. See warranty details.

Why Buy From EB

Genuine DS18 gear, fast shipping, and real car audio experts who know this stuff inside out. We also build custom enclosures. About us.

Specifications

MIDRANGE
Nominal Diameter	6X9” / 162*235mm
Nominal Impedance	4 ohm
RMS Power Handing	120W
MAX Power Handing	360W
Sensitivity (1w/1m)	92dB
Frequency Response	31.5Hz-20KHz
Recommended HI Pass Crossover	50Hz
Number of ways	2-Way
Voice Coil Diameter	1.2” / 30.4mm
Voice Coil Former Material	KSV
Winding Material	EISV
Cone Material	Glass fiber
Surround Material	Rubber
Basket Material	Steel
Magnet Material	Barium Ferrite
Magnet Weight	550g
TWEETER
Nominal Diameter	1" (25.4mm)
Voice Coil Diameter	0.8"(ø20.4mm)
Voice Coil Former Material	KSV
Winding Material	EISVM
Diaphragm Material	PEI
Magnet Material	Neodymium
Magnet Weight	8.5g

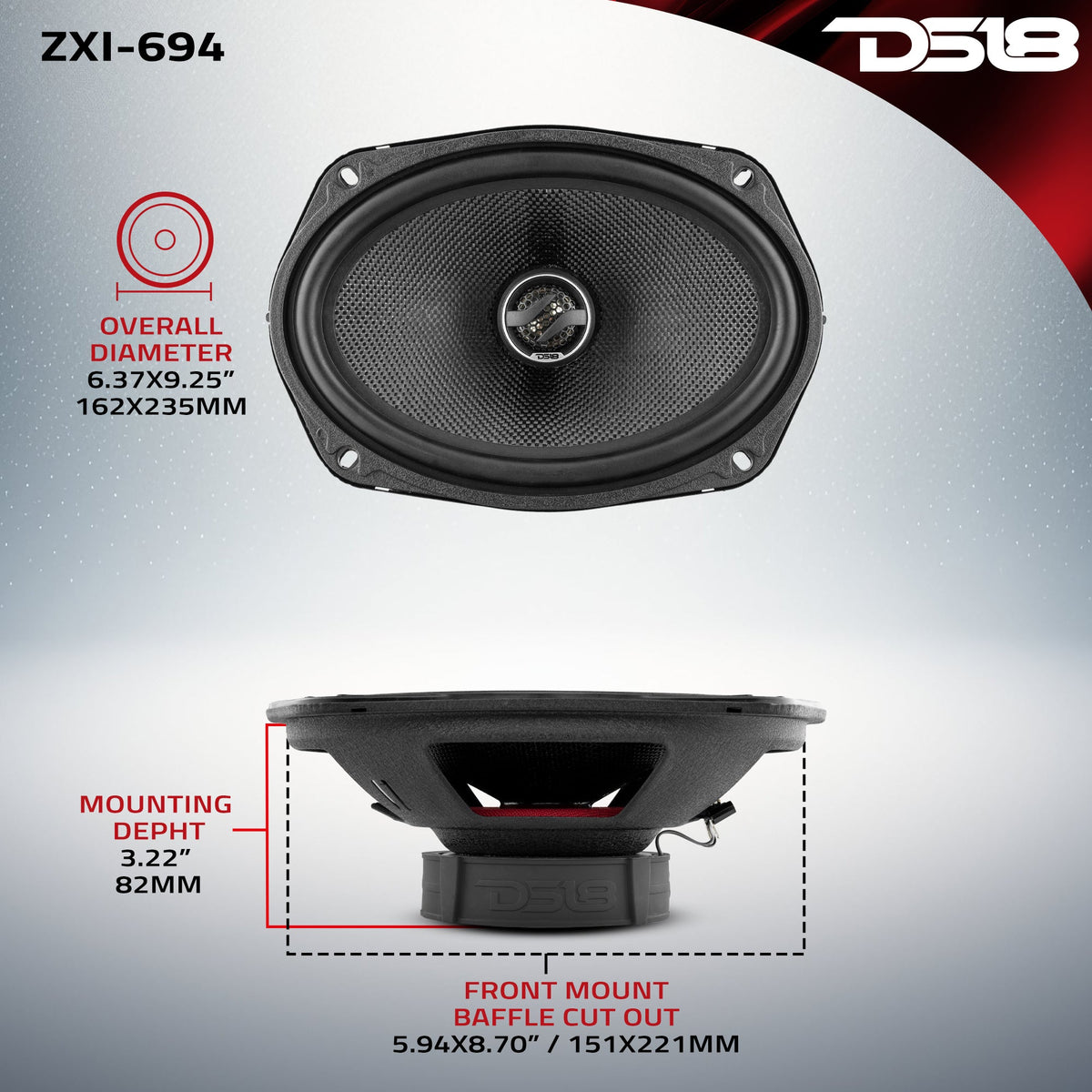

MEASUREMENT
Overall Diameter	6.37x9.25” /162*235mm
Overall Depth	3.66” / 93mm
Front Mount Baffle Cutout	5.94x8.70” / 151*221mm
Mouting Depth	3.22” / 82mm
Motor Diameter	4.09” / 104mm
SKU	ZXI-694
Equivalent Volume Vas	17.52L
Excursion (one way) Xmax	3.3mm
Free Air Resonance Fs	58Hz
Mechanical Factor Qms	5.77
Electrical Factor Qes	1.18
Total Factor Qts	0.98
Mechanical Mass Mms	23.44g
Mechanical Compliance Cms	286mm/N
BL Factor Bl	5.18
Voice Coil Inductance Le	178mH
Cone Area Sd	207.7cm2
DC Resistance Re	3.5 ohm
Mechanical Mass w/o air Mmd	20g
Gross Single Unit Weight	1.26KG
Single Unit Box Diamensions W x L x H	415285115mm
Quantity of Units in Master Carton	4PRS/CTN
Gross Master Carton Weight	13.3KG
Master Carton Dimensions W x L x H	595430250mm

Manual

📄 Download Owner's Manual (PDF)
