PAC RPK4-CH4101 RadioPRO Integrated Installation Kit with Integrated Climate Controls for Select 2013-2019 RAM Trucks with 8-Inch Display

The PAC RPK4-CH4101 RadioPRO Integrated Installation Kit is a comprehensive radio replacement solution designed for 2013-2018 RAM trucks and 2019 RAM Classic models originally equipped with the factory 8.4-inch screen. This kit provides everything needed for a seamless installation of an aftermarket radio, offering a factory-matched dash kit with a complete set of climate control knobs and buttons, eliminating the need to reuse original equipment (OE) parts.

Beyond a basic dash kit, the RPK4-CH4101 is a full OEM-integration solution that retains crucial factory features. It includes an integrated 5.2-inch touchscreen LCD display that allows users to easily swipe between climate control, camera selection, vehicle settings, performance gauges, and vehicle information. The kit also features four programmable hard buttons with proximity-sense technology for quick access to various functions.

Key retained features include steering wheel control functions, the factory reverse camera (if equipped), and the factory amplified sound system (if present). It supports both single-DIN and double-DIN aftermarket radios. For expanded functionality, the system can support up to five driver safety cameras with the addition of the optional PAC RPA-16P5V camera harness (sold separately). The kit comes with essential components such as an antenna adapter, chime speaker, and plug-and-play harnesses for a straightforward installation.

• Designed for 2013–2018 RAM trucks and 2019 RAM Classic models with 8.4-inch factory screen.
• Accommodates single-DIN and double-DIN aftermarket radios.
• Integrated 5.2-inch touchscreen LCD display for climate, camera, vehicle settings, and gauges.
• Retains factory climate controls, steering wheel controls, backup camera, amplified audio system, and vehicle settings.
• Includes 4 programmable hard buttons with proximity-sense technology.
• Supports up to 5 driver safety cameras with optional RPA-16P5V module.

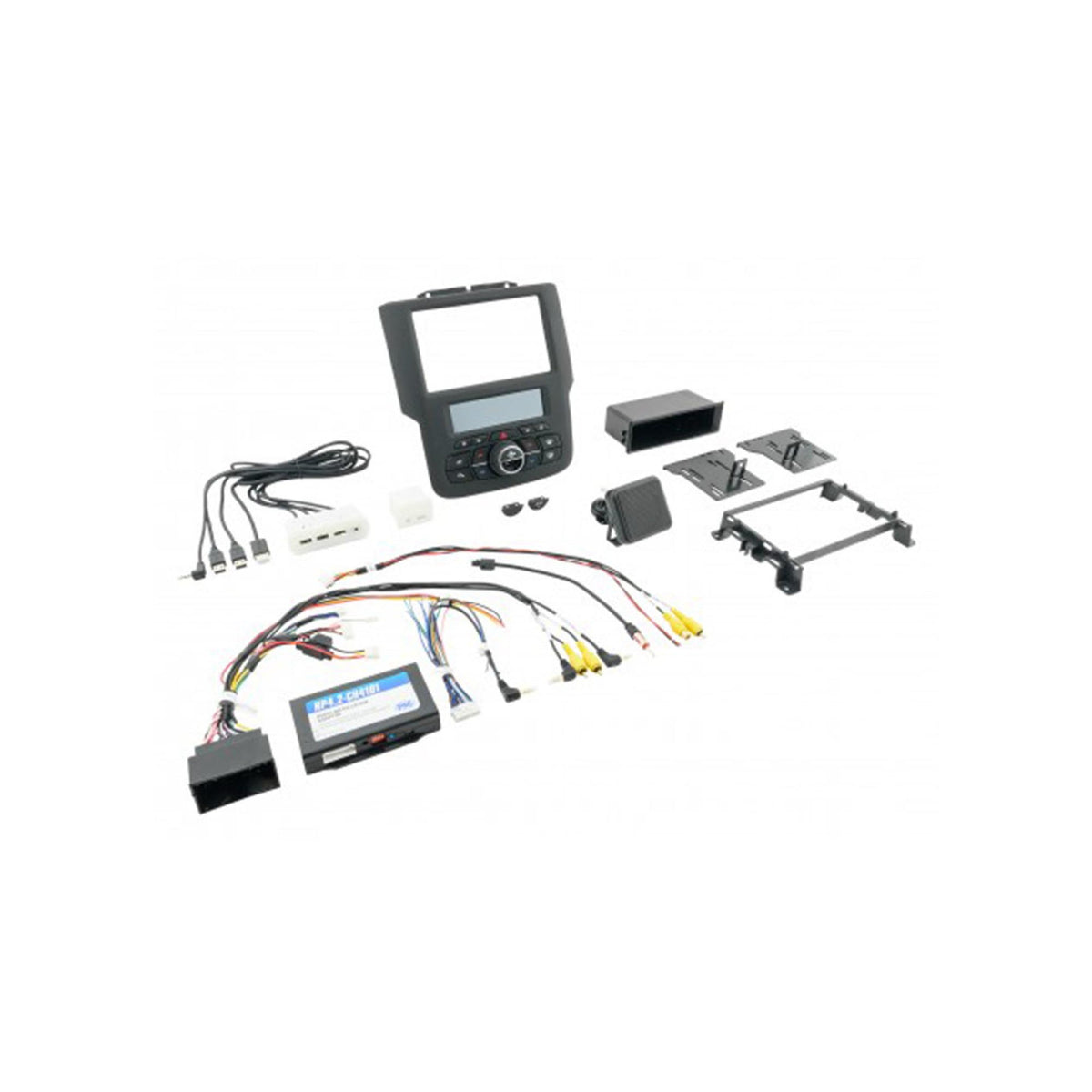

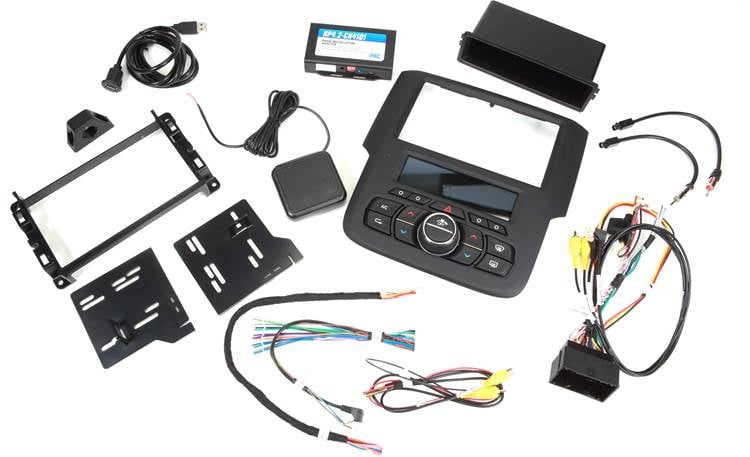

• Includes antenna adapter, chime speaker, and plug-and-play harnesses.
• Does not retain: Cluster Display Features, uConnect Features, Compass, WiFi-Hotspot, Clock, Phone pop-ups, Navigation pop-ups, Factory Amplifier Speed Controlled Volume. [cite: 4 (previous search)]
