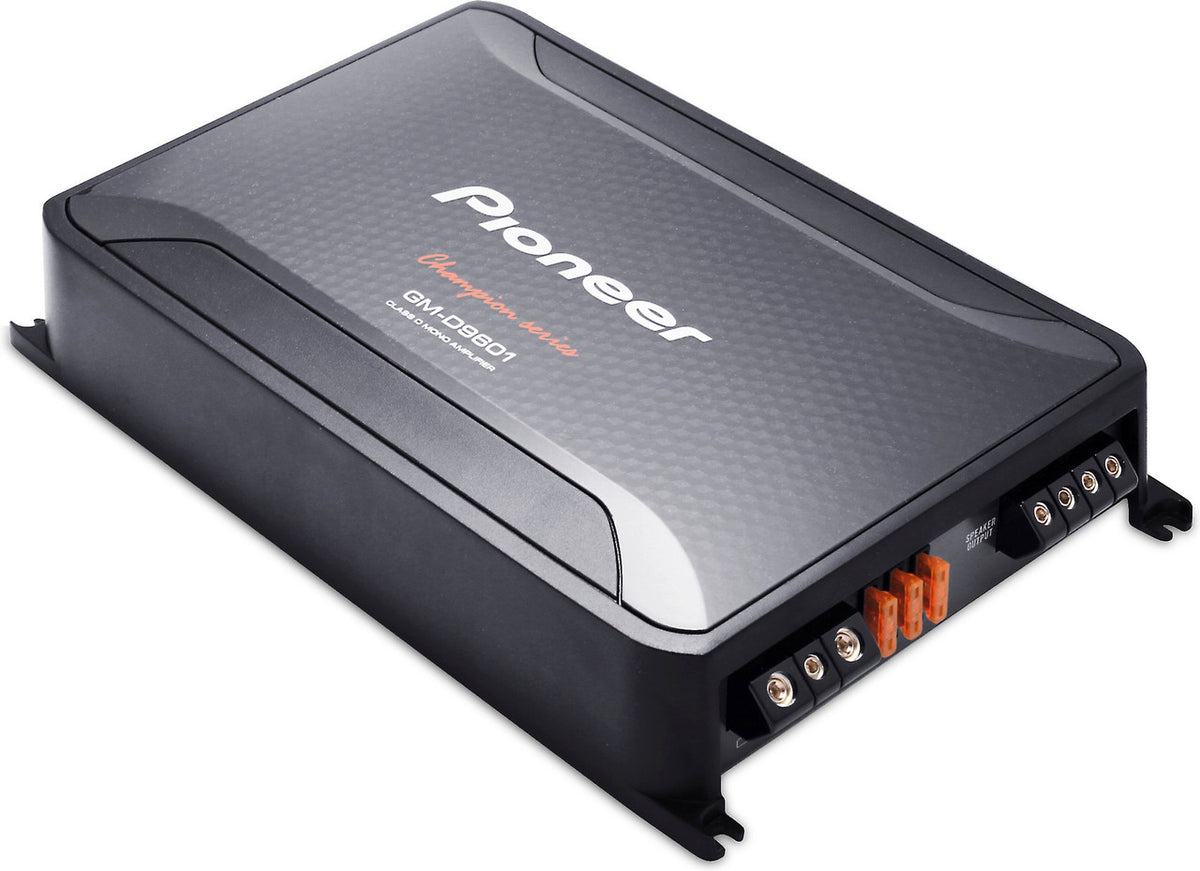

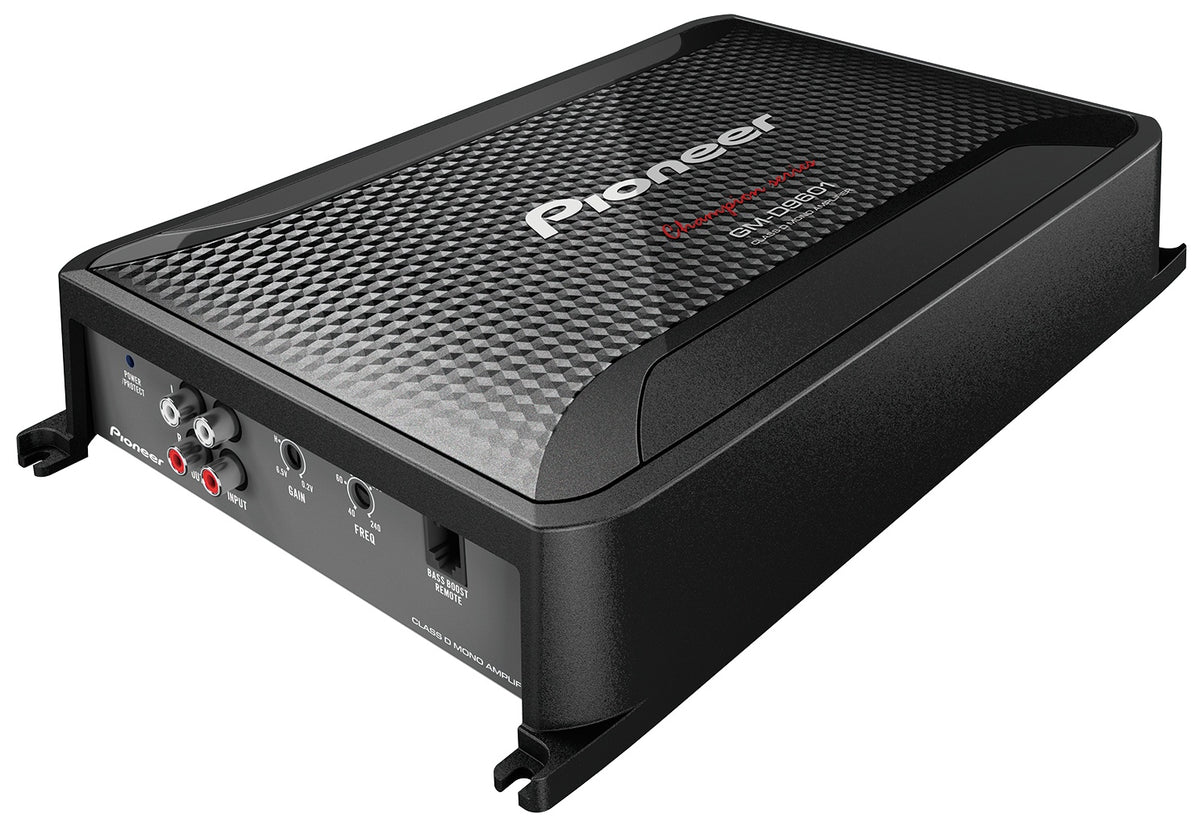

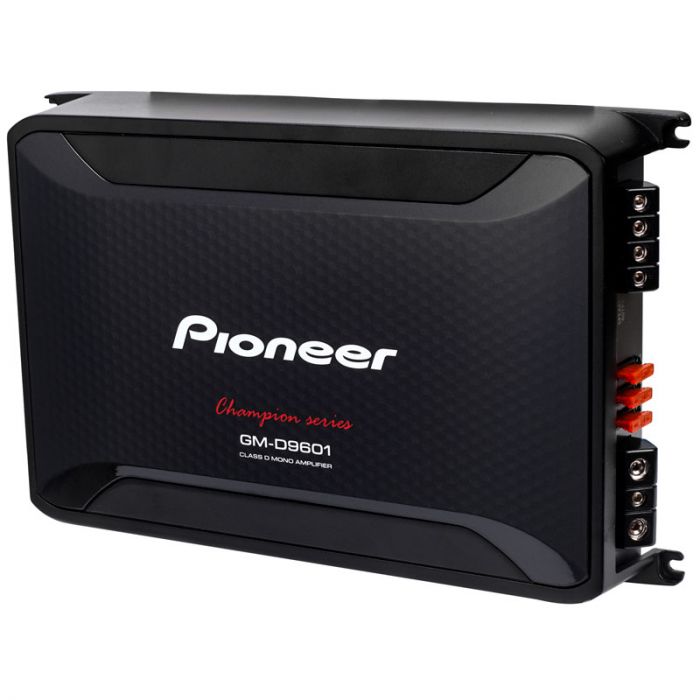

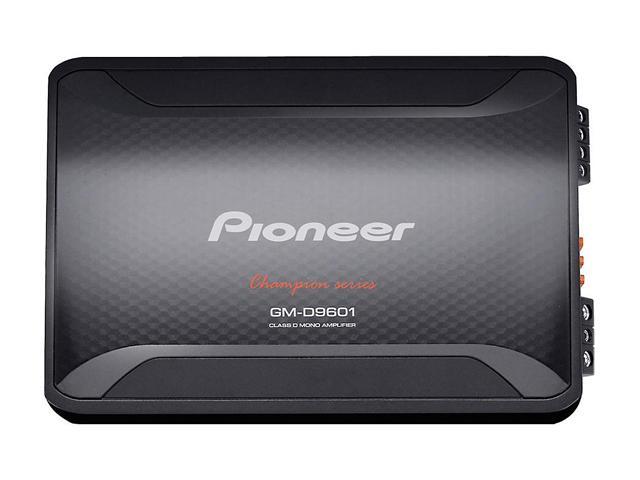

Pioneer GM-D9601 Class D Mono Amplifier with Bass Boost Remote

The Pioneer GM-D9601 is a highly efficient Class D mono amplifier designed to deliver powerful bass to your car audio system. This amplifier is capable of sending up to 1200 watts RMS to your subwoofer setup, ensuring a strong and impactful low-frequency response. Its compact chassis, made possible by efficient Class D technology, allows for versatile installation options in various vehicle spaces.

Featuring a robust and stable circuit design, the GM-D9601 can handle a 1-ohm load, providing flexibility for connecting multiple subwoofers without concerns about impedance matching. It includes a variable low-pass filter (40-240 Hz, 12 dB per octave) to fine-tune audio frequencies according to subwoofer characteristics and personal listening preferences. For enhanced control, a wired remote bass boost controller is included, allowing drivers to optimize bass levels from 0 to +18 dB at 50 Hz directly from the front seat.

The amplifier also incorporates speaker-level inputs with automatic signal sensing, enabling seamless integration with OEM (factory) head units that lack RCA-type outputs, eliminating the need for additional adapters. An improved circuit design with a "Protection Control System" senses internal temperature and automatically moderates input levels to prevent shutdown and ensure durability.
